Contents
- Boom/Stick Option (Hex) 1
- Boom/Stick Option (Hex) 2
- Boom/Stick Option (Hex) 3
- Boom/Stick Option (Hex) 4
- Boom/Stick Option (Hex) 5
- Boom/Stick Option (Hex) 6
- Dimensions
- Undercarriage
- Engine Details
- Operational Specs
- Swing Mechanism
- Weights
- Buckets
- Hydraulic System
- Operating Specifications
- Service Refill Capacities
- Standards
- Sound Performance
- Track
- Drive
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 40.83 ft in (12450 mm) |
| Shipping Height Of Unit | 12.08 ft in (3680 mm) |
| Max Loading Height | 25.83 ft in (7870 mm) |
| Max Reach Along Ground | 42.42 ft in (12940 mm) |
| Max Vertical Wall Digging Depth | 19.25 ft in (5860 mm) |
| Max Digging Depth | 29.25 ft in (8920 mm) |
| Boom/Stick Option (Hex) 1 | R4.3TB-LONG REACH BOOM |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 40.75 ft in (12430 mm) |
| Shipping Height Of Unit | 11.67 ft in (3570 mm) |
| Max Loading Height | 25.42 ft in (7750 mm) |
| Max Reach Along Ground | 41.25 ft in (12580 mm) |
| Max Vertical Wall Digging Depth | 17.5 ft in (5330 mm) |
| Max Digging Depth | 27.92 ft in (8520 mm) |
| Boom/Stick Option (Hex) 2 | R3.9TB-LONG REACH BOOM |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 39.17 ft in (11950 mm) |
| Max Loading Height | 24.33 ft in (7410 mm) |
| Shipping Height Of Unit | 12 ft in (3660 mm) |
| Max Reach Along Ground | 39.75 ft in (12120 mm) |
| Max Vertical Wall Digging Depth | 17.33 ft in (5300 mm) |
| Max Digging Depth | 26.92 ft in (8200 mm) |
| Boom/Stick Option (Hex) 3 | R3.9TB-HD REACH BOOM |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 39.17 ft in (11940 mm) |
| Shipping Height Of Unit | 12.08 ft in (3690 mm) |
| Max Loading Height | 24.33 ft in (7420 mm) |
| Max Reach Along Ground | 38.42 ft in (11710 mm) |
| Max Digging Depth | 25.08 ft in (7650 mm) |
| Max Vertical Wall Dig Depth | 17.08 ft in (5210 mm) |
| Boom/Stick Option (Hex) 4 | R3.35TB-HD REACH BOOM |
Boom/Stick Option (Hex) 5
| Shipping Length Of Unit | 38.17 ft in (11640 mm) |
| Shipping Height Of Unit | 13.17 ft in (4020 mm) |
| Max Loading Height | 22.42 ft in (6830 mm) |
| Max Reach Along Ground | 36.58 ft in (11160 mm) |
| Max Digging Depth | 23.58 ft in (7200 mm) |
| Max Vertical Wall Dig Depth | 15.25 ft in (4660 mm) |
| Boom/Stick Option (Hex) 5 | M3.0VB-MASS EXCAVATION BOOM |
Boom/Stick Option (Hex) 6
| Max Loading Height | 21.75 ft in (6640 mm) |
| Shipping Length Of Unit | 38.42 ft in (11710 mm) |
| Max Reach Along Ground | 35.08 ft in (10700 mm) |
| Shipping Height Of Unit | 13 ft in (3960 mm) |
| Max Digging Depth | 22 ft in (6700 mm) |
| Boom/Stick Option (Hex) 6 | M2.5VB-MASS EXXCAVATION BOOM |
| Max Vertical Wall Dig Depth | 13.83 ft in (4220 mm) |
Dimensions
| Ground Clearance | 1.67 ft in (510 mm) |
| Height To Top Of Cab | 10.5 ft in (3210 mm) |
| Width To Outside Of Tracks | 11.42 ft in (3490 mm) |
| Length Of Track On Ground | 14.33 ft in (4360 mm) |
| Tail Swing Radius | 12.33 ft in (3770 mm) |
| Removal Counterweight Clearance | 4.33 ft in (1320 mm) |

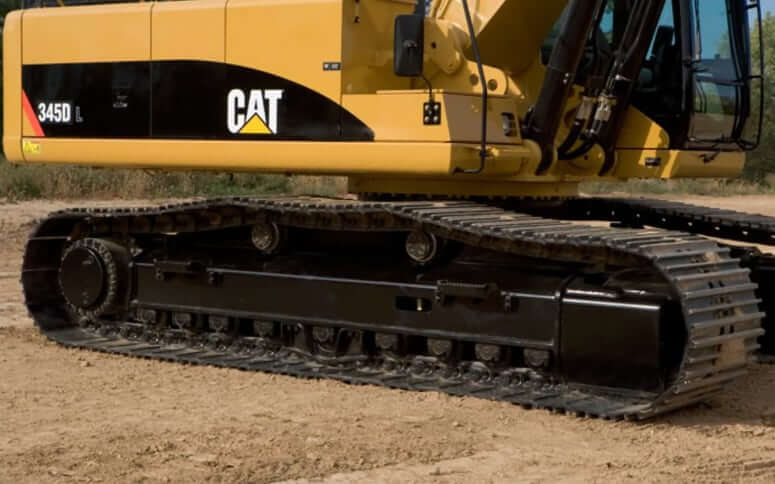

Undercarriage
| Track Gauge | 9 ft in (2740 mm) |
| Shoe Size | 30 in (750 mm) |
| Max Travel Speed | 2.8 mph (4.5 km/h) |
| Number Of Track Rollers Per Side | 9 |
| Number Of Shoes Per Side | 52 |
| Number Of Carrier Rollers Per Side | 2 |
| Drawbar Pull | 75920 lb (337.7 kN) |
Engine Details
| Cylinders | 6 |
| Number Of Cylinders | 6 |
| Engine Make | CAT |
| Engine Model | C13 ACERT |
| Net Power | 380 hp (283 kw) |
| Displacement | 763 cu in (12.6 L) |
| Bore | 5.1 in (129.6 mm) |
| Stroke | 6.2 in (157.5 mm) |
| Net Power – Iso 9249 | 380 hp (283.4 kw) |
| Net Power – Sae J1349 | 380 hp (283.4 kw) |
| Engine Model | Cat C13 ACERT |
| Net Power – Eec 80/1269 | 380 hp (283.4 kw) |
| Net Flywheel Power | 380 hp (283.4 kw) |
Operational Specs
| Operating Weight | 100040 lb (45375 kg) |
| Fuel Tank Capacity | 186 gal (705 L) |
| Cooling System Fluid Capacity | 9.4 gal (35.5 L) |
| Hydraulic System Fluid Capacity | 150 gal (570 L) |
| Engine Oil Capacity | 11 gal (42 L) |
| Swing Drive Fluid Capacity | 2.6 gal (10 L) |
| Hydraulic System Relief Valve Pressure | 5080 psi (35000 kPa) |
| Hydraulic Pump Flow Capacity | 194 gal/min (734 L/min) |
Swing Mechanism
| Swing Speed | 8.9 rpm |
| Swing Torque | 109560 lb ft (148543.5 Nm) |

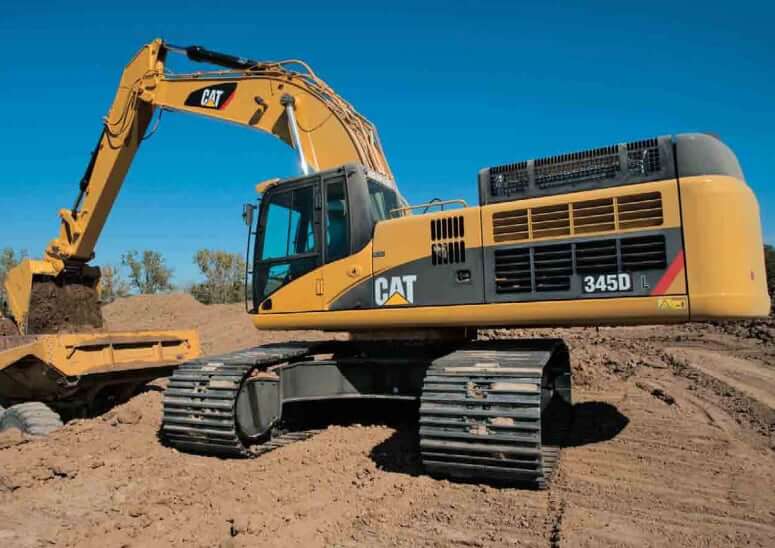

Weights
| Operating Weight | 100040 lb (45377.4 kg) |
| Operating Weight – Long Undercarriage | 100040 lb (45377.4 kg) |
| Operating Weight – Long Variable | 108610 lb (49264.7 kg) |

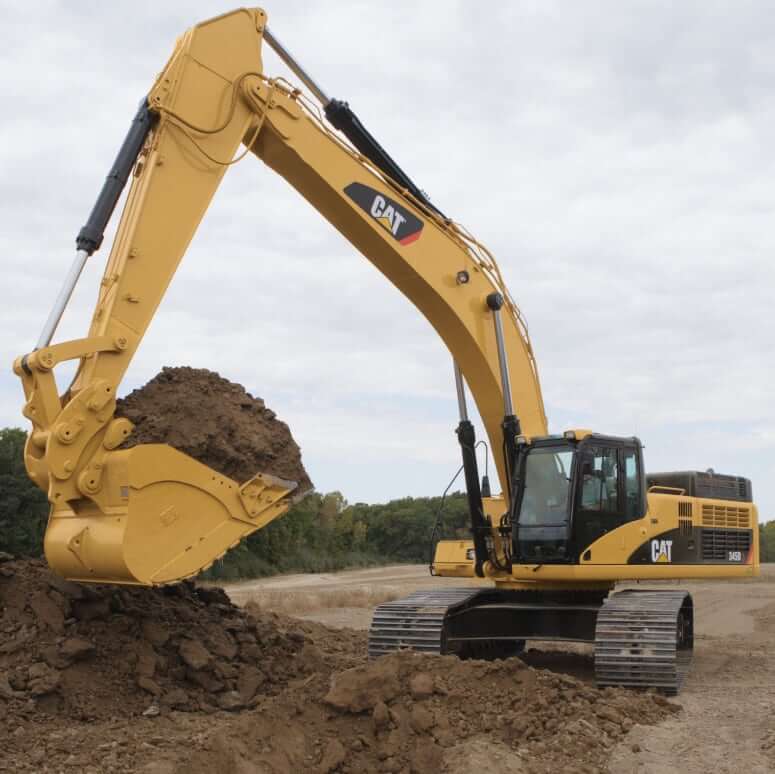

Buckets
| Reference Bucket Capacity | 2.4 yd3 (1.8 m3) |
| Maximum Bucket Capacity | 4.6 yd3 (3.5 m3) |
Hydraulic System
| Pilot System – Maximum Flow | 11 gal/min |
| Pilot System – Maximum Pressure | 596 psi |
| Maximum Pressure – Travel | 5080 psi |
| Maximum Pressure – Swing | 4550 psi |
| Boom Cylinder – Bore | 6.3 in (160.1 mm) |
| Boom Cylinder – Stroke | 62 in (1574.8 mm) |
| Stick Cylinder – Bore | 7.5 in (190.5 mm) |
| Main System – Maximum Flow – Total | 194 gal/min |
| Tb Family Bucket Cylinder – Stroke | 53.4 in (1356.4 mm) |
| Tb Family Bucket Cylinder – Bore | 6.3 in (160.1 mm) |
| Ub Family Bucket Cylinder – Bore | 6.7 in (170.2 mm) |
| Ub Family Bucket Cylinder – Stroke | 55 in (1397 mm) |
| Maximum Pressure – Equipment – Heavy Lift | 5511 psi |
| Maximum Pressure – Equipment – Normal | 5080 psi |
| Main Normal Relief Pressure | 5080 psi |
| Stick Cylinder – Stroke – For Long Reach And Reach Fronts | 70 in (1778 mm) |
| Stick Cylinder – Stroke – For Mass Excavation Fronts | 69.2 in (1757.7 mm) |

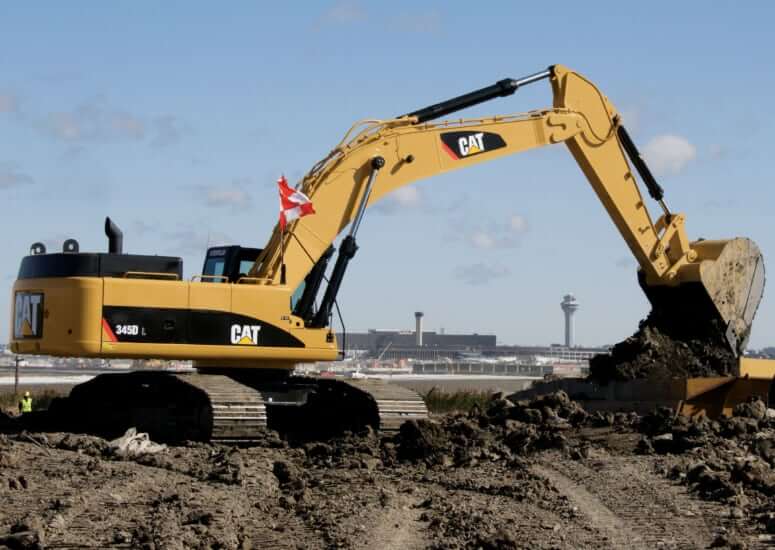

Operating Specifications
| Maximum Reach – Ground Level | 42.5 ft in (13 m) |
| Maximum Bucket Capacity | 5 yd3 (3.9 m3) |
| Maximum Digging Depth | 29.3 ft in (9 m) |
| Bucket Digging Force – Normal | 39300 lb (17826.2 kg) |
| Nominal Bucket Weight | 3880 lb (1760 kg) |

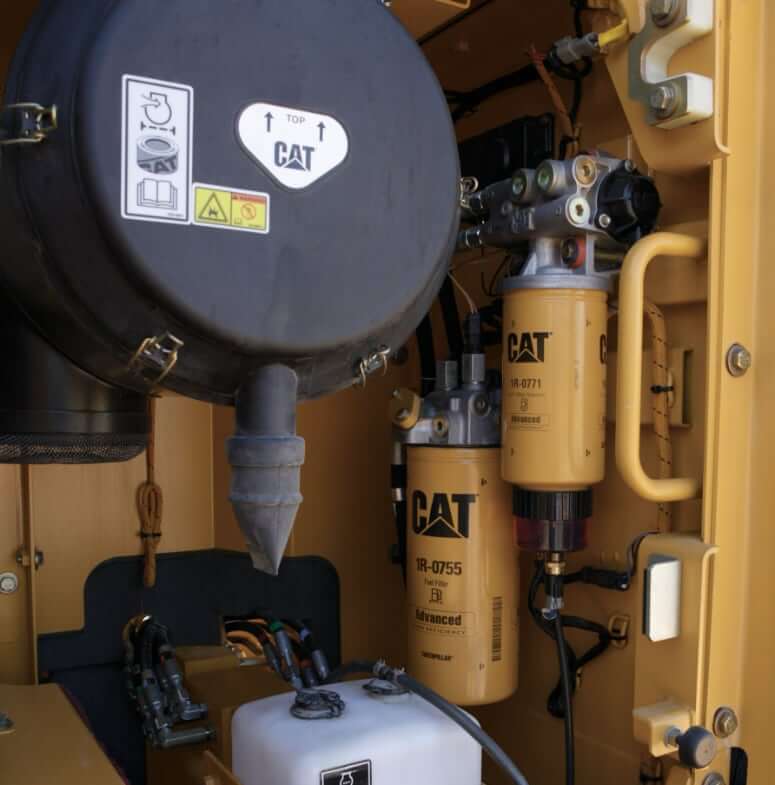

Service Refill Capacities
| Cooling System | 9.4 gal (35.6 L) |
| Final Drive – Each | 4 gal (15.2 L) |
| Hydraulic Tank | 64 gal (242.3 L) |
| Hydraulic System – Including Tank | 150 gal (567.9 L) |
| Engine Oil | 11 gal (41.7 L) |
| Fuel Tank Capacity | 186 gal (704.1 L) |
| Swing Drive – Each | 2.6 gal (9.9 L) |
Standards
| Brakes | SAE J1026 APR90 |
| Cab/Fogs | SAE J1356 FEB 88 and ISO 10262-1998 |
Sound Performance
| Performance | ANSI/SAE J1166 MAY90 Meets OSHA and MSHA Requirements |
Track
| Number Of Carrier Rollers – Each Side | 2 |
| Number Of Track Rollers – Each Side – Long Undercarriage | 9 |
| Number Of Shoes – Each Side – Long Undercarriage | 52 |
Drive
| Maximum Travel Speed | 2.9 mph (4.7 km/h) |
| Maximum Drawbar Pull – Long Undercarriage | 75920 lb (34436.8 kg) |
