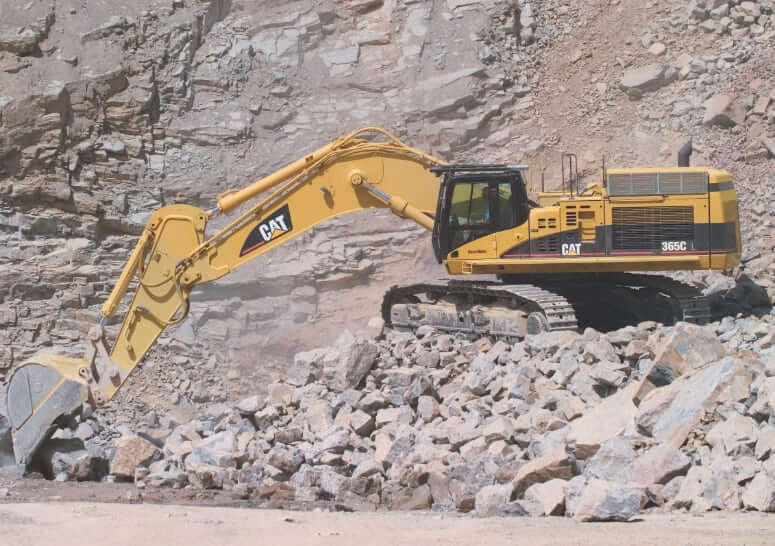

Contents
- Boom/Stick Option (Hex) 1
- Boom/Stick Option (Hex) 2
- Boom/Stick Option (Hex) 3
- Boom/Stick Option (Hex) 4
- Boom/Stick Option (Hex) 5
- Boom/Stick Option (Hex) 6
- Dimensions
- Undercarriage
- Engine Details
- Operational Specs
- Swing Mechanism
- Weights
- Buckets
- Hydraulic System
- Operating Specifications
- Service Refill Capacities
- Standards
- Sound Performance
- Track
- Drive
- Engine – Tier 2/Stage Ii
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 43.25 ft in (13170 mm) |
| Shipping Height Of Unit | 16.25 ft in (4960 mm) |
| Max Cutting Height | 43.04 ft in (13117 mm) |
| Max Loading Height | 30.17 ft in (9190 mm) |
| Max Reach Along Ground | 46.08 ft in (14040 mm) |
| Max Vertical Wall Digging Depth | 24.86 ft in (7577 mm) |
| Max Digging Depth | 31 ft in (9640 mm) |
| Boom/Stick Option (Hex) 1 | Boom 25\’7\” (7800 mm) / Stick 15\’4\”” (4670 mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 43.42 ft in (13225 mm) |
| Max Cutting Height | 41.76 ft in (12727 mm) |
| Shipping Height Of Unit | 15.17 ft in (4615 mm) |
| Max Loading Height | 29 ft in (8830 mm) |
| Max Reach Along Ground | 44.25 ft in (13490 mm) |
| Max Vertical Wall Digging Depth | 22.58 ft in (6882 mm) |
| Max Digging Depth | 29.33 ft in (8940 mm) |
| Boom/Stick Option (Hex) 2 | Boom 25\’7\”” (7800 mm) / Stick 13\’7\”” (4150 mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 43.75 ft in (13310 mm) |
| Max Cutting Height | 41 ft in (12496 mm) |
| Max Loading Height | 28.25 ft in (8600 mm) |
| Shipping Height Of Unit | 14.42 ft in (4390 mm) |
| Max Reach Along Ground | 42.58 ft in (12980 mm) |
| Max Vertical Wall Digging Depth | 20.92 ft in (6375 mm) |
| Max Digging Depth | 27.5 ft in (8390 mm) |
| Boom/Stick Option (Hex) 3 | Boom 25\’7\”” (7800 mm) / Stick 11\’10\”” (3600 mm) |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 43.75 ft in (13310 mm) |
| Shipping Height Of Unit | 13.75 ft in (4200 mm) |
| Max Cutting Height | 40.74 ft in (12415 mm) |
| Max Loading Height | 27.67 ft in (8440 mm) |
| Max Reach Along Ground | 40.5 ft in (12340 mm) |
| Max Digging Depth | 25 ft in (7630 mm) |
| Max Vertical Wall Dig Depth | 20.38 ft in (6209 mm) |
| Boom/Stick Option (Hex) 4 | Boom 25\’7\”” (7800 mm) / Stick 9\’4\”” (2840 mm) |
Boom/Stick Option (Hex) 5
| Shipping Length Of Unit | 39.92 ft in (12150 mm) |
| Shipping Height Of Unit | 15 ft in (4560 mm) |
| Max Cutting Height | 39.04 ft in (11899 mm) |
| Max Loading Height | 22.78 ft in (6942 mm) |
| Max Reach Along Ground | 37.54 ft in (11440 mm) |
| Max Digging Depth | 24.01 ft in (7317 mm) |
| Max Vertical Wall Dig Depth | 14.53 ft in (4428 mm) |
| Boom/Stick Option (Hex) 5 | Boom 21\’7\”” (6590 mm) / Stick 9\’10\”” (3000 mm) |
Boom/Stick Option (Hex) 6
| Max Cutting Height | 35.21 ft in (10732 mm) |
| Max Loading Height | 22.24 ft in (6776 mm) |
| Shipping Length Of Unit | 39.92 ft in (12160 mm) |
| Max Reach Along Ground | 36.24 ft in (11044 mm) |
| Shipping Height Of Unit | 15.08 ft in (4600 mm) |
| Max Digging Depth | 22.63 ft in (6896 mm) |
| Boom/Stick Option (Hex) 6 | Boom 21\’7\”” (6590 mm) / Stick 8\’5\”” (2570 mm) |
| Max Vertical Wall Dig Depth | 13.33 ft in (4061 mm) |

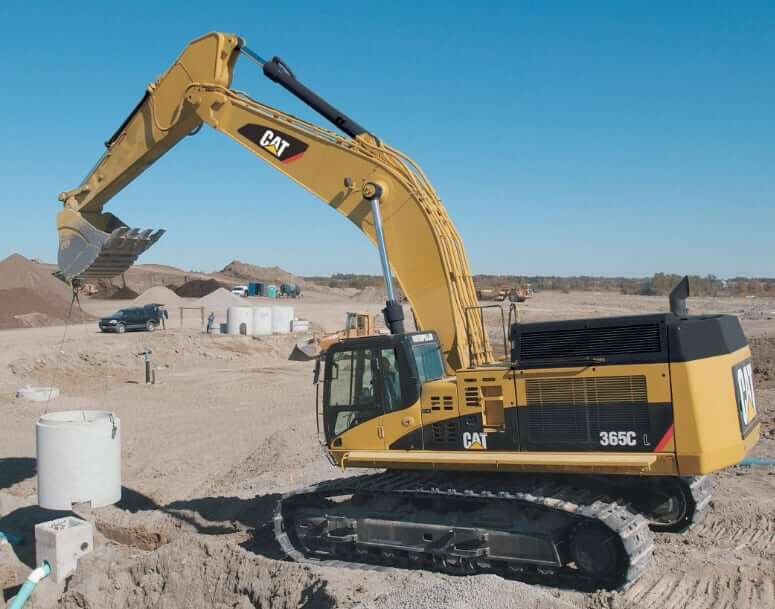

Dimensions
| Ground Clearance | 2.75 ft in (840 mm) |
| Height To Top Of Cab | 11.58 ft in (3535 mm) |
| Width To Outside Of Tracks | 11.49 ft in (3500 mm) |
| Length Of Track On Ground | 15.42 ft in (4705 mm) |
| Tail Swing Radius | 13.25 ft in (4020 mm) |
| Removal Counterweight Clearance | 5.06 ft in (1540 mm) |
| Shipping Height | 16.27 ft in (4959.1 mm) |
Undercarriage
| Track Gauge | 9 ft in (2750 mm) |
| Shoe Size | 26 in (650 mm) |
| Max Travel Speed | 2.6 mph (4.1 km/h) |
| Drawbar Pull | 103767 lb (462 kN) |
| Number Of Track Rollers Per Side | 8 |
| Number Of Shoes Per Side | 47 |
| Number Of Carrier Rollers Per Side | 3 |
| Ground Pressure | 14.38 psi (99.2 kPa) |
Engine Details
| Cylinders | 6 |
| Number Of Cylinders | 6 |
| Engine Make | CAT |
| Engine Model | C15 ACERT |
| Net Power | 411 hp (306.5 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 928 cu in (15.3 L) |
| Aspiration | Turbocharged |
| Bore | 5.4 in (137.2 mm) |
| Stroke | 6.8 in (171.5 mm) |
| Net Power – Iso 9249 | 404 hp (301.3 kw) |
| Net Power – Sae J1349 | 404 hp (301.3 kw) |
| Engine Model | Cat C15 ACERT |
| Net Power – Eec 80/1269 | 404 hp (301.3 kw) |
| Net Flywheel Power | 404 hp (301.3 kw) |
Operational Specs
| Operating Weight | 154037 lb (69870 kg) |
| Fuel Tank Capacity | 211 gal (800 L) |
| Cooling System Fluid Capacity | 25 gal (95 L) |
| Hydraulic System Fluid Capacity | 177 gal (670 L) |
| Engine Oil Capacity | 14.3 gal (54 L) |
| Swing Drive Fluid Capacity | 3.2 gal (12 L) |
| Alternator Supplied Amperage | 75 amps |
| Hydraulic System Relief Valve Pressure | 4640 psi (32000 kPa) |
| Hydraulic Pump Flow Capacity | 212 gal/min (800 L/min) |
Swing Mechanism
| Swing Torque | 150850 lb ft (204525.2 Nm) |
| Swing Speed | 6.5 rpm |
Weights
| Operating Weight | 145430 lb (65966 kg) |
| Operating Weight – Long Undercarriage | 145430 lb (65966 kg) |
| Operating Weight – Standard Undercarriage | 145430 lb (65966 kg) |
Buckets
| Reference Bucket Capacity | 3.7 yd3 (2.9 m3) |
| Maximum Bucket Capacity | 6 yd3 (4.6 m3) |
Hydraulic System
| Pilot System – Maximum Flow | 24 gal/min |
| Pilot System – Maximum Pressure | 600 psi |
| Maximum Pressure – Travel | 5080 psi |
| Maximum Pressure – Swing | 4060 psi |
| Swing System – Maximum Flow | 94 gal/min |
| Boom Cylinder – Bore | 7.5 in (190.5 mm) |
| Boom Cylinder – Stroke | 70.6 in (1793.3 mm) |
| Stick Cylinder – Bore | 7.9 in (200.7 mm) |
| Stick Cylinder – Stroke | 83.4 in (2118.4 mm) |
| Main System – Maximum Flow – Total | 212 gal/min |
| Maximum Pressure – Equipment – Heavy Lift | 5080 psi |
| Maximum Pressure – Equipment – Normal | 4640 psi |
| Vb Family Bucket Cylinder – Bore | 7.1 in (180.4 mm) |
| Vb Family Bucket Cylinder – Stroke | 56.8 in (1442.8 mm) |
| Wb Family Bucket Cylinder – Bore | 7.9 in (200.7 mm) |
| Wb Family Bucket Cylinder – Stroke | 57.4 in (1458 mm) |
| Main Normal Relief Pressure | 4640 psi |
Operating Specifications
| Bucket Digging Force | 57551.1 lb (26104.8 kg) |
| Stick Digging Force | 43388.2 lb (19680.6 kg) |
| Maximum Reach – Ground Level | 46 ft in (14.1 m) |
| Maximum Bucket Capacity | 6.1 yd3 (4.7 m3) |
| Maximum Digging Depth | 31.6 ft in (9.7 m) |
Service Refill Capacities
| Cooling System | 25 gal (94.7 L) |
| Final Drive – Each | 4 gal (15.2 L) |
| Hydraulic Tank | 82 gal (310.5 L) |
| Hydraulic System – Including Tank | 177 gal (670.1 L) |
| Engine Oil | 14.3 gal (54.2 L) |
| Fuel Tank Capacity | 211 gal (798.8 L) |
| Swing Drive – Each | 3.2 gal (12.2 L) |
Standards
| Brakes | SAE J1026 APR90 |
| Cab/Fogs | SAE J1356 FEB88 ISO 10262 |
Sound Performance
| Performance | ANSI/SAE J1166 OCT98 |
Track
| Number Of Carrier Rollers – Each Side | 3 |
| Number Of Track Rollers – Each Side – Long Undercarriage | 8 |
| Number Of Shoes – Each Side – Long Undercarriage | 47 |
| Optional For Long Undercarriage (1) | 30 in (762 mm) |
| Optional For Long Undercarriage (2) | 26 in (660.4 mm) |
| Standard With Long Undercarriage | 36 in (914.4 mm) |
Drive
| Maximum Travel Speed | 2.6 mph (4.2 km/h) |
| Maximum Drawbar Pull – Long Undercarriage | 103767 lb (47068 kg) |
Engine – Tier 2/Stage Ii
| Iso 9249 | 405 hp (302.1 kw) |
| Sae J1349 | 405 hp (302.1 kw) |
| Eec 80/1269 | 405 hp (302.1 kw) |
“
