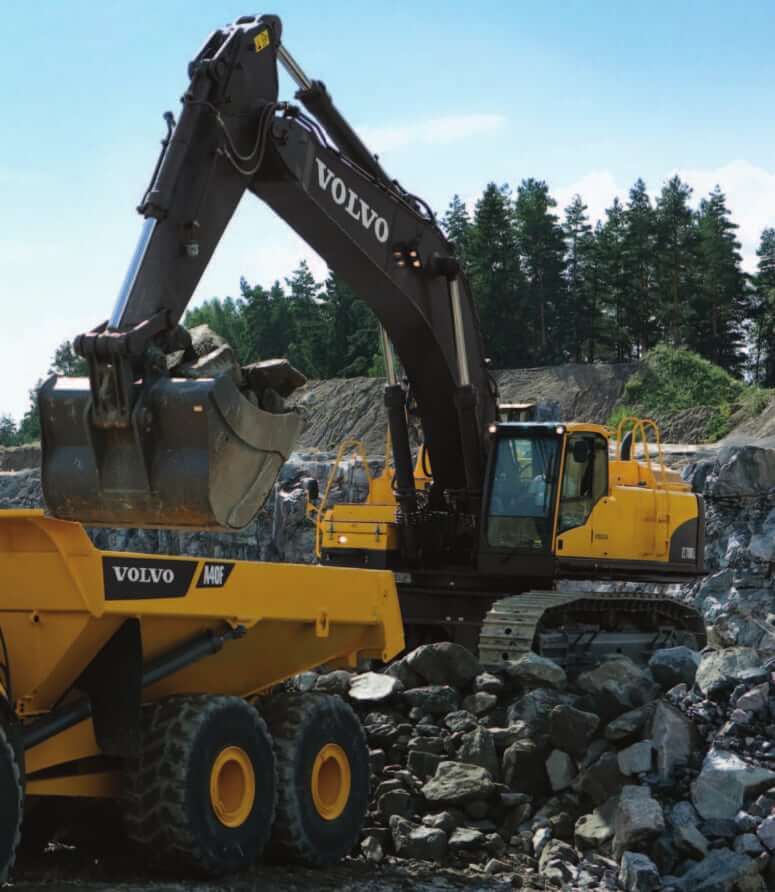

Working Range
| Shipping Length Of Unit | 40.03 ft in (12200 mm) |
| Shipping Height Of Unit | 15.93 ft in (4855 mm) |
| Max Cutting Height | 36.03 ft in (10980 mm) |
| Max Loading Height | 22.84 ft in (6960 mm) |
| Max Reach Along Ground | 36.75 ft in (11200 mm) |
| Max Vertical Wall Digging Depth | 16.62 ft in (5065 mm) |
| Max Digging Depth | 23.79 ft in (7250 mm) |
| Boom/Arm Length | Boom 21’8″ (6600 mm) / Stick 9’6″ (2900 mm) |
Working Range (Boom/Arm Option 2)
| Shipping Length Of Unit | 43.71 ft in (13320 mm) |
| Max Cutting Height | 40.98 ft in (12490 mm) |
| Shipping Height Of Unit | 15.29 ft in (4660 mm) |
| Max Loading Height | 27.6 ft in (8410 mm) |
| Max Reach Along Ground | 40.47 ft in (12335 mm) |
| Max Vertical Wall Digging Depth | 22.25 ft in (6780 mm) |
| Max Digging Depth | 25.45 ft in (7755 mm) |
| Boom/Arm Length | Boom 25’3″ (7700 mm) / Stick 9’6″ (2900 mm) |
Working Range (Boom/Arm Option 3)
| Shipping Length Of Unit | 43.38 ft in (13220 mm) |
| Max Cutting Height | 41.41 ft in (12620 mm) |
| Max Loading Height | 28.25 ft in (8610 mm) |
| Shipping Height Of Unit | 15.1 ft in (4600 mm) |
| Max Reach Along Ground | 42.36 ft in (12910 mm) |
| Max Vertical Wall Digging Depth | 23.79 ft in (7250 mm) |
| Max Digging Depth | 27.56 ft in (8400 mm) |
| Boom/Arm Length | Boom 25’3″ (7700 mm) / Stick 11’8″ (3550 mm) |
Working Range (Boom/Arm Option 4)
| Shipping Length Of Unit | 43.21 ft in (13170 mm) |
| Shipping Height Of Unit | 16.25 ft in (4950 mm) |
| Max Cutting Height | 42.46 ft in (12940 mm) |
| Max Loading Height | 29.3 ft in (8930 mm) |
| Max Reach Along Ground | 44.43 ft in (13540 mm) |
| Max Digging Depth | 29.71 ft in (9055 mm) |
| Max Vertical Wall Dig Depth | 25.78 ft in (7855 mm) |
| Boom/Arm Length | Boom 25’3″ (7700 mm) / Stick 13’9″ (4200 mm) |
Working Range (Boom/Arm Option 5)
| Max Cutting Height | 44.03 ft in (13420 mm) |
| Max Loading Height | 30.84 ft in (9400 mm) |
| Max Reach Along Ground | 47.58 ft in (14500 mm) |
| Max Digging Depth | 32.99 ft in (10055 mm) |
| Max Vertical Wall Dig Depth | 28.84 ft in (8790 mm) |
| Boom/Arm Length | Boom 25’3″ (7700 mm) / Stick 17’1″ (5200 mm) |
Dimensions
| Ground Clearance | 2.82 ft in (858 mm) |
| Height To Top Of Cab | 11.55 ft in (3520 mm) |
| Width To Outside Of Tracks | 14.07 ft in (4286 mm) |
| Length Of Track On Ground | 15.59 ft in (4750 mm) |
| Tail Swing Radius | 13.42 ft in (4090 mm) |
| Removal Counterweight Clearance | 4.95 ft in (1507 mm) |
Undercarriage
| Track Gauge | 11 ft in (3350 mm) |
| Shoe Size | 35.44 in (900 mm) |
| Number Of Carrier Rollers Per Side | 3 |
| Number Of Track Rollers Per Side | 8 |
| Number Of Shoes Per Side | 48 |
| Ground Pressure | 10.9 psi (75.16 kPa) |
| Max Travel Speed | 2.86 mph (4.6 km/h) |
| Drawbar Pull | 101830 lb (453 kN) |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | Volvo |
| Engine Model | Volvo D16E EAE3 |
| Net Power | 424 hp (316.2 kw) |
| Gross Power | 464 hp (346.1 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1660 lb ft (2250 Nm) |
| Displacement | 982 cu in (16.1 L) |
| Aspiration | Turbocharged and Intercooled |
| Torque Measured @ | 1350 rpm |
Operational Specs
| Operating Weight | 158070 lb (71700 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
Swing Mechanism
| Swing Speed | 6.7 rpm |
| Swing Torque | None lb ft (23100 Nm) |
Hydraulics
| Hydraulic Pump Flow Capacity | 230 gal/min (870.7 L/min) |
| Hydraulic System Relief Valve Pressure | 4980 psi (34335.9 kPa) |

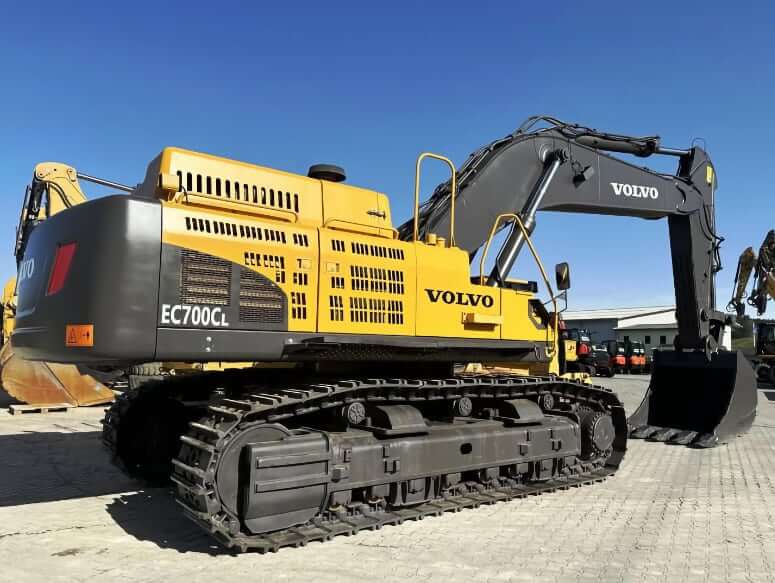

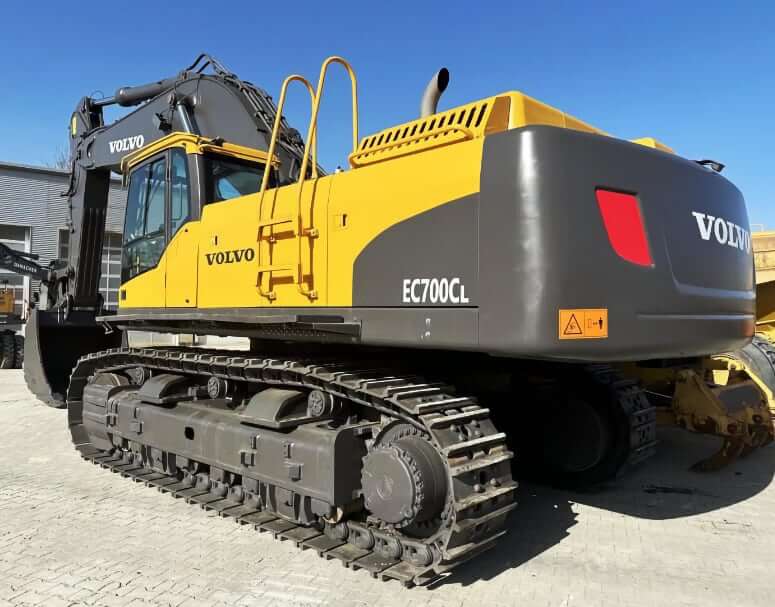

Service Refill Capacities
| Fuel Tank Capacity | 222 gal (840 L) |
| Cooling System Fluid Capacity | 17.2 gal (65 L) |
| Hydraulic System Fluid Capacity | 173.1 gal (655 L) |
| Engine Oil Capacity | 13.8 gal (52 L) |
| Swing Drive Fluid Capacity | 3.2 gal (12 L) |
