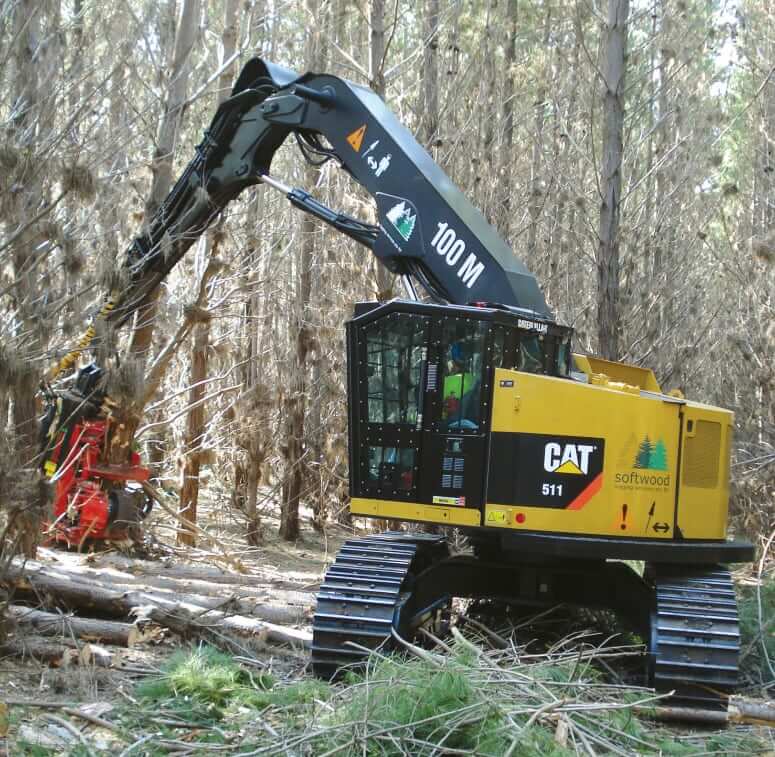

Boom
| Bare Pin Lift At Max Reach | 15652.82 lb (7100 kg) |
Dimensions
| Overall Length | 27.75 ft in (8458 mm) |
| Overall Width | 10.5 ft in (3200 mm) |
| Height To Top Of Cab | 11.09 ft in (3378 mm) |
| Ground Clearance | 2.5 in (762 mm) |
| Width – Minimum | 126 in (3200.4 mm) |
| Height | 11.09 ft in (3378.2 mm) |
| Max Reach | 26.58 ft in (8100 mm) |
| Shipping Length – With Attachment | 423 in (10744.2 mm) |
| Shipping Length – Without Attachment | 333 in (8458.21 mm) |
Operating Specifications
| Maximum Reach – With Attachment | 26.6 ft in (8.11 m) |
| Bare Pin Lift At Maximum Reach – Without Attachment – Track Harvester Configuration | 4100 kg (9100 lb) @ 9.0 m (29.5 ft) |
| Maximum Reach – With Attachment – Track Harvester Configuration | 32 ft in (9.76 m) |
| Bare Pin Lift At Maximum Reach – Without Attachment | 7100 kg (15600 lb) @ 6.1 m (20 ft) |
Track
| Ground Clearance | 30 in (762 mm) |
| Track Gauge | 102 in (2590.81 mm) |
| Track Length | 180 in (4572 mm) |
| Undercarriage Size | 325 HEX |
| Tractive Effort | 67000 lb (30390.7 kg) |
| Undercarriage Pitch | 8 in (203.2 mm) |
Undercarriage
| Track Gauge | 8.51 ft in (2591 mm) |
| Shoe Size | 24 in (609.6 mm) |
| Track Pitch | 8 in (203.2 mm) |
| Tractive Effort | 67000.69 lb (30391 kg) |
Engine Details
| Engine Make | CAT |
| Engine Model | C9 ACERT |
| Gross Power | 247 hp (184.2 kw) |
| Net Power | 228 hp (170.1 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 537.1 cu in (8.8 L) |
| Rated Power | 228 hp (170.1 kw) |
| Engine Model | Cat C9 ACERT |
Operational Specs
| Operating Weight W/O Attachment | 53709.1 lb (24362 kg) |
| Fuel Tank Capacity | 140.1 gal (530 L) |
| Cooling System Fluid Capacity | 16.2 gal (61 L) |
| Engine Oil Capacity | 10.4 gal (39 L) |
| Hydraulic System Fluid Capacity | 79.3 gal (300 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 95 amps |
Weights
| Operating Weight – Without Attachment | 53710 lb (24362.5 kg) |
| Operating Weight – Without Attachment – Track Harvester Configuration | 52440 lb (23786.4 kg) |
Hydraulic System
| Pump Size – Travel Circuit | 11 cu in (0.2 L) |
| Pump Size – Boom, Implements | 11 cu in (0.2 L) |
| Pump Size – Saw Motor | 11.6 cu in (0.2 L) |
Service Refill Capacities
| Cooling System | 16.1 gal (61 L) |
| Fuel Tank Capacity | 140 gal (530 L) |
| Hydraulic Tank | 69.2 gal (262 L) |
| Hydraulic System | 79.3 gal (300.2 L) |
| Engine Oil | 10.3 gal (39 L) |
| Swing Drive | 2.6 gal (9.9 L) |
| Pony Fuel Tank – Optional | 90 gal (340.7 L) |
Dimensions – Track Harvester Configuration
| Shipping Length – Without Attachment | 446 in (11328.4 mm) |
| Height – Without Attachment | 133 in (3378.2 mm) |
| Width – Minimum – Without Attachment | 126 in (3200.4 mm) |
