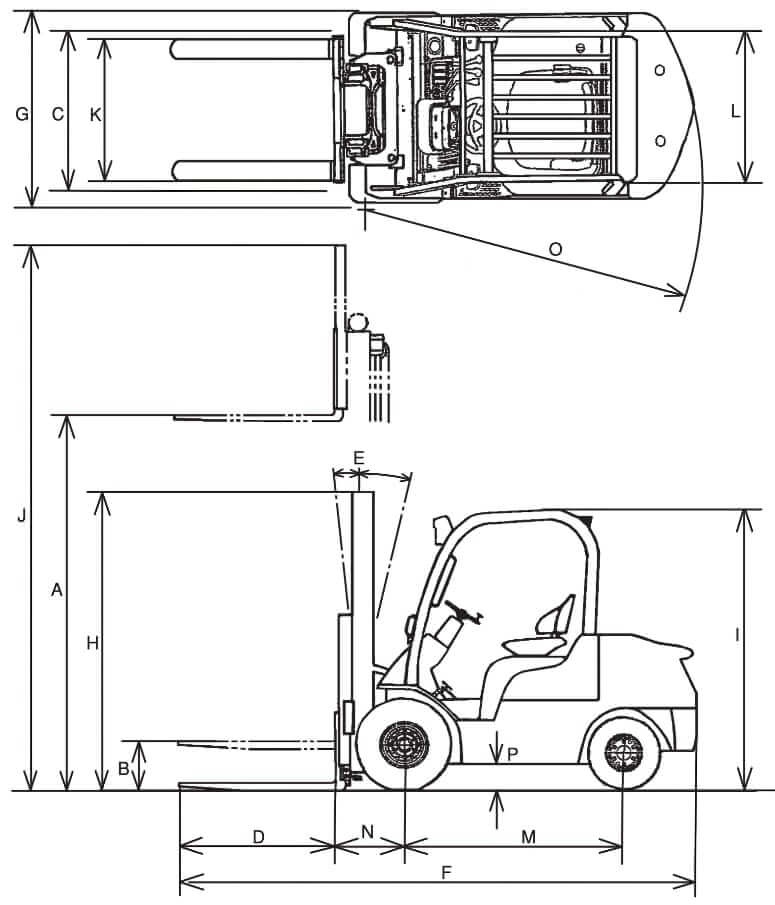

Dimensions
| A. Maximum Lift | 118.1 in (3000 mm) |
| B. Free Lift | 5.5 in (140 mm) |
| C. Fork Spread (Outside) | 8.7 to 39.4 in (220 to 1000 mm) |
| D. Fork Length | 42.1 in (1070 mm) |
| E. Tilt Angle (Forward – Backward) | 6° – 12° |
| F. Overall Length | 142.7 in (3625 mm) |
| G. Overall Width (Outside of Tires) Single Tire | 45.3 in (1150 mm) |
| G. Overall Width (Outside of Tires) Dual Tire | 58.3 in (1480 mm) |
| H. Overall Height (To Top of Mast Lowered) | 78.5 in (1995 mm) |
| I. Overall Height (To Top of Overhead Guard) | 81.5 in (2070 mm) |
| J. Overall Height (Mast Extended) | 159.6 in (4055 mm) |
| K. Front Tread Width (Single Tire) | 37.8 in (960 mm) |
| K. Front Tread Width (Dual Tire) | 44.9 in (1140 mm) |
| L. Rear Tread Width | 38.6 in (980 mm) |
| M. Wheelbase | 63 in (1600 mm) |
| N. Front Overhang | 17.9 in (455 mm) |
| O. Minimum Turning Radius | 87.8 in (2230 mm) |
| P. Ground Clearance (At Frame) | 6.3 in (160 mm) |
Mast Performance
| Load Capacity | 5512 lb (2500 kg) |
| Mast Tip Forward | 6° |
| Mast Tip Rear | 12° |
| Load Center | 19.7 in (500 mm) |
| Load Distance, Axle to Fork Face | 18.1 in (460 mm) |
Weight
| Operating Weight (empty) | 8179 lb (3710 kg) |
| Front Axle Load (w/ load) | 11490 lb (5620 kg) |
| Front Axle Load (w/o load) | 2830 lb (1290 kg) |
| Rear Axle Load (w/o load) | 5330 lb (2420 kg) |
Engine Details
| Number Of Cylinders | 4 |
| Fuel Type | LPG |
| Engine Make | Global Component Technologies |
| Engine Model | GCT GK21E |
| Displacement | 126 cu in (2.065 L) |
| Gross Power | 55 hp (41 kw) |
| Power Measured @ | 2700 rpm |
| Peak Torque | 111 lb ft (151 Nm) |
| Torque Measured @ | 2000 rpm |
| Fuel System | Injector |
| Fuel Consumption | 7 lb/h (3.2 kg/h) |
| Exhaust System | 3-way catalytic converter |
| Emission Standards | US EPA Tier 2 + EU Stage V + Japan MLIT Stage 1 |
Operational Specs
| Operating Weight (Empty) | 8179 lb (3710 kg) |
| Max Load Capacity | 5512 lb (2500 kg) |
| Operating Voltage | 12 V |
| Alternator | 40 amps |
| Battery | 12 V |
| Working Lights | LED light set (standard) / LED rear work light (optional) |
| Drawbar Pull – Loaded at 1.0 mph (1.6 km/h) | 4610 lb (20.5 kN) |
| Drawbar Pull – Loaded Maximum | 5170 lb (23.0 kN) |
| Gradeability – Loaded at 1.0 mph (1.6 km/h) | 37° |
| Gradeability – Loaded Maximum | 43° |
| Towing Coupling, Type DIN 15170 | Pin |
| Noise Level | 79 dB(A) |
Chassis
| Transmission Type | Powershift transmission |
| Number of Gears | 1F / 1R |
| Max Travel Speed, Load | 10.9 mph (17.5 km/h) |
| Max Travel Speed, Empty | 11.2 mph (18.0 km/h) |
| Service Brakes | Foot-operated, hydraulic brakes |
| Parking Brake | Hand-operated, mechanical brake |
Tires
| Type of tires | Cushion |
| Number of Wheels, Front / Rear | 2 x / 2 |
| Front Tire Size (Standard) | 21x7x15 |
| Rear Tire Size (Standard) | 16x6x10.5 |
Hydraulic System
| Type | Load Sensing System |
| Pump Type | Gear pump |
| Relief Pressure | 2630 psi (18100 kPa) |
| Hydraulic Pump Flow | 23.5 gal/min (89.1 L/min) |

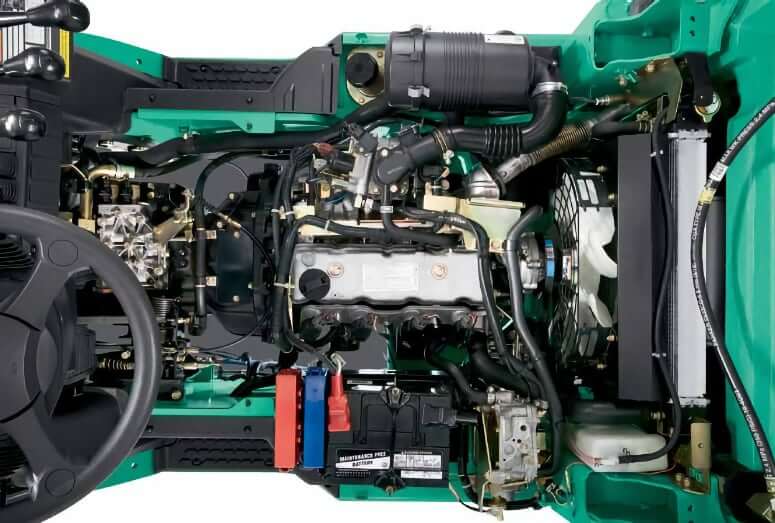

Service Refill Capacities
| LPG Fuel Tank Capacity | 33.8 lb (15.3 kg) |
| Engine Oil Capacity (GK21E) | 1.19 gal (4.5 L) |
| Engine Oil Capacity (4G63) | 1.16 gal (4.4 L) |
| Cooling System Capacity (GK21E) | 1.96 gal (7.4 L) |
| Cooling System Capacity (4G63) | 1.85 gal (7.0 L) |
| Transmission Oil Capacity | 2.1 gal (8 L) |
| Front Differential Case Capacity | 1.3 gal (5 L) |
| Hydraulic System Capacity | 10.6 gal (40 L) |
