Mast
| Load Capacity | 6614 lb (3000 kg) |
| Lift Speed | 20.9 in/s (0.53 m/s) |
| Lower Speed | 20.9 in/s (0.53 m/s) |
| Load Center | 19.7 in (500 mm) |
| Mast Tip Forward | 6° |
| Mast Tip Rear | 5° |

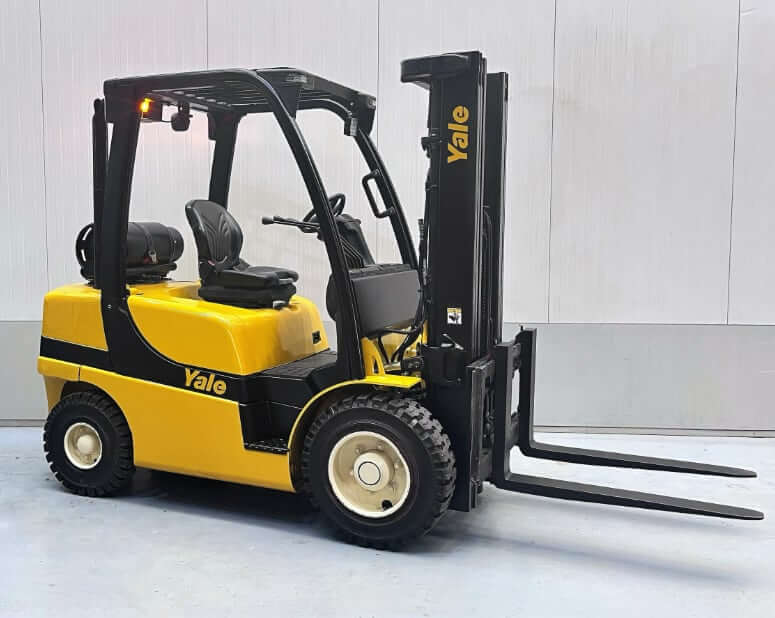

Dimensions
| Length to Fork Face | 8.64 ft in (2633 mm) |
| Wheelbase | 5.33 ft in (1623 mm) |
| Overall Length | 11.92 ft in (3633 mm) |
| Overall Width | 3.9 ft in (1186 mm) |
| Overall Height (Mast Lowered) | 7.21 ft in (2195 mm) |
| Height to Top of Overhead Guard | 7.17 ft in (2185 mm) |
| Max Fork Height | 10.03 ft in (3055 mm) |
| Ground Clearance | 5.2 in (132 mm) |
| Turning Radius | 7.48 ft in (2277 mm) |
Engine Details
| Engine Make | Power Solutions International | Kubota |
|---|---|---|
| Number of Cylinders | 4 | 4 |
| Engine Model | PSI FE 2.4L | Kubota 2.5L |
| Displacement | 143.5 cu in (2.351 L) | 152.0 cu in (2.491 L) |
| Power | 44 hp (32.8 kw) | 43.9 hp (32.3 kw) |
| Power Measured @ | 2700 rpm | 2500 rpm |
| Peak Torque | 121 lb ft (156.9 Nm) | 131 lb ft (176.5 Nm) |
| Torque Measured @ | 2000 rpm | 1000 rpm |
| Fuel Type | LPG | LPG |
| Fuel Consumption (VDI Cycle) | 0.82 gal/h (3.1 L/h) | 0.85 gal/h (3.2 L/h) |
Transmission
| Type | Electronic Powershift / Techtronix 200, 2-Speed |
| Max Travel Speed, Laden | 11.9 mph (19.1 km/h) / 13.7 mph (22.0 km/h) |
| Max Travel Speed, Unladen | 12.6 mph (20.3 km/h) / 14.1 mph (22.7 km/h) |
| Service Brake | Drum brakes / Oil-immersed (optional) |
| Tire Type | SE (superelastic tires) |
| Number Of Wheels (Front / Rear) | 2x / 2 |
| Front Tire Size | 28 x 9 – 15 |
| Rear Tire Size | 6.50 x 10 |
Operational Specs
| Operating Weight | 10168 lb (4612 kg) |
| Axle Loading, Laden (Front / Rear) | 14639 / 2143 lb (6640 / 972 kg) |
| Axle Loading, Unladen (Front / Rear) | 4019 / 6149 lb (1823 kg / 2789 kg) |
| Sound pressure level at the driver’s seat | 77 dB(A) |
| Sound power level during the workcycle | 97 dB(A) |
| Guaranteed sound power 2000/14/EC | 101 dB(A) |
| Towing coupling, type DIN | Pin |
| Hydraulic Pump Flow | 16.4 gal/min (62 L/min) |
Service Refill Capacities
| Fuel Tank Capacity | 14 gal (52.8 L) |
| Hydraulic Tank Capacity | 12 gal (45.8 L) |
