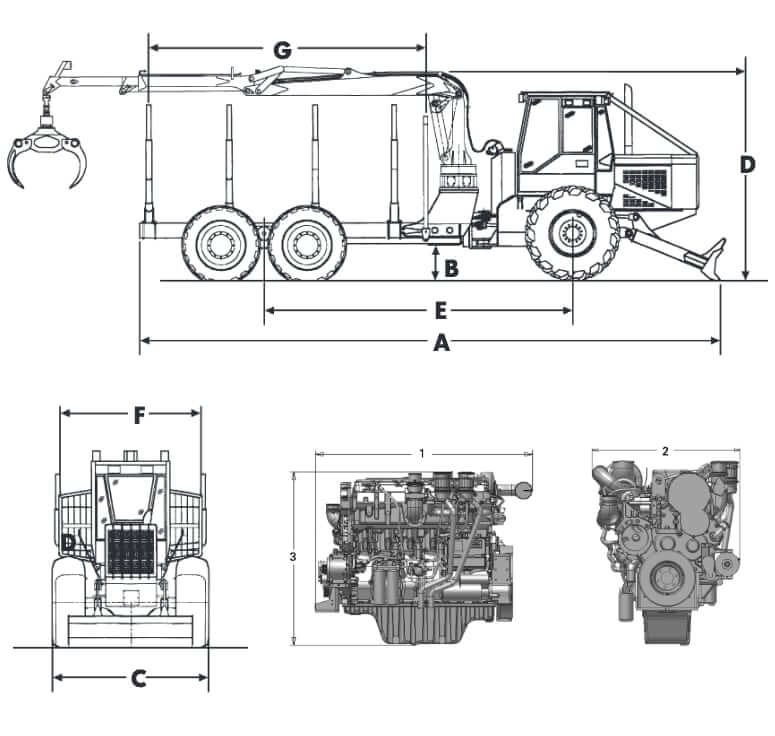

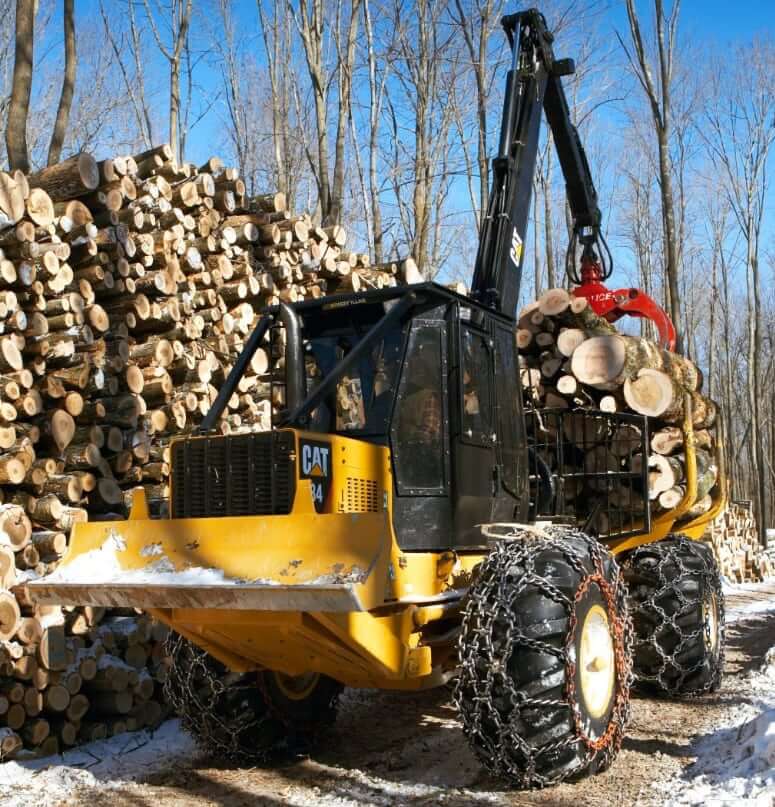

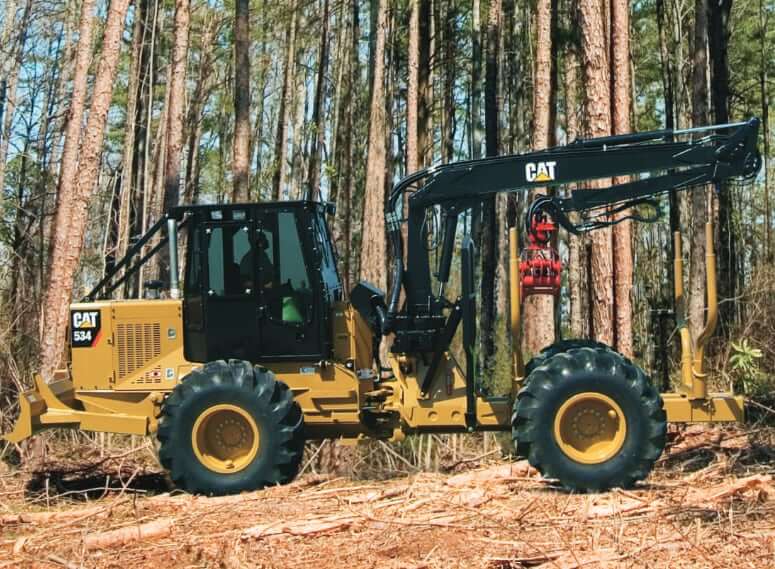

Dimensions
| CAT 534 4×4 | 9.6′ Bunk | 11.5′ Bunk | 16′ Bunk |
|---|---|---|---|
| A. Length (With Blade Raised) | 309 in (7849 mm) | 332 in (8433 mm) | 389 in (9880 mm) |
| B. Ground Clearance | 21.6 in (549 mm) | 21.6 in (549 mm) | 21.6 in (549 mm) |
| C. Width over Tires | 104 in (2642 mm) | 104 in (2642 mm) | 104 in (2642 mm) |
| D. Height | 136 in (3454 mm) | 136 in (3454 mm) | 136 in (3454 mm) |
| E. Wheel Base | 151 in (3835 mm) | 173 in (4394 mm) | 212 in (5385 mm) |
| F. Load Stake Width (Inside) | 93 in (2362 mm) | 93 in (2362 mm) | 93 in (2362 mm) |
| G. Length of Wood Bunk | 115 in (2920 mm) | 132 in (3350 mm) Optional | 192 in (4880 mm) Optional |
| 1. Engine Length | 33.3 in (845.1 mm) | ||
| 2. Engine Width | 30.4 in (772.4 mm) | ||
| 3. Engine Height | 33.4 in (848.2 mm) | ||
Log Bunk
| Standart Log Bunk Length | 115 in (2920 mm) |
| Log Bunk Length (Option 1) | 132 in (3350 mm) |
| Log Bunk Length (Option 2) | 192 in (4880 mm) |
| Loader Reach | 273 in (6930 mm) |
| Load Capacity | 16000 lb (7258 kg) |
| Load Capacity (optional | 18000 lb (8165 kg) |
Weight
| Operating Weight | 27000 lb (12247 kg) |
| Engine Weight, Net Dry (approximate) | 926 lb (400 kg) |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Caterpillar |
| Engine Model | Cat C4.4 ACERT |
| Displacement | 269 cu in (4.4 L) |
| Bore | 4.1 in (105 mm) |
| Stroke | 5.0 in (127 mm) |
| Gross Power | 125 hp (93 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 412 lb ft (558 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged Aftercooled (TA) |
| Emission Standards | EPA Tier 3, EU Stage IIIA, China Nonroad Stage III, Brazil MAR-1 |
Transmission
| Transmission | Electric power shift transmission with torque converter |
| Number of Gears | 4F / 4R |
| Front / Rear Axles | Heavy-duty Funk 1200 front and rear axles |
| Brakes | Wet disc axle and parking brakes |
| Max Travel Speed | 14.5 mph (23.33 km/h) |
Tires
| Number of Tires | 4 |
| Front Tire Size | 23.1 x 26. Optional: 28 L x 26 |
| Rear Tire Size | 23.1 x 26. Optional: 28 L x 26 |
Hydraulic System
| Type | Closed center proportional control valves. Hydraulic oil cooler with thermal bypass |
| Pump Type | PVG 4.57 cu in (75 cm3) variable displacement load sensing piston pump |
| Hydraulic Flow Rate | 49.7 gal/min (188 L/min) |
Operator Environment
| Visibility | Scratch resistant 0.5″ (12.7 mm) tinted polycarbonate windows. Side windows double as escape routes |
| HVAC | Heater/air conditioner |
| Working Lights | 360° lighting package |
| Tilt Cab | Hydraulic tilt isolation mounted cab |
| Safety | ROPS / FOPS / FOG / OPG |
Service Refill Capacities
| Fuel Tank Capacity | 47 gal (178 L) |
| Engine Oil Capacity | 3.6 gal (13.5 L) |
| Cooling System Capacity | 2.8 gal (10.8 L) |
| Hydraulic Fluid Reservoir Capacity | 32 gal (121 L) |
