Dimensions
| Length w/ Blade Raised (16′ Bunk) | 402 in (10210 mm) |
| Length w/ Blade Raised (18.5′ Bunk) | 432 in (10970 mm) |
| Ground Clearance | 22.8 in (579 mm) |
| Width with Standard Tires | 118 in (2997 mm) |
| Transport Height | 141 in (3581 mm) |
| Wheelbase (16′ Bunk) | 210 in (5334 mm) |
| Wheelbase (18.5′ Bunk) | 225 in (5715 mm) |
| Load Stake Width (Inside) | 102 in (2591 mm) |
Weights
| Operating Weight | 36000 lb (16330 kg) |
| Load Capacity | 30000 lb (13608 kg) |
| Load Capacity w/ Clam Bunk Attachment | 26000 lb (11793 kg) |
Operating Specs
| Payload | 30000 lb (13608 kg) |
| Wood Bunk Length (standart) | 16 ft (4.88 m) |
| Wood Bunk Length (optional) | 18.5 ft (5.64 m) |
| Loader Reach | 22.9 ft in (7.0 m) |

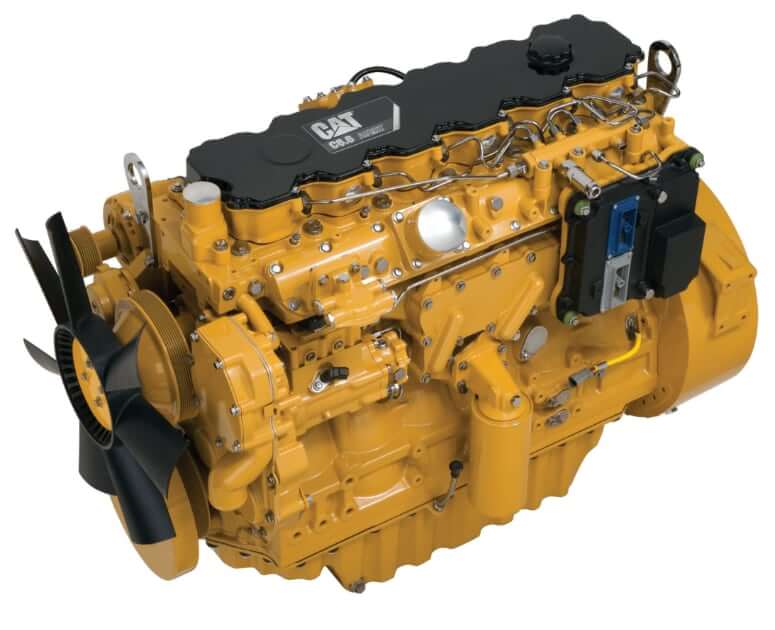

Engine Details
| Number Of Cylinders | 6 |
| Engine Make | Caterpillar |
| Engine Model | Cat C6.6 ACERT |
| Displacement | 402.8 cu in (6.6 L) |
| Gross Power | 174 hp (130 kw) |
| Power Measured @ | 1800-2500 rpm |
| Peak Torque | 609 lb ft (825 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged Aftercooled (TA) |
| Emission Standards | U.S. EPA Tier 4 Interim, EU Stage IIIB |
Transmission
| Transmission Type | Electric Power Shift |
| Number of Gears | 4F / 4R |
| Maximum Travel Speed | 14.5 mph (23.4 km/h) |
Hydraulic System
| Pump Flow Rate | 66 gal/min |
| Hydraulic Pump | Variable displacement load sensing piston pump |
Service Refill Capacities
| Fuel Tank Capacity | 47 gal (178 L) |
| Engine Oil Capacity | 4.2 gal (16 L) |
| Cooling System Capacity | 3.6 gal (13.7 L) |
| Hydraulic Tank Capacity | 32 gal (121.2 L) |
