Daedong Dashboard Symbols, Warning Lights, Indicators & Gauges Meaning

Understanding the dashboard symbols, indicators, and warning lights of your Daedong tractor is crucial for its efficient and safe operation. These symbols provide vital information about the tractor’s status and alert you to potential issues that may require attention. Here’s a comprehensive guide to help you interpret these gauges and indicators, ensuring that you can respond appropriately and maintain your tractor’s optimal performance.

The instrument panel symbols are designed to communicate various operational statuses and warnings. Recognizing and understanding these symbols and warning lights can help prevent potential damage, enhance safety, and improve the overall functionality of your tractor.

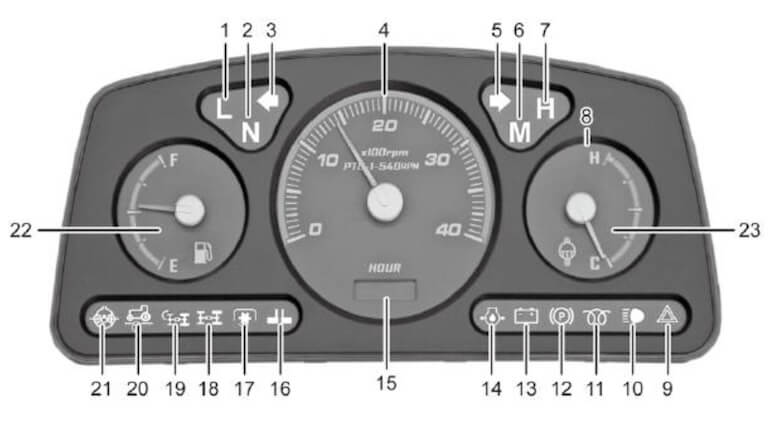

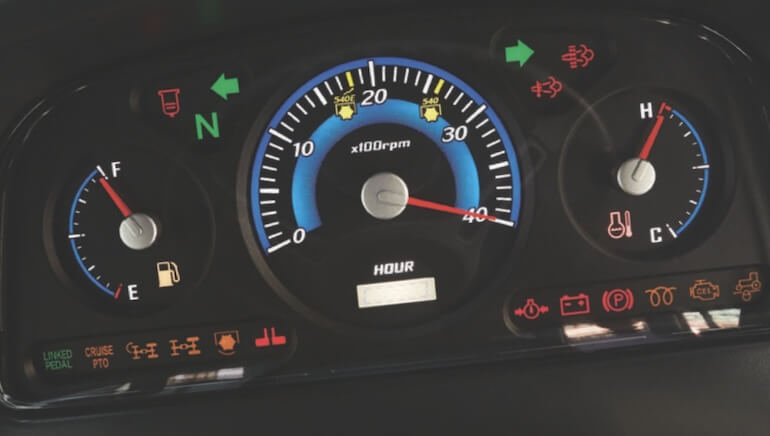

Daedong CS Tractor Dash Symbols Meaning

Each of these symbols and indicators plays a critical role in ensuring the safe and efficient operation of the Daedong tractor.

1. Low Speed Indicator – Illuminates when the tractor is operating at low speed, indicating that the transmission is set to a low-speed gear range.
2. Neutral Indicator – Lights up when the transmission is in the neutral position, indicating that the tractor is not in gear and should not move.
3. Turn Signal Light (LH) – Flashes to indicate that the left turn signal is active, signaling a left turn or lane change.
4. Tachometer – Displays the engine’s revolutions per minute (RPM), helping the operator monitor engine performance and maintain optimal operating speed.
5. Turn Signal Light (RH) – Flashes to indicate that the right turn signal is active, signaling a right turn or lane change.
6. Mid Speed Indicator – Illuminates when the tractor is operating at a mid-range speed, indicating that the transmission is set to a medium-speed gear range.
7. High Speed Indicator – Lights up when the tractor is operating at high speed, indicating that the transmission is set to a high-speed gear range.
8. Coolant Temperature Gauge – Shows the temperature of the engine coolant, helping the operator monitor engine temperature to prevent overheating.
9. Hazard Lamp – Flashes when the hazard lights are activated, warning other vehicles of the tractor’s presence, especially in case of breakdowns or emergencies.
10. High Beam Indicator – Illuminates when the high beam headlights are turned on, providing enhanced visibility during night-time operation.
11. Glow Plug Indicator – Lights up when the glow plugs are active, indicating that the engine pre-heating process is underway to aid in cold starts.
12. Parking Brake Indicator – Illuminates when the parking brake is engaged, indicating that the tractor is in a stationary position and should not be driven until the brake is released.
13. Battery Charge Warning Lamp – Lights up when there is an issue with the battery charging system, indicating that the battery may not be charging properly.
14. Engine Oil Pressure Warning Lamp – Illuminates when the engine oil pressure is too low, signaling that immediate attention is required to avoid engine damage.
15. Hour Meter – Records the total operating hours of the tractor, helping with maintenance scheduling and tracking usage.
16. Brake (One Side) Lamp – Indicates that one side of the braking system is engaged, often used for tight turns or specific maneuvers.
17. PTO Indicator – Illuminates when the Power Take-Off is engaged, indicating that the PTO shaft is operating and driving attached implements.
18. 4WD Engaged Indicator – Lights up when the four-wheel drive system is engaged, providing additional traction and stability.
19. Quick Turn Lamp – Indicates that the quick turn function is activated, allowing for sharper turns and increased maneuverability.
20. Cruise Indicator – Lights up when the cruise control system is active, maintaining a set speed without the need for constant throttle input.
21. Differential Lock Indicator – Illuminates when the differential lock is engaged, providing improved traction by locking the differential to ensure both wheels turn at the same rate.
22. Fuel Gauge – Displays the amount of fuel remaining in the tank, helping the operator monitor fuel levels and plan refueling.
23. Coolant Temperature Gauge – Shows the temperature of the engine coolant, helping the operator monitor engine temperature to prevent overheating (Duplicate indicator).

Regularly monitoring these warning lights and gauges helps maintain the tractor’s performance and address any issues promptly.

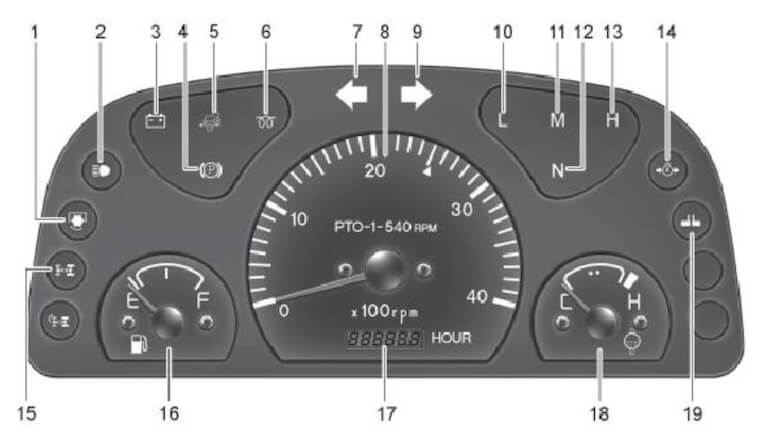

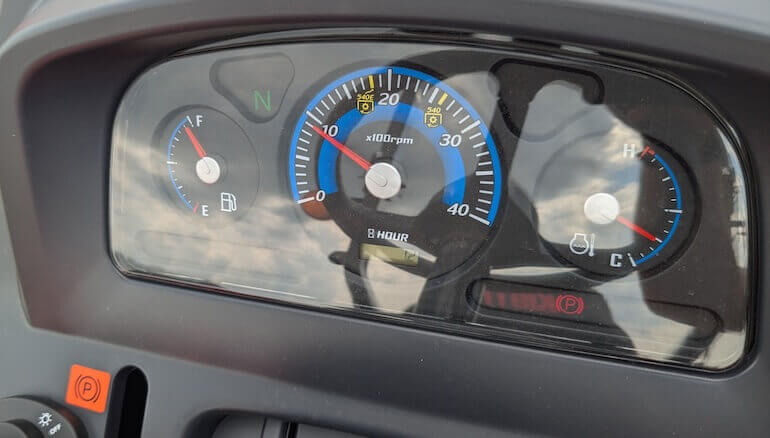

Daedong DK Series Tractor Dash Symbols Meaning

Here is a list of dashboard symbols for the Daedong DK Series tractors, along with their descriptions:

1. PTO Indicator – Indicates when the Power Take-Off (PTO) is engaged and operational.
2. High Beam Indicator – Lights up when the high beam headlights are turned on.
3. Battery Charge Warning Lamp – Alerts you if there is an issue with the battery charging system, such as low charge or charging malfunction.
4. Parking Brake Indicator – Shows that the parking brake is engaged, reminding you to release it before moving.
5. Cruise Indicator – Indicates that the cruise control system is engaged, maintaining a constant speed without the need for throttle input.
6. Glow Plug Indicator – Illuminates when the glow plugs are active, assisting in the engine starting process, especially in cold weather.
7. Turn Signal Light (LH) – Indicates that the left-hand turn signal is activated.
8. Tachometer – Displays the engine’s RPM (revolutions per minute), helping you monitor and control the engine’s performance.
9. Turn Signal Light (RH) – Indicates that the right-hand turn signal is activated.
10. Low Speed Indicator – Illuminates when the tractor is operating at low speed, providing a visual confirmation of the current speed range.
11. Mid Speed Indicator – Illuminates when the tractor is operating at mid speed.
12. Neutral Indicator – Lights up when the transmission is in the neutral position, indicating that the tractor is not in gear.
13. High Speed Indicator – Illuminates when the tractor is operating at high speed, providing a visual confirmation of the current speed range.
14. Oil Pressure Warning Lamp – Indicates low engine oil pressure, which requires immediate attention to prevent engine damage.
15. 4WD Indicator – Lights up when the four-wheel drive system is engaged, providing enhanced traction and control.
16. Fuel Gauge – Displays the level of fuel remaining in the tank, helping you monitor fuel usage and plan refueling.
17. Hour Meter – Records the total operating hours of the tractor, useful for maintenance scheduling and tracking usage.
18. Coolant Temperature Gauge – Monitors the temperature of the engine coolant to prevent overheating and engine damage.
19. Brake (One Side) Lamp – Indicates that one side of the brake is engaged, alerting you to potential braking issues.

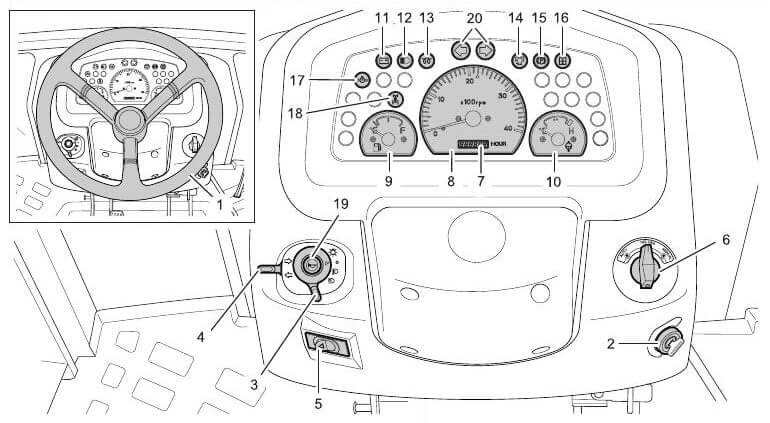

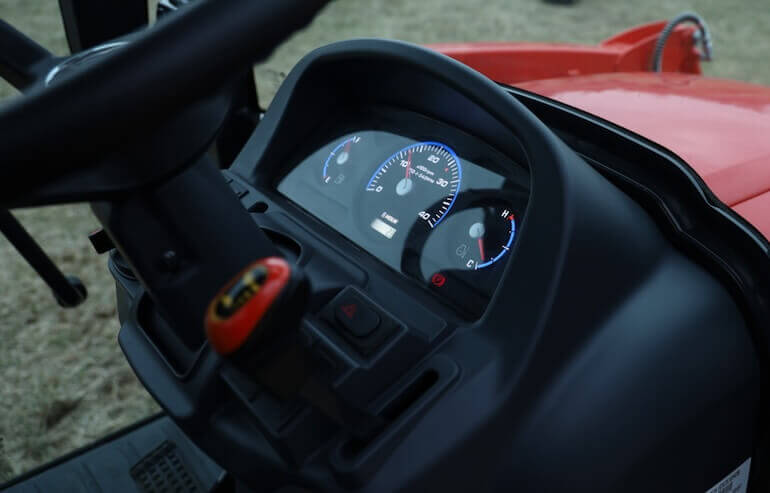

Daedong DK 651/751/801/901 Instruments Panel & Switches

The Daedong DK series tractors, including models 651, 751, 801, and 901, are equipped with a comprehensive instrument panel and various switches that provide essential information and controls for the operator.

Understanding each component ensures efficient and safe operation of the tractor. Below is a detailed description of each instrument and switch:

1. Steering Wheel: Used to steer the tractor.
2. Start Switch: Ignites the engine.
3. Headlight Switch: Controls the headlights.
4. Turn Signal Switch: Activates the left or right turn signals.
5. Hazard Lamp Switch: Turns on the hazard lights.
6. PTO Switch: Engages or disengages the Power Take-Off (PTO).
7. Hour Meter: Displays the total operating hours of the tractor.
8. Tachometer: Shows the engine’s RPM (revolutions per minute).
9. Fuel Gauge: Indicates the amount of fuel in the tank.
10. Temperature Gauge: Displays the engine coolant temperature.
11. Battery Charge Warning Lamp: Alerts to issues with the battery charging system.
12. High Beam Indicator: Indicates when the high beam headlights are on.
13. Preheater Indicator: Shows the status of the engine preheater.
14. PTO ON Indicator: Indicates when the PTO is engaged.
15. Parking Brake Indicator: Lights up when the parking brake is engaged.
16. Hydraulic System Warning Lamp: Alerts to issues with the hydraulic system.
17. Engine Oil Pressure Warning Lamp: Warns of low engine oil pressure.
18. 4WD Operation Indicator: Indicates when the four-wheel drive is engaged.
19. Horn: Activates the tractor’s horn.
20. Turning Signal Indicator: Shows the activation of the turn signals.

These instruments and switches are essential for monitoring the tractor’s performance, ensuring safety, and providing control over various functions.

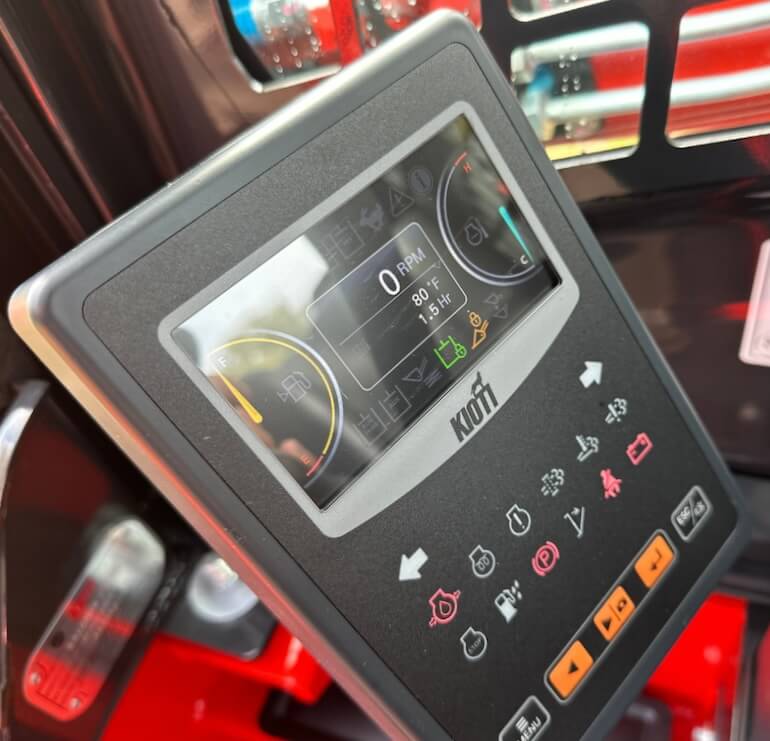

Daedong TL / SL Skid Steer Instrument Panel Symbols

The Daedong Skid Steer Loader is equipped with a sophisticated instrument panel designed to provide operators with crucial information about the machine’s performance and status.

Understanding the symbols, indicators, and warning lights on the instrument panel is essential for safe and efficient operation.

These symbols alert the operator to various conditions, ranging from normal operational statuses to potential issues that require immediate attention. Below is a detailed description of each symbol and its meaning:

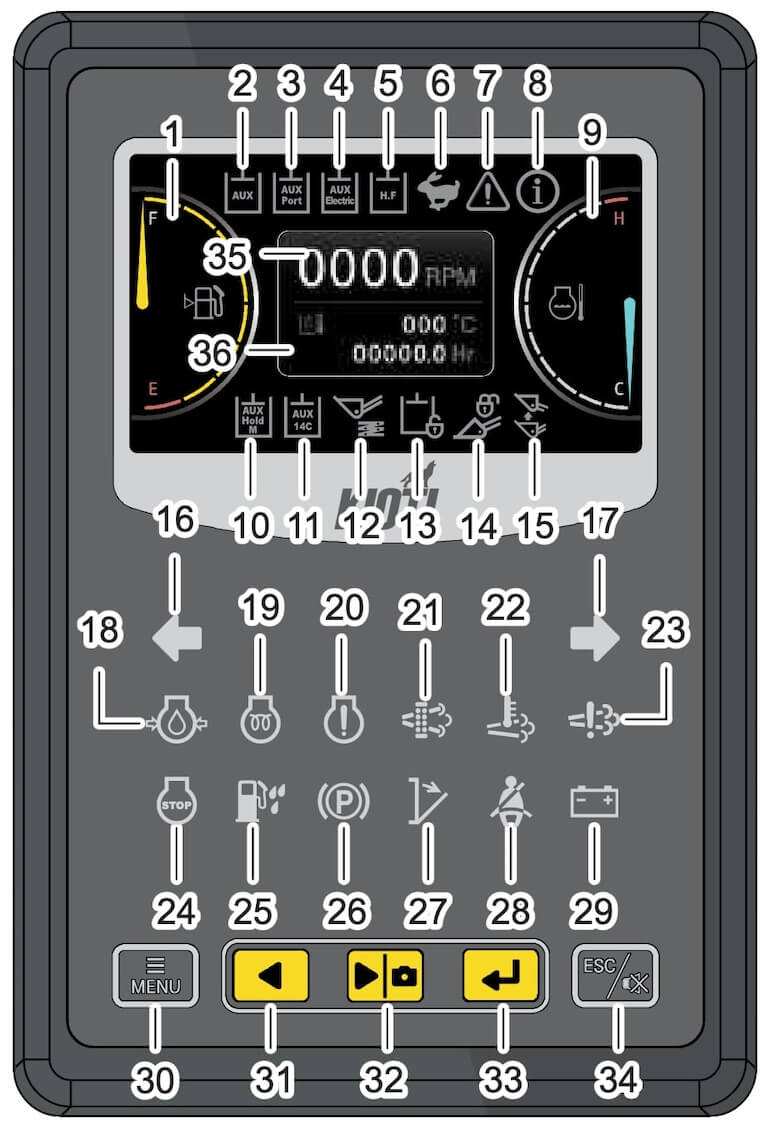

1. Fuel Gauge – Indicates the amount of fuel remaining in the tank.
2. AUX. Indicator – Shows the status of the auxiliary functions.
3. Auxiliary Hydraulic Indicator – Indicates the operational status of the auxiliary hydraulic system.
4. Auxiliary Electric Port Indicator – Indicates the status of the auxiliary electric port.
5. High Flow Indicator – Shows if the high flow hydraulic function is activated.
6. 2-Speed Lamp – Indicates if the 2-speed function is engaged.
7. Hazard Flasher, High-Temperature Hydraulic Oil Warning Lamp – Alerts to the activation of hazard flashers or high temperature in the hydraulic oil.
8. Consumables Management Warning Lamp – Warns when consumables need attention or replacement.
9. Engine Coolant Temp. Gauge – Displays the temperature of the engine coolant.
10. Auxiliary Hydraulic Port Indicator – Indicates the operational status of the auxiliary hydraulic port.
11. AUX. Indicator – Displays the status of auxiliary functions.
12. Ride Control Indicator – Shows if the ride control system is active.
13. Hydraulic Lock Indicator – Indicates if the hydraulic system is locked.
14. Quick Attachment Unlock Warning Lamp – Warns if the quick attachment system is unlocked.
15. Self-Levelling Indicator – Shows if the self-levelling function is activated.
16. Left Turn Signal Indicator – Indicates if the left turn signal is on.
17. Right Turn Signal Indicator – Indicates if the right turn signal is on.
18. Engine Oil Pressure Warning Lamp – Warns of low engine oil pressure.
19. Engine Preheat Indicator – Indicates the status of the engine preheat system.
20. CHECK ENGINE Warning Lamp – Alerts to a malfunction in the engine system.
21. DPF Regeneration Warning Lamp – Indicates the need for Diesel Particulate Filter regeneration.
22. DPF Regeneration Process Indicator – Shows the status of the DPF regeneration process.
23. Emissions System Warning Lamp – Warns of issues in the emissions system.
24. Engine Stop Warning Lamp – Indicates a critical engine fault requiring immediate shutdown.
25. Water-In-Fuel Warning Lamp – Warns of water contamination in the fuel.
26. Parking Brake Warning Lamp – Indicates if the parking brake is engaged.
27. Safety Cover Warning Lamp – Alerts if the safety cover is not properly closed.
28. Safety Bar Warning Lamp – Indicates if the safety bar is not in the correct position.
29. Battery Charge Warning Lamp – Warns of low battery charge or charging issues.
30. Menu Switch – Used to navigate through menu options.
31. Left Menu Button – Used to select left menu options.
32. Right Menu Button / Camera Button – Used to select right menu options or activate the camera.
33. Enter Button – Confirms menu selections.
34. ECS/ Buzzer OFF Button – Used to turn off the ECS or buzzer.
35. Tachometer – Displays the engine speed in RPM.
36. Hour Meter – Records the total operating hours of the machine.

Understanding these symbols helps operators monitor the skid steer’s status, perform necessary maintenance, and address potential issues promptly, ensuring the machine operates smoothly and efficiently.

All Daedong Dashboard Symbols & Lights

General Instrument Cluster Symbols

Symbol	Name	Description
	Safety Alert Symbol	Indicates a safety alert or warning.
	Stop	Indicates a serious tractor malfunction in the tractor’s systems that requires immediate attention.
	Master System Warning	Alerts about a critical issue with the tractor’s master system.
	Read Operator’s Manual	Indicates the need to consult the operator’s manual for information.
	Fast	Indicates a high-speed setting or mode.
	Slow	Indicates a low-speed setting or mode.
	Creep	Indicates engagement of the tractor’s super creep gear, which provides exceptionally slow speeds for specific applications.
	High Speed Travel	Indicates that the tractor is operating in high speed travel mode.
	Mid Speed Travel	Shows the tractor is operating at medium speed.
	Low Speed Travel	Signals the tractor is in low-speed mode.
	High Range	Indicates that the tractor is in high gear range, suitable for higher speed operations.
	Mid Range	Shows the transmission is in medium gear range.
	Low Range	Indicates that the tractor is in low gear range, suitable for lower speed operations requiring more power.
	Cruise Control	Indicates that cruise control is engaged. Maintains a constant speed set by the operator.
	Tractor Cruise Control	Indicates that the cruise control feature is activated, maintaining a set speed without manual throttle control.
	Speed Limit Switch	Indicates that the speed limit feature is activated, restricting the tractor’s maximum speed.
	No Stall	Indicates an anti-stall feature is active, preventing the engine from stalling during heavy loads.
	Limp Home	Activates a reduced power mode for emergency situations.
	Lock	Indicates that a function or system is locked or engaged.
	Unlock	Indicates that a function or system is unlocked.
	ON (Engaged)	Indicates that a system or function is active or engaged.
	OFF (Disengaged)	Indicates that a system or function is inactive or disengaged.
	Transmission Neutral Indicator	indicates that the tractor is in neutral gear. This light signifies that the transmission is in a neutral position, meaning the tractor is not engaged in any forward or reverse movement.
	Operator Presence Sensor (OPS)	Illuminates when the tractor operator’s seat is unoccupied, reminding the operator to sit properly for safe operation.
	Operator Presence Sensor	Illuminates when the tractor operator’s seat is unoccupied.
	Service	Indicates that the tractor requires servicing or maintenance.
	Escape	Allows exiting a menu or mode.

Electric-related Dash Symbols

Symbol	Name	Description
	Battery Charging Condition	Indicates a malfunction in the tractor’s charging system, typically caused by a faulty alternator or battery, which may result in battery discharge.
	Electrical Power Accessories	Indicates the status of electrical power accessories.
	Master Lighting Switch	Controls the master lighting system.
	Headlight Low Beam	Activates low beam headlights.
	Headlight High Beam	Illuminates the tractor’s headlights for visibility in low-light conditions or during nighttime operation.
	Headlight Flashing	Activates the headlight flash function.
	Work Light	Activates tractor work lights.
	Position Lamps	Controls position lamps.
	Turn Signal	Activates tractor turn signals.
	Turn Signal Trailer	Activates turn signals for trailers.
	Hazard Warning Lights	Activates the hazard lights to warn others of potential danger.
	Audible Warning Device	Indicates the status of the audible warning device.
	Beacon Light	Controls beacon lights.
	Windshield Wiper	Activates windshield wipers.
	Windshield Wiper Intermittent	Activates intermittent windshield wiper function.
	Windshield Washer	Activates windshield washer.
	Rear Window Defroster	Activates rear window defroster.
	Air Conditioner	Activates air conditioner.

Engine-related Dash Symbols

Symbol	Name	Description
	Fuel Level	Indicates the level of fuel in the tank.
	Diesel Fuel	Indicates the level of diesel fuel in the tank.
	Hourmeter / Elapsed Operating Hours	Displays the total operating hours or elapsed time.
	Engine Temperature / Coolant Temperature	Warns the operator when the engine coolant temperature exceeds safe operating limits, indicating potential overheating.
	Engine Coolant Temperature	Engine coolant temperature warning light.
	Low Coolant Level	Warns that the engine coolant level is low and needs to be refilled.
	Engine Intake / Combustion Air Filter	Indicates the condition of the engine air filter. Warns the operator when the air filter becomes clogged or restricted, reducing airflow to the engine and affecting performance.
	Engine Oil Pressure	Indicates the oil pressure in the engine. Warns the operator when engine oil pressure drops below a safe level, indicating potential engine damage or oil system malfunction.
	Water Separator	Indicates the status of the water separator in the fuel system.
	Water in Fuel Warning	Indicates that there is water in the diesel fuel. This can be a serious issue, as water in diesel fuel can cause damage to the engine and fuel system.
	Engine Warning	Indicates the presence of a fault code or error condition in the engine control system, prompting the operator to address the issue promptly.
	Engine Alert	Indicates various functions and warnings related to the engine and its operation (Engine Check).
	Engine Rotational Speed	Displays the rotational speed of the engine.
	Engine Rev Limiter	Limits the maximum engine speed to prevent damage.
	Engine Over Speed	Alerts when the engine exceeds its maximum safe speed.
	Engine RPM Memory A	Stores and recalls a specific engine RPM setting.
	Engine RPM Adjuster	Allows adjustment of the engine RPM.
	Engine RPM Increase	Increases the engine RPM.
	Engine Run	Indicates that the engine is running.
	Engine Start	Initiates the engine starting process.
	Engine Stop	Stops the engine.
	Engine Heater (Low Temperature Start Aid)	Illuminates when the engine block heater is in operation, helping to warm the engine for easier starting in cold conditions. Diesel Preheat / Glow Plugs.
	Diesel Engine Preheat	Indicates that the diesel engine preheat function is active, aiding in cold starts.
	Diesel Preheat/Glow Plugs (Low Temperature Start Aid)	Indicates the glow plugs are active, preheating the engine cylinders for easier starting in cold conditions.
	Regeneration	Initiates the regeneration process for the diesel particulate filter.
	Regeneration Inhibit	Prevents regeneration from occurring.
	Regeneration Switch	Activates the regeneration process manually.
	Parked Regeneration	Initiates regeneration while the vehicle is stationary.
	DEF / AdBlue-Level	Indicates the level of Diesel Exhaust Fluid (DEF) or AdBlue.
	DEF / AdBlue Low Level	Alerts when the DEF or AdBlue level is low.
	DEF / AdBlue Poor Quality	Alerts when the quality of DEF or AdBlue is compromised.
	DEF / AdBlue Trouble	Indicates a problem with the DEF or AdBlue system.
	DEF / AdBlue Freeze	Alerts when DEF or AdBlue is at risk of freezing.

Body-related Dash Symbols

Symbol	Name	Description
	Travel Direction	Indicates the current direction of tractor travel.
	Travel Direction Forward	Indicates forward travel direction.
	Travel Direction Rearward	Indicates reverse travel direction.
	4-Wheel Drive On	Indicates that the tractor’s 4-wheel drive system is engaged.
	4-Wheel Drive Off	Indicates that the tractor’s 4-wheel drive system is disengaged.
	Four-wheel On	Engages the four-wheel drive system.
	Four-wheel Automatic	Automatically adjusts the four-wheel drive system based on conditions.
	Headland Management System	Manages tractor operations during headland turns.
	Auto Transmission	Engages automatic transmission mode.
	Auto Transmission Sensitivity	Adjusts the sensitivity of the automatic transmission.
	Auto Transmission Road Control	Optimizes transmission settings for road conditions.
	Auto Transmission Field Control	Optimizes transmission settings for field conditions.
	Transmission Oil Filter	Indicates a restricted or clogged transmission oil filter, which can impede hydraulic function and transmission performance.
	Transmission Oil Filter	Warns of an issue with the transmission oil filter, such as needing replacement or cleaning.
	Transmission Oil Temperature	Warns the operator when the transmission oil temperature exceeds safe operating levels, indicating potential overheating or insufficient cooling.
	Gear Shifting Warning	Indicates a problem with gear shifting.
	Clutch	Engages or disengages the tractor clutch.
	Brake	Alerts the operator to low brake fluid levels in the tractor’s brake system, indicating potential brake failure or leakage.
	Parking Brake	Engages the tractor parking brake. Illuminates when the handbrake or parking brake is engaged, reminding the operator to disengage it before driving.
	Air Brake	Indicates the status of the air brake system.
	Brake Failure / Malfunction	Alerts about brake system failure or malfunction.
	Differential Lock	Indicates engagement of the tractor’s differential lock, enhancing traction in slippery or uneven terrain.
	Differential Lock Indicator	Indicates that the differential lock is engaged, providing equal power to both wheels on an axle.
	Differential Lock Automatic	Automatically engages the differential lock based on conditions.
	Steering Wheel Tilt	Adjusts the tilt angle of the steering wheel.
	Steering Wheel Telescope	Adjusts the telescoping position of the steering wheel.
	Automatic Steering Control	Engages automatic steering control.
	Steering Oil Filter	Indicates the status of the steering oil filter.
	Front Suspension	Indicates the status of the front suspension system.
	Front Suspension Automatic	Automatically adjusts the front suspension based on conditions.
	Front Suspension Down	Lowers the front suspension.
	Front Suspension Up	Raises the front suspension.
	Front Suspension Lock	Locks the front suspension in position.

PTO-related Dash Symbols

Symbol	Name	Description
	PTO Off (Disengaged)	Deactivates the power take-off.
	PTO On (Engaged)	Activates the power take-off.
	PTO 540 rpm	Indicates engagement of the tractor’s power take-off (PTO) system at 540 revolutions per minute.
	PTO 540E rpm	Indicates the power take-off speed of 540E rpm.
	PTO 1000 rpm	Indicates engagement of the tractor’s power take-off (PTO) system at 1000 revolutions per minute.
	PTO 1000E rpm	Indicates the power take-off speed of 1000E rpm.
	PTO Front	Indicates the front power take-off is active for front-mounted implements.
	PTO F Front	Indicates the front power take-off is active for front-mounted implements.
	PTO Rear	Indicates the rear power take-off is active for front-mounted implements.
	PTO R Rear	Indicates the rear power take-off is active for front-mounted implements.
	PTO Cruise	Indicates that the Power Take-Off (PTO) cruise control is active, maintaining a constant PTO speed.
	PTO ECO	Indicates the PTO is operating in economy mode, optimizing fuel efficiency.

Hydraulic-related Dash Symbols

Symbol	Name	Description
	Draft Control	Manages the draft control system for implements.
	Automatic Draft Operation	Indicates that the automatic draft control system is active, maintaining consistent soil penetration.
	Automatic Horizontal Operation	Indicates that the automatic horizontal control system is active, keeping implements level.
	Automatic Tilling Depth Operation	Indicates that the automatic tilling depth control is active.
	Position Control	Controls the height or position of attached implements.
	Lift Arm Control Up / Transport	Raises or lowers lift arms for transport mode.
	Lift Arm Control Upward	Raises tractor lift arms.
	Lift Arm Control Down	Lowers tractor lift arms.
	Lift Arm Control Downward	Lowers lift arms.
	Lift Arm Control Block	Locks lift arms in position.
	Lift Arm Control Float	Allows tractor lift arms to float.
	Lift Arm Control Lock	Locks tractor lift arm controls.
	3-Point Lifting / Lowering	Controls the three-point hitch for lifting or lowering implements.
	Lift Arm Height	Indicates the height of the lift arms.
	Position Control – Lowering	Indicates the position control lever is in the lowering position for the implement.
	Remote Cylinder Retract	Retracts remote hydraulic cylinders.
	Remote Cylinder Extend	Extends remote hydraulic cylinders.
	Remote Cylinder Float	Allows remote hydraulic cylinders to float.
	Remote Cylinder Lock A	Locks remote hydraulic cylinder control.
	Remote Cylinder Lock B	Locks remote tractor hydraulic cylinder control.
	Auxiliary Operation Indicator	Indicates that an auxiliary function is active.
	Auxiliary Hydraulic Port	Shows the status of auxiliary hydraulic ports.
	AUX Electric Port	Shows the status of the auxiliary electric port.
	AUX Electric Port indicator	Indicates that the auxiliary electric port is active.
	High Flow Indicator	Indicates that the hydraulic system is operating in high flow mode.
	High Flow	Indicates high hydraulic flow is active.
	AUX Hydraulic Port Hold M/F	Indicates the auxiliary hydraulic port hold mode/function is active.
	AUX 14-Pin C Symbol	Shows the status of the 14-pin auxiliary electrical connector.
	Hydraulic Lock Device	Indicates that the hydraulic lock device is engaged, preventing unintended hydraulic movements.
	Hydraulic Oil Temperature	Hydraulic oil temperature warning light.
	Hydraulic Oil Filter	Indicates the status of the hydraulic oil filter.

SSL / CTL Loader Dash Symbols

Symbol	Name	Description
	Forward	Indicates the loader is moving forward
	Backward	Indicates the loader is moving backward
	Turn Right	Indicates the machine is turning right
	Turn Left	Indicates the machine is turning left
	Lift Arm Raise / Bucket Up	Indicates the lift arm is raising or the bucket is being lifted
	Lift Arm Lower / Bucket Down	Indicates the lift arm is lowering or the bucket is being lowered
	Loader Bucket Dump	Indicates the Kubota loader bucket is being dumped
	Loader Bucket Rollback / Tilt	Indicates the loader bucket is being rolled back or tilted
	Loader Bucket Float	Indicates the Kubota loader bucket is in float mode
	Loader Quick Hitch Lock	Indicates the loader quick hitch is locked. Locks the loader bucket or attachment into position quickly
	Loader Bucket Self Leveling	Indicates the loader bucket is self-leveling. Automatically adjusts the loader bucket to maintain a level position
	Ride Control	Indicates that the ride control feature is active, improving ride comfort by damping loader arm movements.
	Quick Attachment Unlock	Indicates that the quick attachment locking mechanism is disengaged / the quick attachment system is unlocked.
	Self Leveling Indicator	Indicates that the self-leveling function of the loader is active, keeping the bucket level as the arms are raised or lowered.
	Tailgate Safety Cover	Shows the tailgate safety cover is engaged.
	Loader Joystick Handle	Indicates the status or position of the loader joystick handle.

You can find all these dashboard symbols on the following Daedong equipment models:

• Daedong CK Series: CK20, CK30, CK2620, CK2620H, CK2620SEH Cab, CK3520, CK3520H, CK3520SE, CK3520SEH, CK3520SEH Cab, CK4020, CK4020H, CK4020SE, CK4020SEH Cab / ROPS.
• Daedong CS Series: CS2210, CS2510, CS2220, CS2520.
• Daedong CX Series: CX2510, CX2510H, CX2510HCB.
• Daedong DK Series: DK35, DK40, DK45, DK50, DK65, DK75, DK80, DK90, DK451, DK501, DK551, DK561, DK751, DK752, DK901, DK902, DK4520, DK5020, DK5520, DK4220SEH ROPS / Cab, DK4720SEH ROPS / Cab, DK5320HSE ROPS / Cab, DK6020HSE ROPS / Cab.
• Daedong EX Series: EX35, EX40, EX45, EX50.
• Daedong FX Series: FX651, FX751.
• Daedong LK Series: LK3054, LK4504, LX500L.
• NS4710, NS4710 HST, NS4710C, NS4710C HST, NS5310H, NS6010, NS6010H, NS6010C, NS6010C HST.
• NX4510, NX4510C, NX4510H, NX4510CH, NX5010, NX5010C, NX5010H, NX5010CH, NX5510, NX5510C, NX5510H, NX5510CH, NX6010H, NX6010CH.
• RX6620, RX6620C, RX6620P, RX6620PC, RX7320, RX7320C, RX7320P, RX7320PC, RX7320PCC.
• HX9010, HX1151.
• K9 2400, K9 2400 Cab, K9 2440.
• ZXR48, ZXR54, ZXR60, ZXR48 SE, ZXR54 SE, ZXR60 SE, ZXR48 LT, ZXR54 LT, ZXR60 LT.
• ZXC48, ZXC54, ZXC60, ZXC48 SE, ZXC54 SE, ZXC60 SE, ZXC48 LT, ZXC54 LT, ZXC60 LT.
• ZXS48, ZXS54.
• ZXD61, ZXD72.

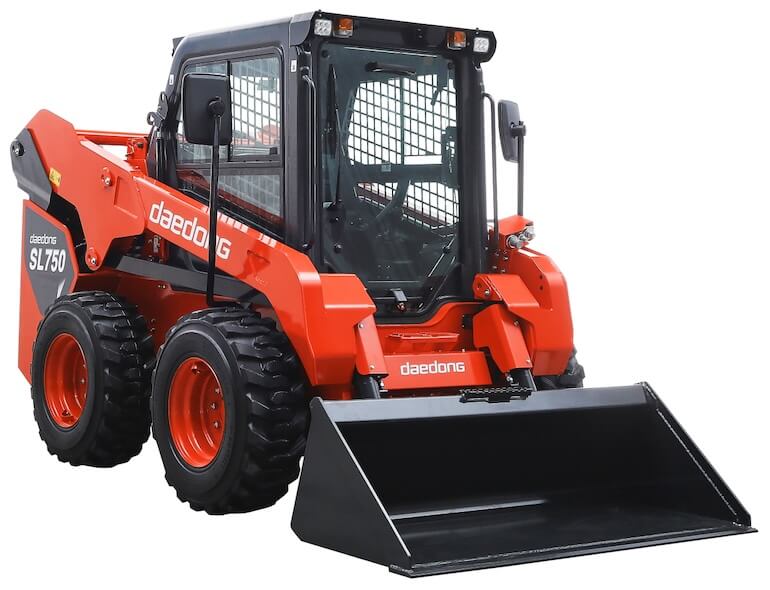

• SL750U-PL, SL750U-LQ.
• TL750U-PL, TL750U-LQ.

Colors of Daedong Warning Lights

The colors of warning lights on Daedong equipment typically follow a standard color scheme used in most vehicles to indicate the severity and type of the warning.

Here is the usual color coding for Daedong warning lights:

1. Red Warning Lights:
   • Indicate critical issues requiring immediate attention.
   • Examples: Engine overheating, low oil pressure, brake system fault, battery charge, water-in-fuel warning lamp, DPF regeneration process.
2. Amber/Yellow Warning Lights:
   • Indicate caution for potential issues that should be checked soon
   • Examples: Low fuel, CHECK ENGINE warning lamp, transmission issues, glow plug indicator, hydraulic system warnings, cruise control, PTO clutch control, cruise PTO indicator.
3. Green Indicator Lights:
   • Indicate normal operation of systems or functions
   • Examples: Turn signal, linked pedal, neutral gear indicator.
4. Blue & White Indicator Lights:
   • Provide general information about the machine’s status and specific functions or auxiliary systems in operation
   • Examples: High beam headlights, auxiliary power operation, seat belt reminder

Understanding these color codes helps operators quickly assess the urgency and type of information being conveyed by the warning and indicator lights. This allows for prompt addressing of potential issues and ensures safe operation of the equipment.

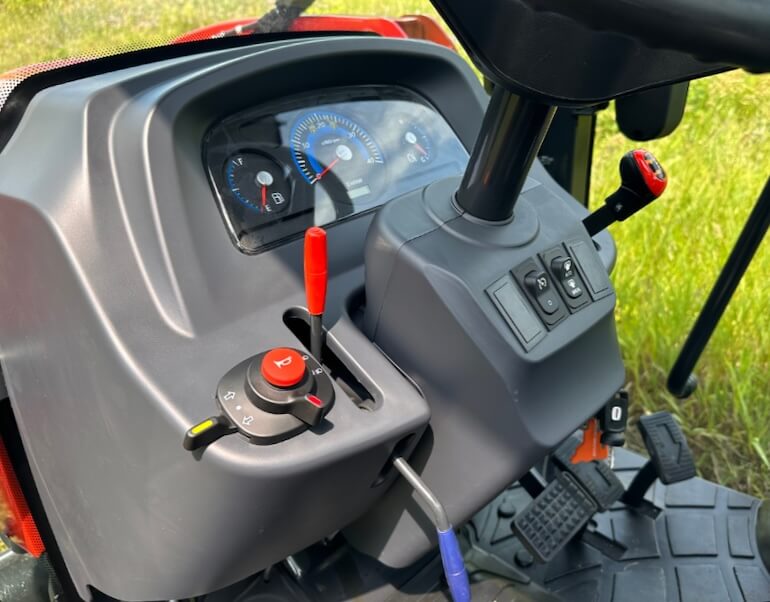

How to Reset Daedong Warning Lights

Resetting warning lights on a Daedong tractor can vary depending on the model and the specific warning light.

However, there are general steps you can follow to reset warning lights. Here’s a general guide:

1. Turn Off the Tractor: Make sure the tractor is turned off and the key is removed from the ignition.
2. Check the Issue: Ensure that the issue causing the warning light has been addressed. For example, if it’s a low oil pressure warning, check and refill the oil as needed.
3. Disconnect the Battery: Disconnect the negative battery terminal to reset the tractor’s electronic systems. Leave it disconnected for about 10-15 minutes. This allows the system to reset.
4. Reconnect the Battery: Reconnect the negative battery terminal securely.
5. Start the Tractor: Turn on the tractor and check if the warning light has been reset.
6. Diagnostic Tool: For more advanced models, you might need a diagnostic tool to reset certain warning lights. Connect the diagnostic tool to the tractor’s diagnostic port and follow the tool’s instructions to reset the warning lights.
7. Refer to the Manual: Always refer to the tractor’s user manual for specific instructions related to your model. The manual might provide model-specific steps for resetting warning lights.
8. Professional Assistance: If the warning light persists, it may indicate a more serious issue. In such cases, consult a professional mechanic or your dealer for further assistance.

Here are some specific tips for common warning lights:

• Battery Charge Warning Lamp / Check Battery and Alternator: Ensure the battery is charged and the alternator is functioning properly. Replace or repair as needed.
• Engine Oil Pressure Warning Lamp / Check Oil Level: Refill the engine oil to the recommended level. If the issue persists, check for leaks or sensor problems.
• Parking Brake Warning Lamp / Disengage Parking Brake: Ensure the parking brake is fully disengaged. Check the brake switch and adjust if necessary.
• Glow Plug Indicator / Glow Plug Check: Ensure the glow plugs are functioning correctly. Replace faulty glow plugs if needed.
• CHECK ENGINE Warning Light / Diagnostic Tool: Use a diagnostic tool to read and clear the error codes. Address any underlying issues.
• DPF Regeneration Warning Lamp / DPF Regeneration: Follow the manual’s instructions to initiate a manual regeneration process, if necessary.
• Emissions System Warning Symbol / Check Emissions System: Inspect the emissions system components and repair or replace any faulty parts.

By following these steps, you should be able to reset most of the warning lights on your Daedong tractor. Always ensure that the underlying issue causing the warning light is resolved before attempting a reset.
