Discover the complete range of John Deere dozers with our comprehensive size chart and specifications. From compact models to heavy-duty machines, explore the horsepower, operating weight, blade capacity, and other key features that make John Deere bulldozers the industry standard for performance and reliability.
Whether you’re tackling small-scale projects or large-scale earthmoving tasks, find the perfect dozer to meet your needs and exceed your expectations with our detailed John Deere Dozer Size Chart.
John Deere Bulldozers Sizes
John Deere bulldozers come in various sizes to cater to different applications and project requirements. These sizes typically range from compact models suitable for landscaping and small construction projects to larger models designed for heavy-duty earthmoving tasks in mining, quarrying, and large-scale construction projects.
- Small Dozers – Operating Weight 16.535 – 24.248 lbs (7.500 – 10.999 kg) and NET Power 71 – 104 hp.
- Mid-Size Dozers – Operating Weight 24.251 – 55.116 lbs (11.000 – 25.000 kg) & NET Power 135 – 225 hp.
- Large Dozers – Operating Weight up to 57.320+ lbs (26.000+ kg) and NET Power 265 – 350 hp.
The exact size of a John Deere bulldozer can vary based on factors such as engine power, blade capacity, operating weight, and overall dimensions.

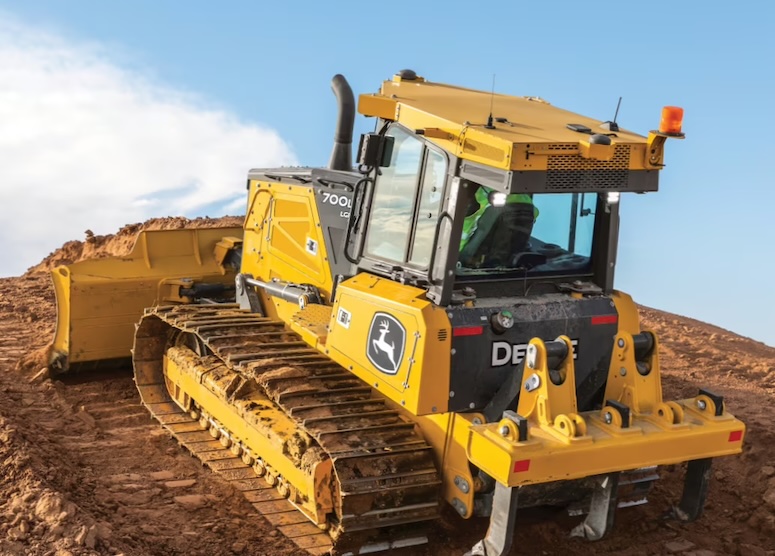

John Deere Dozer Size Chart
A John Deere dozer size chart provides a comprehensive overview of the various models offered by the company, detailing specifications such as engine power, operating weight, blade capacity, and other key features.
| Model | Power NET | Operating Weight | Blade Capacity |
|---|---|---|---|
| Deere’s Small Bulldozers | |||
| 450 P-Tier | 53 kW (71 hp) | 8081 – 8634 kg (17,816 – 19,035 lb) | 1.6 m³ (2.1 yd³) |
| 550 P-Tier | 69 kW (92 hp) | 8552 – 9124 kg (18,853 – 20,115 lb) | 1.8 m³ (2.4 yd³) |
| 650 P-Tier | 78 kW (104 hp) | 9600 – 10,198 kg (21,165 – 22,484 lb) | 2.0 m³ (2.6 yd³) |
| Deere’s Mid-size Bulldozers | |||
| 700L | 101 kW (135 hp) | 14,016 – 14,555 kg (30,900 – 32,088 lb) | 3.6 m³ (4.8 yd³) |
| 750L | 131 kW (175 hp) | 17,041 – 18,162 kg (37,569 – 40,040 lb) | 4.3 m³ (5.6 yd³) |
| 850L | 168 kW (225 hp) | 21,581 – 23,299 kg (47,578 – 51,365 lb) | 4.5 m³ (5.9 yd³) |
| Deere’s Large Bulldozers | |||
| 950 P-Tier | 198 – 209 kW (265 – 280 hp) at 1,800 rpm | 29,606 – 33,431 kg (65,300 – 73,700 lb.) | 7.2 m³ (9.4 yd³) |
| 1050 P-Tier | 264 kW (354 hp) at 1,7800 rpm | 42,640 – 42,900 kg (94,000 – 94,580 lb.) | 10.7 m³ (14 yd³) |
This size chart allows users to compare different models and select the one that best fits their specific needs and requirements.

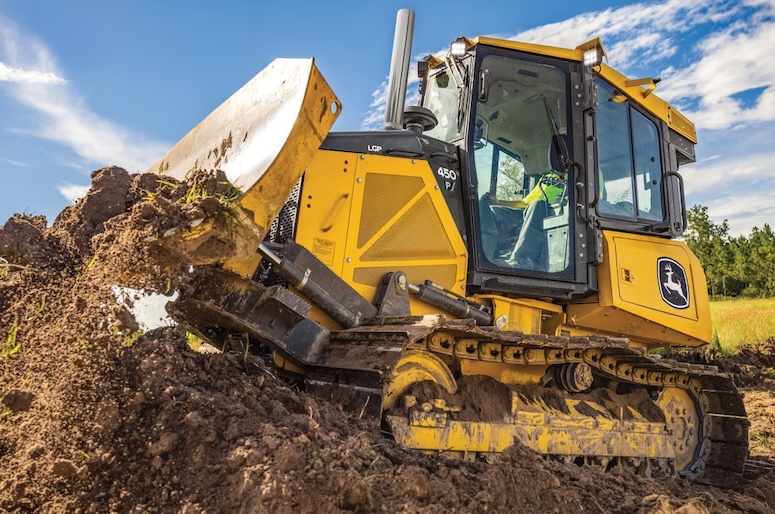

Small JD Dozers Sizes & Specs
John Deere small dozers are versatile machines commonly used in various industries such as construction, agriculture, forestry, and landscaping. Their compact size and maneuverability make them ideal for tasks such as grading, leveling, clearing land, pushing materials, and creating pathways or roads.
Key features of John Deere small dozers include: compact design and articulated steering allow for easy navigation in tight spaces and around obstacles; equipped with powerful engines that provide ample horsepower for handling various tasks; versatile blade options, including straight blades and angled blades, for different applications such as pushing, leveling, and spreading materials; ergonomic cabs with comfortable seating, intuitive controls, and excellent visibility for enhanced operator comfort and productivity. Robust construction and durable components ensure longevity and reliability, even in rugged working conditions. Convenient access points and simplified maintenance procedures make servicing and upkeep hassle-free, minimizing downtime and maximizing productivity.
| Model | Power NET | Operating weight | Blade capacity |
|---|---|---|---|
| 450 P-Tier | 53 kW (71 hp) | 8081 – 8634 kg (17,816 – 19,035 lb) | 1.6 m³ (2.1 yd³) |
| 550 P-Tier | 69 kW (92 hp) | 8552 – 9124 kg (18,853 – 20,115 lb) | 1.8 m³ (2.4 yd³) |
| 650 P-Tier | 78 kW (104 hp) | 9600 – 10,198 kg (21,165 – 22,484 lb) | 2.0 m³ (2.6 yd³) |

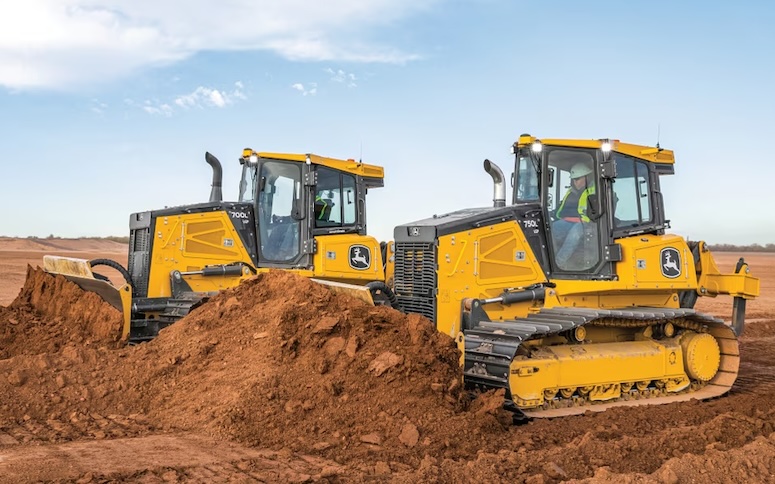

Mid-Size JD Dozers Sizes & Specs
John Deere mid-size dozers are versatile machines commonly used in various industries such as construction, mining, forestry, and agriculture. Their medium size and robust construction make them suitable for a wide range of applications, including grading, leveling, excavation, material handling, and site preparation.
John Deere mid-size dozers equipped with powerful engines and advanced hydraulic systems to deliver high performance and productivity in demanding applications. Available with a range of blade configurations, including straight blades, semi-U blades, and angle blades, to suit different tasks and terrain conditions. Integrated with advanced control systems and automation technologies for precise blade control, efficient operation, and enhanced productivity. Spacious and ergonomic cabs with adjustable seats, intuitive controls, and excellent visibility for operator comfort, safety, and productivity. Optimized chassis design, balanced weight distribution, and articulated steering systems provide stability, traction, and maneuverability in various ground conditions. Built with durable components, reinforced structures, and rugged undercarriages to withstand harsh working environments and ensure long-term reliability.
| Model | Power NET | Operating Weight | Blade Capacity |
|---|---|---|---|
| 700L | 101 kW (135 hp) | 14,016 – 14,555 kg (30,900 – 32,088 lb) | 3.6 m³ (4.8 yd³) |
| 750L | 131 kW (175 hp) | 17,041 – 18,162 kg (37,569 – 40,040 lb) | 4.3 m³ (5.6 yd³) |
| 850L | 168 kW (225 hp) | 21,581 – 23,299 kg (47,578 – 51,365 lb) | 4.5 m³ (5.9 yd³) |

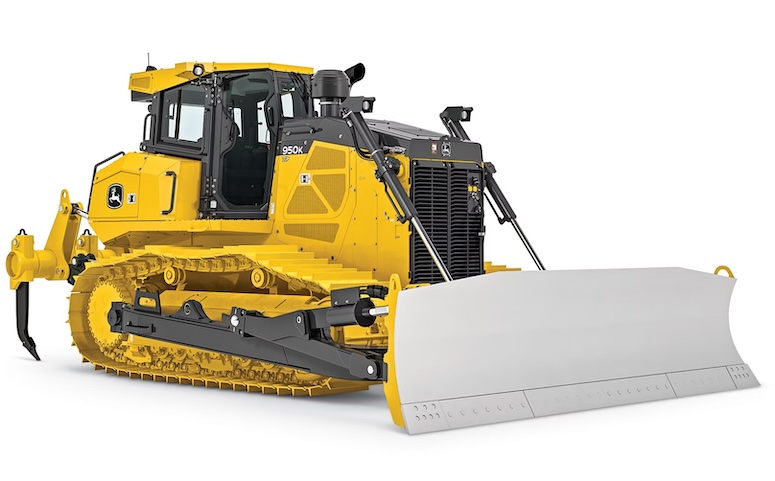

Large JD Dozers Sizes & Specs
John Deere Large Dozers are primarily used for heavy-duty earthmoving and land clearing tasks in various industries such as construction, mining, and forestry. These robust machines are designed to handle large-scale projects and challenging terrain with efficiency and precision.
Equipped with powerful engines, John Deere Large Dozers deliver impressive performance and torque to tackle demanding tasks effectively. These dozers are fitted with large-capacity blades that enable them to move substantial amounts of material in a single pass, improving productivity on the job site. Incorporating advanced technology and intelligent features such as GPS / GNSS guidance systems, automated controls, and telematics, Deere large bulldozers offer enhanced productivity, accuracy, and operator comfort. Built with rugged construction and high-quality materials, these dozers are engineered to withstand the rigors of heavy-duty use in challenging environments, ensuring long-term durability and reliability. John Deere prioritize operator comfort and safety with spacious cabs, ergonomic controls, enhanced visibility, and safety features, allowing operators to work efficiently and safely for extended periods.
| Model | Power NET | Operating Weight | Blade Capacity |
|---|---|---|---|
| 950 P-Tier | 198 – 209 kW (265 – 280 hp) at 1,800 rpm | 29,606 – 33,431 kg (65,300 – 73,700 lb.) | 7.2 m³ (9.4 yd³) |
| 1050 P-Tier | 264 kW (354 hp) at 1,7800 rpm | 42,640 – 42,900 kg (94,000 – 94,580 lb.) | 10.7 m³ (14 yd³) |
Overall, John Deere large dozers are versatile, reliable, and well-suited for a wide range of earthmoving applications, making them indispensable assets for large-scale construction and industrial projects.
How to Choose a John Deere Bulldozer?
Choosing a John Deere bulldozer involves considering several factors to ensure the right fit for your specific needs:
- Application: Determine the primary use of the dozer, whether it’s for construction, agriculture, forestry, or mining. Different applications may require specialized features and capabilities.
- Size and Power: Select a dozer size and power rating that matches the scale of your projects and the terrain you’ll be working on. Consider factors such as blade capacity, horsepower, and operating weight.
- Attachments and Features: Evaluate the available attachments and features that enhance productivity and efficiency for your intended tasks. This may include blades, rippers, GNSS / GPS technology, and operator comfort features.
- Terrain and Conditions: Assess the terrain and environmental conditions where the dozer will operate. Choose a model with appropriate ground clearance, track options, and traction features to handle rough terrain, slopes, and adverse weather conditions.
- Budget and Total Cost of Ownership: Consider your budget for purchasing and operating the dozer over its lifespan. Factor in maintenance costs, fuel efficiency, resale value, and any additional expenses related to attachments, training, and support services.
- Dealer Support and Service: Research the availability of authorized John Deere dealers in your area and the quality of their customer support and service offerings. Choose a reputable dealer with a strong track record of reliability and responsiveness.
By carefully evaluating these factors and consulting with industry experts or JD representatives, you can make an informed decision when selecting the right John Deere dozer for your specific needs and requirements.

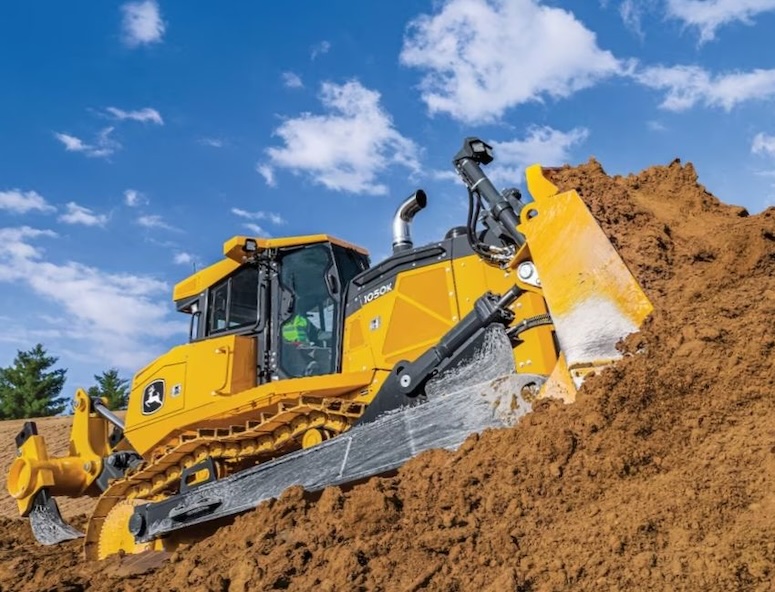

Largest John Deere Dozer in the World
The largest John Deere dozer currently in production is the John Deere 1050 P-Tier, renowned for its robust performance and immense power. With a net power of 264 kW (354 hp) at 1700 rpm and an operating weight ranging from 42,640 to 42,900 kg (94,000 to 94,580 lb), this formidable machine is designed to tackle the most demanding earthmoving and construction projects.
Its massive blade capacity of 10.7 m³ (14 yd³) enables it to move substantial volumes of material efficiently, making it an indispensable asset in large-scale excavation, mining, and land development operations.

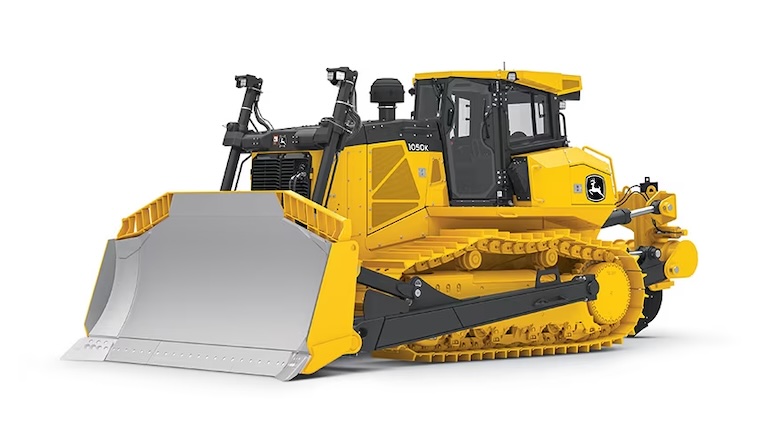

John Deere 1050 P-Tier Dozer Specs
| Driveline | |
|---|---|
| Engine Model | JD14 13.6L – FT4/SV |
| Rated Speed | 1700 rpm |
| Engine Output – Net | 264 kW (354 hp) |
| Transmission Type | Hydrostatic |
| Speeds Mode 1 – Forward | 1 |
| Speeds Mode 1 – Reverse | 1 |
| Final Drive | Planetary |
| Track Rollers | 8 |
| Shoe – Pitch | 215.9 mm (8.5 inches) |
| Shoe – Type | Single Grouser – Extreme Service |
| Ground Contact Area | 41684 cm² (6462 Inches²) |
| Number Of Shoes | 46 |
| Oscillation | Yes |
| Dimensions | |
| Height – Max | 3476 mm (11 ft 5 in) |
| Ground Clearance | 537 mm (21 inches) |
| Track Length – On Ground | 3419 mm (11 ft 2 in) |
| Track Gauge | 2184.4 mm (7 ft 2 in) |
| Blade – Width | 4149 mm (13 ft 7 in) |
| Blade – Dig Depth | 707 mm (28 inches) |
| Blade – Tilt | 832 mm (2 ft 9 in) |
| Capacities | |
| Fuel Tank Capacity | 681L / 180 gallons (US) |
| Hydraulic Tank | 87L / 23 gallons (US) |
| Blade – Capacity | 10.7 m³ / 14 yd³ |
| Operating Weight | 42900 kg / 94580 lbs |
| Performance | |
| Speed – Forward Maximum | 11 kph (6.8 mph) |
| Speed – Reverse Maximum | 11 kph (6.8 mph) |
| Ground Bearing Pressure | 101 kPa (14.6 PSI) |
| Implement Pump – Type | Piston |
| Implement Pump – Flow | 290 L/min (77 gallons/min) |
| Implement Pump – Pressure | 249.93 bar (3625 PSI) |
Blades for John Deere 1050 P-Tier
- Semi-U Blade – 168 In (4267 mm);
- Semi-U Blade – 168 In (4267 mm) with Center Push Plate;
- Semi-U Blade – 168 In (4267 mm) with Rock Rack and Wear Plate;
- Semi-U Blade – 168 In (4267 mm) with Trash Rack & Wear Plate For Wastehandler;
- U-Blade – 157 In (3976 mm);
- U-Blade – 157 In (3976 mm) with Rock Rack and Wear Plate;
- U-Blade – 157 In (3976 mm) with Trash Rack and Wear Plate For Wastehandler;
- 32 Yd Coal Blade – 216 In (5493 mm).
John Deere 1050 P-Tier Pros:
- Robust Engine: Equipped with a JD14 13.6L – FT4/SV engine, the John Deere 1050 P-Tier Dozer boasts a powerful and reliable engine that ensures efficient performance even in challenging conditions.
- High Blade Capacity: With a blade capacity of 10.7 m³ (14 yd³), this dozer offers impressive capability for handling large volumes of material, enhancing productivity on the job site.
- Versatile Transmission: The hydrostatic transmission provides smooth and precise control over the machine, allowing operators to maneuver with ease and optimize efficiency.
- Durable Construction: Designed with durability in mind, the 1050K features a robust frame and components, ensuring longevity and minimal downtime for maintenance.
- Enhanced Visibility: The compact design and optimized layout of the cab provide excellent visibility, allowing operators to work with confidence and precision, even in tight spaces.
John Deere 1050 P-Tier Cons:
- High Operating Weight: The John Deere 1050 P-Tier Dozer has a substantial operating weight of 42,640 to 42,900 kg (94,000 to 94,580 lb), which may limit its maneuverability in certain terrains and require careful consideration during transport.
- Limited Speed: While the dozer offers sufficient power for heavy-duty applications, its maximum forward and reverse speeds of 11 kph (6.8 mph) may be slower compared to some competitors, affecting overall productivity on larger job sites.
- Maintenance Requirements: Like any heavy machinery, the 1050 P-Tier requires regular maintenance to ensure optimal performance and longevity. The complexity of the machine may result in higher maintenance costs and downtime if not properly managed.
- Initial Investment: The initial purchase cost of the John Deere 1050 P-Tier Dozer may be higher compared to some other models in its class, making it less accessible to some budget-conscious buyers or smaller contractors.
- Environmental Impact: While the dozer meets emission regulations, its fuel consumption and carbon footprint may be significant, especially during prolonged operation, potentially impacting operational costs and environmental sustainability efforts.
In conclusion, John Deere offers a comprehensive range of bulldozers designed to meet diverse needs across various industries and applications. From small-scale projects to large-scale earthmoving operations, John Deere bulldozers deliver powerful performance, advanced technology, and rugged durability. With a focus on innovation, efficiency, and operator comfort, John Deere continues to set the standard for excellence in the bulldozer market. Whether it’s the compact agility of the small dozers or the robust capabilities of the large models, John Deere bulldozers provide reliable solutions for tackling the toughest tasks with confidence and precision.
