Tractor Dashboard Symbols & Warning Lights Meaning

Universal tractor dashboard symbols are standardized graphical representations displayed on the instrument panel of tractors to convey information about various functions, statuses, and warnings related to the vehicle’s operation. These symbols are designed to be universally understood across different tractor brands, making it easier for operators to interpret and respond to different situations while operating the tractor.

They cover a wide range of indicators, including engine status, fluid levels, system warnings, and operational settings, providing essential feedback to the operator for safe and efficient tractor operation.

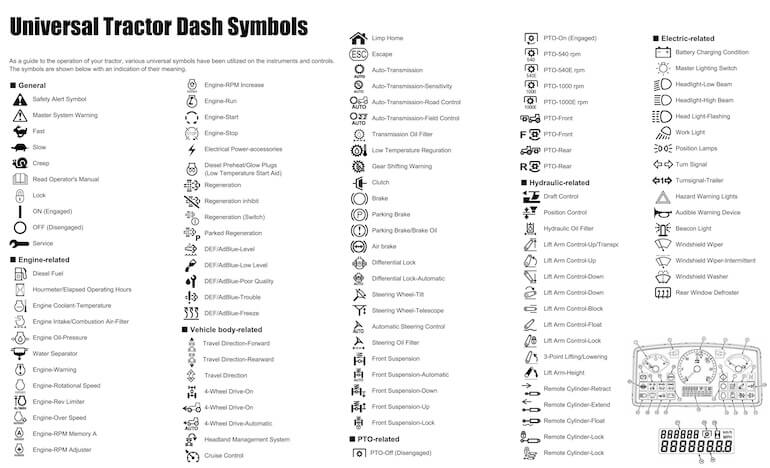

Universal Tractor Dashboard Symbols & Meanings

Standardized tractor dashboard symbols simplify operator training as they provide a consistent visual language that operators can learn and understand easily for any brands: John Deere, Massey Ferguson, Case IH, New Holland, Kubota, Kioti, Daedong, Fendt, Claas, Mahindra, TYM, Valtra…

This streamlines the training process and ensures that operators are adequately prepared to operate tractors safely and effectively.

General Tractor Dash Symbols

Symbol	Name	Dashboard Symbol Description
	Safety Alert Symbol	Indicates a safety alert or warning.
	Stop	Indicates a serious tractor malfunction in the tractor’s systems that requires immediate attention.
	Master System Warning	Alerts about a critical issue with the tractor’s master system.
	Service Alert	Illuminates when a malfunction occurs (review error code in Information Display).
	Setup / Settings	System Setup / Settings.
	Read Operator’s Manual	Indicates the need to consult the operator’s manual for information.
	Malfunction! (Alternative)	See operator’s manual.
	Fast	Indicates a high-speed setting or mode.
	Slow	Indicates a low-speed setting or mode.
	Creep	Indicates engagement of the tractor’s super creep gear, which provides exceptionally slow speeds for specific applications.
	Cruise Control	Indicates that cruise control is engaged. Maintains a constant speed set by the operator.
	Tractor Cruise Control	Indicates that the cruise control feature is activated, maintaining a set speed without manual throttle control.
	Speed Limit Switch	Indicates that the speed limit feature is activated, restricting the tractor’s maximum speed.
	Ground Speed	Displays the current ground speed of the tractor, allowing for precise control.
	No Stall	Indicates an anti-stall feature is active, preventing the engine from stalling during heavy loads.
	Limp Home	Activates a reduced power mode for emergency situations.
	Lock	Indicates that a function or system is locked or engaged.
	Unlock	Indicates that a function or system is unlocked.
	Escape	Allows exiting a menu or mode.
	ECO Mode	Indicates that the equipment is operating in economy mode, optimizing fuel efficiency.
	ON (Engaged)	Indicates that a system or function is active or engaged.
	OFF (Disengaged)	Indicates that a system or function is inactive or disengaged.
	Transmission Neutral Indicator	indicates that the tractor is in neutral gear. This light signifies that the transmission is in a neutral position, meaning the tractor is not engaged in any forward or reverse movement.
	Operator Presence Sensor (OPS)	Illuminates when the tractor operator’s seat is unoccupied, reminding the operator to sit properly for safe operation.
	Operator Presence Sensor (Alternative)	Illuminates when the tractor operator’s seat is unoccupied.
	Operator Presence Control (Alternative)	This safety feature ensures that the tractor or equipment will not operate unless there is sufficient weight on the seat to indicate the presence of an operator.
	Seat Belt Control	Seat belt control lamp / indicator.
	Message	Vehicle messages button.
	Service Mode	Service mode selected.
	Service	Indicates that the tractor requires servicing or maintenance.
	Information	This switch is used to control the display of information on the instrument cluster, such as engine hours, fuel level, and other operational data. The specific meaning of the symbol may vary depending on the model of the equipment.
	Warning! Corrosive Substance	Indicates the presence of a corrosive substance. Use caution when handling.
	Pressurised Open Carefully	Warns to open a pressurized component carefully to avoid injury.
	Hazard Warning Lights	Activates the hazard lights to warn others of potential danger.
	Audible Warning Device	Indicates the status of the audible warning device.

Engine-related Tractor Dash Symbols

Symbol	Name	Dashboard Symbol Description
	Fuel Level	Indicates the level of fuel in the tank.
	Diesel Fuel	Indicates the level of diesel fuel in the tank.
	Automatic Fuel Shut-off	Signals that the automatic fuel shut-off system is active, preventing fuel flow.
	Hourmeter / Elapsed Operating Hours	Displays the total operating hours or elapsed time.
	Engine Temperature / Coolant Temperature	Warns the operator when the engine coolant temperature exceeds safe operating limits, indicating potential overheating.
	Low Coolant Level	Warns that the engine coolant level is low and needs to be refilled.
	Engine Coolant Temperature	Engine coolant temperature warning light.
	Engine Intake / Combustion Air Filter	Indicates the condition of the engine air filter. Warns the operator when the air filter becomes clogged or restricted, reducing airflow to the engine and affecting performance.
	Engine Oil Pressure	Indicates the oil pressure in the engine. Warns the operator when engine oil pressure drops below a safe level, indicating potential engine damage or oil system malfunction.
	Water Separator	Indicates the status of the water separator in the fuel system.
	Water in Fuel Warning	Indicates that there is water in the diesel fuel. This can be a serious issue, as water in diesel fuel can cause damage to the engine and fuel system.
	Engine Alert	Indicates various functions and warnings related to the engine and its operation (Engine Check).
	Engine Emissions Warning / Malfunction	It typically indicates an emissions-related issue, such as a problem with the exhaust aftertreatment system, DPF (Diesel Particulate Filter), EGR (Exhaust Gas Recirculation), or SCR (Selective Catalytic Reduction) system.
	Engine Warning	Indicates the presence of a fault code or error condition in the engine control system, prompting the operator to address the issue promptly.
	Engine Rotational Speed	Displays the rotational speed of the engine.
	Engine Rotational Speed, Maximum	Limits the maximum engine speed to prevent damage.
	Engine Rotational Speed, Instantaneous Decrease	Alerts when the engine exceeds its maximum safe speed.
	Engine RPM Memory A	Stores and recalls a specific engine RPM setting.
	Engine RPM Adjuster	Allows adjustment of the engine RPM.
	Engine Rotational Speed, Instantaneous Increase	Increases the engine RPM.
	Engine Speed Control	Engine Speed Control.
	Engine Run	Indicates that the engine is running.
	Engine Start	Initiates the engine starting process.
	Starter Control	Indicates an issue or status related to the engine’s starting system (Automatic Start Assist / Starter Motor Engaged / Starter System Fault).
	Engine Stop	Stops the engine.
	Engine Heater (Low Temperature Start Aid)	Illuminates when the engine block heater is in operation, helping to warm the engine for easier starting in cold conditions. Diesel Preheat / Glow Plugs.
	Engine Heater (Alternative)	This light may illuminate when the engine heater is in operation to warm up the engine in cold conditions.
	Diesel Preheat (Glow Plugs Activation)	It means the glow plugs are warming up to assist with cold engine starting.
	Regeneration	Initiates the regeneration process for the diesel particulate filter.
	Regeneration Inhibit	Prevents regeneration from occurring.
	DEF / AdBlue Trouble	Indicates a problem with the DEF or AdBlue system.
	Regeneration Switch	Activates the regeneration process manually.
	Parked Regeneration	Initiates regeneration while the vehicle is stationary.
	DEF / AdBlue-Level	Indicates the level of Diesel Exhaust Fluid (DEF) or AdBlue.
	High Exhaust Temperature	Indicates that the temperature inside the exhaust filter is high, which may require attention to prevent damage to the exhaust system.
	DEF / AdBlue Low Level	Alerts when the DEF or AdBlue level is low.
	DEF / AdBlue Poor Quality	Alerts when the quality of DEF or AdBlue is compromised.
	DEF / AdBlue Freeze	Alerts when DEF or AdBlue is at risk of freezing.

Tractor Body-related Dash Symbols

Symbol	Name	Dashboard Symbol Description
	Travel Direction	Indicates the current direction of tractor travel.
	Travel Direction Forward	Indicates forward travel direction.
	Travel Direction Rearward	Indicates reverse travel direction.
	4-Wheel Drive On	Indicates engagement of the tractor’s four-wheel-drive (4WD) system with differential lock, providing increased traction in challenging terrain.
	4-Wheel Drive Off	Indicates that the tractor’s 4-wheel drive system is disengaged.
	Four-wheel On	Engages the four-wheel drive system.
	Four-wheel Automatic	Automatically adjusts the four-wheel drive system based on conditions.
	Headland Management System	Manages tractor operations during headland turns.
	% Age Slip	Displays the percentage of slippage in the transmission or drive system.
	Transmission Service Required	Transmission service required.
	Auto Transmission	Engages automatic transmission mode.
	Auto Transmission (Alternative)	Engages automatic transmission mode.
	Auto Transmission Sensitivity	Adjusts the sensitivity of the automatic transmission.
	Auto Transmission Road Control	Optimizes transmission settings for road conditions.
	Auto Transmission Field Control	Optimizes transmission settings for field conditions.
	Transmission Oil Filter	Indicates a restricted or clogged transmission oil filter, which can impede hydraulic function and transmission performance.
	Transmission Oil Temperature	Warns the operator when the transmission oil temperature exceeds safe operating levels, indicating potential overheating or insufficient cooling.
	Gear Shifting Warning	Indicates a problem with gear shifting.
	Transmission Oil Pressure	Warns of low transmission oil pressure, which could affect transmission performance.
	Rear Axle Oil Temperature	Indicates the temperature of the oil in the rear axle, ensuring it remains within safe operating limits.
	Clutch	Engages or disengages the tractor clutch.
	High Range	Indicates that the tractor is in high gear range, suitable for higher speed operations.
	Mid Range	Shows the transmission is in medium gear range.
	Low Range	Indicates that the tractor is in low gear range, suitable for lower speed operations requiring more power.
	High Speed Travel	Indicates that the tractor is operating in high speed travel mode.
	Mid Speed Travel	Shows the tractor is operating at medium speed.
	Low Speed Travel	Signals the tractor is in low-speed mode.
	Transmission Oil Filter	Warns of an issue with the transmission oil filter, such as needing replacement or cleaning.
	Brake	Alerts the operator to low brake fluid levels in the tractor’s brake system, indicating potential brake failure or leakage.
	Parking Brake	Engages the tractor parking brake. Illuminates when the handbrake or parking brake is engaged, reminding the operator to disengage it before driving.
	Air Brake	Indicates the status of the air brake system.
	Brake Failure / Malfunction	Alerts about brake system failure or malfunction.
	Trailer Brake	Indicates the status of the trailer brake system, ensuring safe towing operations.
	Trailer Brake (Alternative)	This light will come on when the trailer brakes are active.
	Brake Fluid Level	Warns that the brake fluid level is low, which may affect braking performance.
	Stop Lamps	Indicates that the stop lamps are activated, alerting others that the tractor is stopping.
	Differential Lock	Indicates engagement of the tractor’s differential lock, enhancing traction in slippery or uneven terrain.
	Differential Lock Automatic	Automatically engages the differential lock based on conditions.
	Differential Lock (Alternative)	Indicates that the differential lock is engaged, providing equal power to both wheels on an axle.
	Steering Wheel Tilt	Adjusts the tilt angle of the steering wheel.
	Steering Wheel Telescope	Adjusts the telescoping position of the steering wheel.
	Automatic Steering Control	Engages automatic steering control.
	Steering Oil Filter	Indicates the status of the steering oil filter.
	Front Suspension	Indicates the status of the front suspension system.
	Front Suspension Automatic	Automatically adjusts the front suspension based on conditions.
	Front Suspension Down	Lowers the front suspension.
	Front Suspension Up	Raises the front suspension.
	Front Suspension Lock	Locks the front suspension in position.
	Twin Touch Foot Controls	The symbol which provide quick and easy forward/reverse operation.

PTO-related Tractor Dash Symbols

Symbol	Name	Dashboard Symbol Description
	PTO Off (Disengaged)	Deactivates the power take-off.
	PTO On (Engaged)	Activates the power take-off.
	PTO F Front	Indicates the front power take-off is active for front-mounted implements.
	PTO R Rear	Indicates the rear power take-off is active for front-mounted implements.
	PTO Front	Indicates the front power take-off is active for front-mounted implements.
	PTO Rear	Indicates the rear power take-off is active for front-mounted implements.
	PTO 540 rpm	Indicates engagement of the tractor’s power take-off (PTO) system at 540 revolutions per minute.
	PTO 540E rpm	Indicates the power take-off speed of 540E rpm.
	PTO 1000 rpm	Indicates engagement of the tractor’s power take-off (PTO) system at 1000 revolutions per minute.
	PTO 1000E rpm	Indicates the power take-off speed of 1000E rpm.
	PTO Cruise	Indicates that the PTO cruise control is active, maintaining a constant Power Take-Off speed.

Hydraulic-related Tractor Dash Symbols

Symbol	Name	Dashboard Symbol Description
	Lift Arm Control Up / Transport	Raises or lowers lift arms for transport mode.
	Lift Arm Control Down	Lowers tractor lift arms.
	Lift Arm Control Upward	Raises tractor lift arms.
	3-Point Lifting / Lowering	Controls the three-point hitch for lifting or lowering implements.
	3-Point Lifting (Alternative)	Controls the 3-point hitch for lifting implements.
	Lift Arm Control Downward	Lowers lift arms.
	Position Control – Lowering	Indicates the position control lever is in the lowering position for the implement.
	Lift Arm Height	Indicates the height of the lift arms.
	Hitch Height Limit (Rear)	Indicates the rear hitch height limit setting.
	Hitch Height Limit (Front)	Indicates the front hitch height limit setting.
	Hitch Lower (Rear)	Lowers the rear hitch.
	Hitch Disabled	Alerts that the tractor’s hitch system is disabled, preventing attachment movements.
	Lift Arm Control Lock	Locks tractor lift arm controls.
	Lift Arm Control Block	Locks lift arms in position.
	Lift Arm Control Float	Allows tractor lift arms to float.
	Remote Cylinder Retract	Retracts remote hydraulic cylinders.
	Remote Cylinder Extend	Extends remote hydraulic cylinders.
	Remote Cylinder Float	Allows remote hydraulic cylinders to float.
	Remote Cylinder Lock A	Locks remote hydraulic cylinder control.
	Remote Cylinder Lock B	Locks remote tractor hydraulic cylinder control.
	Hydraulic Oil Filter	Indicates the status of the hydraulic oil filter.
	Hydraulic Oil Temperature	This warning light may illuminate if the hydraulic oil is overheating, signaling a potential issue with the hydraulic system.
	Hydraulic Oil Temperature (Alternative)	Hydraulic oil temperature warning light.
	Hydraulic Lock Device	Indicates that the hydraulic lock device is engaged, preventing unintended hydraulic movements.
	Draft Control	Manages the draft control system for implements.
	Draft Control (Alternative)	Shows the status of the draft control system, which adjusts the implement depth based on soil resistance.
	Automatic Draft Operation	Indicates that the automatic draft control system is active, maintaining consistent soil penetration.
	Position Control	Controls the height or position of attached implements.
	Position Control (Alternative)	Indicates the position control function, which maintains a set height for the tractor’s implement.
	Automatic Horizontal Operation	Indicates that the automatic horizontal control system is active, keeping implements level.
	Automatic Tilling Depth Operation	Indicates that the automatic tilling depth control is active.
	Hydraulic / Transmission Filters	Warns of potential issues with the hydraulic or transmission filters, indicating a need for service or replacement.
	High Flow Indicator	Indicates that the hydraulic system is operating in high flow mode.
	High Flow (Alternative)	Indicates high hydraulic flow is active.
	AUX Hold	Represents auxiliary hydraulic function hold.
	Auxiliary Hydraulic Port	Shows the status of auxiliary hydraulic ports.
	AUX Electric Port	Shows the status of the auxiliary electric port.
	Auxiliary Operation Indicator	Indicates that an auxiliary function is active.
	AUX Electric Port indicator	Indicates that the auxiliary electric port is active.
	AUX Hydraulic Port Hold M/F	Indicates the auxiliary hydraulic port hold mode/function is active.
	AUX 14-Pin C Symbol	Shows the status of the 14-pin auxiliary electrical connector.

Electric-related Dash Symbols

Symbol	Name	Dashboard Symbol Description
	Battery Charging Condition	Indicates a malfunction in the tractor’s charging system, typically caused by a faulty alternator or battery, which may result in battery discharge.
	Electrical Power Accessories	Indicates the status of electrical power accessories.
	Master Lighting Switch	Controls the master lighting system.
	Headlight Low Beam	Activates low beam headlights.
	Headlight High Beam	Illuminates the tractor’s headlights for visibility in low-light conditions or during nighttime operation.
	Headlight Flashing	Activates the headlight flash function.
	Work Light	Activates tractor work lights.
	Position Lamps	Controls position lamps.
	Turn Signal	Indicates tractor turn signals.
	Turn Signal 1 Trailer	Indicates turn signals for #1 trailer.
	Trailer 1 Turn Signal Indicator	Indicates turn signals for #1 trailer.
	Trailer 2 Turn Signal Indicator	Indicates turn signals for #2 trailer.
	Beacon Light	Controls beacon lights.
	Windshield Wiper	Activates windshield wipers.
	Windshield Wiper Intermittent	Activates intermittent windshield wiper function.
	Windshield Washer	Activates windshield washer.
	Rear Window Defroster	Activates rear window defroster.
	Seat Heater Switch	Use switch to turn seat heater ON or OFF.
	Air Flow Direction	Air flow direction switch / indicator.
	Air Conditioner Indicator	Activates air conditioner.
	Air Conditioner	It indicates that the air conditioning system is active and cooling the cabin.
	Heater Fan	Indicates that the heater fan is operational, providing ventilation or warmth to the cab.

Attachment-related Dash Symbols

Symbol	Name	Dashboard Symbol Description
	Implement Socket	Shows the status of the implement socket, ensuring proper connection and power supply to attached implements.
	Material Collection System	When the symbol is illuminated, it indicates that the material collection system is active or in use.
	Cutting Height	Used for setting the cutting height, possibly for a mower.
	Mower Raised Position	Shows the mower in a raised position.
	Mower Lowered Position	Indicates the mower is in a lowered position.
	Full	Indicates a full level.
	Empty	Indicates an empty level.

International universal tractor dashboard symbols / instrument panel warning lights are essential for several reasons:

1. Standardization: These symbols provide a standardized way of conveying information across different tractor brands and models. Standardization ensures that operators can easily understand the indicators regardless of the tractor they are using, improving safety and efficiency.
2. Clarity and Consistency: By using universally recognized symbols, manufacturers ensure clarity and consistency in conveying messages about various aspects of tractor operation. This reduces the likelihood of confusion or misinterpretation by operators.
3. Quick Reference: Dash symbols offer a quick reference for operators to monitor the status of different systems and components of the tractor without the need for extensive textual explanations. This allows operators to quickly identify any issues or abnormalities and take appropriate action.
4. Enhanced Safety: Clear and understandable dashboard symbols contribute to overall safety by alerting operators to potential problems or hazards promptly. This enables operators to address issues promptly, reducing the risk of accidents or equipment damage.

Overall, international universal tractor dash symbols are crucial for improving communication, promoting safety, and facilitating efficient operation across different tractor models and brands.

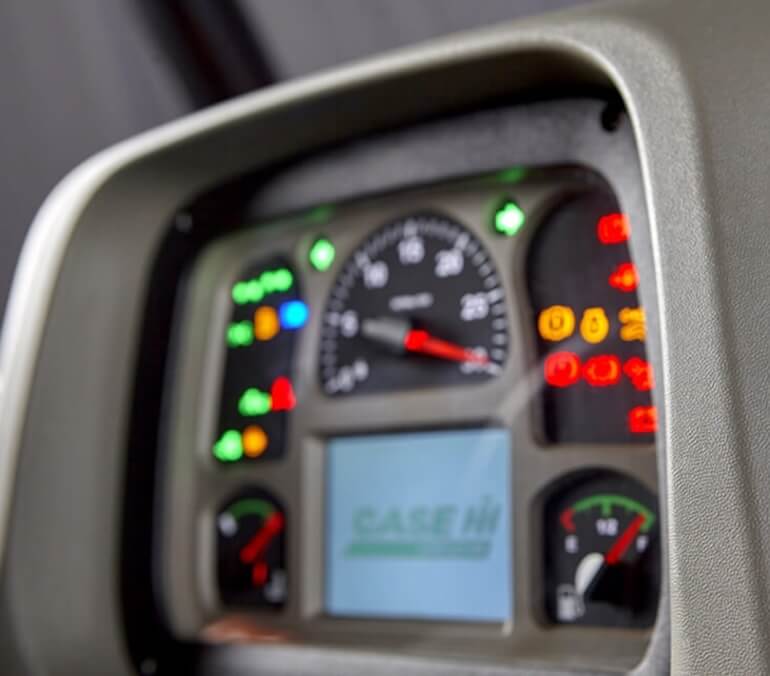

Common Colors of Tractor Warning Lights

Understanding the colors of warning lights on your tractor’s dashboard is crucial for maintaining its optimal performance and ensuring safe operation. Each color signifies different levels of urgency and types of alerts, from routine notifications to critical warnings that require immediate attention. Here’s a brief overview of the common colors you might encounter and what they generally indicate:

1. Red Warning Light: Indicates a critical issue that could cause engine damage. Stop the tractor immediately and investigate.
2. Amber Warning Light: Less critical than the red light but still signals a problem requiring attention. If safe, continue operating until reaching a service location.
3. Green Warning Light: Indicates the pre-heat system is active, warming up the engine. No action needed; this is normal.
4. Blue Warning Light: Signals low engine coolant level. Add coolant promptly to prevent overheating and engine damage.
5. Yellow Warning Light: Indicates a full diesel particulate filter that needs emptying. Continue operating until reaching a service location.

By familiarizing yourself with these colors and their meanings, you can respond appropriately to your tractor’s warning lights, ensuring both the longevity of your equipment and the safety of its operation.

FAQ About Dash Symbols & Warning Lights

Tractor dashboard symbols are visual indicators displayed on the instrument panel of a tractor to convey information about various systems and components.

Tractor dash symbols are essential for providing quick and clear information to operators about the status of critical systems such as engine, transmission, brakes, and more. They help operators identify issues or abnormalities promptly, contributing to safety and efficiency.

Q1: Can tractor dashboard symbols vary between different tractor brands?

A1: Yes, while many tractor dashboard symbols are standardized across different brands, some variations may exist depending on the manufacturer. It’s essential for operators to familiarize themselves with the specific symbols used in their tractor model by referring to the operator’s manual.

Q2: What are some common tractor dashboard symbols and their meanings?

A2: Common tractor dashboard symbols include those indicating engine temperature, oil pressure, battery charge, fuel level, parking brake engagement, and more. Each symbol represents a specific aspect of the tractor’s operation or condition.

Q3: What should I do if a warning light illuminates on the tractor dashboard?

A3: If a warning light illuminates on the tractor dashboard, operators should refer to the operator’s manual to identify the meaning of the symbol. Depending on the severity of the issue indicated, operators may need to take immediate action, such as stopping the tractor and investigating the problem, or continuing operation while monitoring the situation closely.

Q4: Can tractor dashboard symbols be customized or modified?

A4: In some cases, tractor dashboard symbols may be customizable or programmable, allowing operators to tailor the display to their preferences or specific application requirements. However, modifications should be made in accordance with manufacturer guidelines to ensure safety and reliability.

Q5: Where can I find more information about tractor dashboard symbols?

A5: Additional information about tractor dashboard symbols can be found in the operator’s manual provided by the tractor manufacturer. Operators can also consult with authorized dealers or service technicians for assistance with interpreting dash symbols or addressing related issues.

Q6: How often should I check the tractor dashboard for warning lights?

A6: It’s recommended to perform a visual inspection of the tractor dashboard before each operation to ensure that all warning lights are off and that no new symbols have illuminated. Additionally, operators should monitor the dashboard periodically during operation to detect any changes or abnormalities promptly.

Q7: Are tractor dashboard symbols the same for all tractor models within a brand?

A7: While many tractor dashboard symbols may be consistent across different models within a brand, there can be variations depending on factors such as the tractor’s configuration, options, and model year. Operators should refer to the specific operator’s manual for their tractor model to confirm the meaning of dash symbols.

Q8: What should I do if I encounter a tractor dashboard symbol that is not listed in the operator’s manual?

A8: If operators encounter a dashboard symbol that is not listed in the operator’s manual or are unsure about its meaning, they should contact their authorized dealer or service center for assistance. Service technicians can provide clarification and guidance on how to address any issues indicated by unfamiliar symbols.

Q9: Can tractor dashboard symbols be reset after an issue has been resolved?

A9: In some cases, tractor dashboard symbols may automatically reset once the underlying issue has been resolved. However, for certain indicators or warning lights, manual intervention may be required to reset the symbol after corrective action has been taken. Operators should refer to the operator’s manual for instructions on resetting specific symbols.

Q10: Is it safe to continue operating the tractor if a warning light illuminates on the dashboard?

A10: The safety of continuing operation after a warning light illuminates on the tractor dashboard depends on the severity of the issue indicated by the symbol. Operators should refer to the operator’s manual to determine the appropriate course of action. In some cases, it may be safe to continue operating the tractor temporarily, while in others, immediate action may be necessary to prevent damage or injury.

Tractor dashboard symbols are critical safety features designed to alert operators to potential issues or hazards. Disabling or turning off these symbols is not recommended, as it can compromise the safety and reliability of the tractor. Operators should address any issues indicated by dash symbols promptly and follow proper maintenance procedures as outlined in the operator’s manual.
