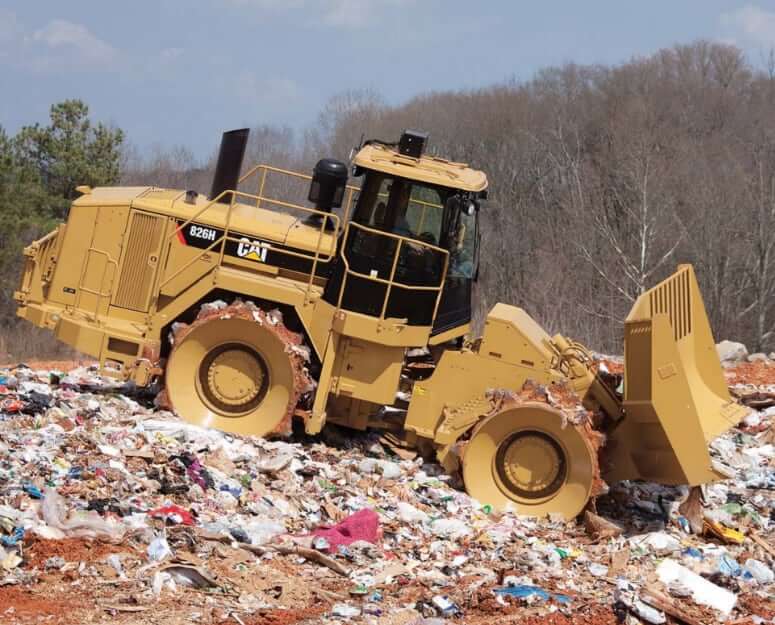

Dimensions
| Length With Blade On Ground | 27.34 ft in (8332 mm) |
| Ground Clearance | 1.61 ft in (488 mm) |
| Height To Top Of Cab | 13.76 ft in (4193 mm) |
| Wheelbase | 12.14 ft in (3700 mm) |
Dimensions (Approximate)
| Centerline Of Rear Axle To Hitch | 7.46 ft in (2.28 m) |
| Width – Over Wheels | 12.5 ft in (3.81 m) |
| Turning Radius – Inside | 10.57 ft in (3.23 m) |
| Turning Radius – Outside | 24.06 ft in (7.34 m) |
| Width – Over End Bits – Blade | 14.77 ft in (4.51 m) |

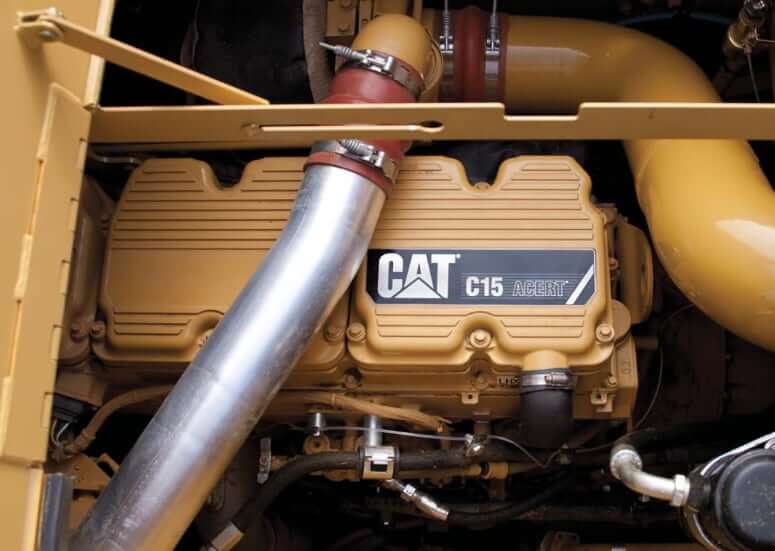

Engine Details
| Engine Make | CAT |
| Engine Model | C15 diesel with ACERT Technology |
| Gross Power | 401 hp (299.1 kw) |
| Net Power | 354 hp (264 kw) |
| Displacement | 927.6 cu in (15.2 L) |
| Torque Rise | 19 % |
| Bore | 5.4 in (137.2 mm) |
| Stroke | 6.7 in (170.2 mm) |
| Engine Model | Cat C15 ACERT |
| Flywheel Power | 354 hp (264 kw) |
| Peak Torque – Gross | 1387 lb ft (1880.6 Nm) |
Operational Specs
| Operating Weight | 81498 lb (36966.9 kg) |
| Fuel Tank Capacity | 177.6 gal (672 L) |
| Hydraulic System Fluid Capacity | 23.3 gal (88.1 L) |
| Engine Oil Capacity | 9 gal (34 L) |
| Cooling System Fluid Capacity | 21.7 gal (82 L) |
| Transmission Fluid Capacity | 16.4 gal (62.1 L) |
Transmission
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed | 6.6 mph (10.6 km/h) |
| Forward – 1 | 3.6 mph (5.8 km/h) |
| Forward – 2 | 6.1 mph (9.8 km/h) |
| Reverse – 1 | 4.1 mph (6.6 km/h) |
| Reverse – 2 | 6.6 mph (10.7 km/h) |
Wheels
| Front Wheels Drum Width | 47.3 in (1200 mm) |
Weights
| Operating Weight | 81498 lb (36966.9 kg) |
Wheels
| Front Wheels Drum Diameter | 60.4 in (1532 mm) |
| Rear Wheels Drum Width | 47.3 in (1200 mm) |
| Rear Wheels Drum Diameter | 60.4 in (1532 mm) |
Blade
| Blade Capacity | 17.1 yd3 (13 m3) |
Hydraulic System
| Relief Valve Setting | 3506.29 psi |
Blade
| Height | 74.8 in (1898 mm) |
| Width | 14.8 ft in (4502 mm) |
Axles
| Front | Planetary – Fixed |
Hydraulic System
| Lift Cylinder Bore X Stroke | 120.65 mm 915 mm (4.74 in 36.02 in) |
Axles
| Oscillating Rear | 5 degrees |
Hydraulic System
| Vane Pump Output At 2,000 Rpm And 6900 Kpa (1,000 Psi) | 93 gal/min |
Brakes
| Standards | Meet OSHA, SAE J1473 DEC84, ISO 3450:1985 standards |
Service Refill Capacities
| Cooling System | 21.7 gal (82 L) |
| Fuel Tank Capacity | 177.6 gal (672 L) |
| Crankcase | 9 gal (34 L) |
| Hydraulic Tank | 23.3 gal (88.1 L) |
| Transmission | 16.4 gal (62.1 L) |
| Differential – Final Drives – Front | 23.8 gal (90.1 L) |
| Differential – Final Drives – Rear | 23.8 gal (90.1 L) |

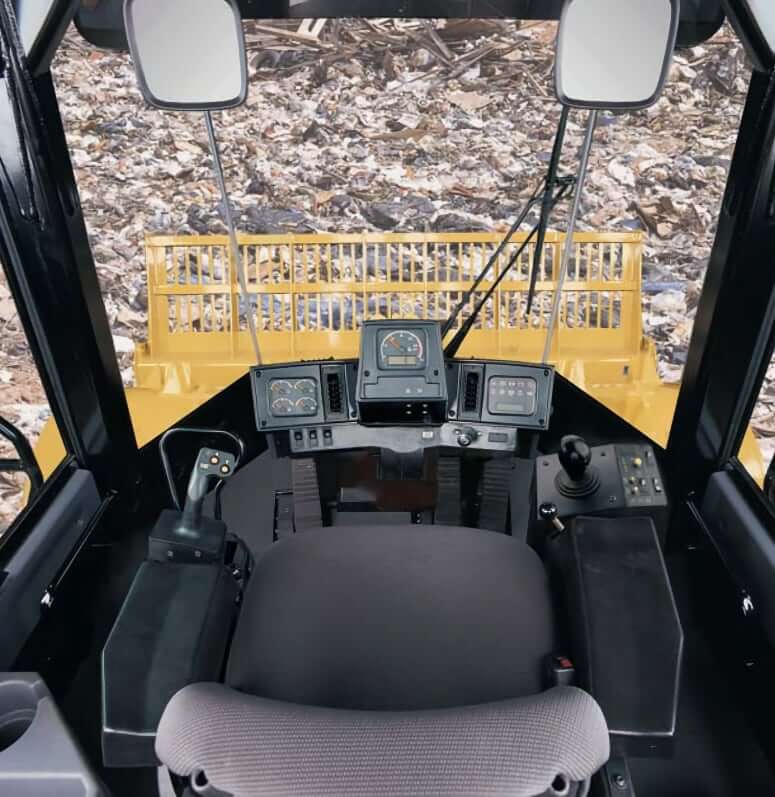

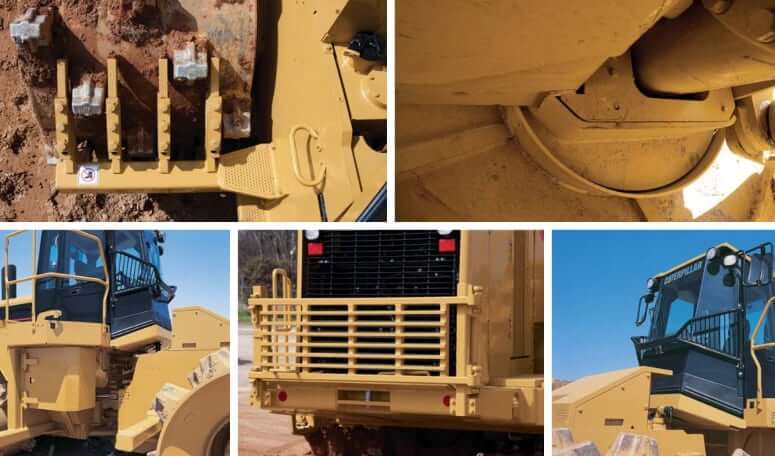

Cab
| Rops/Fops | Meets SAE and ISO standards |
Sound Performance
| Standards | Meet ANSI/SAE and ISO standards |

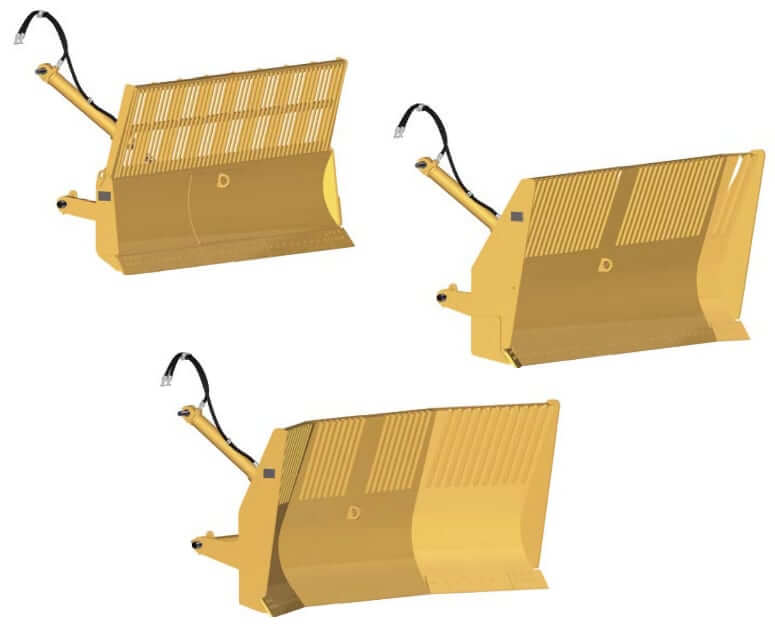

Straight Blade
| Height | 6.3 ft in (1.9 m) |
| Width – Over End Bits | 14.8 ft in (4.6 m) |
| Moldboard – Length | 14.2 ft in (4.4 m) |
| Capacity | 17 yd3 (13 m3) |
Wheels – Chevron-Pattern, Chopper Blades
| Drum Width | 4 ft in (1.3 m) |
| Drum Diameter | 5.1 ft in (1.6 m) |
| Blades Per Wheel | 24 |
| Diameter – With Blades | 6.1 ft in (1.9 m) |
Hydraulic Steering System
| Piston Pump Output At 2,000 Rpm And 7000 Kpa (1,015 Psi) | 49 gal/min |
| Relief Valve Setting | 3499 psi |
| Steering Cylinder, Bore And Stroke | 114.3 mm 576 mm (4.49 in 22.68 in) |
| Steering Angle | 42 degrees |
Step Tips
| Diameter – With Tips | 6.2 ft in (1.9 m) |
| Tips Per Wheel | 30 |
Semi U-Blade
| Capacity | 19 yd3 (14.6 m3) |
| Height | 6.5 ft in (2 m) |
| Width – Over End Bits | 14.8 ft in (4.5 m) |
| Moldboard – Straight Length | 12 ft in (3.7 m) |
| Moldboard – Semi U-Length | 1.6 ft in (0.5 m) |
| Semi U-Angle | 25 degrees |
U-Blade
| Capacity | 21.9 yd3 (16.7 m3) |
| Height | 6.9 ft in (2.1 m) |
| Width – Over End Bits | 14.5 ft in (4.4 m) |
| Moldboard – Straight Length | 6.9 ft in (2.1 m) |
| Moldboard – U-Length | 4.1 ft in (1.3 m) |
| U-Angle | 25 degrees |
