Contents

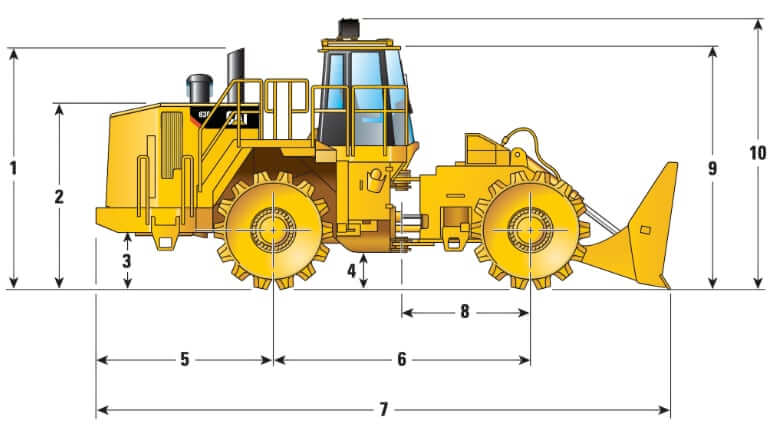

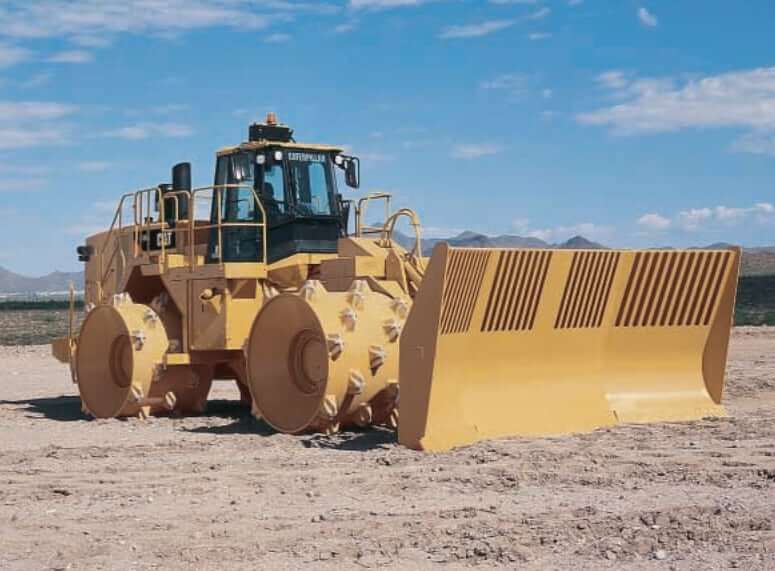

Dimensions
| 1. Height to Top of Exhaust Pipe | 13 ft 8 in (4157 mm) |
| 2. Height to Top of Hood | 10 ft 6 in (3201 mm) |
| 3. Ground Clearance to Bumper | 3 ft 5 in (1025 mm) |
| 4. Ground Clearance | 2 ft 0 in (632 mm) |
| 5. Center Line of Rear Axle to Edge of Counterweight | 10 ft 4 in (3132 mm) |
| 6. Wheelbase | 14 ft 11 in (4550 mm) |
| 7. Length with Blade on Ground | 33 ft 5 in (10182 mm) |
| 8. Hitch to Center Line of Front Axle | 7 ft 6 in (2275 mm) |
| 9. Height to ROPS/Canopy | 13 ft 8 in (4156 mm) |
| 10. Height to Top of Cab with A/C | 14 ft 11 in (4549 mm) |
| Width over Wheels | 14 ft (4280 mm) |

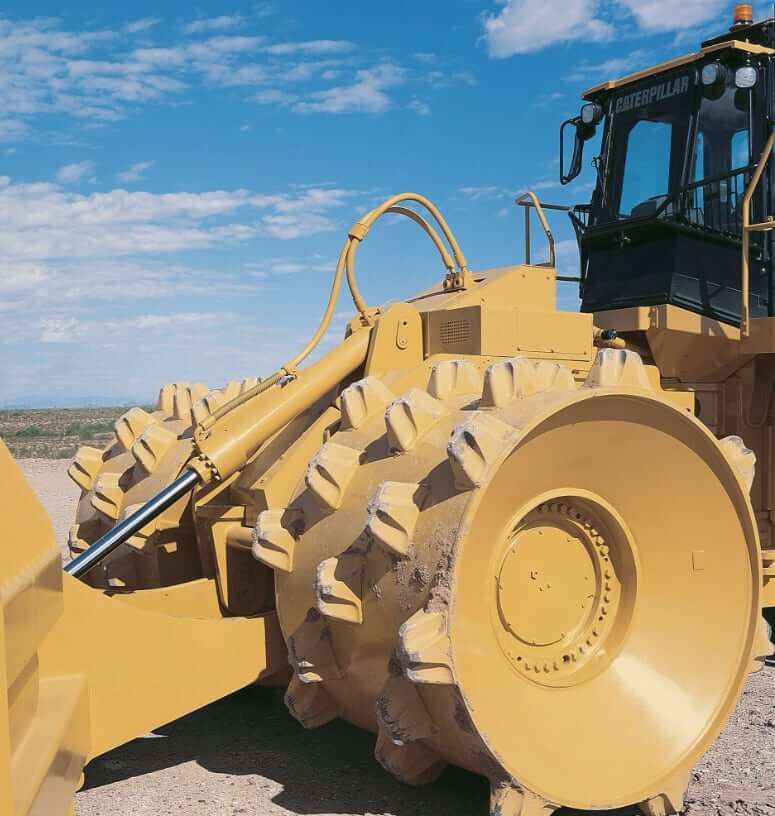

Drums
| Drum Width | 4 ft 8 in (1400 mm) |
| Drum Diameter | 5 ft 8 in (1720 mm) |
| Diameter with Tips | 6 ft 9 in (2050 mm) |
| Tips per Wheel | 40 / 35 |

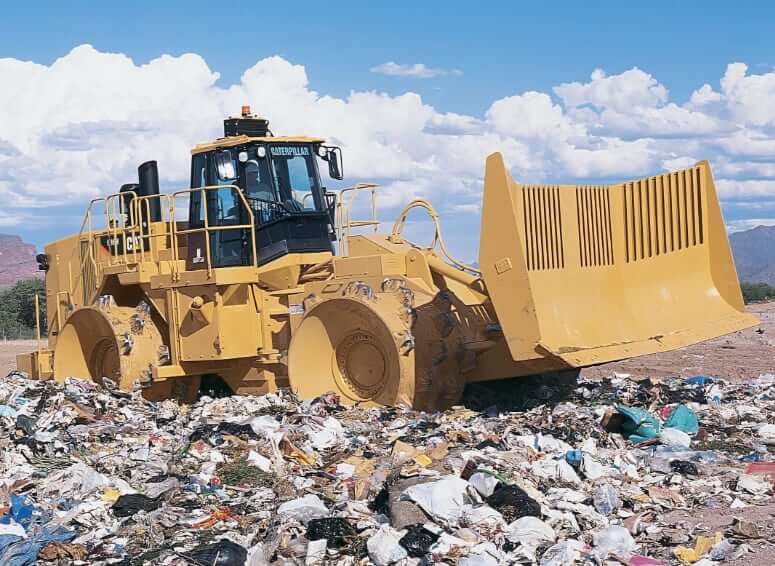

Blades
| CAT 836H | Straight Blade | U-Blade | Semi U-Blade |
|---|---|---|---|
| Blade Capacity | 25.9 yd3 (19.8 m3) | 33.8 yd3 (25.8 m3) | 29.29 yd3 (22.4 m3) |
| Width over End Bits | 204.4 in (5193 mm) | 203.6 in (5172 mm) | 209.1 in (5311 mm) |
| Blade Height | 88.0 in (2236 mm) | 87.2 in (2215 mm) | 87.0 in (2209.8 mm) |
| Lift Speed at Rated RPM | 14.33 in/sec (364 mm/sec) | 14.25 in/sec (362 mm/sec) | 14.41 in/sec (366 mm/sec) |
| Cutting Edges, Reversible: Length, Each End Section (3 edges) | 55.4 in (1408.2 mm) | 32.2 in (817 mm) | 32.1 in (816.6 mm) |
| Cutting Edges, Reversible: Length, Each End Section (2 edges) | – | 39.0 in (990 mm) | 38.9 in (988 mm) |
| Cutting Edges, Reversible: Width x Thickness | 10 x 1 in (254 x 25 mm) | 10 x 1 in (254 x 25 mm) | 10 x 1 in (254 x 25 mm) |
| End Bits (2), Self-sharpening: Length, each | 18.6 in (472 mm) | Right 18.6 in (472 mm) Left 17.0 in (432 mm) |
Right 18.6 in (472 mm) Left 18.6 in (472 mm) |
| End Bits (2), Self-sharpening: Width x Thickness | 10 x 1 in (254 x 25 mm) | 10 x 1 in (254 x 25 mm) | 10 x 1 in (254 x 25 mm) |
| Turning Diameter | 28.7 ft (8758 mm) | 29.6 ft (9023 mm) | 29.0 ft (8864 mm) |
Hydraulic System
| Type | The 836H electro-hydraulics |
| Blade Positioning | Automatic |
| Relief Valve Setting | 3495 psi (24100 kPa) |
| Lift Cylinder Bore | 5.5 in (139.75 mm) |
| Lift Cylinder Stroke | 40.2 in (1021 mm) |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | Cat |
| Engine Model | Cat C18 ACERT |
| Displacement | 1104.6 cu in (18.1 L) |
| Gross Power | 523 hp (390 kw) |
| Net Power | 468 hp (349 kw) |
| Power Measured @ | 1800 rpm |
| Torque Rise | 36% |
| Aspiration | Turbocharged and Aftercooled |
| Emission Standards | U.S. EPA Tier 3 and EU Stage III |
Operational Specs
| Operating Weight | 118348 lb (53682 kg) |
| Max Operating Weight | 122586 lb (55604 kg) |
| Operating Voltage | 24 V |
| Alternator | 100 amps |
| Battery | 4x 12 V, CCA 1000, maintenance-free |
| Operator Sound Power Level | 73 dB(A) |
| Exterior Sound Pressure Level | 82 dB(A) |
| Machine Sound Power Level | 114 dB(A) |
Transmission
| Type | Transmission, planetary power shift with 2F/2R speed range control |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 7.1 mph (11.4 km/h) |
| Front Axle | Planetary-Fixed |
| Oscillation Angle | ±6° |
| Articulation Angle | ±43° |

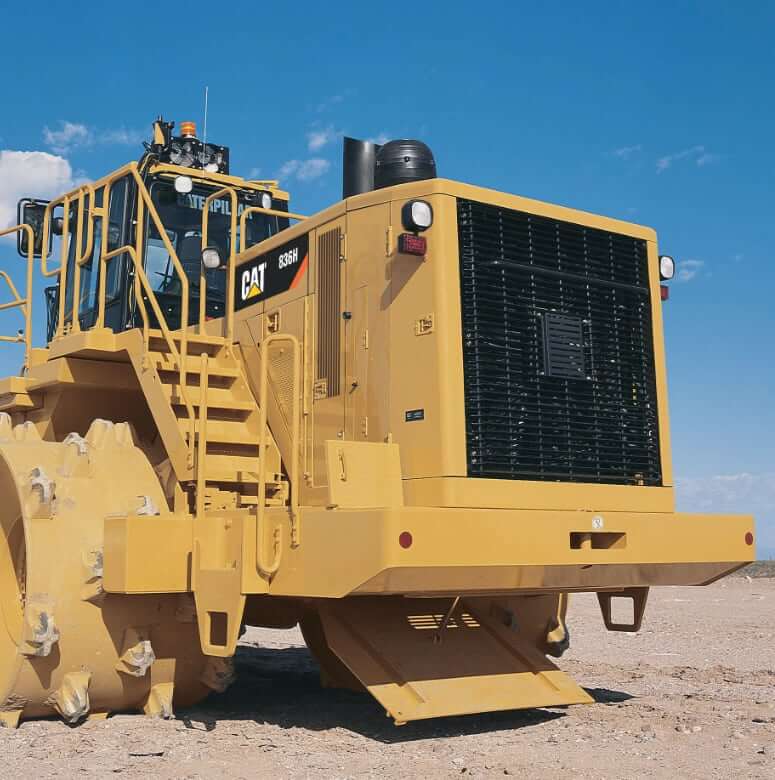

Service Refill Capacities
| Fuel Tank Capacity | 209.5 gal (793 L) |
| Cooling System Fluid Capacity | 28.3 gal (107 L) |
| Engine Oil Capacity | 15.9 gal (60 L) |
| Hydraulic System Fluid Capacity | 36.2 gal (137 L) |
| Transmission Oil Capacity | 22 gal (83 L) |
| Front Differentials and Final Drives | 49.1 gal (186 L) |
| Rear Differentials and Final Drives | 50.2 gal (190 L) |
