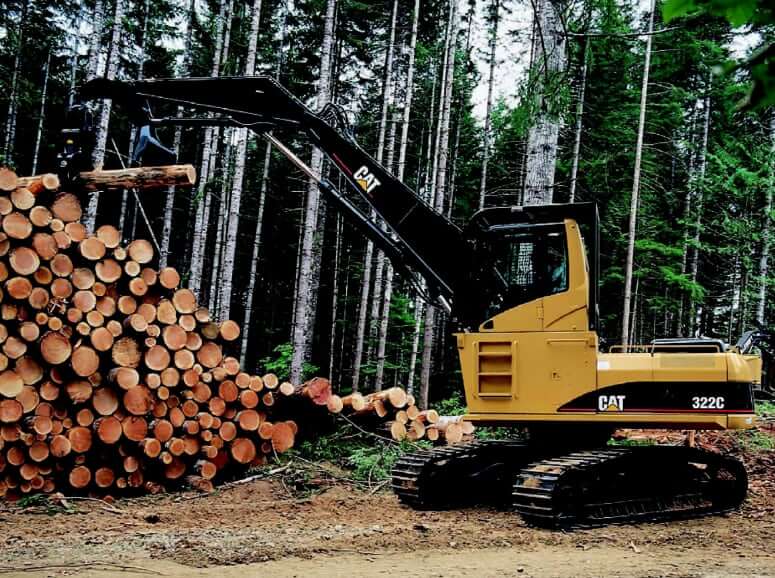

Log Loader Linkage
| Boom Cylinder – Bore | 5.6 in (140 mm) |
| Boom Cylinder – Stroke | 46.7 in (1185 mm) |
| Stick Cylinder – Bore | 6.7 in (170 mm) |
| Stick Cylinder – Stroke | 66.2 in (1680 mm) |
| Under/Under Heel Cylinder – Bore | 5.2 in (130 mm) |
| Under/Under Heel Cylinder – Stroke | 45.6 in (1156 mm) |
| Over/Under Heel Cylinder – Bore | 6 in (150 mm) |
| Over/Under Heel Cylinder – Stroke | 57.9 in (1470 mm) |
Drive – HDLC Undercarriage
| Maximum Drawbar Pull | 50112 lb (223 kN) |
| Maximum Travel Speed | 3.4 mph (5.5 km/h) |
Track – Standard w/ HDLC Undercarriage
| Standard – HDLC | 27.5 in (700 mm) |
| Optional – DG | 23.6 in (600 mm) |
| Optional – HDTG | 31.5 in (800 mm) |
Drive – HW Undercarriage
| Maximum Drawbar Pull | 55508 lb (247 kN) |
| Maximum Travel Speed | 3.5 mph (5.7 km/h) |
Track – Standard w/ HW Undercarriage
| Standard – HDLC | 27.5 in (700 mm) |
| Optional – DG | 23.6 in (600 mm) |
| Optional – HDTG | 31.5 in (800 mm) |
Swing Mechanism
| Swing Speed | 10 rpm |
| Swing Torque | 54137 lb ft (73400 Nm) |
Weights
| Operating Weight | 74103 lb (33613 kg) |
| Log Loader (U/U) | 71918 lb (32622 kg) |
| Log Loader (O/U) | 72555 lb (32910 kg) |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | Caterpillar |
| Engine Model | Cat 3126 TA |
| Displacement | 439 cu in (7.2 L) |
| Bore | 4.3 in (110 mm) |
| Stroke | 5 in (127 mm) |
| Gross Power | 174 hp (129.8 kw) |
| NET Power | 162 hp (120.9 kw) |
| Power Measured @ | 2800 rpm |
| Aspiration | Turbocharged and aftercooled |
Hydraulic System
| Maximum Pressure – Travel | 4980 psi (34300 kPa) |
| Maximum Pressure – Swing | 3553 psi (24500 kPa) |
| Maximum Pressure – Implements | 4980 psi (34300 kPa) |
| Main Implement System – Maximum Flow (2x) | 58.1 gal/min (220 L/min) |
Operating Specifications
| Maximum Reach | 456 in (11582 mm) |
| Maximum Decking Height | 331 in (8400 mm) |
| Drawbar Pull | 55508 lb (25178 kg) |
Standards
| Brakes | SAE J1026 APR90 |
| Cab/Fogs | SAE J1356 FEB88 ISO 10262 |
Service Refill Capacities
| Fuel Tank Capacity | 106 gal (400 L) |
| Cooling System Capacity | 10 gal (38 L) |
| Engine Oil Capacity | 9 gal (34 L) |
| Hydraulic System (including tank) Capacity | 65 gal (245 L) |
| Hydraulic Tank Capacity | 68 gal (257 L) |
| Swing Drive Capacity | 2.1 gal (8 L) |
| Final Drive, Std. Gauge (each) | 1.3 gal (5 L) |
| Final Drive, HD/LC (each) | 1.3 gal (5 L) |
