Contents
- Dimensions (Approximate) – Cab To Ground
- Dimensions (Approximate) – Cab To Platform
- Undercarriage
- Engine Details
- Swing Mechanism
- Transmission
- Swing Mechanism
- Transmission
- Weights
- Hydraulic System
- Hydraulic System – Maximum Flow
- Hydraulic System – Maximum Pressure
- Service Refill Capabilities
- Stabilizers
- Working Ranges – Drop Nose Stick
- Working Ranges – Straight Stick

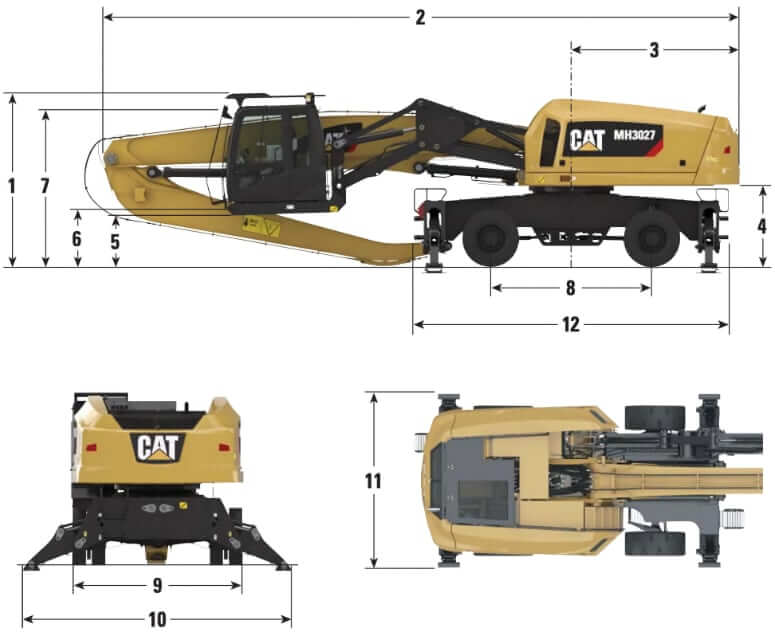

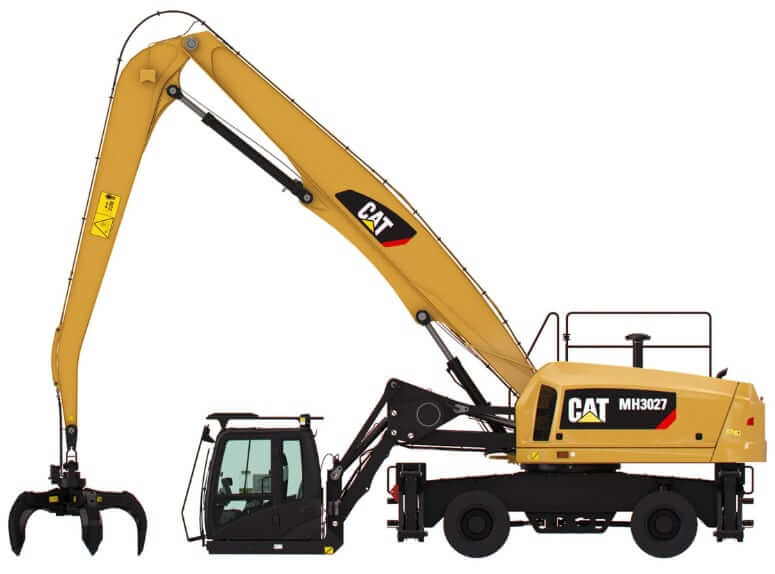

Dimensions (Approximate) – Cab To Ground
| Shipping Length | 37 ft in (11.28 m) |
| Undercarriage Width | 9.68 ft in (2.96 m) |
| Shipping Height | 10.41 ft in (3.18 m) |
| Cab Step Height – Lowered To Ground** | 9.6 in (243.84 mm) |
| Note (1) | *Factory set at 155 mm (6.1″) adjustable through the operating system to be lower or higher. |
| Cab Linkage Height – Raised To Top Of Fogs Guard | N/A |
| Outrigger Width On Ground | 15.4 ft in (4.7 m) |
| Cab Clearance – Lowered To Ground* | 6.1 in (154.94 mm) |
| Shipping Width – Outriggers Up | 10.1 ft in (3.08 m) |
| Counterweight Clearance | 4.72 ft in (1.44 m) |
| Tail Swing Radius | 9.64 ft in (2.94 m) |
| Wheel Base | 9.17 ft in (2.8 m) |
| Undercarriage Length | 18.81 ft in (5.74 m) |
| Cab Linkage Height – Transportation | 10.17 ft in (3.1 m) |

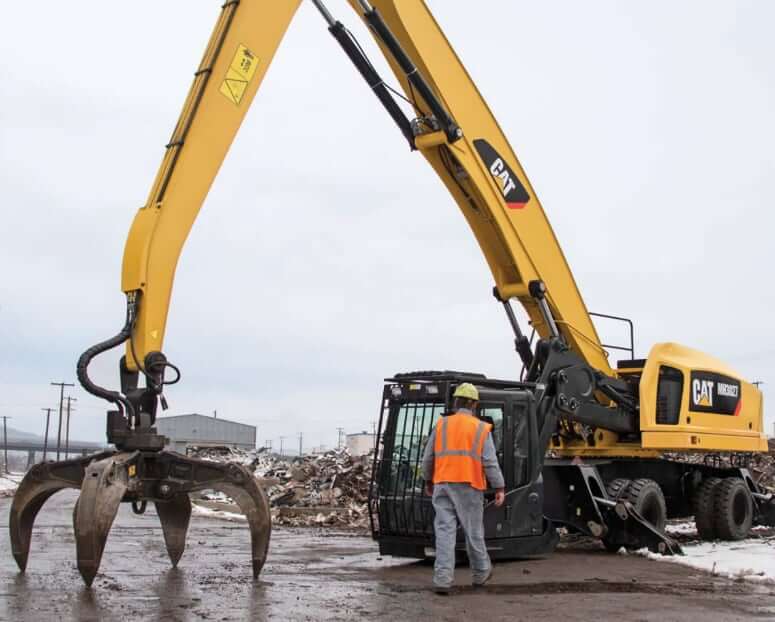

Dimensions (Approximate) – Cab To Platform
| Shipping Length | 37 ft in (11.28 m) |
| Undercarriage Width | 9.68 ft in (2.96 m) |
| Shipping Height | 11.77 ft in (3.59 m) |
| Outrigger Width On Ground | 15.4 ft in (4.7 m) |
| Cab Linkage Height – Raised To Top Of Fogs Guard | 82.5 in (2095.5 mm) |
| Cab Linkage Height – Transportation | 11.12 ft in (3.39 m) |
| Cab Step Height – Lowered To Ground** | N/A |
| Counterweight Clearance | 4.72 ft in (1.44 m) |
| Note (1) | *Factory set at 155 mm (6.1″) adjustable through the operating system to be lower or higher. |
| Note (2) | **Factory set at 243 mm (9.6″) dimension varies as the cab clearance adjustment changed. |
| Cab Clearance – Lowered To Ground* | N/A |
| Shipping Width – Outriggers Up | 10.1 ft in (3.08 m) |
| Tail Swing Radius | 9.64 ft in (2.94 m) |
| Undercarriage Length | 18.81 ft in (5.74 m) |
| Wheel Base | 9.17 ft in (2.8 m) |
Undercarriage
| Minimum Turning Radius – Inside | 16.5 ft in (5.03 m) |
| Ground Clearance – Lowest Point | 8.7 in (220.98 mm) |
| Oscillation Axle Angle | 3 degrees |
Engine Details
| Cylinders | 6 in-line |
| Displacement | 428 cu in (7.1 L) |
| Bore | 4.1 in (104.2 mm) |
| Stroke | 5.3 in (134.7 mm) |
| Emissions | U.S. EPA Tier 4 Final/EU Stage IV |
| Engine Model | Cat C7.1 ACERT |
| Net Power – Iso 14396 | 173 hp (129.1 kw) |
| Maximum Torque – 1,400 Rpm | 621 lb ft (842 Nm) |
| Net Power (Iso 14396) – Metric | 129 kW (175.4 hp [PS]) |
Swing Mechanism
| Swing Speed | 7.9 rpm |
| Swing Torque | 55000 lb ft (74570 Nm) |
Transmission
| Maximum Travel Speed | 12.4 mph (20 km/h) |
| Maximum Gradeability | 35% or 19 degrees |
Swing Mechanism
| Swing System | Closed loop hydrostatic system with electro-proportional controls |
| Maximum Swing Pump Flow | 36 gal/min |
Transmission
| Creeper Speed | 3.1 mph (5 km/h) |
Weights
| Operating Weight | 29 651 kg (65,370 lb) |
| Operating Weight – Without Attachment | 65370 lb (29651.4 kg) |
| Counterweight | 7670 lb (3479.1 kg) |
| Stick | 2690 lb (1220.2 kg) |
| Boom – Long | 5556 lb (2520.2 kg) |
| Boom – Short | 4960 lb (2249.9 kg) |
Hydraulic System
| Controls | Electro/hydraulic pilot controls |
| Tank Capacity | 43 gal (162.8 L) |
| System Capacity | 125 gal (473.2 L) |
Hydraulic System – Maximum Flow
| Operating Temperature | 60-73 degrees C (140-164 degrees F) |
| Implement Circuit | 96 gal/min |
| Swing Circuit | 33.7 gal/min |
| Fan Circuit | 8.7 gal/min |
Hydraulic System – Maximum Pressure
| Travel Circuit | 4750 psi |
| Implement Circuit | 4750 psi |
| Auxiliary Circuit – High Pressure – Factory Setting | 4750 psi |
| Auxiliary Circuit – Medium Pressure – Factory Setting | 2450 psi |
| Auxiliary Circuit – Medium Pressure – Maximum Allowable Relief Setting | 2500 psi |
| Swing Circuit | 5510 psi |
| Auxiliary Circuit – High Pressure – Maximum Allowable Relief Setting | 4750 psi |
| Fan Circuit | 3104 psi |
Service Refill Capabilities
| Fuel Tank Capacity | 110 gal (416.4 L) |
| Cooling System | 10.3 gal (39 L) |
| Diesel Exhaust Fluid Tank | 6 gal (22.8 L) |
| Engine Crankcase – With Filter | 4.9 gal (18.6 L) |
| Hydraulic Tank | 43 gal (162.8 L) |
| Hydraulic System – Including Tank | 168 gal (636 L) |
| Steering Axle | 3.6 gal (13.7 L) |
| Rear Axle | 5 gal (19 L) |
Stabilizers
| Ground Penetration | 3.5 in (88.9 mm) |
Working Ranges – Drop Nose Stick
| Maximum Height | 49.9 ft in (15.3 m) |
| Maximum Reach | 44.7 ft in (13.7 m) |
| Maximum Depth | 13 ft in (4 m) |
Working Ranges – Straight Stick
| Maximum Height | 44.7 ft in (13.7 m) |
| Maximum Reach | 39 ft in (11.9 m) |
| Maximum Depth | 10 ft in (3.1 m) |
