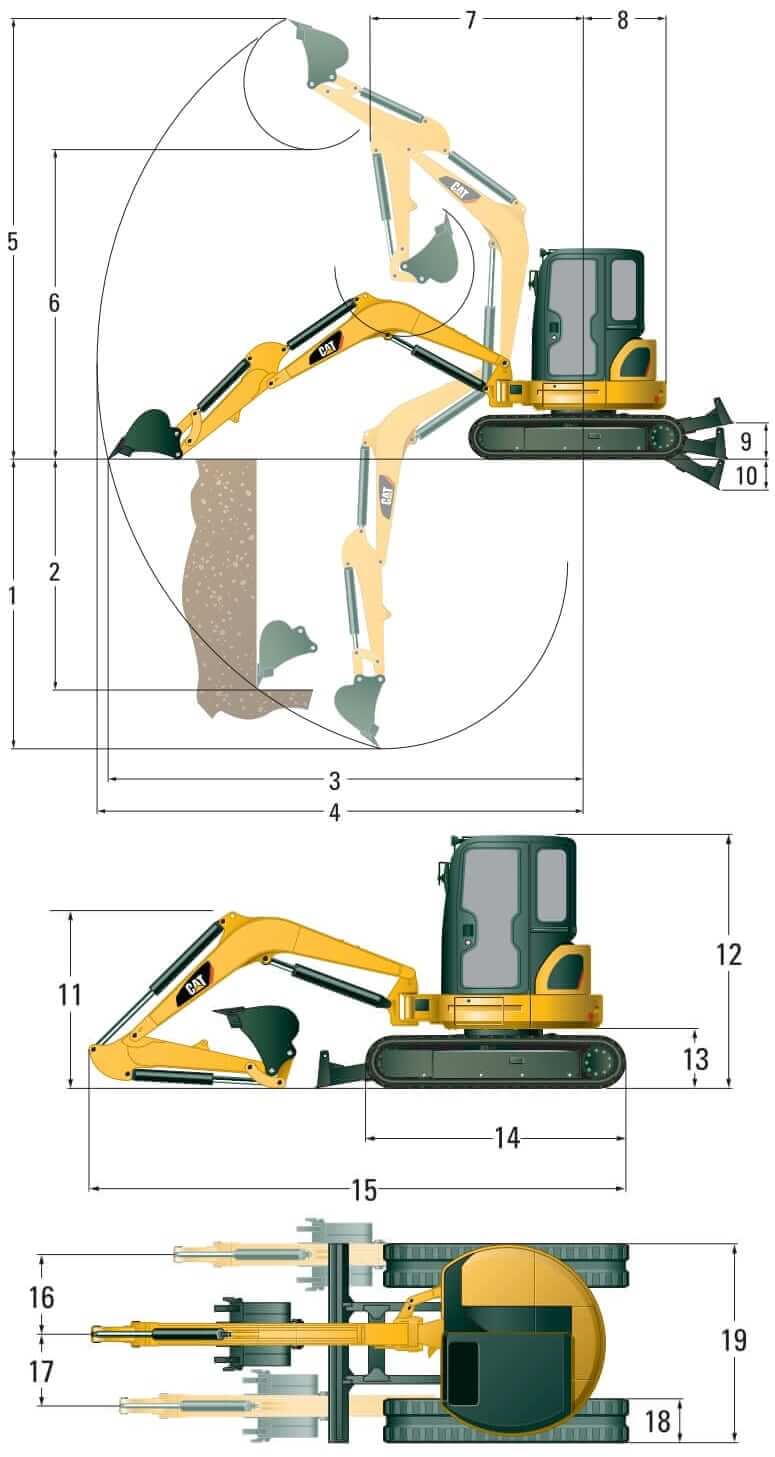

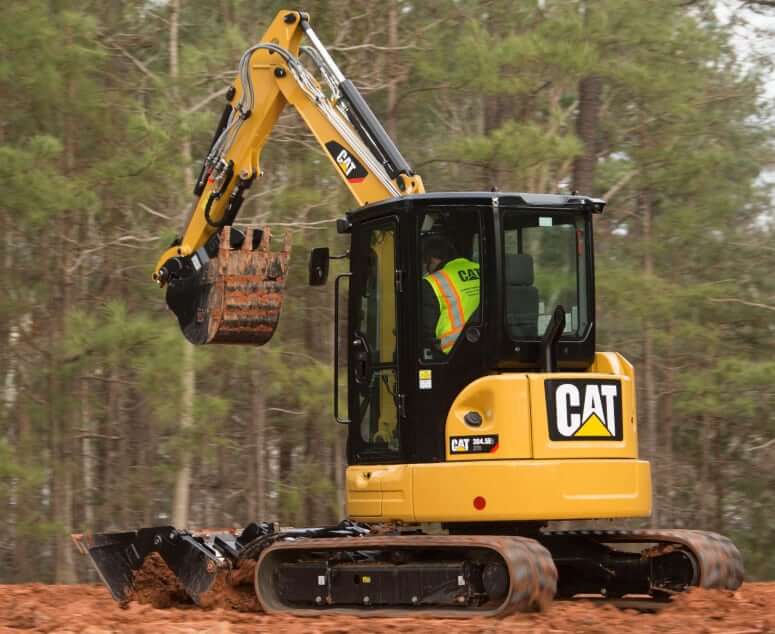

Dimensions – Long Stick
| Vertical Wall | 101 in (2565.4 mm) |
| Boom Height – Shipping Position | 70 in (1778 mm) |
| Boom In Reach | 87 in (2209.81 mm) |
| Boom Swing – Left | 26 in (660.4 mm) |
| Boom Swing – Right | 29 in (736.6 mm) |
| Dig Depth | 135 in (3429 mm) |
| Maximum Blade Depth | 19 in (482.6 mm) |
| Maximum Blade Height | 16 in (406.4 mm) |
| Maximum Dig Height | 200 in (5080 mm) |
| Maximum Dump Clearance | 145 in (3683 mm) |
| Maximum Reach | 220 in (5588 mm) |
| Maximum Reach – Ground Level | 215 in (5461 mm) |
| O/A Shipping Height | 98 in (2489.2 mm) |
| O/A Shipping Length | 194 in (4927.61 mm) |
| O/A Track Width | 77 in (1955.8 mm) |
| O/A Undercarriage Length | 87 in (2209.81 mm) |
| Swing Bearing – Height | 22 in (558.8 mm) |
| Tail Swing | 38 in (965.2 mm) |
| Track Belt/Shoe Width | 14 in (355.6 mm) |
Dimensions – Standard Stick
| Swing Bearing – Height | 22 in (558.8 mm) |
| Maximum Reach – Ground Level | 206 in (5232.4 mm) |
| Maximum Dump Clearance | 141 in (3581.4 mm) |
| O/A Undercarriage Length | 87 in (2209.81 mm) |
| Maximum Reach | 211 in (5359.4 mm) |
| Boom In Reach | 83 in (2108.2 mm) |
| O/A Shipping Height | 98 in (2489.2 mm) |
| Tail Swing | 38 in (965.2 mm) |
| Boom Swing – Left | 26 in (660.4 mm) |
| O/A Shipping Length | 190 in (4826 mm) |
| Boom Swing – Right | 29 in (736.6 mm) |
| Dig Depth | 123 in (3124.2 mm) |
| Vertical Wall | 95 in (2413 mm) |
| Maximum Blade Depth | 19 in (482.6 mm) |
| O/A Track Width | 77 in (1955.8 mm) |
| Maximum Blade Height | 16 in (406.4 mm) |
| Boom Height – Shipping Position | 58 in (1473.2 mm) |
| Maximum Dig Height | 196 in (4978.4 mm) |
| Track Belt/Shoe Width | 14 in (355.6 mm) |
Undercarriage
| Track Roller Type | Center Flange |
| Number Of Carrier Rollers | 1 |
| Number Of Track Rollers | 4 |
Swing System
| Machine Swing Speed | 10 rpm |
| Note | *Automatic swing brake, spring applied, hydraulic release. |
| Boom Swing – Left – Without Stop* | 80 degrees |
| Boom Swing – Left – With Stop* | 55 degrees |
Engine Details
| Net Power | 40.2 hp (30 kw) |
| Displacement | 146 cu in (2.4 L) |
| Bore | 3.4 in (86.4 mm) |
| Stroke | 4 in (101.6 mm) |
| Emissions | Meets U.S. EPA Tier 4 Final/EU Stage IIIA emission standards. |
| Engine Model | Cat C2.4 |
| Gross Power – Iso 14396 | 41.8 hp (31.2 kw) |
| Rated Net Power – 2,200 Rpm – Iso 9249/Eec 80/1269 | 40.2 hp (30 kw) |
Operational Specs
| Operating Weight | 8996 lb (4080.6 kg) |
Weights
| Note | Weight includes counterweight, rubber tracks, bucket, operator, full fuel and auxiliary lines. |
| Weight – Canopy, Long Stick | 8721 lb (3955.8 kg) |
| Weight – Cab, Standard Stick | 8930 lb (4050.6 kg) |
| Weight – Cab, Long Stick | 8996 lb (4080.6 kg) |
| Weight – Canopy, Standard Stick | 8655 lb (3925.9 kg) |
Blade
| Height | 12.8 in (325.2 mm) |
| Width | 6.4 ft in (1950.8 mm) |

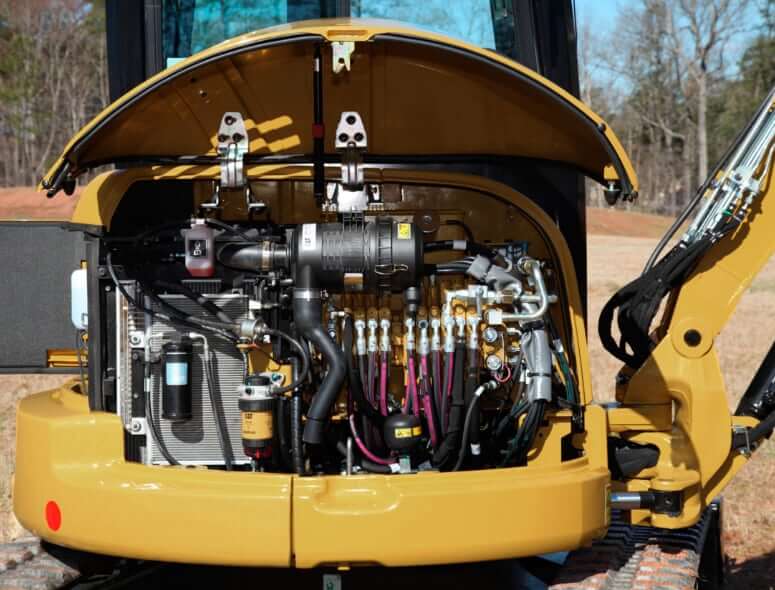

Hydraulic System
| Hydraulic System Type | Load Sensing Hydraulics with Variable Displacement Piston Pump |
Blade
| Lift Height | 15.7 in (398.8 mm) |
| Dig Depth | 18.5 in (469.9 mm) |
Hydraulic System
| Operating Pressure – Swing | 3132 psi |
| Operating Pressure – Equipment | 3553 psi |
| Operating Pressure – Travel | 3553 psi |
| Digging Force – Stick – Standard | 4856 lb (2202.7 kg) |
| Digging Force – Stick – Long | 4384 lb (1988.6 kg) |
| Digging Force – Bucket | 8498 lb (3854.7 kg) |
| Auxiliary Circuit – Primary (245 Bar/3,553 Psi) | 18.5 gal/min |
| Pump Flow At 2,200 Rpm | 26.4 gal/min |
| Auxiliary Circuit – Secondary (174 Bar/2,524 Psi) | 6.6 gal/min |
Operating Specifications
| Stick Length – Standard | 52 in (1320.8 mm) |
| Stick Length – Long | 64 in (1625.6 mm) |
Service Refill Capacities
| Cooling System | 1.5 gal (5.7 L) |
| Fuel Tank Capacity | 15.1 gal (57.2 L) |
| Hydraulic Tank | 6.6 gal (25 L) |
| Hydraulic System | 15.3 gal (58 L) |
| Engine Oil | 2.5 gal (9.5 L) |
Cab
| Dynamic Operator Sound Pressure Level (Iso 6396:2008) | 81 dB(A) |
| Exterior Sound Power Level – Iso 6395:2008* | 96 dB(A) |
| Note | *European Union Directive 2000/14/EC |
Travel System
| Maximum Traction Force – High Speed | 3799 lb (1723.2 kg) |
| Maximum Traction Force – Low Speed | 6969 lb (3161.1 kg) |
| Travel Speed – High | 3.2 mph (5.2 km/h) |
| Travel Speed – Low | 1.9 mph (3.1 km/h) |
| Ground Pressure – Canopy Standard Stick | 4.2 psi |
| Ground Pressure – Canopy Long Stick | 4.2 psi |
| Ground Pressure – Cab Standard Stick | 4.3 psi |
| Ground Pressure – Cab Long Stick | 4.3 psi |
| Gradeability – Continuous Operation | 20 degrees |
| Gradeability – Maximum | 30 degrees |
Certification – Cab And Canopy
| Roll Over Protective Structure (Rops) | ISO 12117-2 |
| Tip Over Protective Structure (Tops) | ISO 12117 |
| Top Guard | ISO 10262 (Level I) |
Lift Capacities At Ground Level (Long Stick)* – Lift Point Radius: 3000 Mm (118 In)
| Note | *The above loads are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included on this chart. |
| Blade Down – Front | 3462 lb (1570.4 kg) |
| Blade Up – Front | 1808 lb (820.1 kg) |
| Blade Down – Side | 2007 lb (910.4 kg) |
| Blade Up – Side | 1808 lb (820.1 kg) |
Lift Capacities At Ground Level (Long Stick)* – Lift Point Radius: 4500 Mm (177 In)
| Note | *The above loads are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included on this chart. |
| Blade Down – Front | 1896 lb (860.1 kg) |
| Blade Up – Front | 948 lb (430.1 kg) |
| Blade Down – Side | 1058 lb (480 kg) |
| Blade Up – Side | 948 lb (430.1 kg) |
Lift Capacities At Ground Level (Standard Stick)* – Lift Point Radius: 3000 Mm (118 In)
| Blade Down – Front | 3550 lb (1610.3 kg) |
| Blade Up – Front | 1830 lb (830.1 kg) |
| Blade Down – Side | 2029 lb (920.4 kg) |
| Blade Up – Side | 1830 lb (830.1 kg) |
| Note | *The above loads are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included on this chart. |
Lift Capacities At Ground Level (Standard Stick)* – Lift Point Radius: 4500 Mm (177 In)
| Blade Down – Front | 2293 lb (1040.1 kg) |
| Blade Up – Front | 1169 lb (530.3 kg) |
| Blade Down – Side | 1301 lb (590.2 kg) |
| Blade Up – Side | 1169 lb (530.3 kg) |
| Note | *The above loads are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity or 75% of tipping capacity. The excavator bucket weight is not included on this chart. |

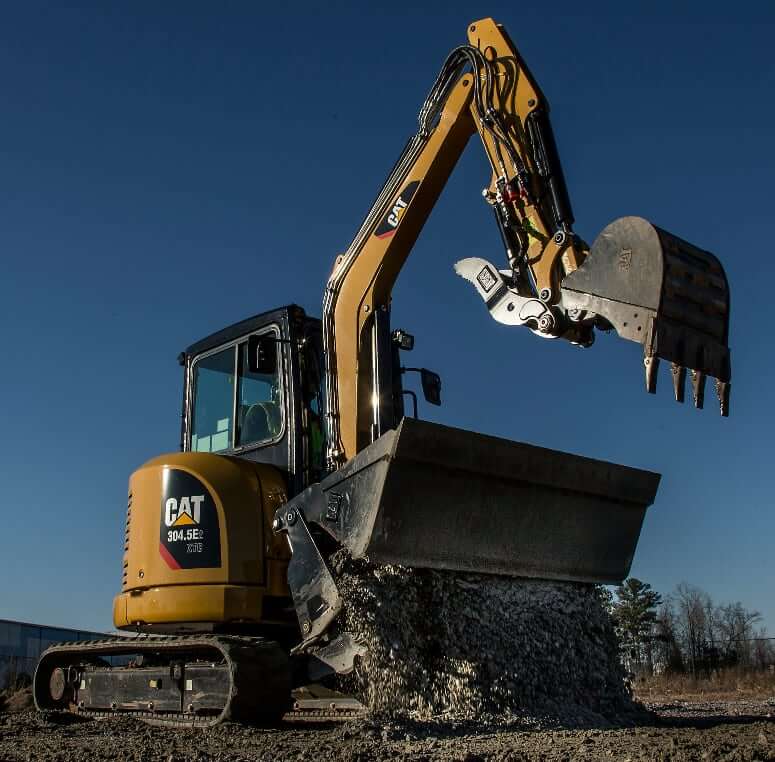

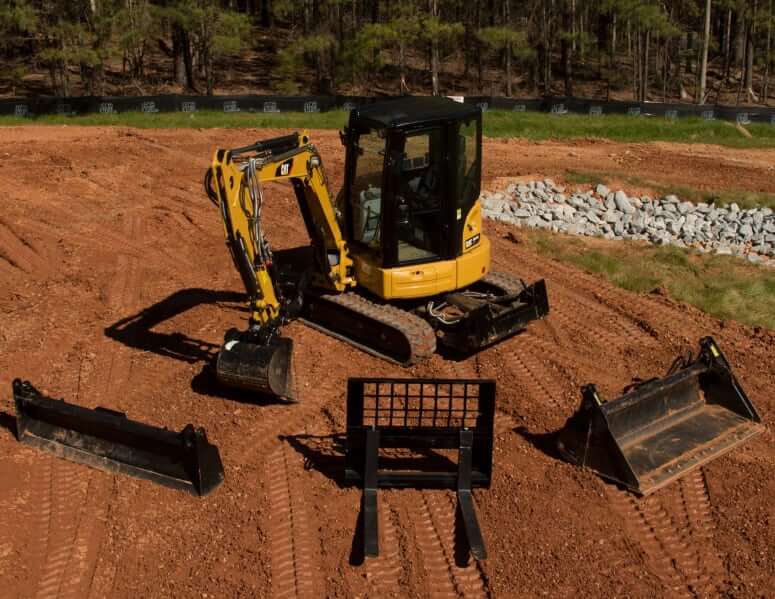

Operating Specifications – Loader
| Maximum Height – 1829 Mm (72 In) Mp Bucket With Cutting Edge | 37 in (939.8 mm) |
| Reach – Maximum Lift/Dump – 1829 Mm (72 In) Mp Bucket | 80 in (2032 mm) |
| Rack Back Angle – Maximum Height – 1829 Mm (72 In) Mp Bucket | 48 degrees |
| Maximum Dump Angle – 1829 Mm (72 In) Mp Bucket | 27 degrees |
| Breakout Force – Lift – 1829 Mm (72 In) Mp Bucket | 1588 lb (720.4 kg) |
| Breakout Force – Tilt – 1829 Mm (72 In) Mp Bucket | 1874 lb (850.1 kg) |
| Lift Capacity – 1829 Mm (72 In) Mp Bucket | 1158 lb (525.3 kg) |

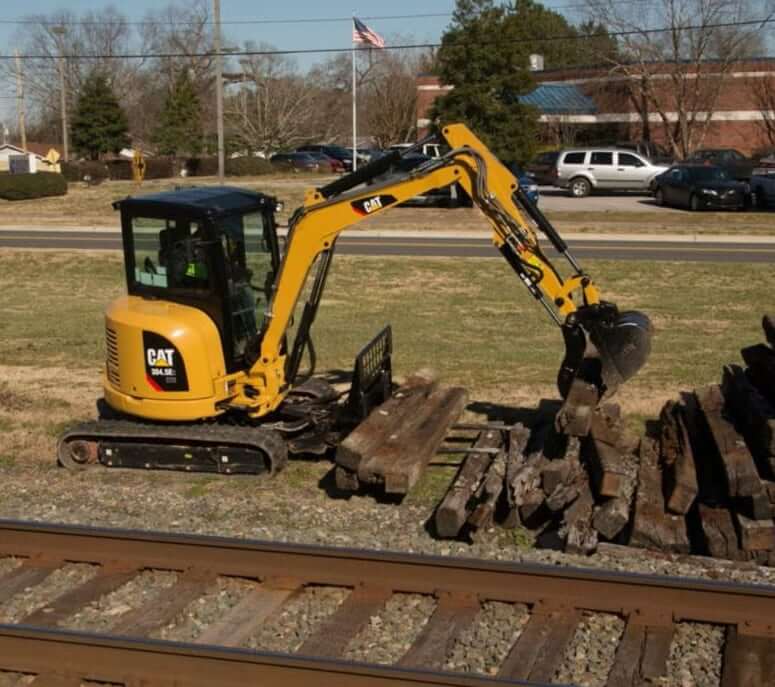

| Lift Capacity – 1070 Mm (42 In) Forks | 1323 lb (600.2 kg) |
| Rated Operating Capacity* – Maximum Height – 1829 Mm (72 In) Mp Bucket | 1158 lb (525.3 kg) |
| Rated Operating Capacity* – Ground – 1829 Mm (72 In) Mp Bucket | 1874 lb (850.1 kg) |
| Note | *Rated operating capacity based on hydraulic limit (ROC is the smaller of the hydraulic limit or 50% of the static tipping load). |
