Contents
- Dimensions – Long Stick
- Dimensions – Standard Stick
- Undercarriage
- Swing System
- Engine Details
- Operational Specs
- Blade
- Hydraulic System
- Blade
- Hydraulic System
- Operating Specifications
- Service Refill Capacities
- Cab
- Air Conditioning System
- Travel System
- Certification – Cab And Canopy
- Weights*
- Lift Capacities At Ground Level – Lift Point Radius: 3000 Mm (9’8”)
- Lift Capacities At Ground Level – Lift Point Radius: 4000 Mm (13’1”)

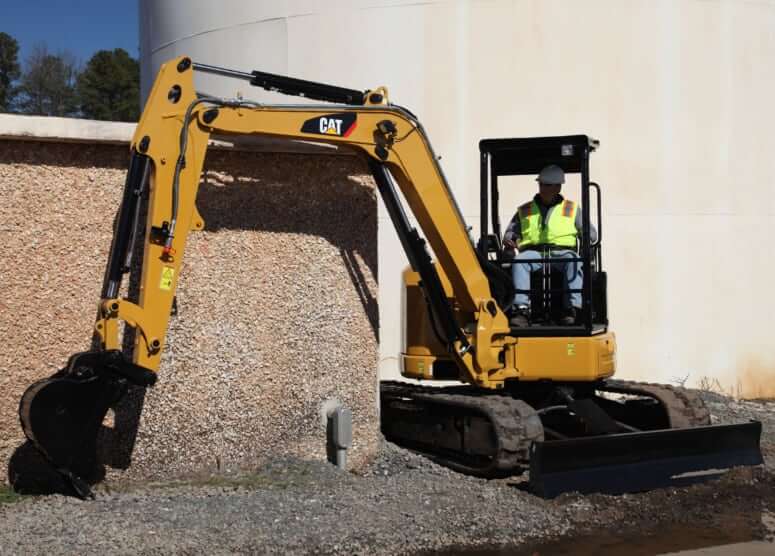

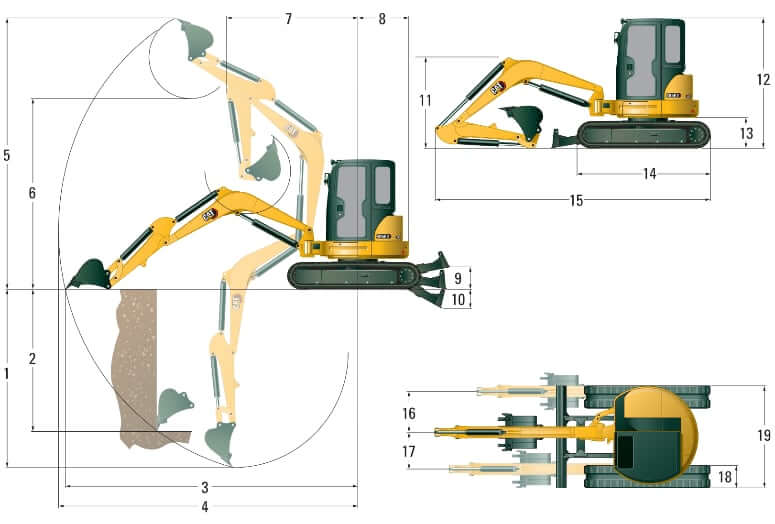

Dimensions – Long Stick
| Vertical Wall | 104 in (2641.6 mm) |
| Boom Height – Shipping Position | 85 in (2159 mm) |
| Boom In Reach | 100 in (2540 mm) |
| Boom Swing – Left | 27 in (685.8 mm) |
| Boom Swing – Right | 31 in (787.4 mm) |
| Dig Depth | 144 in (3657.6 mm) |
| Maximum Blade Depth | 22 in (558.8 mm) |
| Maximum Blade Height | 16 in (406.4 mm) |
| Maximum Dig Height | 214 in (5435.6 mm) |
| Maximum Dump Clearance | 154 in (3911.6 mm) |
| Maximum Reach | 235 in (5969 mm) |
| Maximum Reach – Ground Level | 229 in (5816.6 mm) |
| O/A Shipping Height | 100 in (2540 mm) |
| O/A Shipping Length | 208 in (5283.2 mm) |
| O/A Track Width | 78 in (1981.2 mm) |
| O/A Undercarriage Length | 102 in (2590.81 mm) |
| Swing Bearing – Height | 24 in (609.6 mm) |
| Tail Swing | 43 in (1092.2 mm) |
| Track Belt/Shoe Width | 16 in (406.4 mm) |
Dimensions – Standard Stick
| Swing Bearing – Height | 24 in (609.6 mm) |
| Maximum Reach – Ground Level | 210 in (5334 mm) |
| Maximum Dump Clearance | 129 in (3276.6 mm) |
| O/A Undercarriage Length | 102 in (2590.81 mm) |
| Maximum Reach | 220 in (5588 mm) |
| Boom In Reach | 93 in (2362.2 mm) |
| O/A Shipping Height | 100 in (2540 mm) |
| Tail Swing | 43 in (1092.2 mm) |
| Boom Swing – Left | 27 in (685.8 mm) |
| O/A Shipping Length | 204 in (5181.61 mm) |
| Boom Swing – Right | 31 in (787.4 mm) |
| Dig Depth | 129 in (3276.6 mm) |
| Vertical Wall | 91 in (2311.4 mm) |
| Maximum Blade Depth | 22 in (558.8 mm) |
| O/A Track Width | 78 in (1981.2 mm) |
| Maximum Blade Height | 16 in (406.4 mm) |
| Boom Height – Shipping Position | 69 in (1752.6 mm) |
| Maximum Dig Height | 207 in (5257.8 mm) |
| Track Belt/Shoe Width | 16 in (406.4 mm) |
Undercarriage
| Track Roller Type | Center Flange |
| Number Of Carrier Rollers | 1 |
| Number Of Track Rollers | 4 |
Swing System
| Machine Swing Speed | 10 rpm |
| Note | *Automatic swing brake, spring applied, hydraulic release. |
| Boom Swing – Left – Without Stop* | 80 degrees |
| Boom Swing – Left – With Stop* | 60 degrees |
Engine Details
| Net Power | 40.2 hp (30 kw) |
| Displacement | 146 cu in (2.4 L) |
| Bore | 3.4 in (86.4 mm) |
| Stroke | 4 in (101.6 mm) |
| Emissions | Meets U.S. EPA Tier 4 Final/EU Stage IIIA emission standards. |
| Engine Model | Cat C2.4 |
| Gross Power – Iso 14396 | 41.8 hp (31.2 kw) |
| Rated Net Power – 2,200 Rpm – Iso 9249/Eec 80/1269 | 40.2 hp (30 kw) |
Operational Specs
| Operating Weight | 11443 lb (5190.5 kg) |
Blade
| Height | 14.8 in (376 mm) |
| Width | 6.5 ft in (1981.2 mm) |
Hydraulic System
| Hydraulic System Type | Load Sensing Hydraulics with Variable Displacement Piston Pump |
Blade
| Lift Height | 15.9 in (403.9 mm) |
| Dig Depth | 21.9 in (556.3 mm) |
Hydraulic System
| Operating Pressure – Swing | 3132 psi |
| Operating Pressure – Equipment | 3553 psi |
| Operating Pressure – Travel | 3553 psi |
| Digging Force – Stick – Standard | 5550 lb (2517.5 kg) |
| Digging Force – Stick – Long | 4788 lb (2171.9 kg) |
| Digging Force – Bucket | 10050 lb (4558.7 kg) |
| Auxiliary Circuit – Secondary (174 Bar/2,524 Psi) | 6.6 gal/min |
| Auxiliary Circuit – Primary (186 Bar/2,734 Psi) | 21.1 gal/min |
| Pump Flow At 2,400 Rpm | 39.6 gal/min |
Operating Specifications
| Stick Length – Standard | 52 in (1320.8 mm) |
| Stick Length – Long | 67 in (1701.8 mm) |

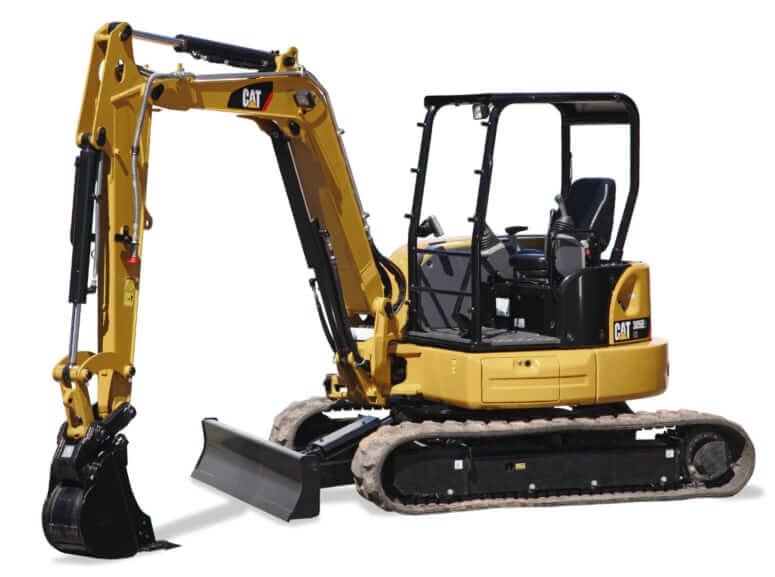

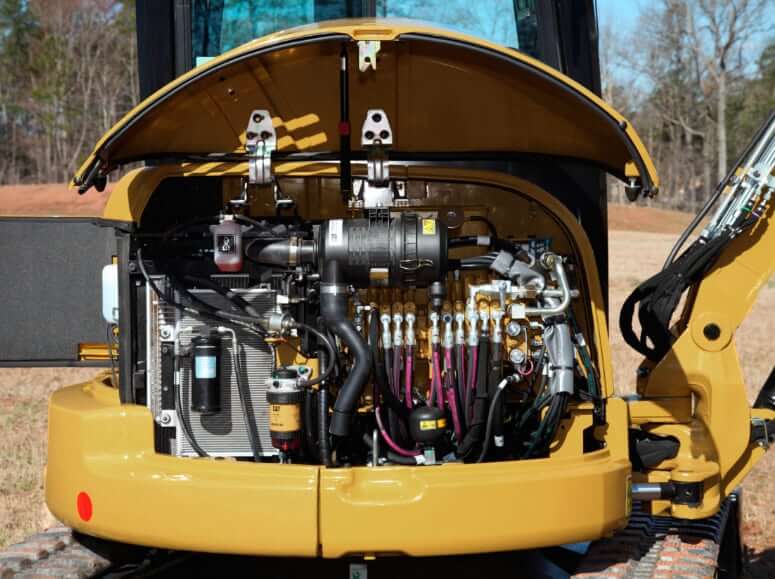

Service Refill Capacities
| Cooling System | 2.8 gal (10.6 L) |
| Fuel Tank Capacity | 16.6 gal (62.9 L) |
| Hydraulic Tank | 18 gal (68.2 L) |
| Hydraulic System | 20.6 gal (78 L) |
| Engine Oil | 2.5 gal (9.5 L) |
Cab
| Dynamic Operator Sound Pressure Level (Iso 6396:2008) | 81 dB(A) |
| Exterior Sound Power Level – Iso 6395:2008* | 96 dB(A) |
| Note | *European Union Directive 2000/14/EC |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.4 metric tonnes. |
Travel System
| Maximum Traction Force – High Speed | 5418 lb (2457.6 kg) |
| Maximum Traction Force – Low Speed | 10161 lb (4609 kg) |
| Travel Speed – High | 2.7 mph (4.4 km/h) |
| Travel Speed – Low | 1.7 mph (2.8 km/h) |
| Gradeability – Maximum | 30 degrees |
| Ground Pressure – Cab | 4.4 psi |
| Ground Pressure – Canopy | 4.3 psi |
Certification – Cab And Canopy
| Roll Over Protective Structure (Rops) | ISO 12117-2 |
| Tip Over Protective Structure (Tops) | ISO 12117 |
| Top Guard | ISO 10262 (Level I) |
Weights*
| Weight – Cab, Long Stick | 11443 lb (5190.5 kg) |
| Note | *Weight includes counterweight, rubber tracks, bucket, operator, full fuel and auxiliary lines. |
| Weight – Canopy, Standard Stick | 10970 lb (4976 kg) |
| Weight – Canopy, Long Stick | 11069 lb (5020.9 kg) |
| Weight – Cab, Standard Stick | 11334 lb (5141.1 kg) |
Lift Capacities At Ground Level – Lift Point Radius: 3000 Mm (9’8”)
| Blade Down – Front | 5159 lb (2340.1 kg) |
| Blade Up – Front | 3197 lb (1450.2 kg) |
| Blade Down – Side | 2646 in (67208.4 mm) |
| Blade Up – Side | 2359 in (59918.6 mm) |
Lift Capacities At Ground Level – Lift Point Radius: 4000 Mm (13’1”)
| Blade Down – Front | 2778 lb (1260.1 kg) |
| Blade Up – Front | 1676 lb (760.3 kg) |
| Blade Down – Side | 1411 lb (640.1 kg) |
| Blade Up – Side | 1257 lb (570.2 kg) |
