Swing System
| Machine Swing Speed | 10 rpm |
| Swing – Right | 50 degrees |
Engine Details
| Gross Power | 41.8 hp (31.2 kw) |
| Net Power | 40.2 hp (30 kw) |
| Displacement | 146 cu in (2.4 L) |
| Bore | 3.4 in (86.4 mm) |
| Stroke | 4 in (101.6 mm) |
| Net Power – Iso 9249 | 40.2 hp (30 kw) |
| Engine Model | Cat C2.4 |
| Rated Net Power – Iso 9249 | 40.2 hp (30 kw) |
| Note | Cat C2.4 engine meets U.S. EPA Tier 4 Interim/EU Stage IIIA emission standards. |
Operational Specs
| Operating Weight | 11433 lb (5186 kg) |
Weights
| Note | Weight includes rubber tracks, bucket, operator, full fuel and auxiliary lines. |
| Operating Weight – With Cab | 11433 lb (5186 kg) |
| Operating Weight – With Canopy | 11069 lb (5020.9 kg) |

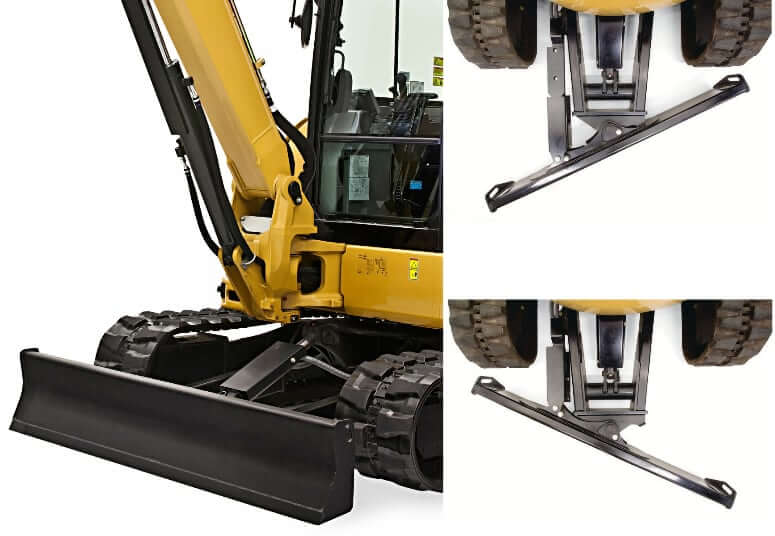

Blade
| Height | 14.8 in (376 mm) |
| Width | 6.5 ft in (1981.2 mm) |
Hydraulic System
| Pump Flow | 39.6 gal/min (150 L/min) |
| Note | Load sensing hydraulics with variable displacement piston pump. |
Blade
| Lift Height | 15.9 in (403.9 mm) |
| Dig Depth | 21.9 in (556.3 mm) |
Hydraulic System
| Operating Pressure – Swing | 3132 psi |
| Operating Pressure – Equipment | 3553 psi |
| Operating Pressure – Travel | 3553 psi |
| Digging Force – Stick – Standard | 5553 lb (2518.8 kg) |
| Digging Force – Stick – Long | 4788 lb (2171.9 kg) |
| Digging Force – Bucket | 10049 lb (4558.2 kg) |
| Auxiliary Circuit – Primary | 21.1 gal/min |
| Auxiliary Circuit – Secondary | 6.6 gal/min |

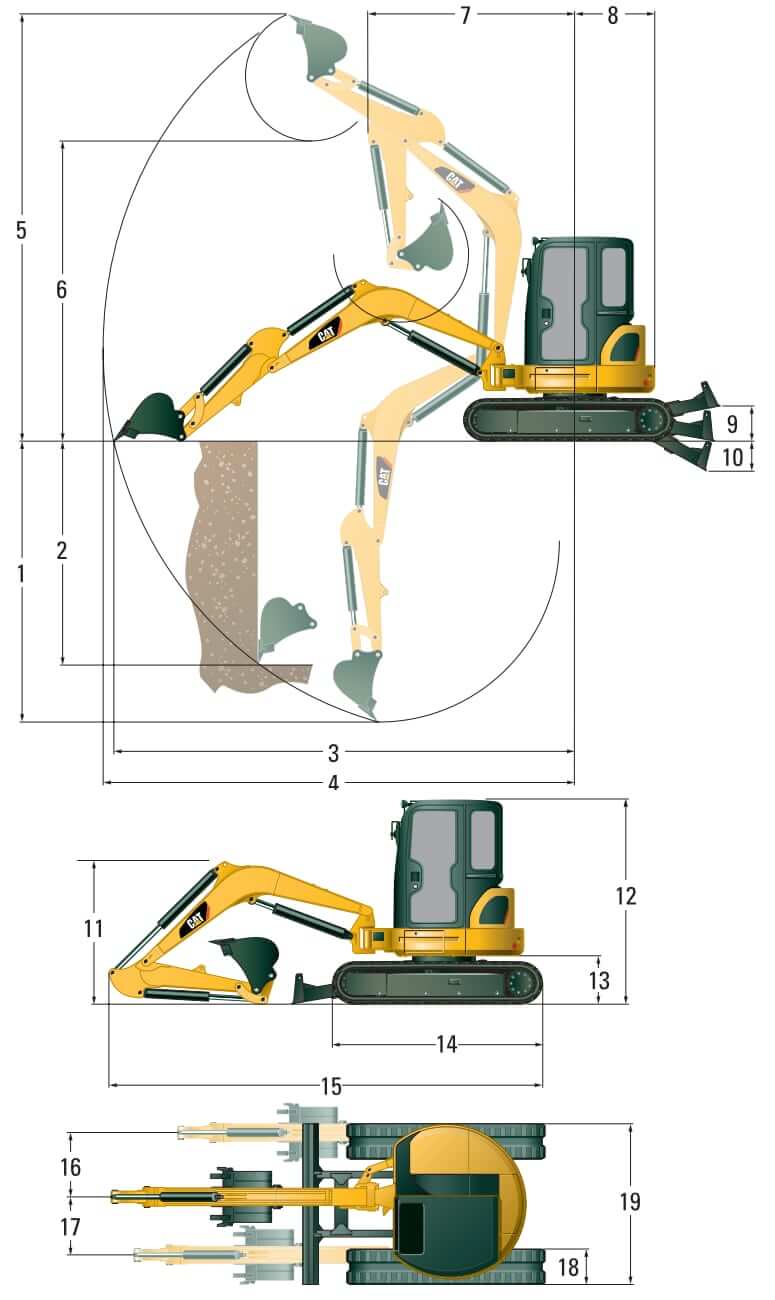

Operating Specifications
| Maximum Dig Depth | 144 in (3657.6 mm) |
Service Refill Capacities
| Cooling System | 2.8 gal (10.6 L) |
| Fuel Tank Capacity | 16.6 gal (62.9 L) |
| Hydraulic Tank | 18 gal (68.2 L) |
| Hydraulic System | 20.6 gal (78 L) |
| Engine Oil | 2.5 gal (9.5 L) |
Travel System
| Maximum Traction Force – High Speed | 5418 lb (2457.6 kg) |
| Maximum Traction Force – Low Speed | 10161 lb (4609 kg) |
| Travel Speed – High | 2.7 mph (4.4 km/h) |
| Travel Speed – Low | 1.7 mph (2.8 km/h) |
| Ground Pressure | 4.5 psi |
