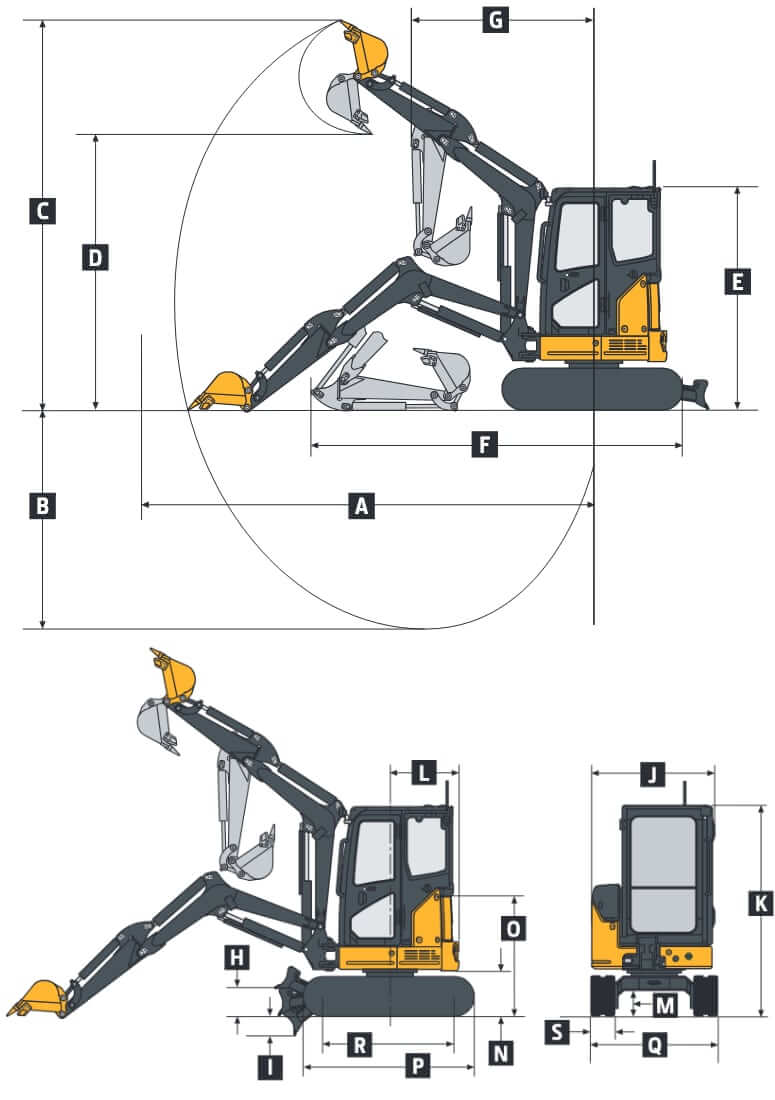

Working Range
| Deere 26G with 1.17 m (46″) Arm | Canopy | Cab |
|---|---|---|
| A. Maximum Digging Reach | 182.3 in (4630 mm) | 182.3 in (4630 mm) |
| B. Maximum Digging Depth | 102 in (2590 mm) | 102 in (2590 mm) |
| C. Maximum Cutting Height | 174.8 in (4440 mm) | 168.5 in (4280 mm) |
| D. Maximum Dumping Height | 125.6 in (3190 mm) | 119.7 in (3040 mm) |
| E. Transport Height | 95.7 in (2430 mm) | 95.7 in (2430 mm) |
| F. Overall Length, Blade in Front | 164.6 in (4180 mm) | 164.6 in (4180 mm) |
| F. Overall Length, Blade in Rear | 176.4 in (4480 mm) | 176.4 in (4480 mm) |
| G. Minimum Swing Radius | 75.6 in (1920 mm) | 79.1 in (2010 mm) |
| H. Blade Bottom Highest Position | 13 in (330 mm) | 13 in (330 mm) |
| I. Blade Bottom Lowest Position | 12 in (305 mm) | 12 in (305 mm) |
| Boom-Swing Pivot-Offset Distance | 3 in (90 mm) | 3 in (90 mm) |
| Offset Distance, Left | 22 in (560 mm) | 22 in (560 mm) |
| Offset Distance, Right | 28 in (700 mm) | 28 in (700 mm) |
| Arm Digging Force | 3410 lbf (15.17 kN) | 3410 lbf (15.17 kN) |
| Bucket Digging Force | 4994 lbf (22.21 kN) | 4994 lbf (22.21 kN) |
Dimensions
| Deere 26G with 1.17 m (46″) Arm | Canopy | Cab |
|---|---|---|
| J. Upperstructure Width | 54.7 in (1390 mm) | 55.9in (1420 mm) |
| K. Overall Height | 95.7 in (2430 mm) | 95.7 in (2430 mm) |
| L. Rear-End Swing Radius | 31.5 in (800 mm) | 31.5 in (800 mm) |
| M. Minimum Ground Clearance | 11.8 in (300 mm) | 11.8 in (300 mm) |
| N. Counterweight Height | 20.9 in (530 mm) | 20.9 in (530 mm) |
| O. Engine Cover Height | 58.7 in (1490 mm) | 57.9 in (1470 mm) |
| P. Undercarriage Length | 77.2 in (1960 mm) | 77.2 in (1960 mm) |
| Q. Undercarriage Width | 59.1 in (1500 mm) | 59.1 in (1500 mm) |
| R. Sprocket Center to Idler Center | 60.2 in (1530 mm) | 60.2 in (1530 mm) |
| S. Track Shoe Width | 12 in (300 mm) | 12 in (300 mm) |
Lift Capacities
| Ground Level at 3 m (10′) Radius | Lift Capacity |
|---|---|
| Canopy, Over Front | 2573 lb (1200 kg) |
| Canopy, Over Side | 781 lb (362 kg) |
| Cab, Over Front | 2592 lb (1201 kg) |
| Cab, Over Side | 850 lb (394 kg) |

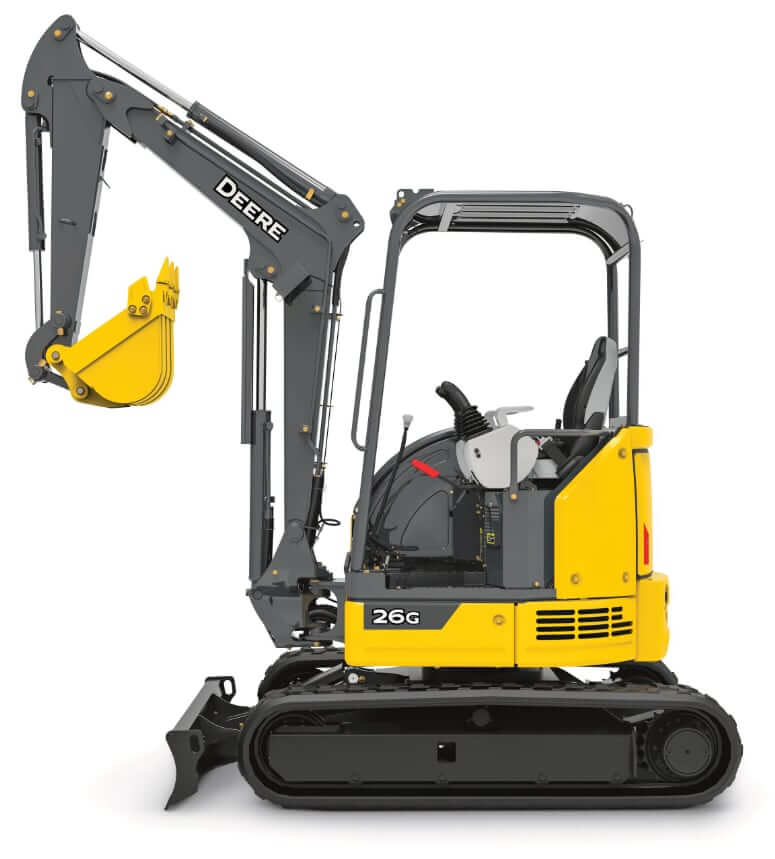

Weight and Ground Pressure
| John Deere 26G with 1.17 m (46″) Arm | Canopy | Cab |
|---|---|---|
| Operating Weight | 5780 lb (2620 kg) | 6110 lb (2770 kg) |
| Ground Pressure | 3.6 psi (25.0 kPa) | 3.8 psi (25.9 kPa) |
Engine Details
| Number Of Cylinders | 3 |
| Engine Make | Yanmar |
| Engine Model | Yanmar 3TNV80F |
| Displacement | 77 cu in (1.267 L) |
| Bore | 3.15 in (80 mm) |
| Stroke | 3.31 in (84 mm) |
| Net Power | 20 hp (14.9 kw) |
| Power Measured @ | 2500 rpm |
| Peak Toque | 44.3 lb ft (60 Nm) |
| Toque Measured @ | 1900 rpm |
| Aspiration | Naturally aspirated |
| Emission Standards | EPA Final Tier 4 / EU Stage IV |
Operating Specs
| Max Operating Weight | 6110 lb (2770 kg) |
| Counterweight (for Canopy) | 531 lb (241 kg) |
| Counterweight (for Cab) | 459 lb (208 kg) |
| Operating Voltage | 12 V |
| Alternator | 40 amps |
| Battery | 12 V, 40 Ah, CCA 425 (TY27806B, Group Size 51 BCI) |
| Battery Size, H x W x L | 8.74 x 5 x 9.37 in (222 x 127 x 238 mm) |
| Working Lights | 2 halogen, 1 mounted on operator station, and 1 mounted on boom |

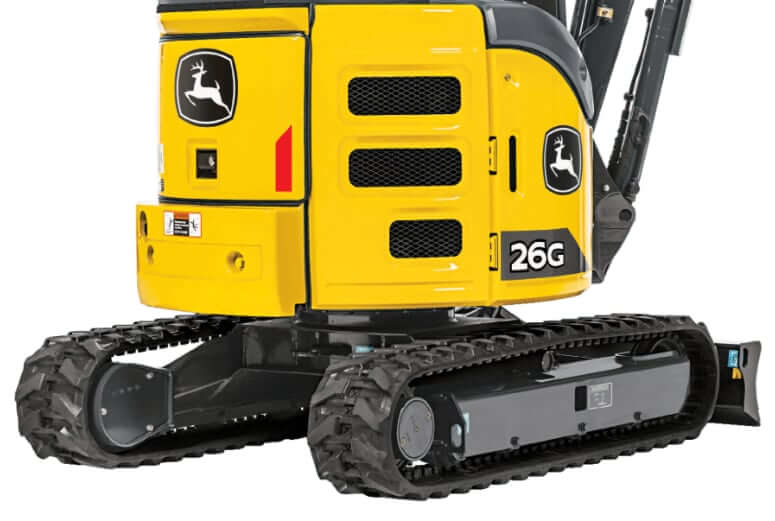

Undercarriage
| Hydrostatic Motors | 2-speed axial-piston propel motors |
| Track Shoe Width | 12 in (300 mm) |
| Track Shoe Type | Rubber |
| Number of Track Rollers (each side) | 4 |
| Number of Carrier Rollers (each side) | 1 |
| Max Travel Speed (Low) | 1.8 mph (2.9 km/h) |
| Max Travel Speed (High) | 2.8 mph (4.5 km/h) |

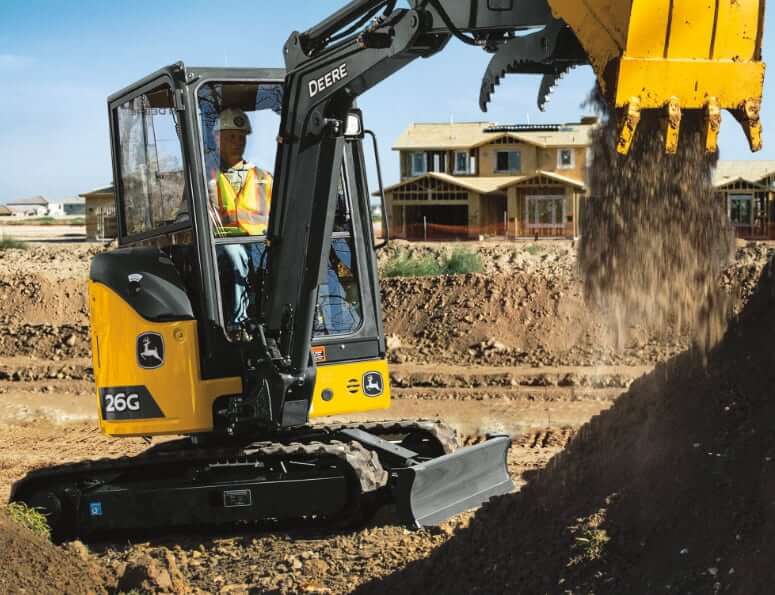

Upperstructure
| Swing Speed | 9.1 rpm |
| Canopy (Standart) | ROPS/TOPS/FOPS |
| Cab (Optional) | ROPS/TOPS/FOPS with heater |
| Independent Swing Boom (left / right) | 70° / 60° |
| Upperstructure Rotation | 360° |
| Swing Brake | Wet-disc swing brake. Spring applied, hydraulically released, automatic |

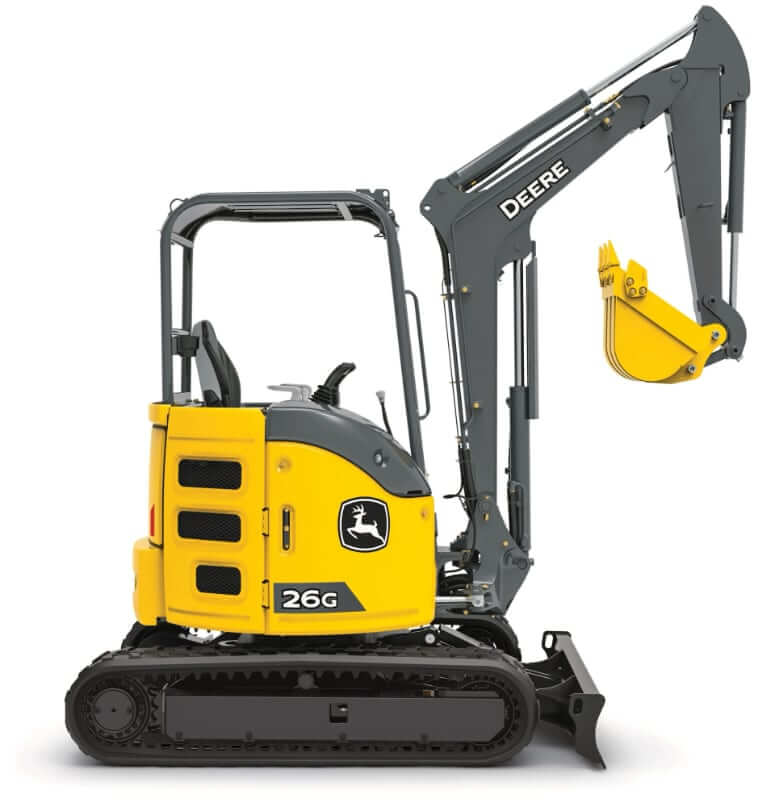

Dozer Blade
| Blade Type (Standart) | Backfill blade |
| Blade Width | 59 in (1500 mm) |
| Blade Height | 12.6 in (320 mm) |
| Blade Bottom Highest Position | 13 in (330 mm) |
| Blade Bottom Lowest Position | 12 in (305 mm) |
Hydraulic System
| Type | Open center hydraulics |
| Pump Type | 2 variable-displacement pumps, 1 fixed gear pump, and 1 pilot pump |
| Piston Pump Flow | 2x 7.9 gal/min (2x 36 L/min) |
| Gear Pump Flow | 4.3 gal/min (16.28 L/min) |
| Auxiliary Pump Flow | 12.2 gal/min (46.18 L/min) |
| Controls | Hydraulic pilot operated for boom, arm, bucket, swing, boom swing, blade, travel, and auxiliary functions |
| Couplers | Mechanical quick-coupler |

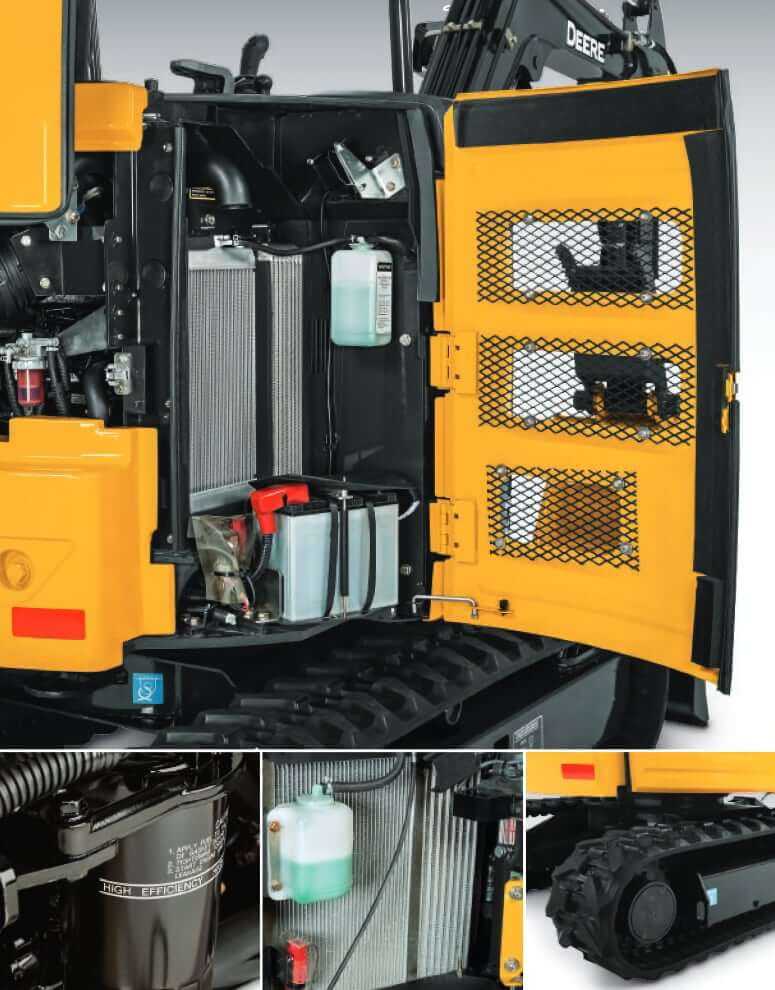

Service Refill Capacities
| Fuel Tank Capacity | 9 gal (34.1 L) |
| Engine Oil Capacity (w/ Filter) | 0.97 gal (3.69 L) |
| Cooling System Capacity | 0.82 gal (3.12 L) |
| Hydraulic Tank Capacity | 6.3 gal (23.9 L) |
| Hydraulic System (including tank) | 10.3 gal (39 L) |
| Travel Reduction Unit (each) | 0.16 gal (0.6 L) |
John Deere 26G Filters
| Primary Air Filter | M131802 |
| Secondary Air Filter | M131803 |
| Engine Oil Filter | M806418 |
| Fuel Filter | M801101 |
| Final Fuel Filter | MIU802154 |
| Hydraulic Tank Oil Filter Element | AT308568 |
| Pilot System Oil Filter Element | 4294130 |
