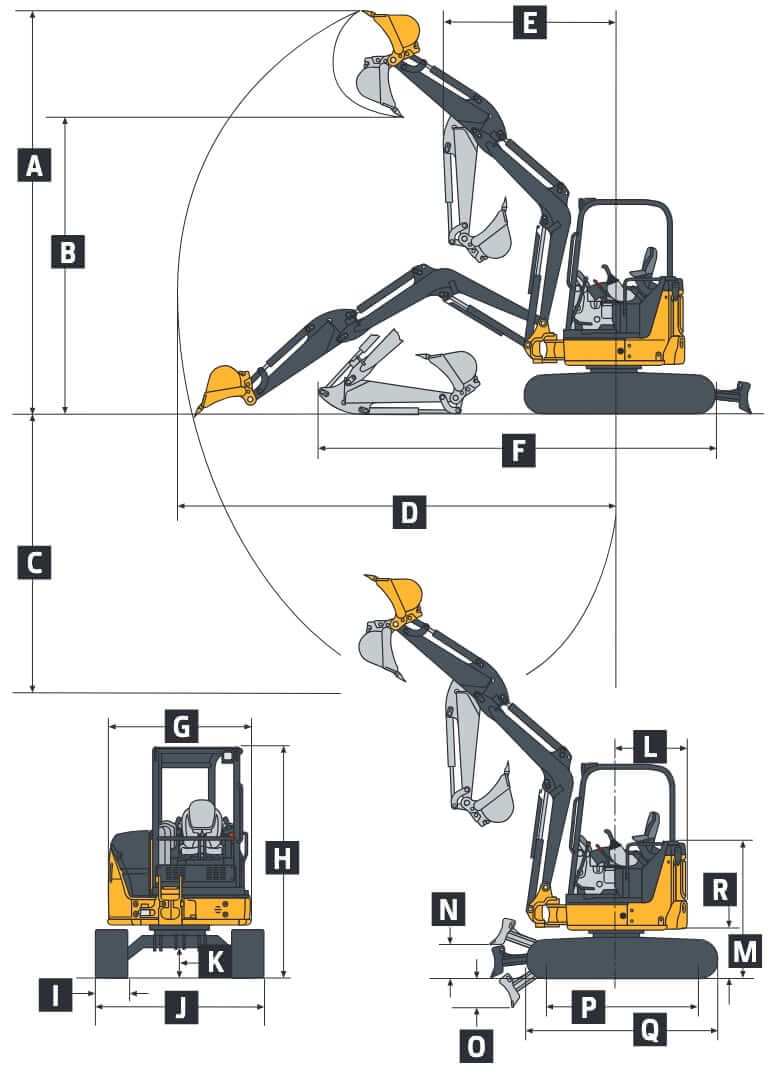

Working Range
| Deere 35G | 1.3 m (51.8″) Standart Arm Canopy / Cab |
1.7 m (67.5″) Long Arm Canopy / Cab |
|---|---|---|
| A. Max Cutting Height | 191.7 in (4870 mm) / 185.0 in (4700 mm) | 194.9 in (4950 mm) / 186.6 in (4740 mm) |
| B. Max Dumping Height | 136.2 in (3460 mm) / 130.3 in (3310 mm) | 140.6 in (3570 mm) / 133.5 in (3390 mm) |
| C. Max Digging Depth | 120.5 in (3060 mm) | 136.2 in (3460 mm) |
| D. Max Digging Reach | 205.1 in (5210 mm) | 217.3 in (5520 mm) |
| E. Min Front Swing Radius | 81.9 in (2080 mm) / 88.2 in (2240 mm) | 86.2 in (2190 mm) / 90.6 in (2300 mm) |
| F. Overall Length | 182.7 in (4640 mm) | 187 in (4750 mm) |
| Arm Digging Force | 4277 lbf (19.0 kN) | 3792 lbf (16.9 kN) |
| Bucket Digging Force | 6085 lbf (27.1 kN) | 6085 lbf (27.1 kN) |
Dimensions
| G. Upperstructure Width | 61 in (1550 mm) |
| H. Overall Height (Canopy) | 97.6 in (2480 mm) |
| H. Overall Height (Cab) | 97.6 in (2480 mm) |
| I. Track Width | 12 in (300 mm) |
| J. Undercarriage Width | 68.5 in (1740 mm) |
| K. Ground Clearance | 11 in (280 mm) |
| L. Tail Swing Radius With Standard Arm | 34 in (870 mm) |
| L. Tail Swing Radius With Long Arm and Extra Counterweight | 39 in (980 mm) |
| M. Engine Cover Height | 60.2 in (1530 mm) |
| N. Maximum Blade Lift Above Ground | 14.2 in (360 mm) |
| O. Maximum Blade Drop Below Ground | 15.7 in (400 mm) |
| P. Sprocket Center to Idler Center | 65.4 in (1660 mm) |
| Q. Undercarriage Length | 83.1 in (2110 mm) |
| R. Counterweight Clearance | 22 in (550 mm) |
| Blade Height | 14.7 in (373 mm) |
| Blade Width | 68.5 in (1740 mm) |
Lift Capacities
| Ground Level at 3.05 m (10′) Radius | 1.3 m (51.8″) Standart Arm | 1.7 m (67.5″) Long Arm |
|---|---|---|
| Canopy and Standard Counterweight, Over Front | 3453 lb (1568 kg) | 3307 lb (1501 kg) |
| Canopy and Standard Counterweight, Over Side | 1412 lb (641 kg) | 1388 lb (630 kg) |
| Cab and Standard Counterweight, Over Front | 3453 lb (1568 kg) | 3307 lb (1501 kg) |
| Cab and Standard Counterweight, Over Side | 1506 lb (684 kg) | 1481 lb (672 kg) |
| Canopy and Extra Counterweight, Over Front | 3453 lb (1568 kg) | 3307 lb (1501 kg) |
| Canopy and Extra Counterweight, Over Side | 1686 lb (765 kg) | 1662 lb (755 kg) |
| Cab and Extra Counterweight, Over Front | 3453 lb (1568 kg) | 3307 lb (1501 kg) |
| Cab and Extra Counterweight, Over Side | 1780 lb (808 kg) | 1756 lb (797 kg) |

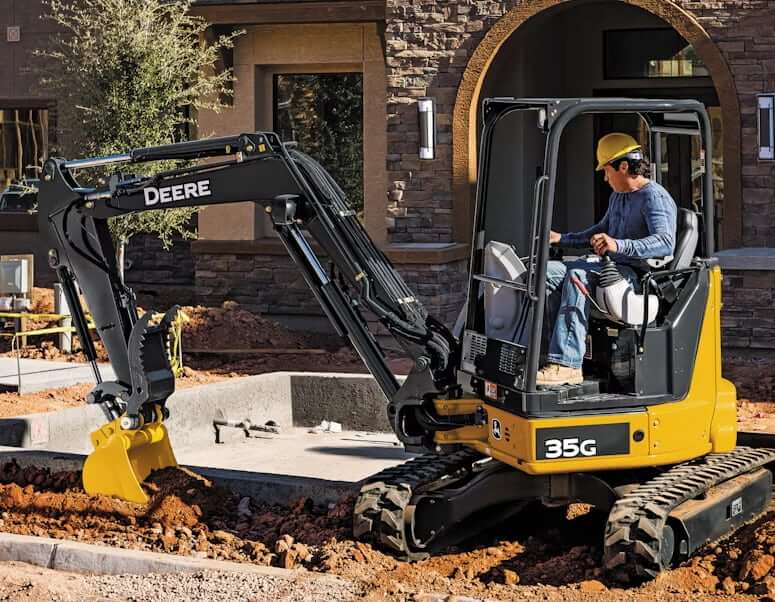

Weight and Ground Pressure
| John Deere 35G | 1.3 m (51.8″) Standart Arm Canopy / Cab |
1.7 m (67.5″) Long Arm Canopy / Cab |
|---|---|---|
| Operating Weight | 7760 lb (3520 kg) 8135 lb (3690 kg) |
8340 lb (3783 kg) 8715 lb (3953 kg) |
| Ground Pressure | 4.6 psi (32.0 kPa) 4.8 psi (33.0 kPa) |
4.9 psi (33.7 kPa) 5.1 psi (35.2 kPa) |
Engine Details
| Number Of Cylinders | 3 |
| Engine Make | Yanmar |
| Engine Model | Yanmar 3TNV88F |
| Displacement | 100.2 cu in (1.642 L) |
| Bore | 3.46 in (88 mm) |
| Stroke | 3.54 in (90 mm) |
| Net Power | 23.3 hp (17.4 kw) |
| Power Measured @ | 2400 rpm |
| Peak Toque | 68.0 lb ft (92.2 Nm) |
| Toque Measured @ | 1440 rpm |
| Aspiration | Naturally aspirated |
| Emission Standards | EPA Final Tier 4 / EU Stage IV |
Operating Specs
| Max Operating Weight | 3453 lb (1568 kg) |
| Counterweight (Standart) | 1190 lb (540 kg) |
| Counterweight (Additional) | 529 lb (240 kg) |
| Operating Voltage | 12 V |
| Alternator | 55 amps |
| Battery | 12 V, 40 Ah, CCA 425 (TY27806B, Group Size 51 BCI) |
| Battery Size, H x W x L | 8.74 x 5 x 9.37 in (222 x 127 x 238 mm) |
| Battery (Optional) | 12 V, 45 Ah, CCA 500 (TY25876B, Group Size 51 BCI) |
| Working Lights | 2 halogen: 1 mounted on operator’s station and 1 mounted on boom |
Undercarriage
| Track Shoe Width | 11.9 in (300 mm) |
| Track Shoe Type | Rubber |
| Number of Carrier Rollers (each side) | 1 |
| Number of Track Rollers (each side) | 4 |
| Max Travel Speed (Low) | 1.7 mph (2.8 km/h) |
| Max Travel Speed (High) | 2.7 mph (4.3 km/h) |
| Parking Brake | Spring-applied, hydraulically released park brake automatically engages when a control lever is released |
Upperstructure
| Swing Speed | 9.0 rpm |
| Canopy / Cab | ROPS/TOPS/FOPS |
| Independent Swing Boom, Canopy (left / right) | 72° / 62° |
| Independent Swing Boom, Cab (left / right) | 62° / 62° |
| Swing Brake | Spring applied, hydraulically released, automatic, disc type |
Dozer Blade
| Blade Type (Standart) | Backfill blade |
| Blade Width | 68.5 in (1740 mm) |
| Blade Height | 14.7 in (373 mm) |
| Blade Type (Optional) | Angle backfill blade, 68.5 in (1740 mm) |
| Dozer Angle Blade Weight | 653 lb (296 kg) |
Hydraulic System
| Type | Open center hydraulics |
| Pumps | 2 variable-displacement pumps + 1 fixed-gear pump |
| Piston Pump Flow | 2x 10.1 gal/min (38.4 L/min) |
| Gear Pump Flow | 6.0 gal/min (22.8 L/min) |
| Auxiliary Flow | 16.2 gal/min (61.2 L/min) |
| Controls | 2 hydraulic pilot-operated controls for boom, arm, bucket, swing, boom swing, travel, and auxiliary functions |

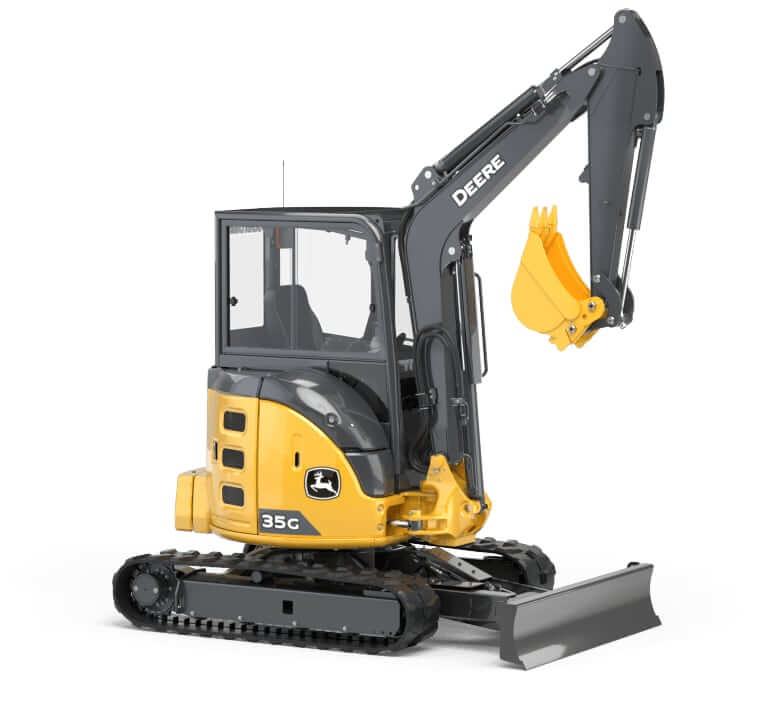

Service Refill Capacities
| Fuel Tank Capacity | 11.1 gal (42 L) |
| Engine Oil Capacity | 1.9 gal (7.2 L) |
| Cooling System Capacity | 1.3 gal (5 L) |
| Hydraulic Tank Capacity | 8.5 gal (32 L) |
| Hydraulic System (including tank) | 14.8 gal (56 L) |
| Travel Reduction Unit (each) | 0.16 gal (0.6 L) |

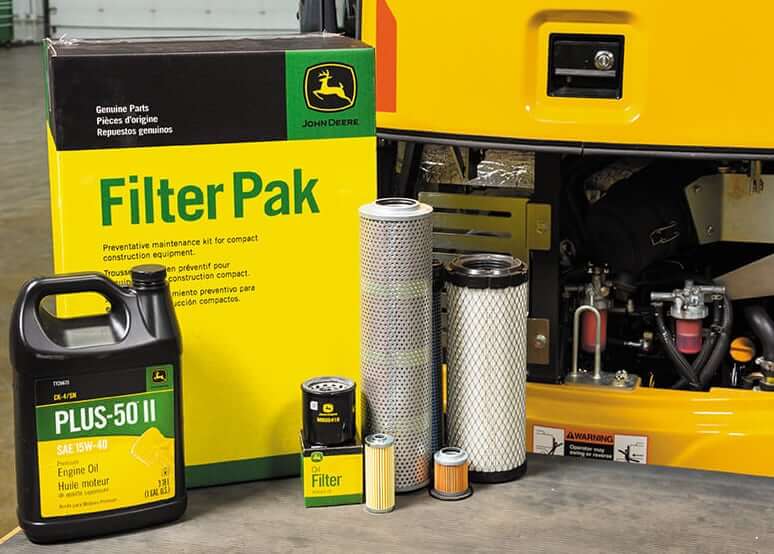

John Deere 35G Filters
| Primary Air Filter | FYD00001540 |
| Secondary Air Filter | FYD00000374 |
| Engine Oil Filter | MIU800650 |
| Primary Fuel Filter Water Separator | MIU801025 |
| Final Fuel Filter | MIU801267 |
| Hydraulic Tank Oil Filter Element | AT308568 |
| Pilot System Oil Filter Element | 4294130 |
