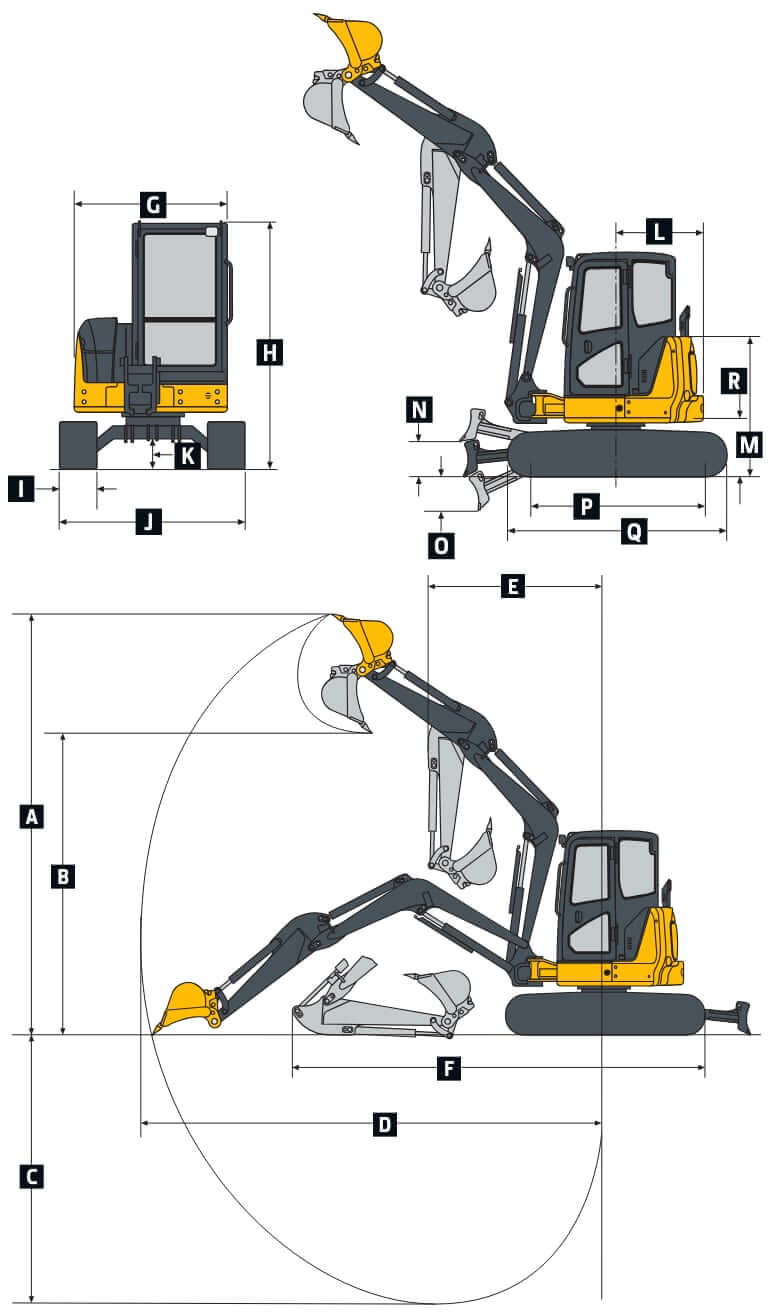

Working Range
| Deere 50G | 1.38 m (54.3″) Standart Arm Canopy / Cab |
1.69 m (66.5″) Long Arm Canopy / Cab |
|---|---|---|
| A. Max Cutting Height | 226.4 in (5750 mm) | 236.2 in (6000 mm) |
| B. Max Dumping Height | 157.8 in (4007 mm) | 169.7 in (4310 mm) |
| C. Max Digging Depth | 139 in (3530 mm) | 150.8 in (3830 mm) |
| D. Max Digging Reach | 234.6 in (5960 mm) | 246.5 in (6260 mm) |
| E. Min Front Swing Radius | 87 in (2210 mm) | 90.6 in (2300 mm) |
| F. Length | 215.4 in (5470 mm) | 217.3 in (5520 mm) |
| Arm Digging Force | 5401 lbf (24.0 kN) | 4718 lbf (21.0 kN) |
| Bucket Digging Force | 8267 lbf (36.8 kN) | 8267 lbf (36.8 kN) |
Dimensions
| G. Upperstructure Width | 72.8 in (1850 mm) |
| H. Overall Height (Canopy) | 99.6 in (2530 mm) |
| H. Overall Height (Cab) | 99.6 in (2530 mm) |
| I. Track Width | 16 in (400 mm) |
| J. Undercarriage Width | 78.7 in (2000 mm) |
| K. Ground Clearance | 13 in (340 mm) |
| L. Tail Swing Radius With Standard Arm | 39 in (1000 mm) |
| L. Tail Swing Radius With Long Arm and Extra Counterweight | 43 in (1100 mm) |
| M. Engine Cover Height | 62.6 in (1590 mm) |
| N. Maximum Blade Lift Above Ground | 18 in (460 mm) |
| O. Maximum Blade Drop Below Ground | 14 in (360 mm) |
| P. Sprocket Center to Idler Center | 78.7 in (2000 mm) |
| Q. Undercarriage Length | 98.4 in (2500 mm) |
| R. Counterweight Clearance | 24 in (610 mm) |
| Blade Width | 78.7 in (2000 mm) |
| Blade Height | 15 in (375 mm) |
Lift Capacities
| Ground Level at 3.05 m (10′) Radius | 1.38 m (54.3″) Standart Arm | 1.69 m (66.5″) Long Arm |
|---|---|---|
| Canopy and Standard Counterweight, Over Front | 5531 lb (2511 kg) | 5456 lb (2477 kg) |
| Canopy and Standard Counterweight, Over Side | 2444 lb (1110 kg) | 2396 lb (1088 kg) |
| Cab and Standard Counterweight, Over Front | 5531 lb (2511 kg) | 5456 lb (2477 kg) |
| Cab and Standard Counterweight, Over Side | 2534 lb (1150 kg) | 2486 lb (1129 kg) |
| Canopy and Extra Counterweight, Over Front | 5531 lb (2511 kg) | 5456 lb (2477 kg) |
| Canopy and Extra Counterweight, Over Side | 2714 lb (1232 kg) | 2666 lb (1210 kg) |
| Cab and Extra Counterweight, Over Front | 5531 lb (2511 kg) | 5456 lb (2477 kg) |
| Cab and Extra Counterweight, Over Side | 2803 lb (1273 kg) | 2755 lb (1251 kg) |
Weight and Ground Pressure
| John Deere 50G | 1.38 m (54.3″) Standart Arm Canopy / Cab |
1.69 m (66.5″) Long Arm Canopy / Cab |
|---|---|---|
| Operating Weight | 10560 lb (4790 kg) 10847 lb (4920 kg) |
11063 lb (5018 kg) 11349 lb (5148 kg) |
| Ground Pressure | 3.90 psi (26.9 kPa) 4.10 psi (28.3 kPa) |
4.17 psi (28.8 kPa) 4.28 psi (29.5 kPa) |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Yanmar |
| Engine Model | Yanmar 4TNV88C |
| Displacement | 134 cu in (2.19 L) |
| Bore | 3.46 in (88 mm) |
| Stroke | 3.54 in (90 mm) |
| Net Power | 35.9 hp (26.8 kw) |
| Power Measured @ | 2400 rpm |
| Peak Toque | 102.5 lb ft (139 Nm) |
| Toque Measured @ | 1430 rpm |
| Aspiration | Naturally aspirated |
| Emission Standards | EPA Final Tier 4 / EU Stage IV |
Operating Specs
| Max Operating Weight | 11349 lb (5148 kg) |
| Counterweight (Standart) | 1543 lb (700 kg) |
| Counterweight (Additional) | 441 lb (200 kg) |
| Operating Voltage | 12 V |
| Alternator | 55 amps |
| Battery | 12 V, 65 Ah, CCA 710 (TY24394B, Group Size 27F BCI) |
| Battery Size, H x W x L | 9.02 x 6.73 x 12.36 in (229 x 171 x 314 mm) |
| Working Lights | 2 halogen: 1 mounted on operator’s station and 1 mounted on boom |

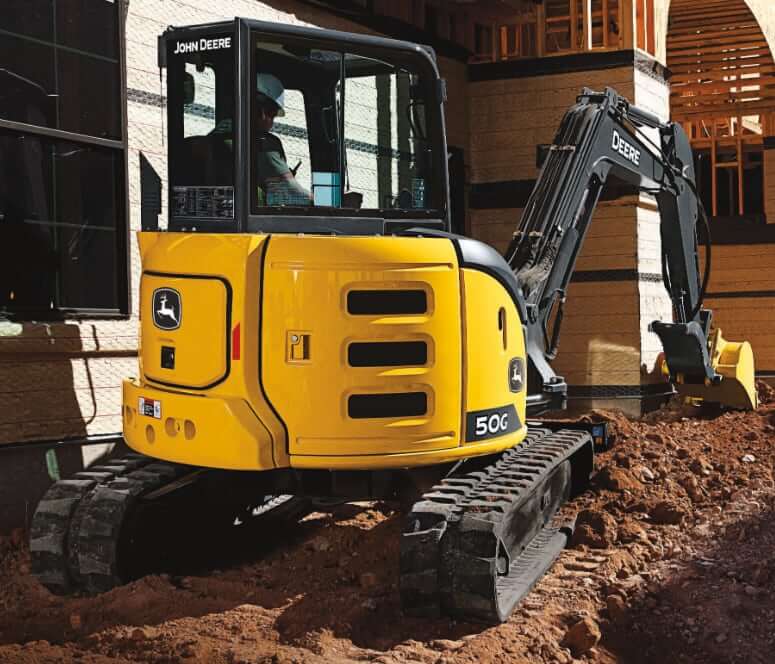

Undercarriage
| Hydrostatic Motors | Each track independently driven by hydrostatic axial-piston motor connected to 2-stage planetary gear-reduction box |
| Track Shoe Width (Standart) | 16 in (400 mm) |
| Track Shoe Type (Standart) | Rubber |
| Track Shoe Type (Optional) | Steel with triple semi-grousers |
| Number of Carrier Rollers (each side) | 1 |
| Number of Track Rollers (each side) | 4 |
| Max Travel Speed (Low) | 1.6 mph (2.5 km/h) |
| Max Travel Speed (High) | 2.6 mph (4.2 km/h) |
Upperstructure
| Swing Speed | 9.0 rpm |
| Canopy (Standart) | ROPS/TOPS/FOPS |
| Cab (Optional) | ROPS/TOPS/FOPS with air conditioning and heater |
| Independent Swing Boom (left / right) | 80° / 60° |
| Upperstructure Rotation | 360° |
| Swing Brake | Spring applied, hydraulically released, automatic, disc type |

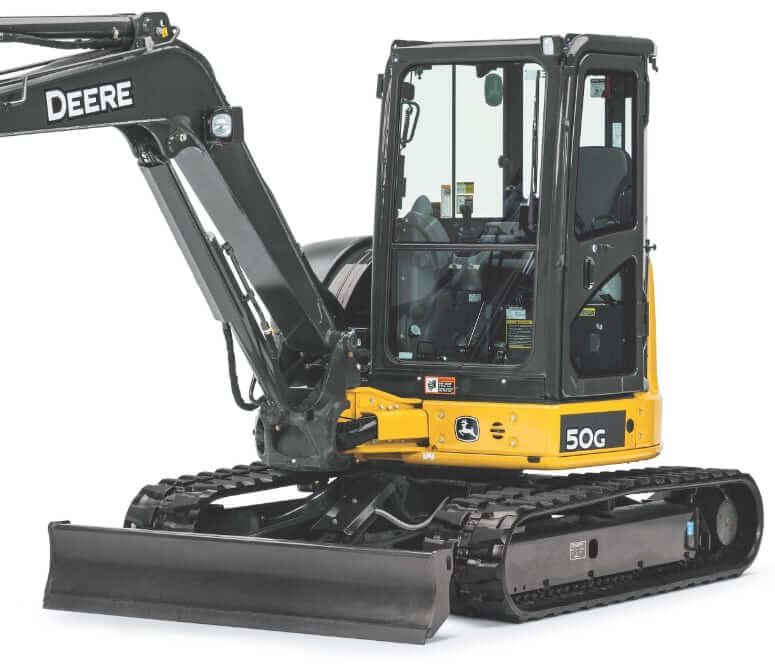

Dozer Blade
| Blade Type (Standart) | Backfill blade |
| Blade Width | 78.7 in (2000 mm) |
| Blade Height | 15.0 in (375 mm) |
| Blade Type (Optional) | Angle backfill blade, 78.7 in (2000 mm) |
| Dozer Angle Blade Weight | 902 lb (409 kg) |
Hydraulic System
| Type | Closed-center load sensing |
| Pump Type | 1 variable-displacement pump |
| Pump Flow | 31.7 gal/min (120 L/min) |
| Auxiliary Flow | 23.1 gal/min (87.4 L/min) |
| Controls | Hydraulic pilot-operated controls for boom, arm, bucket, swing, boom swing, blade, travel, and auxiliary functions |
| Couplers | Auxiliary hydraulic lines with quick-couplers to end of boom |
Service Refill Capacities
| Fuel Tank Capacity | 18.5 gal (70 L) |
| Engine Oil Capacity | 2.3 gal (8.6 L) |
| Cooling System Capacity | 1.3 gal (5 L) |
| Hydraulic Tank Capacity | 14.8 gal (56 L) |
| Hydraulic System (including tank) | 17.4 gal (66 L) |
| Travel Reduction Unit (each) | 0.23 gal (0.9 L) |
John Deere 50G Filters
| Primary Air Filter | FYD00001540 |
| Secondary Air Filter | FYD00000374 |
| Engine Oil Filter | MIU800650 |
| Primary Fuel Filter Water Separator | MIU802421 |
| Final Fuel Filter | MIU802154 |
| Hydraulic Tank Oil Filter Element | AT308568 |
| Pilot System Oil Filter Element | 4294130 |
