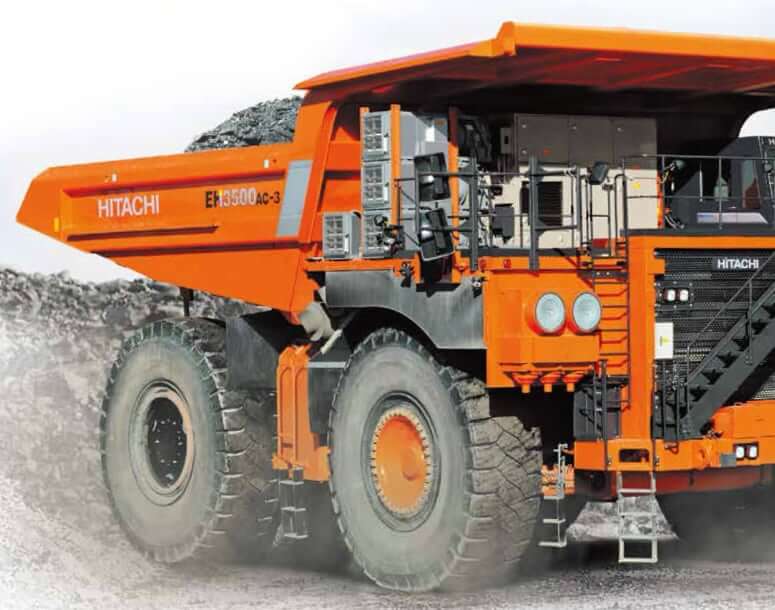

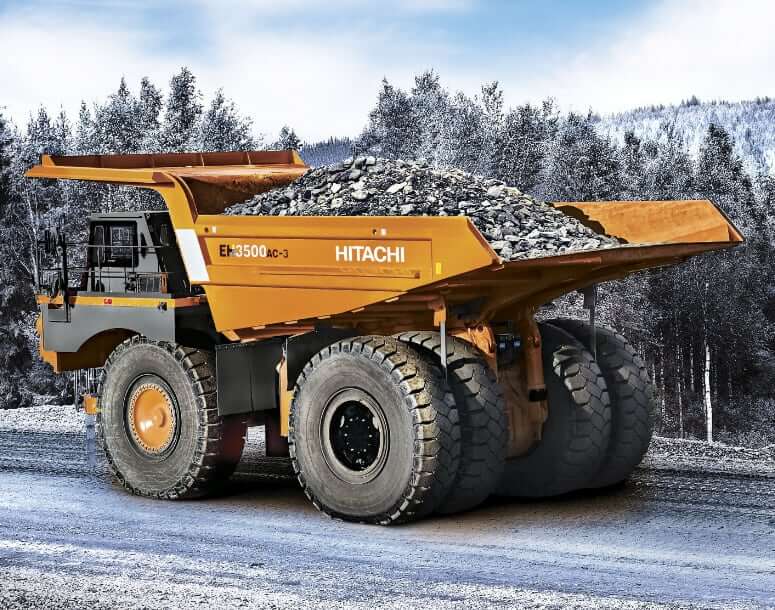

Dimensions
| Overall Length | 533.86 in (13560 mm) |
| Max. Height | 275.6 in (7000 mm) |
| Overall Width (Over Tyres) | 270.08 in (6860 mm) |
| Turning Diameter | 96.12 ft in (29.3 m) |
Weight
| Max Operation Weight (Target GMOW) | 709888 lb (322000 kg) |
| Nominal Payload | 361999 lb (181000 kg) |
| Chassis with Hoist & Body Parts | 260145 lb (118000 kg) |
| Body Excluding Body Parts | 50706 lb (23000 kg) |
| Net Machine Weight | 310852 lb (141000 kg) |
HITACHI AC-Drive System
| AC Control Cabinet | |
|---|---|
| Rectifier – No Of Units | 1 |
| Rectifier – Rated Capacity | 1797 hp (1340 kw) |
| Inverter – No Of Units | 2 |
| Inverter – Rated Capacity Per Unit | 1072.9 hp (800 kw) |
| Chopper – No Of Units | 2 |
| Chopper – Rated Capacity Per Unit | 1743 hp (1282 kw), 1768 hp (1300 kw) |
| Alternator | |
| Alternator – No Of Units | 1 |
| Alternator – Capacity | 2011.6 hp (1500 kw) |
| AC Wheel Motor | |
| AC Wheel Motor – No Of Units | 2 |
| Ac-Wheel Motor – Capacity Per Unit | 831.5 hp (620 kw) |
| Grid Box (Electric Brake) | |
| Grid Box – Number Of Modules | 4 |
| Grid Box – Capacity Per Unit | 838 hp (625 kw) |
| Axle | |
| Planetary Ratio | 35.2 : 1 |
| Axle Maximum Speed (Continuous) | 35 mph (56 km/h) |
Engine Details
| Cylinders | 12 |
| Engine Make | Rolls-Royce MTU |
| Engine Model | MTU 12V4000 C21 |
| Displacement | 2972 cu in (48.7 L) |
| Rated Power | 2025 hp (1510 kw) |
| Power Measured @ | 1900 rpm |
| Max Torque | 6047 lb ft (8199 Nm) |
| Torque Measured @ | 1500 rpm |
| Bore | 6.5 in (165 mm) |
| Stroke | 7.5 in (190 mm) |
| Starting System | 24 V |
| Aspiration | Turbocharged and Aftercooled |
| Emission Standards | U.S. EPA Tier-2 / EPA Nonroad T1 Comp (40CFR89) |

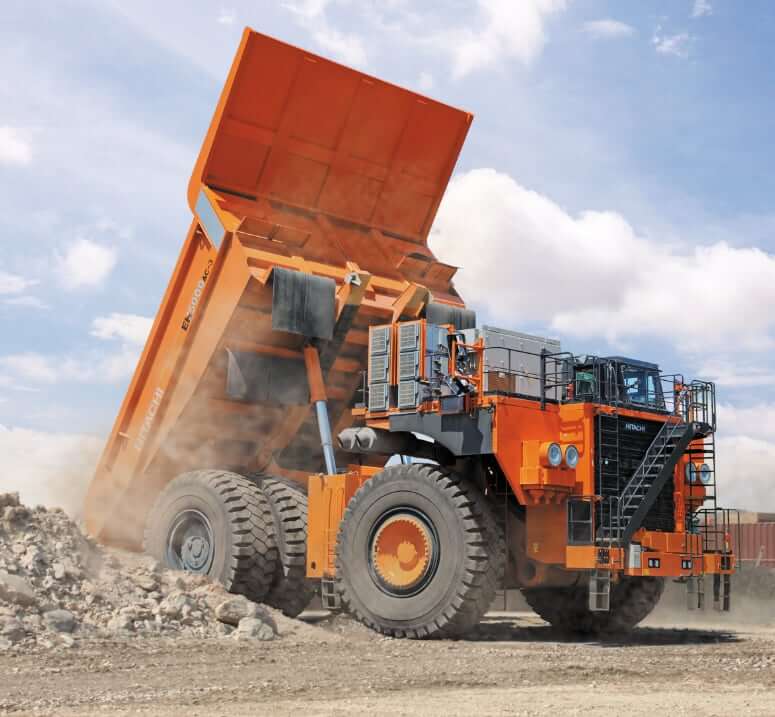

Body
| Body Raise Time | 17.5 sec |
| Body Float Time | 15 sec |
| Body Raise Travel | 59 degrees |
| Capacity (Struck) | 105.2 yd3 (80.4 m3) |
| Capacity (Heaped 3:1) | 137.3 yd3 (105 m3) |
| Capacity (Heaped 2:1) | 153 yd3 (117 m3) |
Tires
| Front Tire Size | 37.00 R57 (40.00R57) |
| Rear Tire Size | 37.00 R57 (40.00R57) |
| Rim Width | 29 in (736.6 mm) |
Brakes
| Parking Brake | Disc |
| Discs Per Axle | 2 |
| Dynamic Braking | 3755 hp (2800 kw) |
| Front Axle – Dry Disc | 4 ft in (1219.2 mm) |
| Rear Axle – Dry Disc | 3.7 ft in (1127.8 mm) |
| Service Brake | Hydraulic |
| Secondary Brake | 2 of front hydraulic, rear hydraulic and electric brake within the service brake system provide modulated reserve braking capability |
Hydraulic System
| Type | Two Hitachi three-stage, double-acting cylinders, with electronic controlled cushioning in retraction and extension, containing dual rod seals and urethane energized scrapers, inverted and outboard mounted |
| Pump Type | A tandem piston pump combines with four position electronic pilot controlled hoist valve. The electrical controller is mounted to the shift tower |
| Steering System | Closed-center, full time hydrostatic power steering system using 2 double-acting cylinders and a variable displacement piston pump |
Service Refill Capacities
| Fuel Tank Capacity | 531.0 gal (2010 L) |
| Fuel Tank Capacity (optional) | 961.6 gal (3640 L) |
| Engine Oil System Capacity | 50.2 gal (190 L) |
| Engine Cooling System Capacity | 143.4 gal (543 L) |
| Hydraulic System Fluid Capacity | 198.1 gal (750 L) |
| Main Accumulator Capacity | 18.5 gal (70 L) |
| Planetary Drives (L&R) Capacity | 57.6 gal (218 L) |
| Front Wheels (L&R) Capacity | 4.5 gal (17 L) |
| Windshield Washer Capacity | 5.3 gal (20 L) |
Electrical System
| Voltage | 24 V |
| Alternator | 260 amps |
| Batteries | 48 V (4 x 12 V Heavy Duty Battery 245H52) |
