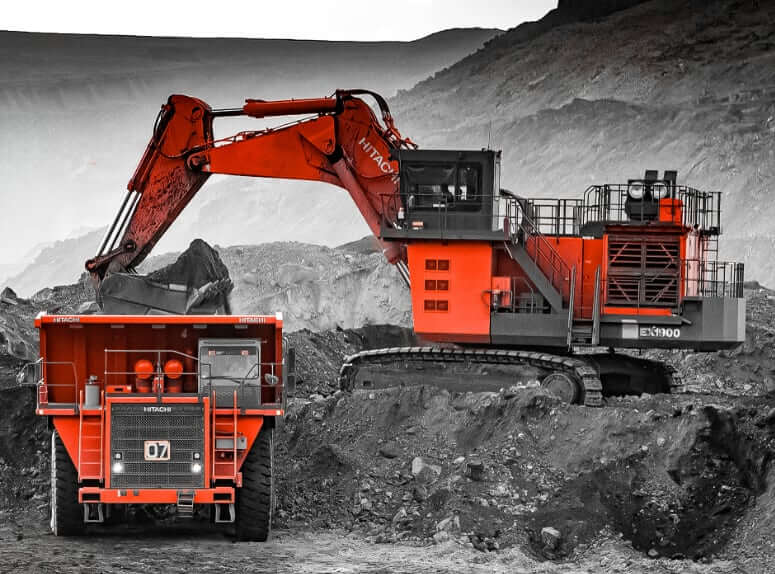

Dimensions
| Eye-level Height | 19 ft 9 in (6030 mm) |
| Overall Height | 22.94 ft in (6990 mm) |
| Overall Width | 21.86 ft in (6660 mm) |
| Groung Clearance | 31 in (795 mm) |
| Counterweight Clearance | 6 ft 3 in (1920 mm) |
| Tail Swing Radius | 19 ft 9 in (6035 mm) |
| Length Of Track On Ground | 18 ft. 11 in (5780 mm) |
| Length Of Undercarriage | 24 ft 6 in (7480 mm) |
| Width over Tracks | 18 ft 5 in (5620 mm) |
Working Range
| Bucket Digging Force | 169506 lb (754 kN) |
| Arm Crowding Force | 161862 lb (720 kN) |
| Max Cutting Height | 47.94 ft in (14610 mm) |
| Reach at Max Dumping Height | 22.61 ft in (6890 mm) |
| Digging Distance | 18.21 ft in (5550 mm) |
| Level Crowding Distance | 15.82 ft in (4820 mm) |
| Max Bucket Opening Width | 6.89 ft in (2100 mm) |
| Max Digging Depth | 19.43 ft in (5920 mm) |
| Max Digging Reach | 44.07 ft in (13430 mm) |
| Max Dumping Height | 34.26 ft in (10440 mm) |
| Min Level Crowding Distance | 25.1 ft in (7650 mm) |
Working Range (Boom/Arm Option 2)
| Bucket Digging Force (ISO) | 150847 lb (671 kN) |
| Arm Crowding Force (ISO) | 139382 lb (620 kN) |
| Bucket Digging Force (SAE) | 138707 lb (617 kN) |
| Arm Crowding Force (SAE) | 136909 lb (609 kN) |
| Max Cutting Height | 46.4 ft in (14140 mm) |
| Min Level Crowding Distance | 14.7 ft in (4480 mm) |
| Max Digging Depth | 26.84 ft in (8180 mm) |
| Min Dumping Height | 13.33 ft in (4060 mm) |
| Max Digging Reach | 50.04 ft in (15250 mm) |
| Minimum Swing Radius | 281.11 in (7140 mm) |
| Max Digging Reach On Ground | 48.46 ft in (14770 mm) |
| Max Vertical Wall Digging Depth | 18.12 ft in (5520 mm) |
| Boom/Arm Length | Boom 27’3″ (8.3 m) / Arm 11’10” (3.6 m) |
| Max.Dumping Height | 29.73 ft in (9060 mm) |
Engine Details
| Number of Cylinders | 12 |
| Engine Make | Cummins |
| Engine Model | Cummins QSKTA38-CE |
| Displacement | 2306.7 cu in (37.8 L) |
| Bore | 6.3 in (159 mm) |
| Stroke | 6.3 in (159 mm) |
| Gross Power | 1086.3 hp (810 kw) |
| Net Power | 1039.3 hp (775 kw) |
| Power Measured @ | 1800 rpm |
| Maximum Torque | 3485 lb ft (4725 Nm) |
| Torque Measured @ | 1300 rpm |
| Aspiration | Turbocharged and aftercooled |
| Emission Standards | U.S. EPA Tier 2 |
Undercarriage
| Track Shoe Width | 31.5 in (800 mm) |
| Carrier Rollers – Each Side | 3 |
| Track Rollers – Each Side | 8 |
| Track Shoes – Each Side | 49 |
| Max Travel Speeds (Low / High) | 1.3 mph (2.1 km/h) / 1.7 mph (2.8 km/h) |
| Maximum Traction Force | 211644 lbf (941.5 kN) |
| Max Gradeability | 58% (30°) |
Service Refill Capacities
| Hydraulic Oil Tank | 277.4 gal (1050 L) |
| Fuel Tank Capacity | 1093.7 gal (4140 L) |
| Hydraulic System | 581.2 gal (2200 L) |
| Engine Oil | 43.9 gal (166 L) |
| Engine Coolant | 104.4 gal (395 L) |
| Pump Drive | 6.9 gal (26 L) |
Operational Specs
| Bucket Capacity | 14.4 yd3 (11.0 m3) |
| Ground Pressure | 26.5 psi (183 kPa) |
| Operating Weight | 421083 lb (191000 kg) |
| Operating Voltage | 24 V |
| Alternator | 140 amps |
| Battery | 4x 12 V, 220 Ah |
| Noise Level in Cab | 72 dB(A) |
