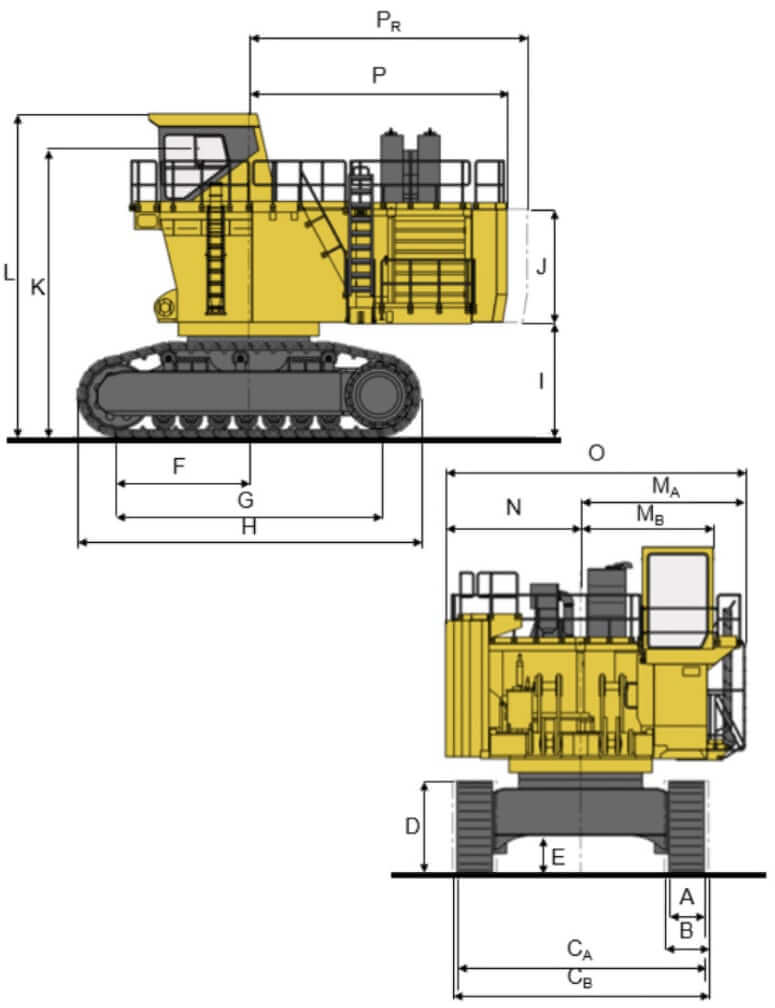

Dimensions
| A. Shoe Width (Standart) | 31″ (800 mm) |
| B. Shoe Width (Optional) | 39″ (1000 mm) |
| CA. Overall Track Width (31″ shoe) | 18.5 ft (5640 mm) |
| CB. Overall Track Width (39″ shoe, optional) | 19.2 ft (5840 mm) |
| D. Undercarriage Height | 7.3 ft (2210 mm) |
| E. Ground Clearance | 3.1 ft (935 mm) |
| F. Swing Center to Front Idler Distance | 9.8 ft (3000 mm) |
| G. Length of Track on Ground | 19.7 ft (6000 mm) |
| H. Length of Track | 26.0 ft (7914 mm) |
| I. Upper Structure Clearance | 8.8 ft (2670 mm) |
| J. Upper Structure Height | 8.6 ft (2610 mm) |
| K. Operator Eye Level | 22.3 ft (6802 mm) |
| L. Height to Top of Cab with FOPS | 24.5 ft (7479 mm) |
| MA. Swing Center to Stairs | 12.3 ft (3740 mm) |
| MB. Swing Center to LH Sidewalks | 9.9 ft (3010 mm) |
| N. Swing Center to RH Sidewalks | 10.0 ft (3060 mm) |
| O. Overall Width | 22.3 ft (6800 mm) |
| P. Swing Center to Upper Structure Rear End | 19.6 ft (5959 mm) |
| PR. Swing Center to Rear End | 21.0 ft (6402 mm) |
PC3000-11 Backhoe Weight
| Shoe Width | Operating Weight | Ground Pressure |
|---|---|---|
| 31″ (800 mm) | 570997 lb (259 t) | 34.5 psi (23.8 N/cm2) |
| 39″ (1000 mm) | 582020 lb (264 t) | 28.2 psi (19.4 N/cm2) |
| 47″ (1200 mm) | 582020 lb (264 t) | 23.5 psi (16.2 N/cm2) |
PC3000-11 Shovel Weight
| Shoe Width | Operating Weight | Ground Pressure |
|---|---|---|
| 31″ (800 mm) | 566588 lb (257 t) | 34.3 psi (23.6 N/cm2) |
| 39″ (1000 mm) | 577611 lb (262 t) | 28.0 psi (19.3 N/cm2) |
| 47″ (1200 mm) | 577611 lb (262 t) | 26.5 psi (16.1 N/cm2) |

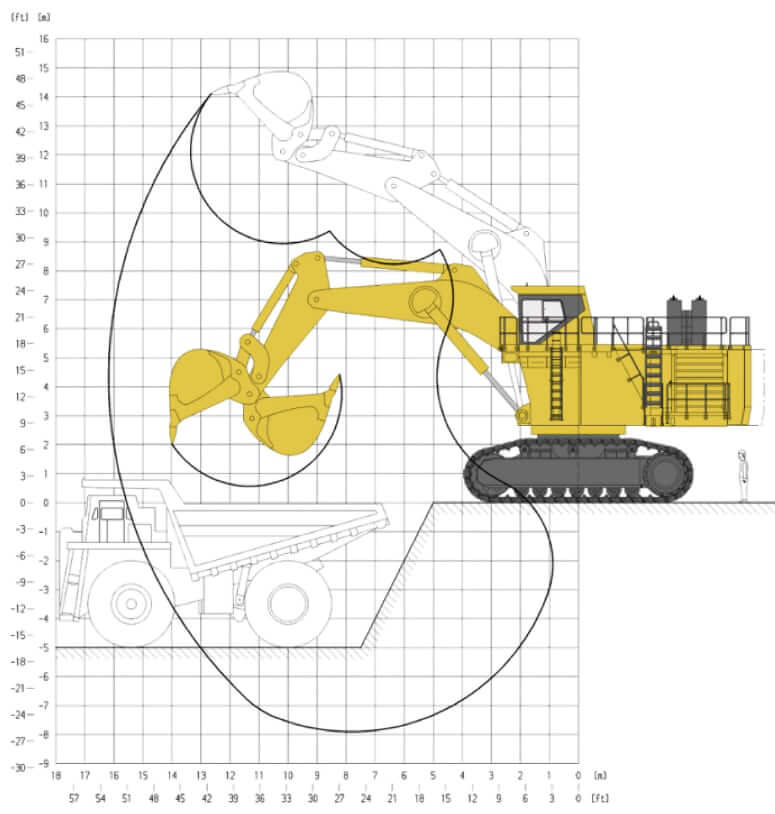

Backhoe Working Range
| Boom Length | 28.2 ft (8600 mm) |
| Stick Length | 13.1 ft (4000 mm) |
| Break-out Force (ISO) | 100080 lbf (890 kN) |
| Tear-out Force (ISO) | 182320 lbf (811 kN) |
| Max. Digging Height | 46.3 ft (14100 mm) |
| Max. Dumping Height | 29.5 ft (9000 mm) |
| Max. Digging Depth | 25.9 ft (7900 mm) |
| Max. Digging Reach | 53.1 ft (16200 mm) |
| Max. Digging Reach at Ground Level | 51.2 ft (15600 mm) |

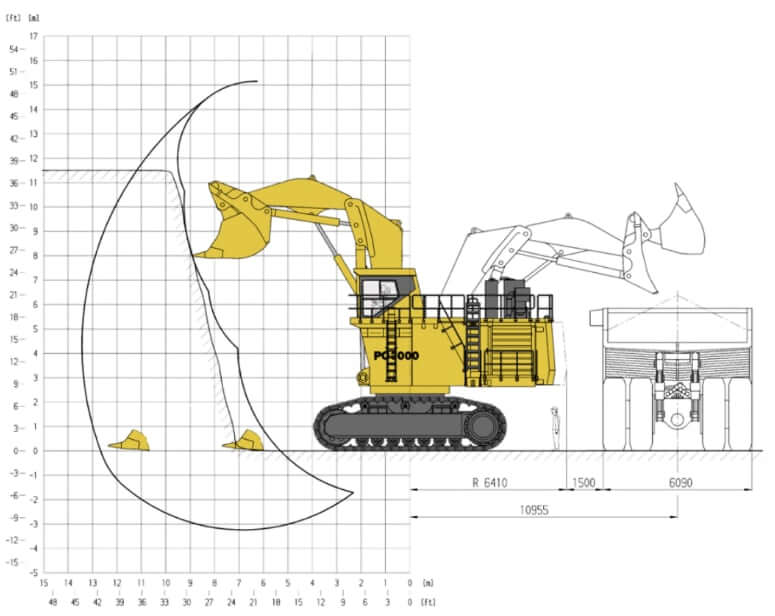

Shovel Working Range
| Boom Length | 19.7 ft (6000 mm) |
| Stick Length | 14.1 ft (4300 mm) |
| Break-out Force (ISO) | 239646 lbf (1066 kN) |
| Crowd Force (ISO) | 255383 lbf (1136 kN) |
| Max. Cutting Height | 49.5 ft (15100 mm) |
| Max. Dumping Height | 33.5 ft (10200 mm) |
| Max. Digging Depth | 10.8 ft (3300 mm) |
| Max. Digging Reach | 43.6 ft (13300 mm) |
| Level Crowd at Ground Level | 15.4 ft (4700 mm) |
| Bucket Opening Width | 7.6 ft (2330 mm) |
Buckets
| Bucket Type | Backhoe, 19.6 yd3 (15 m3) | Shovel, 20.9 yd3 (16 m3) |
|---|---|---|
| Width | 10.7 ft (3260 mm) | 12.4 ft (3790 mm) |
| Teeth | 5 | 5 |
| Wear Package | Heavy duty | Heavy duty |
| GET System | Hensley XS 252 | Hensley XS 252 |
| Max. Material Density | 3034 lb/yd3 (1800 kg/m3) | 3034 lb/yd3 (1800 kg/m3) |
Undercarriage
| Track Frame | Steel box-section |
| Track Adjustment | Automatic hydraulic type |
| Number Of Track Shoes Per Side | 46 |
| Number Of Top Rollers Per Side | 3 |
| Number Of Bottom Rollers Per Side | 7 |
Swing System
| Swing Hydraulic Motors | 1 |
| Max Swing Speed | 4.6 rpm |
| Swing Service Brake | Hydraulic service brake |
| Swing Parking Brake | Wet, multiple-disc brake |
Engine Details
| Number Of Cylinders | 12 |
| Engine Make | Komatsu |
| Engine Model | Komatsu SDA12V159E-3 |
| Engine Power | 1260 hp (940 kw) |
| Power Measured @ | 1800 rpm |
| Engine Type | 4-cycle, water-cooled, direct injection |
| Governor | All-speed, electronic |
| Aspiration | Turbocharged and aftercooled |
| Emission Standards | US EPA Tier 4 |
Electric Drive (Optional)
| Electric Drive Type | Asynchronous motor |
| Power Output | 1223 hp (900 kw) |
| Frequency (Standard) | 60 Hz @ 1800 rpm |
| Frequency (Optional) | 50 Hz @ 1500 rpm |
| Voltage | 6000 – 7200 V |
| Amperage (Approximate) | 96 A – 80 A |
Electrical System
| Operating Voltage | 24 V |
| Alternator | 140 amps |
| Battery | 4×12 V |
| Working Lights | 12 LED working lights |
| Service Lights | Throughout the platform including emergency egresses and stairways |
Travel and Brakes
| Travel Speed | 1.5 mph (2.4 km/h) |
| Service Brake | Hydraulic brake |
| Parking Brake | Wet, multiple-disk brake |
| Gradeability | Up to 57 % |
Hydraulic System
| Type | Open circuit hydraulics |
| Main Pumps | 3x Bosch Rexroth pumps |
| Total Pump Flow | 750 gal/min (2730 L/min) |
| Relief Valve Setting | 4495 psi (31000 kPa) |
| Swing Pump Flow | 211 gal/min (800 L/min) |
| Relief Valve Setting (Swing circuit) | 4495 psi (31000 kPa) |
| High Pressure in Line Filter | 200 microns |
| Full Flow Return Line Filters | 3x 10 microns |
| Leakage Line Filter | 3 microns |
Operator Environment
| HVAC | Air-condition unit |
| Noise Level in Operator’s Cab (ISO 6396) | 78 dB(A) |
| Whole Body Vibration and Shock (ISO 2631-1) | < 0,5 m/s2 |
| Hand-lever Vibration (ISO 5349-1) | < 2,5 m/s2 |
| Joystick Controls | Joysticks and controls are hydraulic |
| FOPS | ISO 3449 Falling Objects Protection Structure |
| Cab Damping | Enclosed steel cab mounted on viscous pads |
| Operator’s Seat | Full suspension operator seat with lap seat belt, multiple adjustments |
| Greenhouse Gas | HFC-134a (GWP 1430) |
| PC3000-11 D Quantity of Gas | 3.7 kg |
| PC3000-11 D CO2 Equivalent | 5300 kg |
| PC3000-11 E Quantity of Gas | 4.9 kg |
| PC3000-11 E CO2 Equivalent | 7000 kg |
Service Refill Capacities
| Fuel Tank Capacity | 1190 gal (4500 L) |
| DEF Tank Capacity | 136 gal (514 L) |
| Engine Oil Capacity | 50 gal (190 L) |
| Cooling System Capacity | 67 gal (254 L) |
| Hydraulic System Capacity | 1160 gal (4400 L) |
| Hydraulic Tank Capacity | 705 gal (2670 L) |
| Lubrication System (total) | 105 gal (400 L) |
