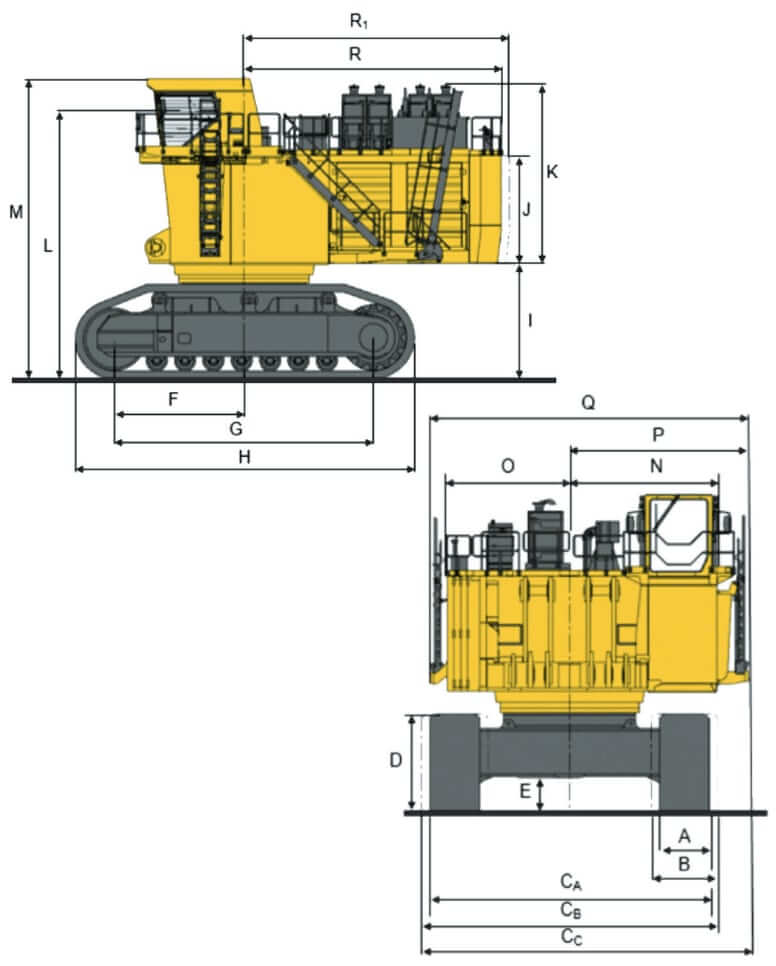

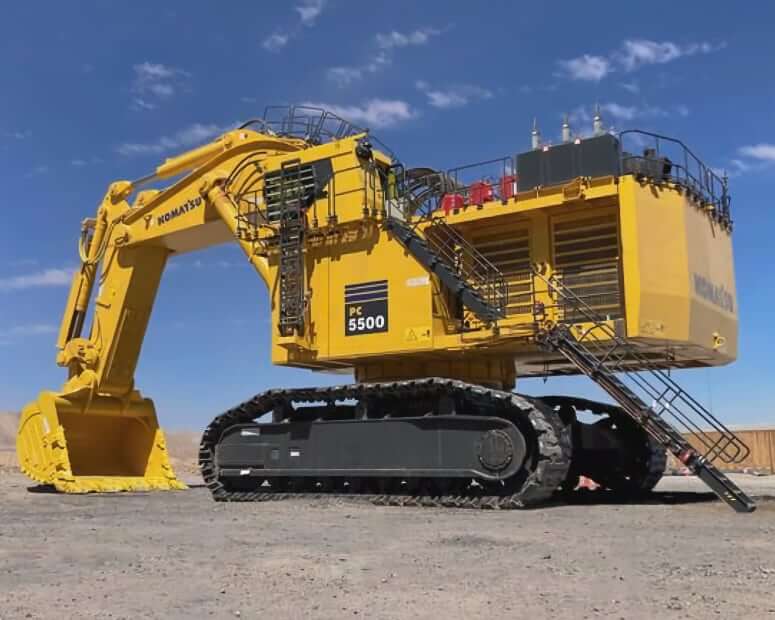

Dimensions
| A. Shoe Width (Standart) | 53″ (1350 mm) |
| B. Shoe Width (Optional) | 71″ (1800 mm) |
| CA. Overall Track Width (47″ shoe) | 24.7 ft (7540 mm) |
| CB. Overall Track Width (59″ shoe, optional) | 26.2 ft (7990 mm) |
| CC. Overall Width (59″ shoe, optional) | 29.0 ft (8842 mm) |
| D. Undercarriage Height | 8.9 ft (2715 mm) |
| E. Ground Clearance | 3.3 ft (995 mm) |
| F. Swing Center to Front Idler Distance | 12.2 ft (3712 mm) |
| G. Length of Track on Ground | 24.4 ft (7424 mm) |
| H. Length of Track | 31.9 ft (9720 mm) |
| I. Upper Structure Clearance | 10.9 ft (3325 mm) |
| J. Upper Structure Height | 10.2 ft (3100 mm) |
| K. Overall Upper Structure Height | 16.9 ft (5160 mm) |
| L. Operator Eye Level | 25.9 ft (7884 mm) |
| M. Height to Top of Cab with FOPS | 28.3 ft (8620 mm) |
| N. Swing Center to LH Sidewalks | 13.0 ft (3970 mm) |
| O. Swing Center to RH Sidewalks | 10.9 ft (3330 mm) |
| P. Swing Center to Stairs | 15.9 ft (4847 mm) |
| Q. Upper Structure Width | 28.3 ft (8630 mm) |
| R. Swing Center to Upper Structure Rear End | 24.2 ft (7370 mm) |
| R1. Swing Center to Rear End | 24.9 ft (7600 mm) |
PC5500-11 Backhoe Weight
| Shoe Width | Operating Weight | Ground Pressure |
|---|---|---|
| 53″ (1350 mm) | 1194905 lb (542 t) | 34.7 psi (23.9 N/cm2) |
| 71″ (1800 mm) | 1122577 lb (556 t) | 26.7 psi (18.4 N/cm2) |
PC5500-11 Shovel Weight
| Shoe Width | Operating Weight | Ground Pressure |
|---|---|---|
| 53″ (1350 mm) | 1183882 lb (537 t) | 34.4 psi (23.7 N/cm2) |
| 71″ (1800 mm) | 1214747 lb (551 t) | 26.5 psi (18.3 N/cm2) |

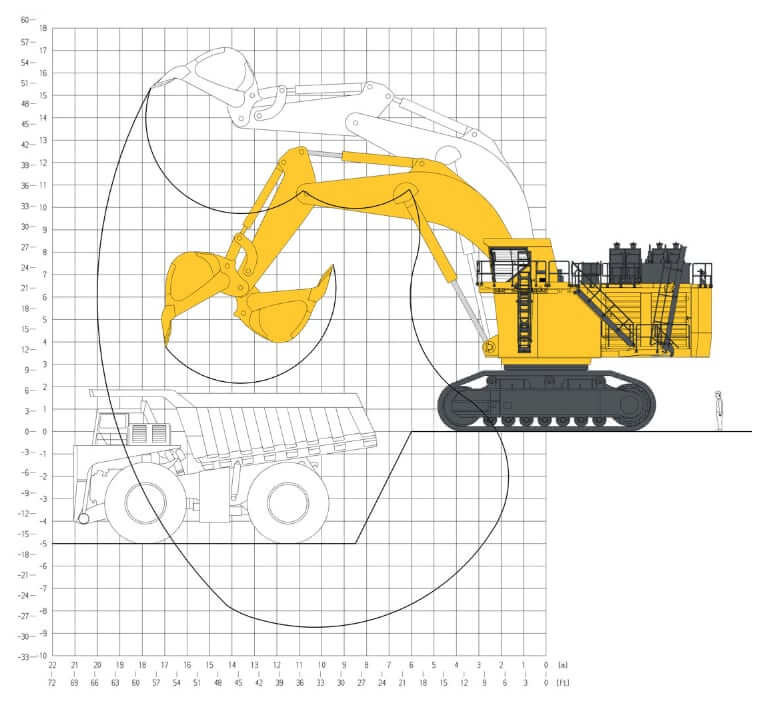

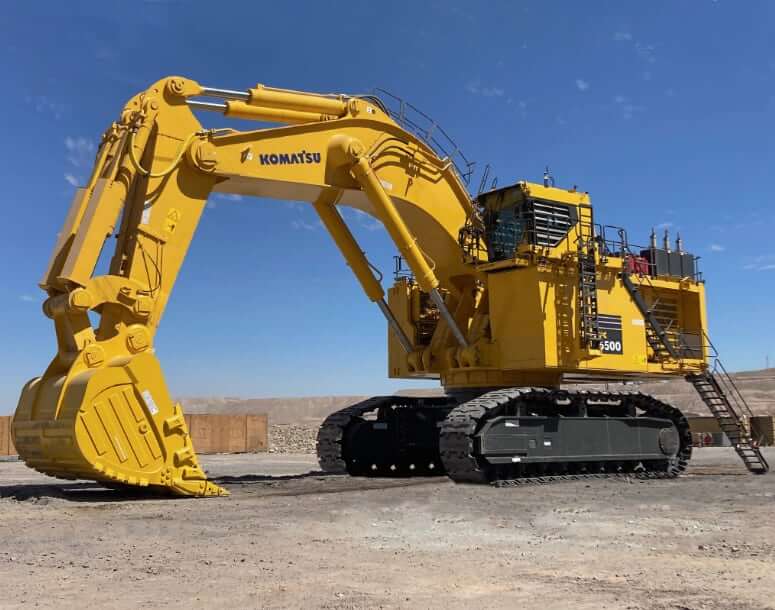

Backhoe Working Range
| Boom Length | 36.1 ft (11000 mm) |
| Stick Length | 16.7 ft (5100 mm) |
| Break-Out Force (ISO) | 340810 lbf (1516 kN) |
| Tear-out force (ISO) | 298097 lbf (1326 kN) |
| Max. Digging Height | 50.3 ft (15330 mm) |
| Max. Dumping Height | 31.9 ft (9730 mm) |
| Max. Digging Depth | 28.6 ft (8720 mm) |
| Max. Digging Reach | 65.6 ft (20000 mm) |
| Max. Digging Reach at Ground Level | 62.5 ft (19050 mm) |

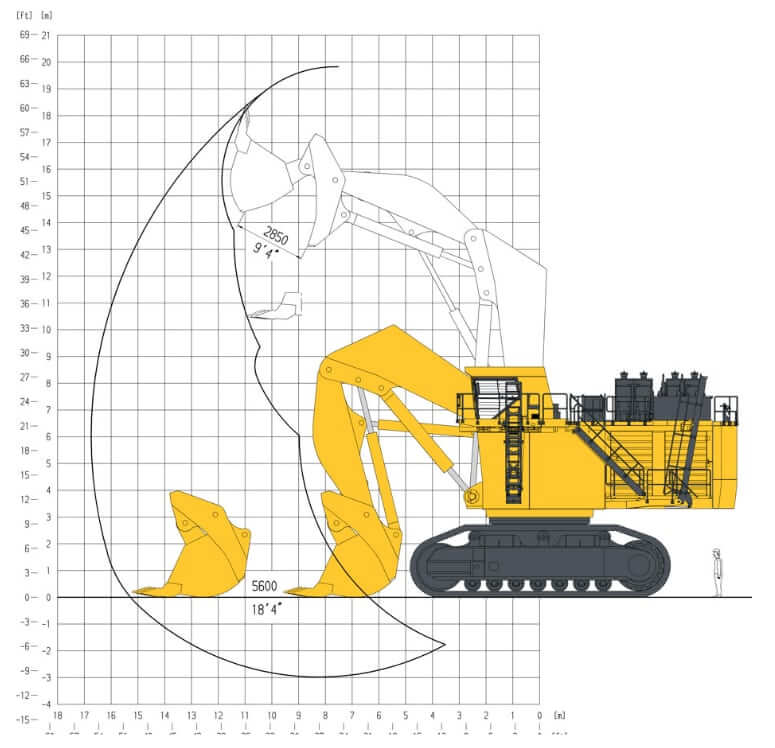

Shovel Working Range
| Boom Length | 24.9 ft (7600 mm) |
| Stick Length | 18.4 ft (5600 mm) |
| Break-out Force (ISO) | 420393 lbf (1870 kN) |
| Crowd Force (ISO) | 415897 lbf (1850 kN) |
| Max. Cutting Height | 65.0 ft (19820 mm) |
| Max. Dumping Height | 43.0 ft (13100 mm) |
| Max. Digging Depth | 9.8 ft (2980 mm) |
| Max. Digging Reach | 55.0 ft (16750 mm) |
| Level Crowd At Ground Level | 18.6 ft (5680 mm) |
| Bucket Opening Width | 9.2 ft (2790 mm) |
Buckets
| Capacity | Backhoe | Shovel |
|---|---|---|
| Capacity | 34 yd3 (26 m3) | 38 yd3 (29 m3) |
| Width | 15.3 ft (4661 mm) | 15.8 ft (4816 mm) |
| Teeth | 5 | 5 |
| Wear Package | Heavy duty | Heavy duty |
| GET System | Hensley XS 644 | Hensley XS 644 |
| Max. Material Density | 3034 lb/yd3 (1800 kg/m3) | 3034 lb/yd3 (1800 kg/m3) |
Undercarriage
| Number of Track Shoes per Side | 46 |
| Number of Top Rollers per Side | 3 |
| Number of Bottom Rollers per Side | 7 |
| Track Adjustment | Automatic hydraulic type |
| Track Frame | Steel box-section |
Engine Details
| Number of Cylinders | 12 |
| Engine Make | Komatsu |
| Engine Model | 2x Komatsu SDA12V159E-3 |
| Power (SAE 1995/J1349) | 2x 1260 hp (2x 940 kw) |
| Power Measured @ | 1800 rpm |
| Engine Type | 4-cycle, water-cooled, direct injection |
| Governor | All-speed, electronic |
| Aspiration | Turbocharged and aftercooled |
| Emission Standards | US EPA Tier 4 |
Electric Drive (Optional)
| Electric Drive Type | 2x asynchronous motors |
| Power Output | 2x 1223 hp (2x 940 kw) |
| Voltage | 6000 – 7200 V |
| Amperage (Approximate) | 2x 155 A – 2x 80 A |
| Frequency Standard | 60 Hz @ 1800 rpm |
| Frequency Option | 50 Hz @ 1500 rpm |
Electrical System
| Operating Voltage | 24 V |
| Alternator | 2x 140 A |
| Battery | 8 x 12 V (Series/Parallel) |
| Working Lights | 14 LED lights |
| Service Lights | Standard service lights – throughout the platform including emergency egresses and stairways |
Swing System
| Swing Speed (Maximum) | 3.1 rpm |
| Hydraulic Motors | 2 |
| Swing Ring Teeth | External |
| Swing Brake, Service | Hydraulic brake |
| Swing Brake, Parking | Wet, multiple-disc |
Hydraulic System
| Type | Open circuit hydraulics |
| Main Hydraulic Pump Flow | 1110 gal/min (4200 L/min) |
| Relief Valve Setting | 4495 psi (31000 kPa) |
| Swing Flow Rate | 185 gal/min (700 L/min) |
| High Pressure In Line Filters | 200 microns |
Travel and Brakes
| Maximum Travel Speed | 1.4 mph (2.1 km/h) |
| Travel Control | 2 foot pedals |
| Service Brake | Hydraulic brake |
| Parking Brake | Wet, multiple-disk brake |
| Gradeability | Up to 50 % |
Operator Environment
| Whole Body Vibration and Shock (ISO 2631-1) | < 0,5 m/s2 |
| Hand-lever Vibration (SO 5349-1) | < 2,5 m/s2 |
| Noise Level in Operator’s Cab (ISO 6396) | 73 dB(A) |
| HVAC | Heating and air condition unit |
| FOPS | ISO 3449 Falling Objects Protection Structure |
| Joystick Controls | Low-effort joystick controls are electro-hydraulic |
| Vehicle Monitoring System | Komatsu KOMTRAX Plus monitoring system |
| Cab Damping | 18 viscous damping pads |
| Operator’s Seat | Full suspension operator seat with belt |
| Walkway | Walkway around the cab |
Service Refill Capacities
| Fuel Tank Capacity (including reserve) | 2807 gal (10626 L) |
| Reserve Fuel Tank Capacity | 71.6 gal (271 L) |
| DEF Tank Capacity | 2 x 136 gal (2 x 514 L) |
| Engine Oil Capacity | 2x 50 gal (2x 190 L) |
| Engine Coolant Capacity | 2x 95 gal (2x 360 L) |
| Hydraulic System Capacity | 1585 gal (6000 L) |
| Hydraulic Tank Capacity | 982 gal (3715 L) |
| Reserve Oil Make Up Tank | 158 + 80 gal (600 + 300 L) |
