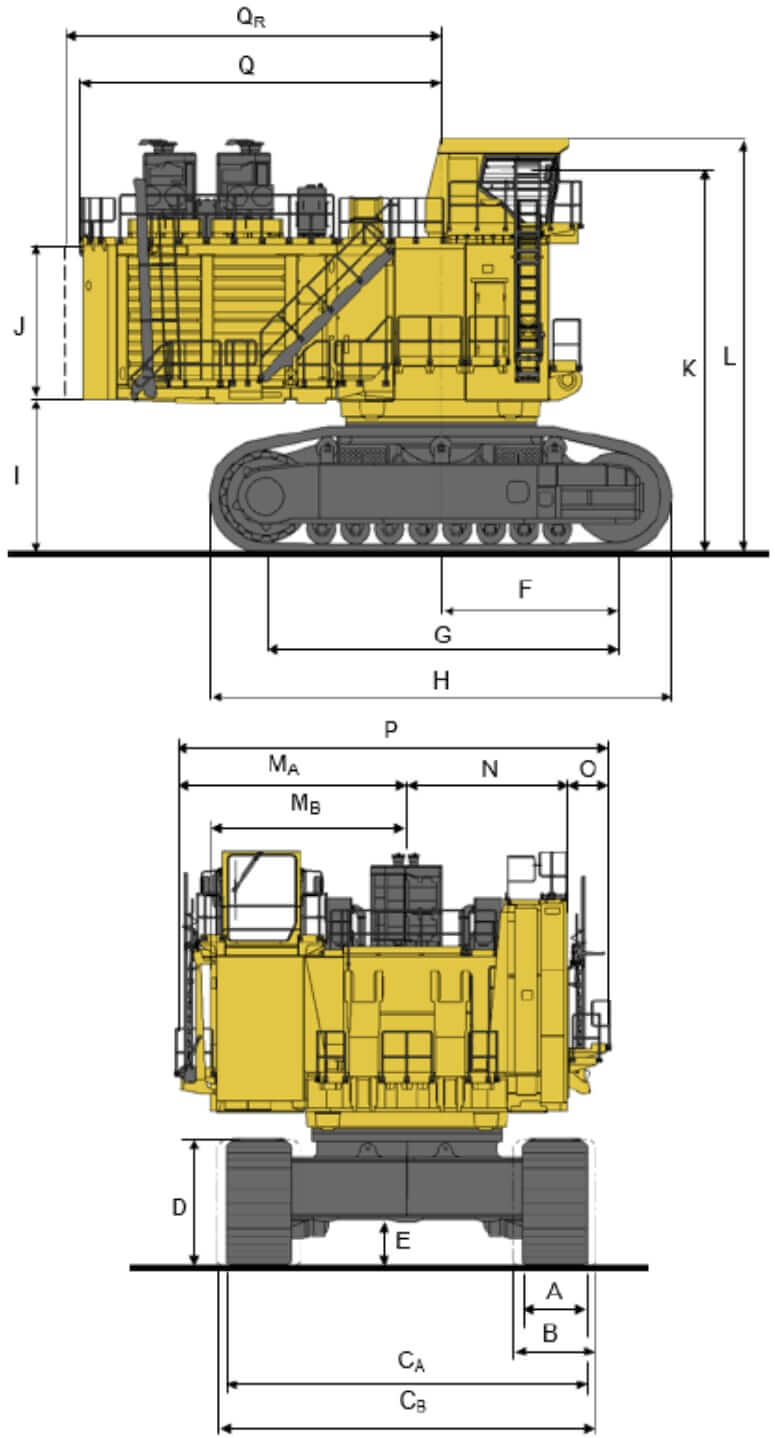

Dimensions
| A. Shoe Width (Standart) | 4’11” (1500 mm) |
| B. Shoe Width (Optional) | 6’3″ (1900 mm) |
| CA. Overall Track Width (59″ shoe) | 27’4″ (8330 mm) |
| CB. Overall Track Width (75″ shoe, optional) | 28’8″ (8730 mm) |
| D. Undercarriage Height | 9’10” (2995 mm) |
| E. Ground Clearance | 3’6″ (1065 mm) |
| F. Swing Center to Front Idler Distance | 13’3″ (4050 mm) |
| G. Length of Track on Ground | 26’7″ (8100 mm) |
| H. Length of Track | 35’1″ (10685 mm) |
| I. Upper Structure Clearance | 11’10” (3612 mm) |
| J. Upper Structure Height | 11’8″ (3550 mm) |
| K. Operator Eye Level | 29’5″ (8956 mm) |
| L. Height to Top of Cab with FOPS | 32’1″ (9775 mm) |
| MA. Swing Center to Stairs | 17’7″ (5370 mm) |
| MB. Swing Center to LH Sidewalks | 14’4″ (4375 mm) |
| N. Swing Center to RH Sidewalks | 12’2″ (3720 mm) |
| O. Width of Sidewalks | 3’4″ (1010 mm) |
| P. Overall Width | 33’2″ (10100 mm) |
| Q. Swing Center to Upper Structure Rear End | 27’6″ (8390 mm) |
| QR. Swing Center to Rear End | 28’3″ (8620 mm) |

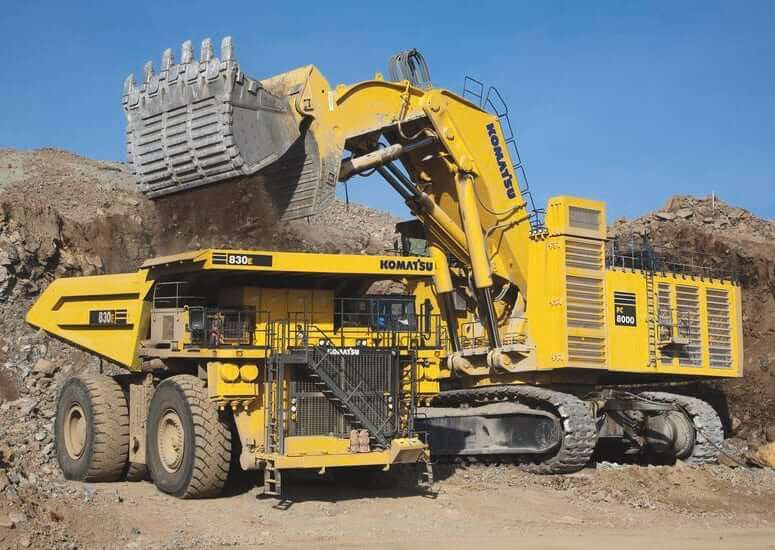

PC8000-11 Backhoe Weight
| Shoe Width | Operating Weight | Ground Pressure |
|---|---|---|
| 59″ (1500 mm) | 1712991 lb (777 t) | 40.9 psi (28.2 N/cm2) |
| 75″ (1900 mm) | 1741651 lb (790 t) | 32.8 psi (22.6 N/cm2) |
PC8000-11 Shovel Weight
| Shoe Width | Operating Weight | Ground Pressure |
|---|---|---|
| 59″ (1500 mm) | 1695354 lb (769 t) | 40.46 psi (27.9 N/cm2) |
| 75″ (1900 mm) | 1724014 lb (782 t) | 32.5 psi (22.4 N/cm2) |

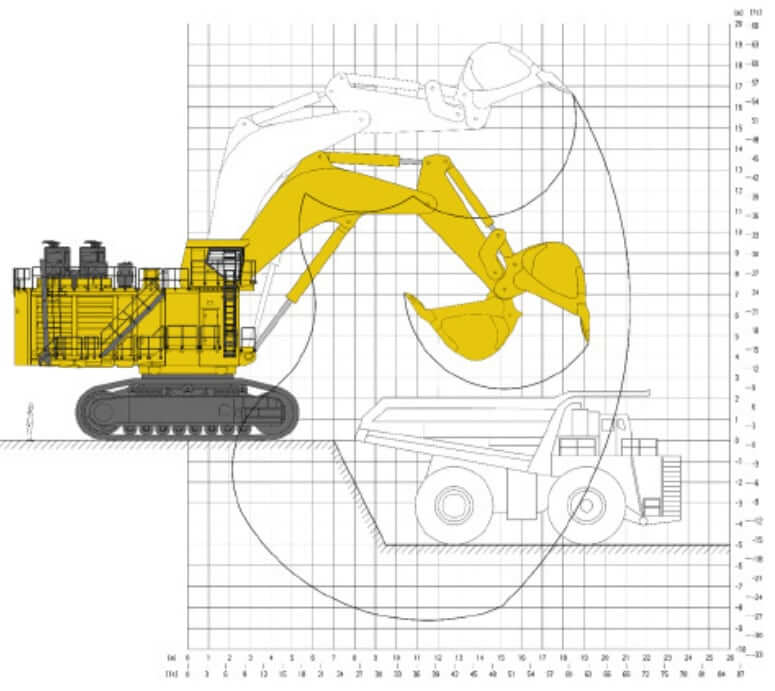

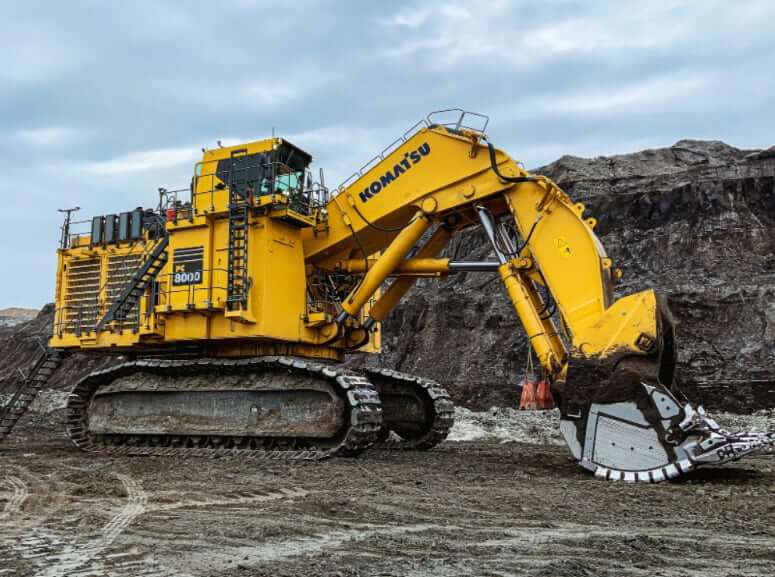

Backhoe Working Range
| Boom Length | 37.7 ft (11500 mm) |
| Stick Length | 18.0 ft (5500 mm) |
| Break-out Force (SAE) | 466928 lbf (2077 kN) |
| Tear-out Force (SAE) | 407579 lbf (1813 kN) |
| Max. Digging Height | 54.4 ft (16580 mm) |
| Max. Dumping Height | 34.9 ft (10650 mm) |
| Max. Digging Depth | 28.3 ft (8640 mm) |
| Max. Digging Reach | 69.5 ft (21190 mm) |
| Max. Digging Reach at Ground Level | 17.6 ft (5375 mm) |

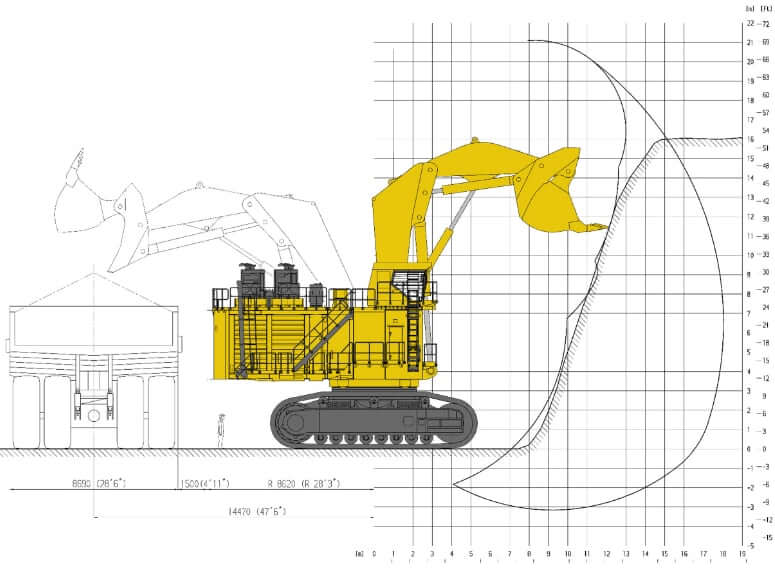

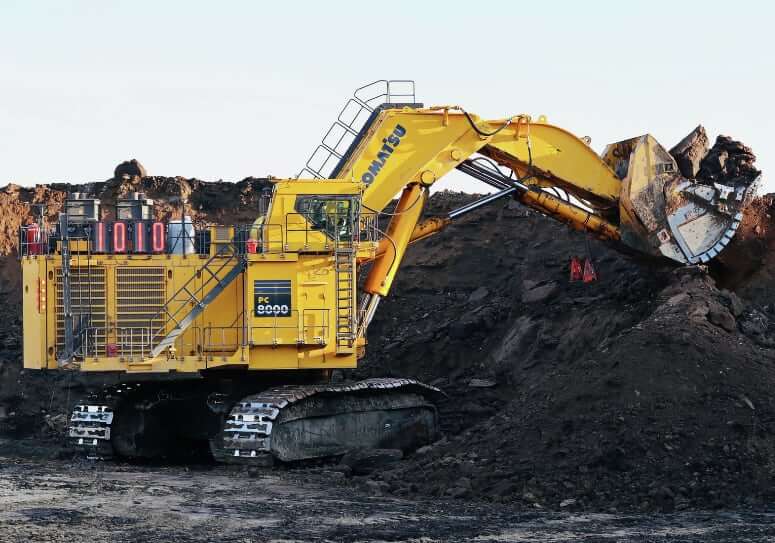

Shovel Working Range
| Boom Length | 26.7 ft (8150 mm) |
| Stick Length | 18.9 ft (5750 mm) |
| Break-out Force (SAE) | 524030 lbf (2331 kN) |
| Crowd Force (SAE) | 528975 lbf (2353 kN) |
| Max. Cutting Height | 69.2 ft (21090 mm) |
| Max. Dumping Height | 44.9 ft (13690 mm) |
| Max. Digging Depth | 10.4 ft (3160 mm) |
| Max. Digging Reach | 59.2 ft (18030 mm) |
| Level Crowd at Ground Level | 14.9 ft (4556 mm) |
| Bucket Opening Width | 10.5 ft (3200 mm) |
Buckets
| Bucket Type | Backhoe, 55 yd3 (42 m3) | Shovel, 55 yd3 (42 m3) |
|---|---|---|
| Width | 15’0″ (4575 mm) | 17’6″ (5375 mm) |
| Teeth | 6 | 6 |
| Wear Package | Standard, light | Standard, light |
| GET System | Hensley XS 804 | Hensley XS 804 |
| Max. Material Density | 3050 lb/yd3 (1800 kg/m3) | 3050 lb/yd3 (1800 kg/m3) |
Undercarriage
| Track Adjustment | Automatic hydraulic type |
| Centre Frame | H-type |
| Track Frame | Steel box-section |
| Number Of Track Shoes Per Side | 49 |
| Number Of Top Rollers Per Side | 3 |
| Number Of Bottom Rollers Per Side | 8 |
Travel and Brakes
| Travel Speed | 1.5 mph (2.5 km/h) |
| Travel Control | 2 foot pedals |
| Service Brake | Hydraulic brake |
| Parking Brake | Wet, multiple-disk brake |
| Gradeability | Up to 50 % |
Swing System
| Swing Hydraulic Motors | 3 |
| Max Swing Speed | 2.7 rpm |
| Swing Ring Teeth | External |
| Swing Service Brake | Hydraulic service brake |
| Swing Parking Brake | Wet, multiple-disc brake |
Engine Details
| Number Of Cylinders | 16 |
| Engine Make | Komatsu |
| Engine Model | 2x Komatsu SDA16V160E-3 |
| Displacement | 2x 3661 cu in (2x 60 L) |
| Engine Power | 2x 2010 hp (2x 1500 kw) |
| Power Measured @ | 1800 rpm |
| Engine Type | 4-cycle, water-cooled, direct injection |
| Governor | All-speed, electronic |
| Aspiration | Turbocharged and aftercooled |
| Emission Standards | US EPA Tier 4 |
Electric Drive (Optional)
| Electric Drive Type | 2 x Asynchronous motor |
| Power Output | 2x 1970 hp (2x 1448.93 kw) |
| Frequency (Standard) | 60 Hz @ 1800 rpm |
| Frequency (Optional) | 50 Hz @ 1500 rpm |
| Voltage | 6000 – 7200 V |
| Amperage (Approximate) | 2x 155 A – 2x 128 A |
Operating Specs
| Operating Weight (backhoe) | 1712991 lb (777000 kg) |
| Operating Weight (shovel) | 1695354 lb (769000 kg) |
| Standart Bucket Capacity | 55 yd3 (42 m3) |
| Max Travel Speed | 1.5 mph (2.5 km/h) |
| Operating Voltage | 24 V |
| Alternator | 2x 140 amps |
| Batteries (PC8000-11 Diesel Version) | 8 x 12 V (series / parallel) |
| Batteries (Electric Drive Version) | 4 x 12 V (series / parallel) |
| Working Lights | 14 LED working lights |
| Service Lights | Throughout the platform including emergency egresses and stairways |
Hydraulic System
| Main Pumps | 8x identical swash plate pumps |
| Total Pump Flow | 8x 273 gal/min (8x 1035 L/min) |
| Relief Valve Setting | 4495 psi (31000 kPa) |
| Swing Pump Flow | 547 gal/min (2070.7 L/min) |
| Relief Valve Setting (Swing circuit) | 4495 psi (31000 kPa) |
| High Pressure in Line Filter | 200 microns |
| Full Flow Return Line Filters | 10 microns |
| Case Drain/by-pass Return Line Filters | 3 microns |
Operator Environment
| HVAC (ISO 10263-4) | Heating and air conditioning second heater or air conditioner as option |
| Noise Level in Operator’s Cab (ISO 6396) | 78 dB(A) |
| Hand-lever Vibration (ISO 5349-1) | < 2,5 m/s2 |
| Whole Body Vibration and Shock (ISO 2631-1) | < 0,5 m/s2 |
| Joystick Controls | Low-effort joystick controls are electro-hydraulic with foot controls |
| FOPS | ISO 3449 Falling Objects Protection Structure |
| Cab Damping | 18 viscous damping pads |
| Operator’s Seat | Air suspended, electrically heated and has a lap seat belt and offers multiple adjustments |
| Emergency Exit | The right hand window is an emergency exit |
| PC8000-11 D Quantity of Gas | 3.5-8.3 kg |
| PC8000-11 D CO2 Equivalent | 5005-11869 kg |
| PC8000-11 E Quantity of Gas | 7.2-12 kg |
| PC8000-11 E CO2 Equivalent | 10240-17160 kg |
Service Refill Capacities
| Fuel Tank Capacity | 3679 gal (13925 L) |
| DEF Tank Capacity | 2x 156.5 gal (2 x 592.4 L) |
| Engine Oil Capacity | 2x 77 gal (2x 290 L) |
| Cooling System Capacity | 2x 119 gal (2x 430 L) |
| Hydraulic System Capacity | 3038 gal (11500 L) |
| Hydraulic Tank Capacity | 2047 gal (7750 L) |
| Lubrication System (total) | 238 gal (900 L) |
