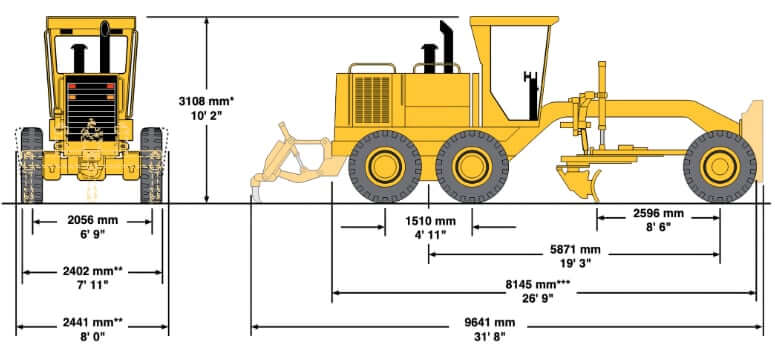

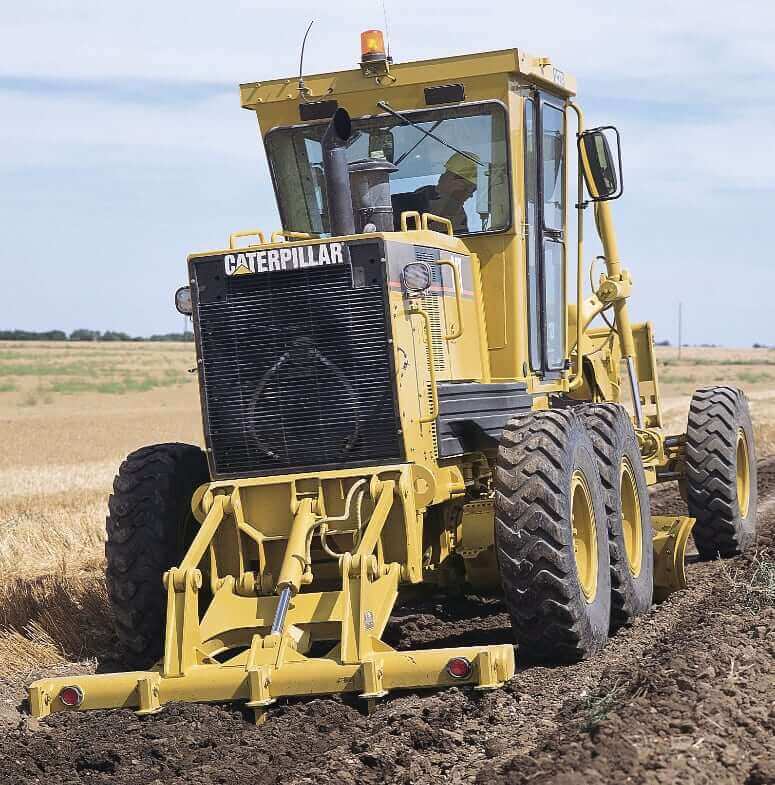

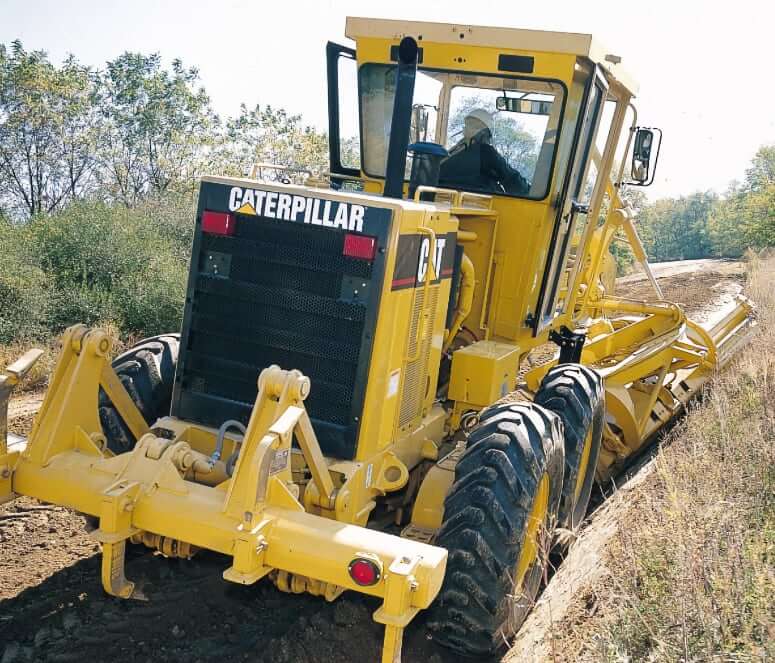

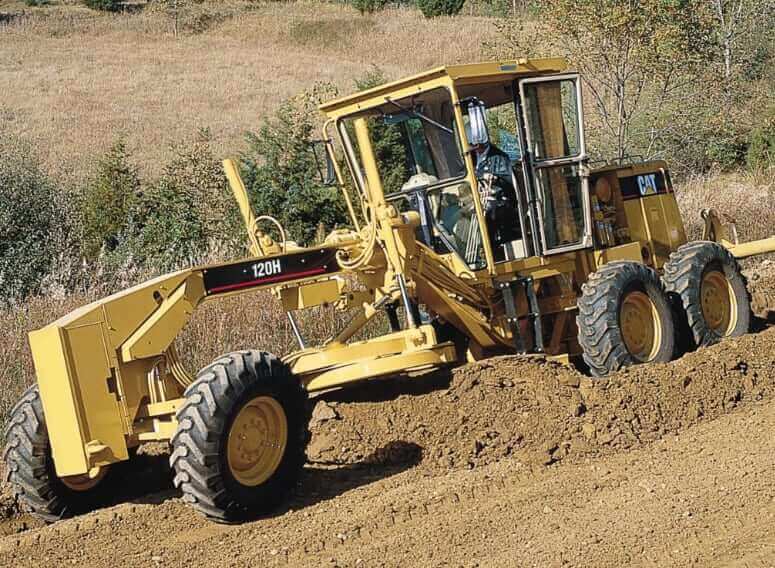

Dimensions
| Overall Length | 31′ 8″ (9641 mm) |
| Base Grader Length | 26′ 9″ (8140 mm) |
| Overall Width | 8′ 0″ (2441 mm) |
| Wheelbase | 19′ 3″ (5871 mm) |
| Tandem Axle Wheelbase | 4′ 11″ (1510 mm) |
| Front Ground Clearance | 2′ (608 mm) |
| Height to Top of Cab | 10′ 2″ (3108 mm) |
Weight
| Engine | Cat 3116 DITA | Cat 3126B DITA |
|---|---|---|
| Operation Weight (GVW) | 25040 lb (11358 kg) | 27880 lb (12650 kg) |
| Operation Weight – Front Axle | 6976 lb (3164 kg) | 7959 lb (3611 kg) |
| Operation Weight – Rear Axle | 18064 lb (8194 kg) | 19921 lb (9039 kg) |
| Max Operation Weight (Max GVW) | 27483 lb (12466 kg) | 37306 lb (16922 kg) |
| Max Operation Weight – Front Axle | 7618 lb (3455 kg) | 11190 lb (5076 kg) |
| Max Operation Weight – Rear Axle | 19865 lb (9011 kg) | 23116 lb (11846 kg) |
Circle
| Diameter | 60.3 in (1530 mm) |
| Rotation | 360 degrees |
| Shift Left | 24.7 in (625 mm) |
| Shift Right | 24.8 in (628 mm) |
| Max Reach Outside Tires – Left | 72.5 in (1840 mm) |
| Max Reach Outside Tires – Right | 75.3 in (1912 mm) |
| Max Lift Above Ground | 18 in (457 mm) |
| Blade Tip Angle – Front | 40 degrees |
| Blade Tip Angle – Rear | 5 degrees |
Moldboard
| Moldboard Width | 12.1 ft in (3660 mm) |
| Moldboard Height | 24.1 in (610 mm) |
| Moldboard Thickness | 0.9 in (22 mm) |
| Max Depth Of Cut | 30.6 in (775 mm) |
| Side Shift Left | 20.7 in (524 mm) |
| Side Shift Right | 26 in (660 mm) |
| Blade Pull At Max Weight | 23503.5 lb (10661 kg) |
| Blade Down Pressure | 20062.1 lb (9100 kg) |
Engine Details
| Engine | Cat 3116 DITA | Cat 3126B DITA ATAAC VHP |
|---|---|---|
| Number Of Cylinders | 6 | 6 |
| Displacement | 403 cu in (6.6 L) | 403 cu in (6.6 L) |
| Max Power | 151 hp (113 kw) | 154 hp (115 kw) |
| Net Power | 140 hp (104 kw) | 140 hp (104 kw) |
| Power Measured @ | 2000 rpm | 2000 rpm |
| Peak Torque | 478 lb ft (650 Nm) | 544 lb ft (737 Nm) |
| Torque Measured @ | 1400 rpm | 1400 rpm |
| Torque Rise | 30% | 50% |
| Aspiration | Turbocharged and aftercooled (TA) | Turbocharged and air-to-air aftercooled (ATAAC) |
| Emission Standards | Tier I | U.S. EPA Tier II and EU Stage II |
Operational Specs
| Tire Size | 13-24 10 PR (G-2) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 35 amps |
| Battery | 2x 12 V, CCA 750 |

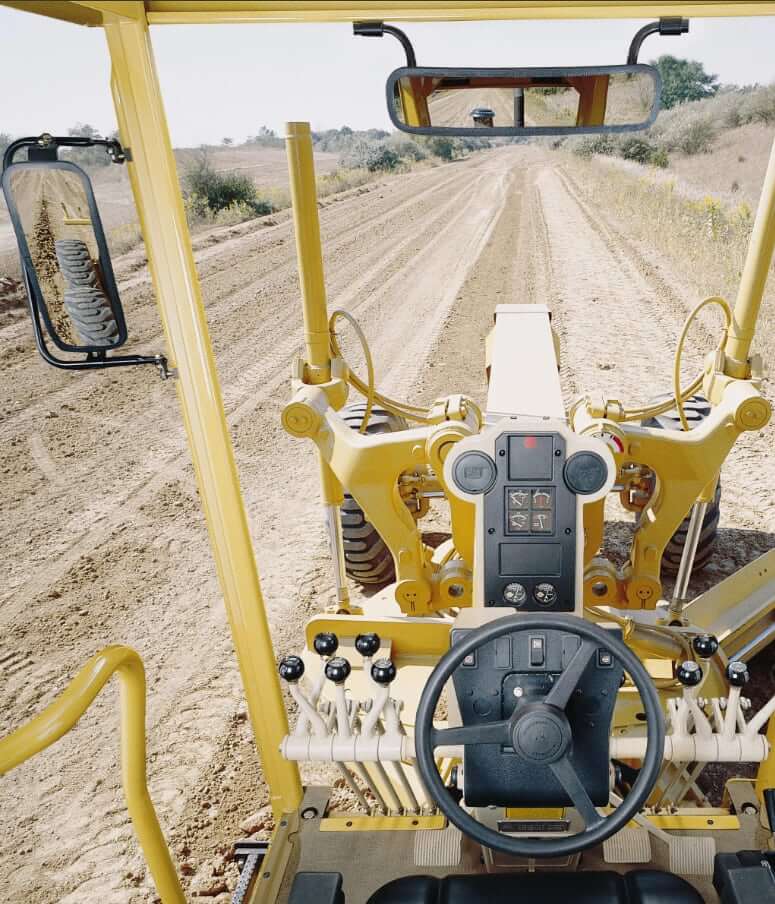

Steering
| Articulation Angle | 20 degrees |
| Turning Radius | 23.7 ft in (7.2 m) |
Transmission
| Transmission Type | Direct drive, powershift transmission |
| Number Of Gears – Forward | 8 |
| Number Of Gears – Reverse | 6 |
| Max Speed – Forward | 26.5 mph (42.6 km/h) |
| Max Speed – Reverse | 21 mph (33.7 km/h) |
Front Axle
| Wheel Lean | 18 degrees |
| Oscillation – Total | 32 degrees |
| Ground Clearance | 2 ft in (608 mm) |
Hydraulic System
| Pump Type | Axial Piston |
| Pump Flow | 39.1 gal/min (148 L/min) |
| Relief Valve Pressure | 3500 psi (24100 kPa) |
Service Refill Capacities
| Engine | Cat 3116 DITA | Cat 3126B DITA |
|---|---|---|
| Fuel Tank Capacity | 75 gal (284 L) | 90 gal (340 L) |
| Cooling System Capacity | 10.4 gal (40 L) | 10.4 gal (40 L) |
| Engine Oil Capacity | 6 gal (23 L) | 6 gal (29.5 L) |
| Hydraulic System Capacity | 16 gal (61 L) | 17.7 gal (68 L) |
| Hydraulic Tank Capacity | 9.9 gal (38 L) | 9.9 gal (38 L) |
| Tandem Case Fluid Capacity (Each) | 12.7 gal (49 L) | 12.7 gal (49 L) |
| Transmission, Differential + Final Drives | 12.2 gal (47 L) | 12.2 gal (47 L) |
| Circle Gearbox Fluid Capacity | 1.8 gal (7 L) | 1.8 gal (7 L) |
| Front Wheel Spindle Bearing Housing | 0.13 gal (0.5 L) | 0.13 gal (0.5 L) |
