Contents

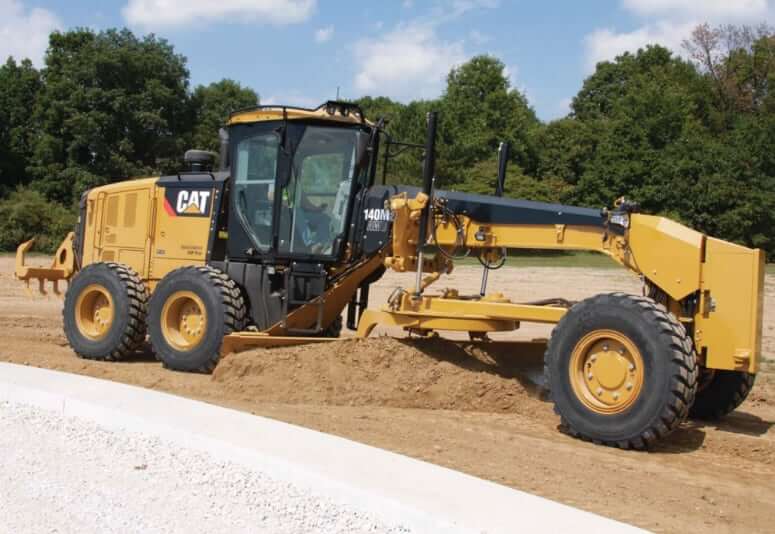

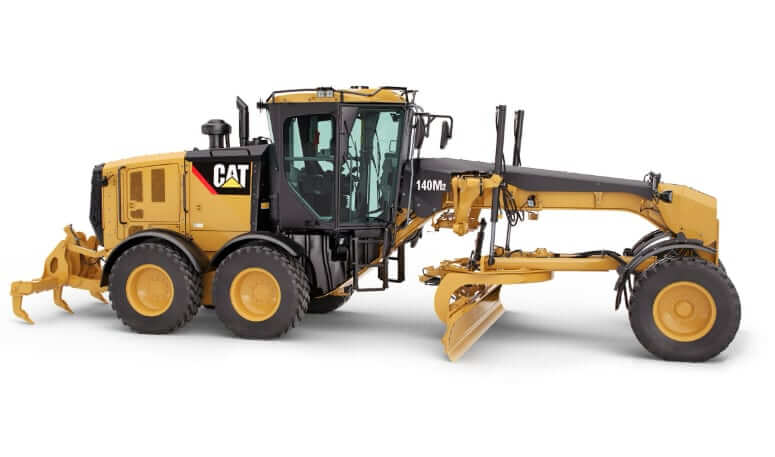

Dimensions
| Dimension | CAT 140M2 | CAT 140M2 AWD |
|---|---|---|
| Height – Top Of Cab | 129.4 in (3287 mm) | 129.4 in (3287 mm) |
| Height – Exhaust Stack | 127.6 in (3242 mm) | 127.6 in (3242 mm) |
| Height – Top Of Cylinders | 119.8 in (3043 mm) | 119.8 in (3043 mm) |
| Height – Front Axle Center | 23.6 in (600 mm) | 23.6 in (600 mm) |
| Overall Length – Counterweight to Ripper | 399.2 in (10140 mm) | 399.2 in (10140 mm) |
| Length – Front Tire To Rear Of Machine | 350.3 in (8898 mm) | 350.3 in (8898 mm) |
| Length – Between Tandem Axles | 60 in (1523 mm) | 60 in (1523 mm) |
| Length – Front Axle To Moldboard | 100.7 in (2557 mm) | 100.7 in (2557 mm) |
| Length – Front Axle To Mid Tandem | 241 in (6126 mm) | 241 in (6126 mm) |
| Overall Width – Outside Front Tires | 101.6 in (2581 mm) | 101.6 in (2581 mm) |
| Width – Outside Rear Tires | 101.6 in (2581 mm) | 101.6 in (2581 mm) |
| Width – Tire Center Lines Front | 84.3 in (2141 mm) | 84.3 in (2141 mm) |
| Ground Clearance (Rear Axle) | 13.5 in (344 mm) | 13.5 in (344 mm) |
Weight
| Gross Vehicle Weight Base | CAT 140M2 | CAT 140M2 AWD |
|---|---|---|
| GVW Total | 37916 lb (17198 kg) | 40104 lb (18191 kg) |
| GVW Front Axle | 9534 lb (4325 kg) | 10660 lb (4835 kg) |
| GVW Rear Axle | 28381 lb (12874 kg) | 29444 lb (13356 kg) |
| Gross Vehicle Weight Maximum | CAT 140M2 | CAT 140M2 AWD |
| GVW Total | 54869 lb (24888 kg) | 54869 lb (24888 kg) |
| GVW Front Axle | 17009 lb (7715 kg) | 17009 lb (7715 kg) |
| GVW Rear Axle | 37860 lb (17173 kg) | 17173 kg (17173 kg) |
| Gross Vehicle Weight Typically Equipped | CAT 140M2 | CAT 140M2 AWD |
| GVW Total | 43686 lb (19815 kg) | 45652 lb (20707 kg) |
| GVW Front Axle | 12483 lb (5662 kg) | 13534 lb (6139 kg) |
| GVW Rear Axle | 31203 lb (14153 kg) | 32118 lb (14568 kg) |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | Cat |
| Engine Model | Cat C9.3 ACERT |
| Displacement | 567.5 cu in (9.3 L) |
| Base Power (1st Gear), Net | 193 hp (144 kw) |
| VHP Plus Range, Net | 193-243 hp (144-181 kw) |
| AWD Range, Net | 202-263 hp (151-196 kw) |
| Power Measured @ | 2100 rpm |
| Maximum Torque | 920 lb ft (1247 Nm) |
| Torque Measured @ | 1000 rpm |
| Torque Rise | 50% |
| Bore | 4.5 in (115 mm) |
| Stroke | 5.9 in (149 mm) |
| Aspiration | Turbocharged and Aftercooled |
| Derating Altitude | 10000 ft in (3048 m) |
| Standard Ambient Capability | 109° F (43° C) |
| High Ambient Capability | 122° F (50° C) |
| High Ambient Fan Speed (min / max) | 500 rpm / 1550 rpm |
| Emission Standards | Tier 4 and Stage IIIB |

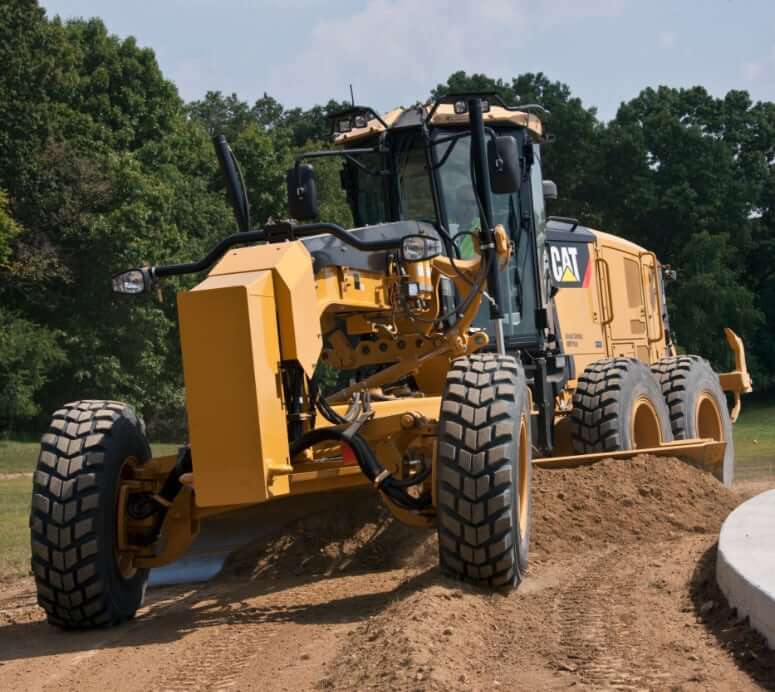

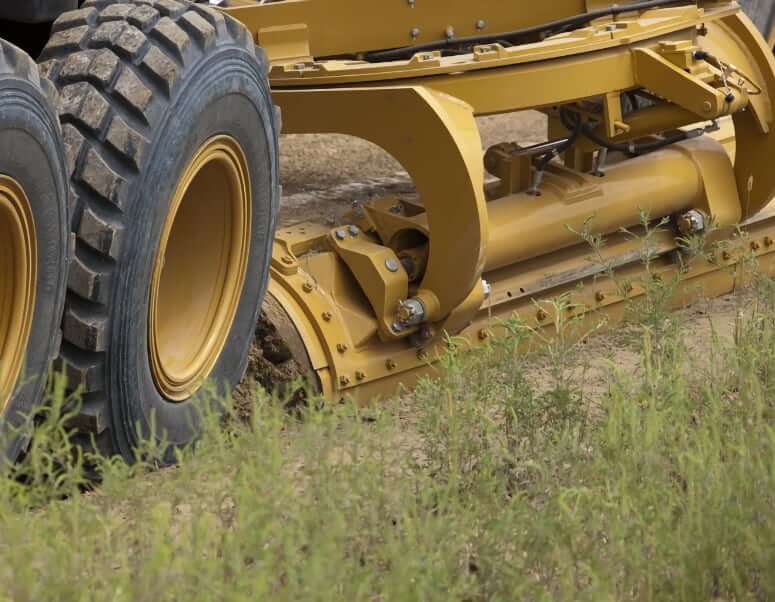

Power Train
| Transmission Type | Direct Drive, Powershift Transmission |
| Number of Gears | 8R / 6R |
| Top Forward Speed | 29 mph (46.6 km/h) |
| Top Reverse Speed | 22.9 mph (36.8 km/h) |
| Front Tire Size | 14.00R24, 14.0R24, 17.5R25 |
| Rear Tire Size | 14.00R24, 14.0R24, 17.5R25 |
| Service Brakes | Multiple oil disc |
| Parking Brakes | Multiple oil disc |
| Secondary Brakes | Dual circuit control system |
| Service Brakes Surface Area | 3565 in2 (2.3 m2) |
| Forward – 1st | 2.5 mph (4.1 km/h) |
| Forward – 2nd | 3.4 mph (5.5 km/h) |
| Forward – 3rd | 5.0 mph (8.0 km/h) |
| Forward – 4th | 6.9 mph (11.0 km/h) |
| Forward – 5th | 10.6 mph (17.1 km/h) |
| Forward – 6th | 14.5 mph (23.3 km/h) |
| Forward – 7th | 19.9 mph (32.0 km/h) |
| Forward – 8th | 29.0 mph (46.6 km/h) |
| Reverse – 1st | 2.0 mph (3.2 km/h) |
| Reverse – 2nd | 3.7 mph (6.0 km/h) |
| Reverse – 3rd | 5.4 mph (8.7 km/h) |
| Reverse – 4th | 8.4 mph (13.5 km/h) |
| Reverse – 5th | 15.7 mph (25.3 km/h) |
| Reverse – 6th | 22.9 mph (36.8 km/h) |
| Turning Radius (Outside Front Tires) | 300 in (7.6 m) |
| Steering Range – Left/Right | 47.5° |
| Articulation Angle – Left/Right | 20° |
Net Power VHP Plus
| Gear | VHP Plus Power |
|---|---|
| 1st Forward | 193 hp (144 kw) |
| 2nd Forward | 203 hp (151 kw) |
| 3rd Forward | 213 hp (159 kw) |
| 4th Forward | 223 hp (166 kw) |
| 5th Forward | 228 hp (170 kw) |
| 6th Forward | 233 hp (174 kw) |
| 7th Forward | 238 hp (177 kw) |
| 8th Forward | 243 hp (181 kw) |
Hydraulic System
| Circuit Type | Parallel hydraulic system |
| Pump Type | Variable piston |
| Pump Output | 55.7 gal/min (210 L/min) |
| Pump Output Measured @ | 2150 rpm |
| Standby Pressure | 690 psi (4200 kPa) |
| Maximum System Pressure | 3500 psi (25150 kPa) |
Frame
| Circle – Diameter | 60.2 in (1530 mm) |
| Circle – Blade Beam Thickness | 1.6 in (40 mm) |
| Drawbar – Height | 6 in (152 mm) |
| Drawbar – Width | 3 in (76.2 mm) |
| Drawbar – Thickness | 0.5 in (12.7 mm) |
| Front Top/bottom Plate – Width | 12 in (305 mm) |
| Front Top/bottom Plate – Thickness | 0.87 in (22 mm) |
| Front Frame Structure – Height | 12.6 in (321 mm) |
| Front Frame Structure – Width | 10 in (255 mm) |
| Front Axle – Height To Center | 23.6 in (600 mm) |
| Front Axle – Wheel Lean – Left/Right | 18° |
| Front Axle – Total Oscillation Per Side | 32° |
Tandems
| Height | 19.9 in (506 mm) |
| Width | 8.3 in (210 mm) |
| Sidewall Thickness – Inner | 0.63 in (16 mm) |
| Sidewall Thickness – Outer | 0.71 in (18 mm) |
| Drive Chain Pitch | 2 in (50.8 mm) |
| Wheel Axle Spacing | 60 in (1523 mm) |
| Tandem Oscillation – Front Up | 15° |
| Tandem Oscillation – Front Down | 25° |
Moldboard
| Model | CAT 140M2 | CAT 140M2 AWD |
|---|---|---|
| Blade Width | 146 in (3700 mm) | 146 in (3700 mm) |
| Moldboard – Height | 24 in (610 mm) | 24 in (610 mm) |
| Moldboard – Thickness | 0.87 in (22 mm) | 0.87 in (22 mm) |
| Arc Radius | 16.3 in (413 mm) | 16.3 in (413 mm) |
| Throat Clearance | 6.5 in (166 mm) | 6.5 in (166 mm) |
| Cutting Edge Width | 6 in (152 mm) | 6 in (152 mm) |
| Cutting Edge Thickness | 0.6 in (16 mm) | 0.6 in (16 mm) |
| End Bit – Width | 6 in (152 mm) | 6 in (152 mm) |
| End Bit – Thickness | 0.6 in (16 mm) | 0.6 in (16 mm) |
| Blade Pull – Base GVW | 25765 lb (11687 kg) | 25765 lb (11687 kg) |
| Blade Pull – Max GVW | 34072 lb (15455 kg) | 34072 lb (15455 kg) |
| Down Pressure – Base GVW | 16365 lb (7423 kg) | 16365 lb (7423 kg) |
| Down Pressure – Max GVW | 29196 lb (13243 kg) | 29196 lb (13243 kg) |

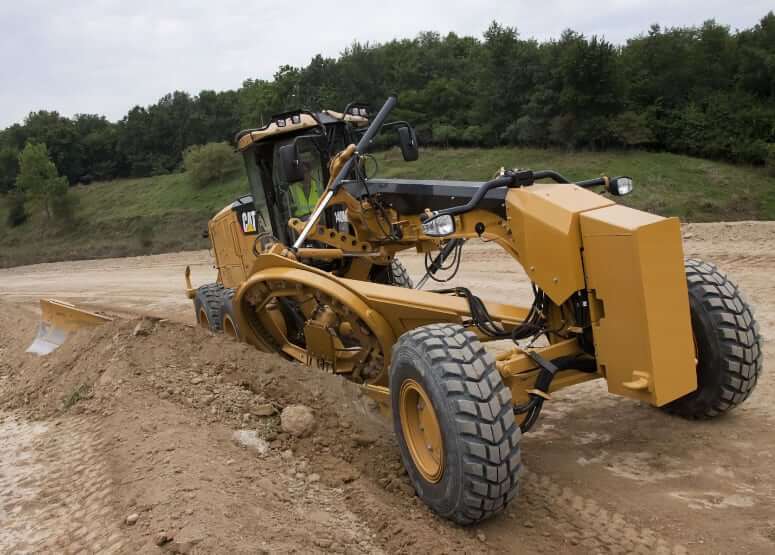

Blade Range
| Circle Centershift – Right | 28.7 in (728 mm) |
| Circle Centershift – Left | 27.4 in (695 mm) |
| Moldboard Sideshift – Right | 26 in (660 mm) |
| Moldboard Sideshift – Left | 20.1 in (510 mm) |
| Maximum Blade Position Angle | 90° |
| Blade Tip Range – Forward | 40° |
| Blade Tip Range – Backward | 5° |
| Max Shoulder Reach Outside Of Tires – Right | 77.9 in (1978 mm) |
| Max Shoulder Reach Outside Of Tires – Left | 70.5 in (1790 mm) |
| Maximum Lift Above Ground | 18.9 in (480 mm) |
| Maximum Depth Of Cut | 28.1 in (715 mm) |
Ripper
| Penetration Force | 20693 lb (9386 kg) |
| Pryout Force | 27655 lb (12544 kg) |
| Ripping Depth – Maximum | 16.8 in (426 mm) |
| Ripper Shank Holders | 5 |
| Ripper Shank Holder Spacing | 21 in (533 mm) |
| Machine Length Increase, Beam Raised | 40.6 in (1031 mm) |
Scarifier
| Front, V-Type | |
|---|---|
| Scarifier Shank Holders | 5 or 11 Tooth |
| Working Width | 47.4 in (1205 mm) |
| Scarifying Depth, Maximum | 18.4 in (467 mm) |
| Scarifier Shank Holder Spacing | 4.6 in (116 mm) |
| Mid, V-Type | |
| Scarifier Shank Holders | 11 |
| Working Width | 46.6 in (1184 mm) |
| Scarifying Depth, Maximum | 11.5 in (292 mm) |
| Scarifier Shank Holder Spacing | 4.6 in (116 mm) |
| Rear | |
| Scarifier Shank Holders | 9 |
| Working Width | 84 in (2133 mm) |
| Scarifying Depth, Maximum | 16.8 in (426 mm) |
| Scarifier Shank Holder Spacing | 10.5 in (267 mm) |

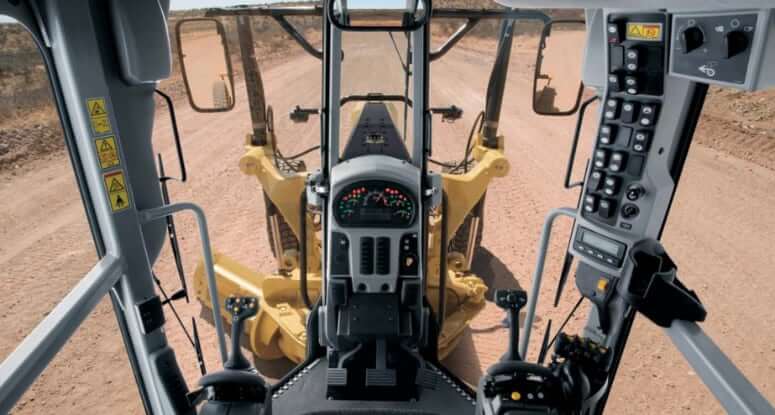

Cab
| Noise Level | 71 dB(A) |
| Air Conditioning | Air conditioning with heater |
| ROPS / FOPS | ISO 3471:2008, ISO 3449:2005 Level II |
| Integrated Technologies | Cat Grade Control Cross Slope; AccuGrade Ready Option; Cat AccuGrade; Cat Product Link |

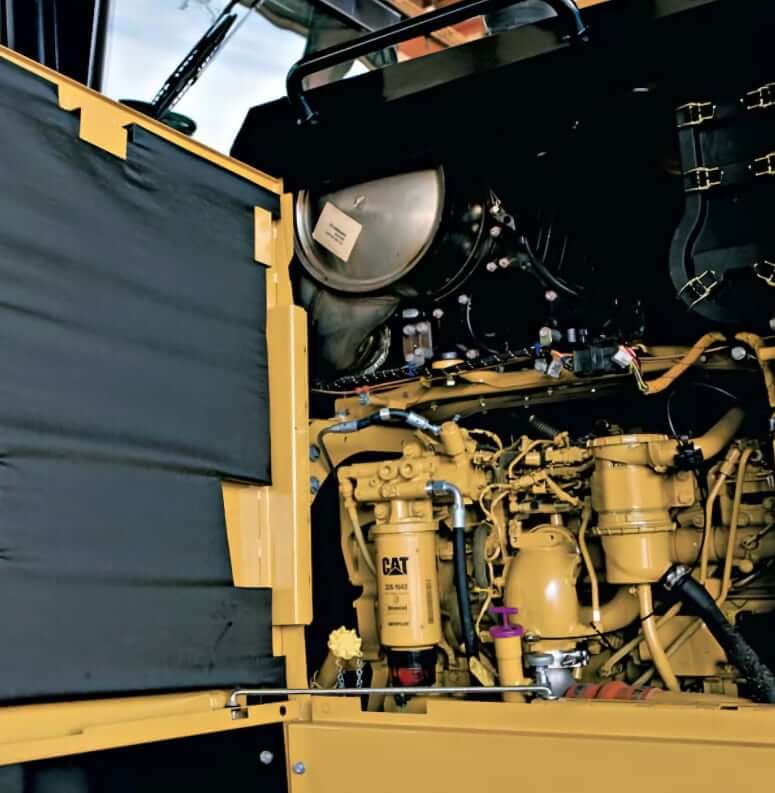

Service Refill Capacities
| Fuel Tank Capacity | 110 gal (416 L) |
| Cooling System Capacity | 14.8 gal (56 L) |
| Engine Oil Capacity | 7.9 gal (30 L) |
| Hydraulic System Capacity (w/ Tank) | 26.4 gal (100 L) |
| Hydraulic Tank Capacity | 15.9 gal (60 L) |
| Transmission Oil Capacity (+Differential +Final Drives) | 17.2 gal (65 L) |
| Tandem Housing Capacity (Each) | 16.9 gal (64 L) |
| Circle Drive Housing Capacity | 1.8 gal (7 L) |
| Front Wheel Spindle Bearing Housing | 0.13 gal (0.5 L) |
