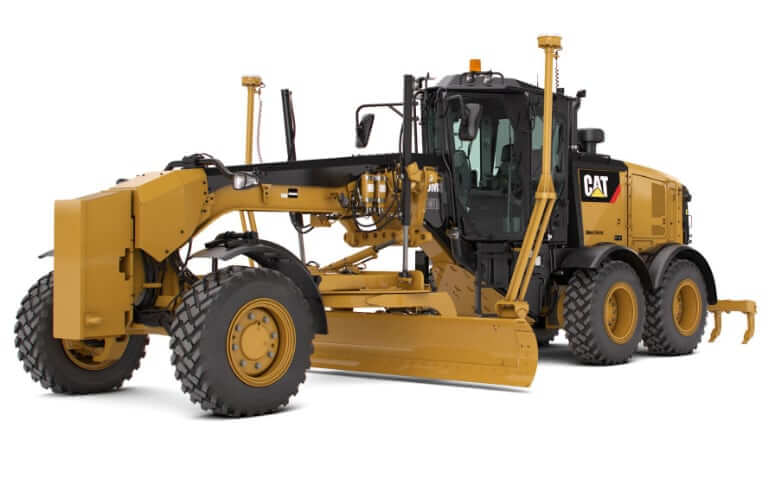

Dimensions
| Dimension | CAT 140M3 | CAT 140M3 AWD |
|---|---|---|
| Overall Height – Top Of Cab | 130 in (3308 mm) | 130 in (3308 mm) |
| Height – Exhaust Stack | 128 in (3256 mm) | 128 in (3256 mm) |
| Height – Top Of Cylinders | 120 in (3040 mm) | 120 in (3040 mm) |
| Height – Front Axle Center | 23.5 in (596 mm) | 23.5 in (596 mm) |
| Overall Length – Counterweight to Ripper | 399 in (10136 mm) | 399 in (10136 mm) |
| Length – Between Tandem Axles | 60 in (1523 mm) | 60 in (1523 mm) |
| Length – Front Axle To Moldboard | 100 in (2552 mm) | 100 in (2552 mm) |
| Length – Front Axle To Mid Tandem | 241 in (6123 mm) | 241 in (6123 mm) |
| Length – Front Tire To Rear Of Machine | 351 in (8912 mm) | 351 in (8912 mm) |
| Overall Width – Outside Front Tires | 98.9 in (2511 mm) | 98.9 in (2511 mm) |
| Width – Outside Rear Tires | 98.9 in (2511 mm) | 98.9 in (2511 mm) |
| Width – Tire Center Lines Front | 84.3 in (2140 mm) | 84.3 in (2140 mm) |
| Ground Clearance (Rear Axle) | 13.3 in (339 mm) | 13.3 in (339 mm) |
Weight
| Gross Vehicle Weight Base | CAT 140M3 | CAT 140M3 AWD |
|---|---|---|
| GVW Total | 38191 lb (17323 kg) | 40380 lb (18316 kg) |
| GVW Front Axle | 9601 lb (4355 kg) | 10726 lb (4865 kg) |
| GVW Rear Axle | 28590 lb (12968 kg) | 13451 kg 29654 lb |
| Gross Vehicle Weight Maximum | CAT 140M3 | CAT 140M3 AWD |
| GVW Total | 55144 lb (25013 kg) | 55144 lb (25013 kg) |
| GVW Front Axle | 17075 lb (7745 kg) | 17075 lb (7745 kg) |
| GVW Rear Axle | 38069 lb (17268 kg) | 38069 lb (17268 kg) |
| Gross Vehicle Weight Typically Equipped | CAT 140M3 | CAT 140M3 AWD |
| GVW Total | 43950 lb (19935 kg) | 45917 lb (20827 kg) |
| GVW Front Axle | 12549 lb (5692 kg) | 13601 lb (6169 kg) |
| GVW Rear Axle | 31401 lb (14243 kg) | 32316 lb (14658 kg) |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | Cat |
| Engine Model | Cat C9.3 ACERT |
| Displacement | 567.5 cu in (9.3 L) |
| Base Power (1st Gear), Net | 200 hp (149 kw) |
| VHP Plus Range, Net | 200-252 hp (149-188 kw) |
| AWD Range, Net | 210-272 hp (156-203 kw) |
| Power Measured @ | 2000 rpm |
| Maximum Torque (VHP Plus) | 920 lb ft (1247 Nm) |
| Maximum Torque (AWD on) | 1000 lb ft (1355 Nm) |
| Torque Measured @ | 1000 rpm |
| Torque Rise (VHP Plus) | 39% |
| Bore | 4.5 in (115 mm) |
| Stroke | 5.9 in (149 mm) |
| Aspiration | Turbocharged and Aftercooled |
| Derating Altitude | 10000 ft in (3050 m) |
| Standard Ambient Capability | 109° F (43° C) |
| High Ambient Capability | 122° F (50° C) |
| High Ambient Fan Speed (min / max) | 500 rpm / 1550 rpm |
| Emission Standards | U.S. EPA Tier 4 Final/ EU Stage IV |
Power Train
| Transmission Type | APECS, Direct Drive, Powershift Transmission |
| Number of Gears | 8R / 6R |
| Top Forward Speed | 29.0 mph (46.6 km/h) |
| Top Reverse Speed | 23.0 mph (36.8 km/h) |
| Front Tire Size | 14.0R24, 14.0-24, 17.5R25, 17.5-25 |
| Rear Tire Size | 14.0R24, 14.0-24, 17.5R25, 17.5-25 |
| Service Brakes | Multiple oil disc |
| Parking Brakes | Multiple oil disc |
| Secondary Brakes | Dual circuit |
| Service Brakes Surface Area | 3565 in2 (2.3 m2) |
| Forward – 1st | 2.5 mph (4.1 km/h) |
| Forward – 2nd | 3.4 mph (5.5 km/h) |
| Forward – 3rd | 5.0 mph (8.0 km/h) |
| Forward – 4th | 6.9 mph (11.0 km/h) |
| Forward – 5th | 10.6 mph (17.1 km/h) |
| Forward – 6th | 14.5 mph (23.3 km/h) |
| Forward – 7th | 19.9 mph (32.0 km/h) |
| Forward – 8th | 29.0 mph (46.6 km/h) |
| Reverse – 1st | 2.0 mph (3.2 km/h) |
| Reverse – 2nd | 3.7 mph (6.0 km/h) |
| Reverse – 3rd | 5.4 mph (8.7 km/h) |
| Reverse – 4th | 8.4 mph (13.5 km/h) |
| Reverse – 5th | 15.7 mph (25.3 km/h) |
| Reverse – 6th | 23.0 mph (36.8 km/h) |
| Turning Radius (Outside Front Tires) | 307 in (7800 mm) |
| Steering Range – Left/Right | 50° |
| Articulation Angle – Left/Right | 20° |
Net Power AWD / VHP
| Gear | VHP Plus | AWD Off | AWD On |
|---|---|---|---|
| Gear – Forward 1st | 200 hp (149 kw) | 210 hp (156 kw) | 220 hp (164 kw) |
| Gear – Forward 2nd | 210 hp (156 kw) | 220 hp (164 kw) | 241 hp (180 kw) |
| Gear – Forward 3rd | 220 hp (164 kw) | 231 hp (172 kw) | 247 hp (184 kw) |
| Gear – Forward 4th | 231 hp (172 kw) | 236 hp (176 kw) | 252 hp (188 kw) |
| Gear – Forward 5th | 236 hp (176 kw) | 241 hp (180 kw) | 272 hp (203 kw) |
| Gear – Forward 6th | 241 hp (180 kw) | 247 hp (184 kw) | 272 hp (203 kw) |
| Gear – Forward 7th | 247 hp (184 kw) | 252 hp (188 kw) | 272 hp (203 kw) |
| Gear – Forward 8th | 252 hp (188 kw) | 252 hp (188 kw) | 272 hp (203 kw) |
| Gear – Reverse 1st | 200 hp (149 kw) | 200 hp (149 kw) | 200 hp (149 kw) |
| Gear – Reverse 2nd | 210 hp (156 kw) | 210 hp (156 kw) | 210 hp (156 kw) |
| Gear – Reverse 3rd-6th | 220 hp (164 kw) | 220 hp (164 kw) | 220 hp (164 kw) |
Hydraulic System
| Circuit Type | Parallel Hydraulic System |
| Pump Type | Variable Piston Pump |
| Pump Output | 55.7 gal/min (210 L/min) |
| Pump Output Measured @ | 2150 rpm |
| Standby Pressure | 885 psi (6100 kPa) |
| Maximum System Pressure | 3500 psi (25150 kPa) |
| Hydraulic Tank Capacity | 16.9 gal (64 L) |
Frame
| Circle – Diameter | 60.2 in (1530 mm) |
| Circle – Height | 5.4 in (138 mm) |
| Circle – Blade Beam Thickness | 1.6 in (40 mm) |
| Drawbar – Height | 6 in (152 mm) |
| Drawbar – Width | 3 in (76.2 mm) |
| Drawbar – Thickness | 0.5 in (12.7 mm) |
| Front-Top/Bottom Plate – Width | 12 in (305 mm) |
| Front-Top/Bottom Plate – Thickness | 0.87 in (22 mm) |
| Front-Top/Bottom Plate – Width Tolerance | ±0.098 in (2.5 mm) |
| Front Frame Structure – Height | 12.6 in (321 mm) |
| Front Frame Structure – Width | 12 in (305 mm) |
| Front Axle – Height To Center | 23.5 in (596 mm) |
| Front Axle – Wheel Lean – Left/Right | 18° |
| Front Axle – Total Oscillation Per Side | 32° |
Tandems
| Height | 19.9 in (506 mm) |
| Width | 7.9 in (201 mm) |
| Sidewall Thickness – Inner | 0.63 in (16 mm) |
| Sidewall Thickness – Outer | 0.71 in (18 mm) |
| Drive Chain Pitch | 2 in (50.8 mm) |
| Wheel Axle Spacing | 60 in (1523 mm) |
| Tandem Oscillation – Front Up | 15° |
| Tandem Oscillation – Front Down | 25° |

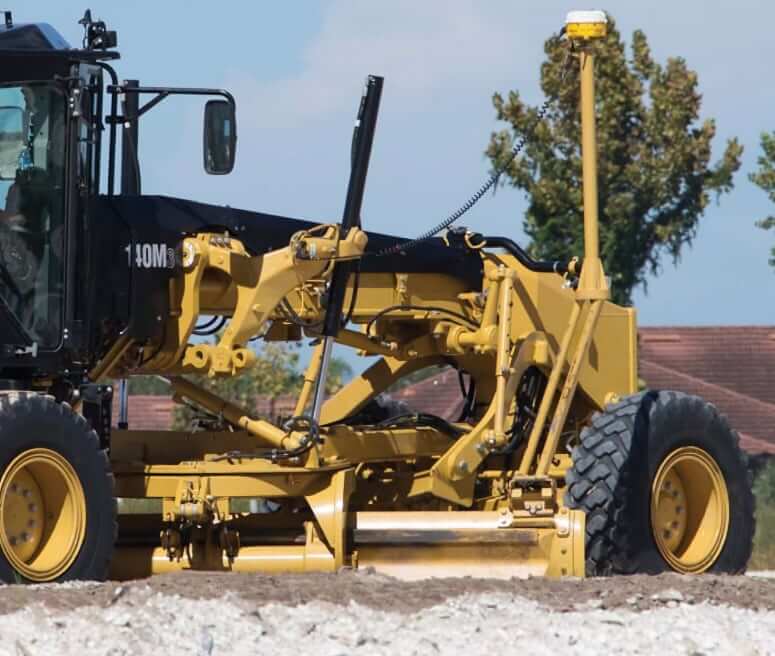

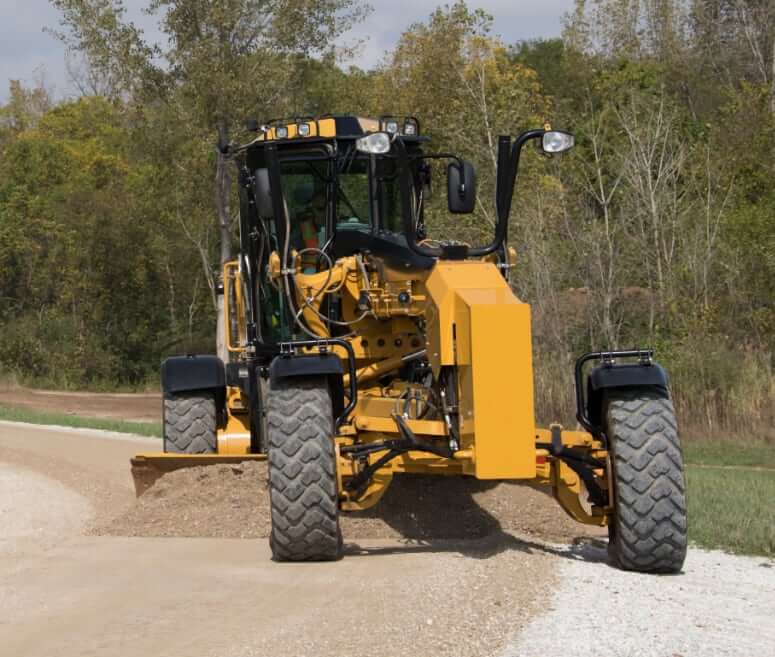

Moldboard
| Model | CAT 140M3 | CAT 140M3 AWD |
|---|---|---|
| Moldboard – Width | 145.7 in (3700 mm) | 145.7 in (3700 mm) |
| Moldboard – Height | 24 in (610 mm) | 24 in (610 mm) |
| Moldboard – Thickness | 0.87 in (22 mm) | 0.87 in (22 mm) |
| Arc Radius | 16.3 in (413 mm) | 16.3 in (413 mm) |
| Throat Clearance | 6.5 in (166 mm) | 6.5 in (166 mm) |
| Cutting Edge Width | 6 in (152 mm) | 6 in (152 mm) |
| Cutting Edge Thickness | 0.6 in (16 mm) | 0.6 in (16 mm) |
| End Bit – Width | 6 in (152 mm) | 6 in (152 mm) |
| End Bit – Thickness | 0.6 in (16 mm) | 0.6 in (16 mm) |
| Blade Pull – Base GVW | 25732 lb (11672 kg) | 36341 lb (16484 kg) |
| Blade Pull – Maximum GVW | 34262 lb (15541 kg) | 49630 lb (22512 kg) |
| Down Pressure – Base GVW | 16480 lb (7475 kg) | 18411 lb (8351 kg) |
| Down Pressure – Maximum GVW | 29308 lb (13294 kg) | 29308 lb (13294 kg) |

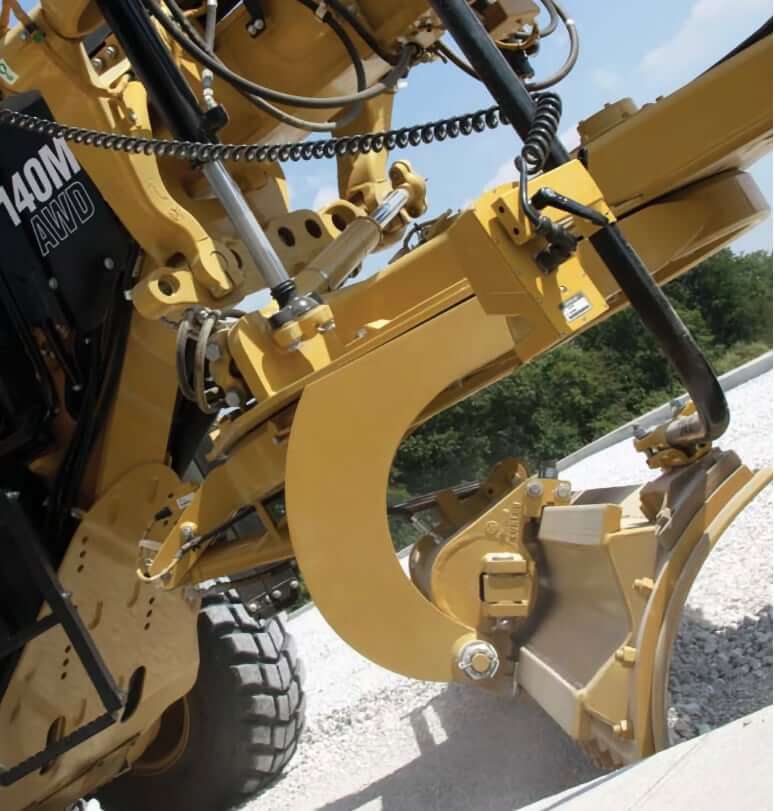

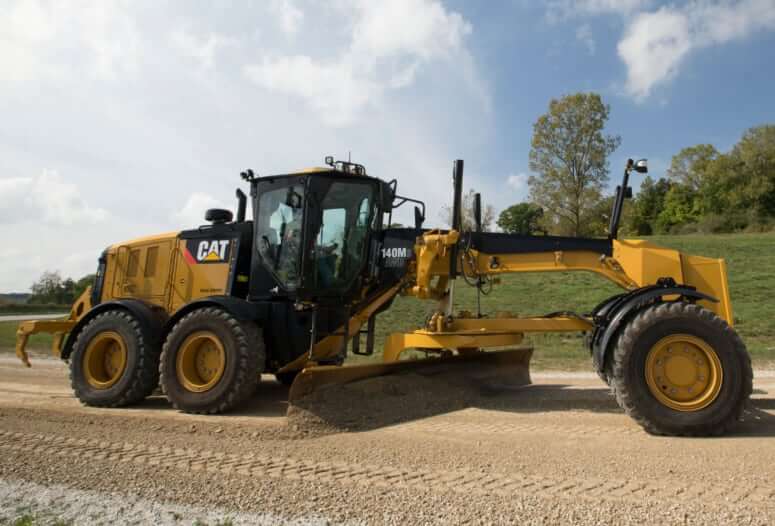

Blade Range
| Circle Centershift – Right | 28.7 in (728 mm) |
| Circle Centershift – Left | 27.4 in (695 mm) |
| Moldboard Sideshift – Right | 26.0 in (660 mm) |
| Moldboard Sideshift – Left | 20.1 in (510 mm) |
| Maximum Blade Position Angle | 90° |
| Blade Tip Range – Forward | 40° |
| Blade Tip Range – Backward | 5° |
| Max Shoulder Reach Outside Of Tires – Right | 77.9 in (1978 mm) |
| Max Shoulder Reach Outside Of Tires – Left | 70.5 in (1790 mm) |
| Maximum Lift Above Ground | 18.9 in (480 mm) |
| Maximum Depth Of Cut | 28.1 in (715 mm) |
Ripper
| Ripper Shank Holders | 5 |
| Penetration Force | 20812 lb (9440 kg) |
| Pryout Force | 27794 lb (12607 kg) |
| Ripping Depth – Maximum | 16.8 in (428 mm) |
| Ripper Shank Holder Spacing | 21 in (533 mm) |
| Machine Length Increase, Beam Raised | 40.6 in (1031 mm) |
Scarifier
| Front, V-Type | |
|---|---|
| Scarifier Shank Holders | 5 or 11 Tooth |
| Working Width | 47.4 in (1205 mm) |
| Scarifying Depth, Maximum | 18.4 in (467 mm) |
| Scarifier Shank Holder Spacing | 4.6 in (116 mm) |
| Mid, V-Type | |
| Scarifier Shank Holders | 11 |
| Working Width | 46.6 in (1184 mm) |
| Scarifying Depth, Maximum | 11.5 in (292 mm) |
| Scarifier Shank Holder Spacing | 4.6 in (116 mm) |
| Rear | |
| Scarifier Shank Holders | 9 |
| Working Width | 84.0 in (2133 mm) |
| Rear – Scarifying Depth, Maximum | 16.8 in (426 mm) |
| Scarifier Shank Holder Spacing | 10.5 in (267 mm) |

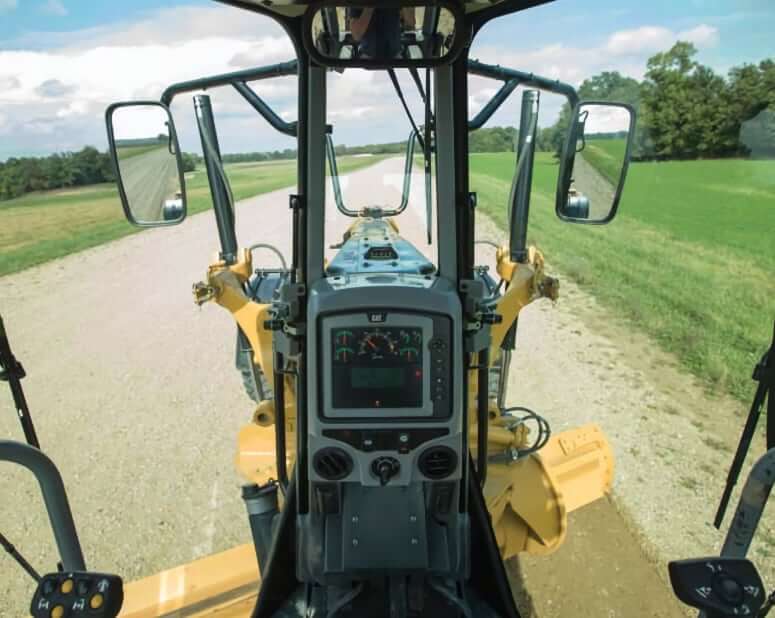

Cab Standards
| Noise Level | 71 dB(A) |
| Sound | ISO 6394:2008, ISO 6395:2008 |
| ROPS / FOPS | ISO 3471:2008, ISO 3449:2005 Level II |
| Steering | ISO 5010:2007 |
| Air Conditioning System | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes. |
Service Refill Capacities
| Fuel Tank Capacity | 104 gal (394 L) |
| DEF Tank Capacity | 5.8 gal (22 L) |
| Cooling System Capacity | 15 gal (57 L) |
| Engine Oil Capacity | 7.9 gal (30 L) |
| Hydraulic System Capacity | 26.4 gal (100 L) |
| Hydraulic Tank Capacity | 16.9 gal (64 L) |
| Transmission Oil Capacity (+Differential +Final Drives) | 18.5 gal (70 L) |
| Tandem Housing Capacity (Each) | 20 gal (76 L) |
| Circle Drive Housing Capacity | 1.8 gal (7 L) |
| Front Wheel Spindle Bearing Housing | 0.13 gal (0.5 L) |
