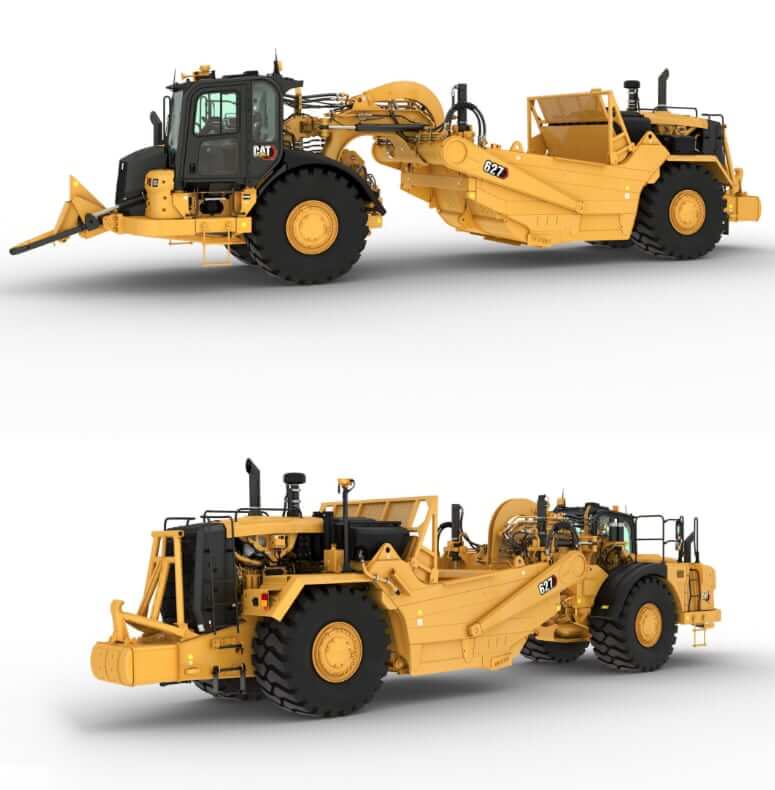

Dimensions
| Maximum Length (Push-Pull) | 613.2 in (15576 mm) |
| Overall Length (Standart) | 551.8 in (14015 mm) |
| Wheelbase | 314.9 in (7998 mm) |
| Overall Width | 141.1 in (3585 mm) |
| Overall Width (Ladder Down) | 149.2 in (3790 mm) |
| Tractor Width | 133.1 in (3381 mm) |
| Overall Height (to Top of Cab) | 142.6 in (3621 mm) |
| Shipping Height | 158.6 in (4029 mm) |
| Rear Tire Centers Width | 90.2 in (2290 mm) |
| Outside Rear Tires Width | 128.9 in (3275 mm) |
| Inside of Bowl Width | 120.0 in (3048 mm) |
| Front of Tractor to Front Axle | 122.8 in (3119 mm) |
| Scraper Blade Height (Maximum) | 20.5 in (520 mm) |
| Axle to Vertical Hitch Pin | 21.3 in (540 mm) |
| Tractor Ground Clearance | 21.9 in (557 mm) |
| Rear Axle to Rear of Machine | 114.1 in (2898 mm) |
| Tractor Tire Size | 33.25R29**E3 |
| Scraper Tire Size | 33.25R29**E3 |
| 180° Curb-to-Curb Turning Width | 464.6 in (11800 mm) |
Weight
| Cat 627 | Standart | Push-Pull |
|---|---|---|
| Shipping Weight | 88275 lb (40041 kg) | 91243 lb (41387 kg) |
| Operating Weight (Empty) | 90345 lb (40980 kg) | 93315 lb (42327 kg) |
| Operating Weight (Loaded) | 134806 lb (67147 kg) | 151001 lb (68493 kg) |
Scraper Bowl
| Scraper Capacity (Struck) | 18.8 yd3 (14.4 m3) |
| Scraper Capacity (Heaped) | 23.0 yd3 (17.6 m3) |
| Rated Load | 55200 lb (25038 kg) |
| Width Of Cut | 123.6 in (3140 mm) |
| Max Depth Of Cut | 10.3 in (262 mm) |
| Max Depth Of Spread | 18.3 in (465 mm) |
| Bowl Raise | 3.0 Seconds |
| Bowl Lower | 3.5 Seconds |
| Apron Raise | 3.0 Seconds |
| Apron Lower | 3.8 Seconds |
| Ejector Extend | 5.2 Seconds |
| Ejector Retract | 6.7 Seconds |
| Bail Raise | 1.8 Seconds |
| Bail Lower | 3.2 Seconds |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | Cat |
| Engine Model | Cat C13 |
| Displacement | 762.8 cu in (12.5 L) |
| Bore | 5.1 in (130 mm) |
| Stroke | 6.2 in (157 mm) |
| Net Power | 407 hp (304 kw) |
| Power Measured @ | 2000 rpm |
| Peak Torque | 1446 lb ft (1960 Nm) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbocharged-Aftercooled (TA) |
| Emission Standards | EPA Tier 4 Final / EU Stage IV |
Scraper Engine
| Number Of Cylinders | 6 |
| Engine Make | Cat |
| Engine Model | Cat C9.3 |
| Displacement | 567.5 cu in (9.3 L) |
| Bore | 4.53 in (115 mm) |
| Stroke | 5.87 in (149 mm) |
| Net Power | 290 hp (216 kw) |
| Power Measured @ | 2150 rpm |
| Peak Torque | 1092 lb ft (1480 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged-Aftercooled (TA) |
| Emission Standards | U.S. EPA Tier 4 Final Nonroad, EU Stage IV Nonroad, EU Stage IIIB Nonroad |
Electrical
| Spec | Tractor | Scraper |
|---|---|---|
| Operating Voltage | 24 V | 24 V |
| Alternator | 115 amps | 65 amps |
| Battery | 4x 12 V, CCA 1000 | 4x 12 V, CCA 1000 |
| Starter | 24 V | 24 V |
| Lighting system | LED low beam, high beam, and work lights | LED Brake lights, LED turn signals with hazard function |
Transmission
| Type | 8-speed planetary powershift transmission |
| Clutch | Electronic Clutch Pressure Control (ECPC) |
| Productivity Control | Advanced Productivity Electronic Control Strategy (APECS) software, programmable top gear selection |
| Speed Control | Transmission guard, ground speed control, machine speed limit |
| Forward 1 | 3.1 mph (5.0 km/h) |
| Forward 2 | 5.5 mph (8.9 km/h) |
| Forward 3 | 7.5 mph (12.1 km/h) |
| Forward 4 | 10.1 mph (16.3 km/h) |
| Forward 5 | 13.6 mph (21.9 km/h) |
| Forward 6 | 18.4 mph (29.6 km/h) |
| Forward 7 | 24.8 mph (39.9 km/h) |
| Forward 8 | 33.5 mph (53.9 km/h) |
| Reverse 1 | 5.7 mph (9.2 km/h) |
| Service Brakes | Wet disc, hydraulic braking system |
| Parking Brake | Wet disc, hydraulic |

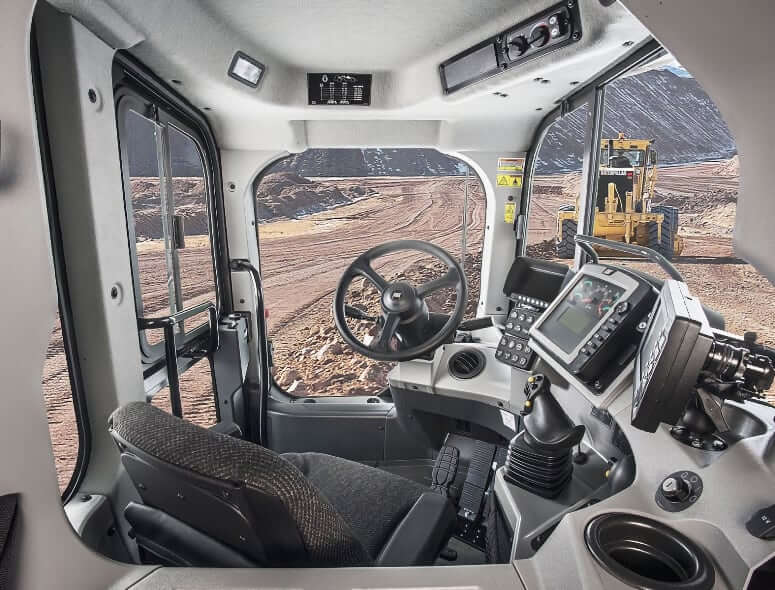

Operator Environment
| ROPS | ISO 3471:2008 for up to 37664 lb (17084 kg) |
| Seat Belt | ISO 6683:2005, SAE J386 |
| Reverse Alarm | ISO 9533:2010 |
| Operator Sound Pressure Level | 78 dB(A) |
| Exterior Sound Power Level | 120 dB(A) |
| HVAC System | Heat, AC, defrost |
Service Refill Capacities
| Capacity | Tractor | Scraper |
|---|---|---|
| Fuel Tank Capacity | 336 gal (1272 L) | |
| Hydraulic System Capacity | 21.9 gal (83 L) | |
| Brake Cooling Fluid Capacity (scraper) | 8.7 gal (33 L) | |
| DEF Tank Capacity | 8.1 gal (30.5 L) | 5.8 gal (22 L) |
| Engine Oil Capacity | 9.7 gal (37 L) | 6.5 gal (24.5 L) |
| Cooling System Tank Capacity | 11.1 gal (42 L) | 10.8 gal (41 L) |
| Transmission Oil Capacity | 25.5 (97 L) | 12.9 gal (49 L) |
| Final Drive Capacity | 5 gal (19 L) | 5 gal (19 L) |
| Differential Capacity | 41.7 gal (158 L) | 11 gal (42 L) |
