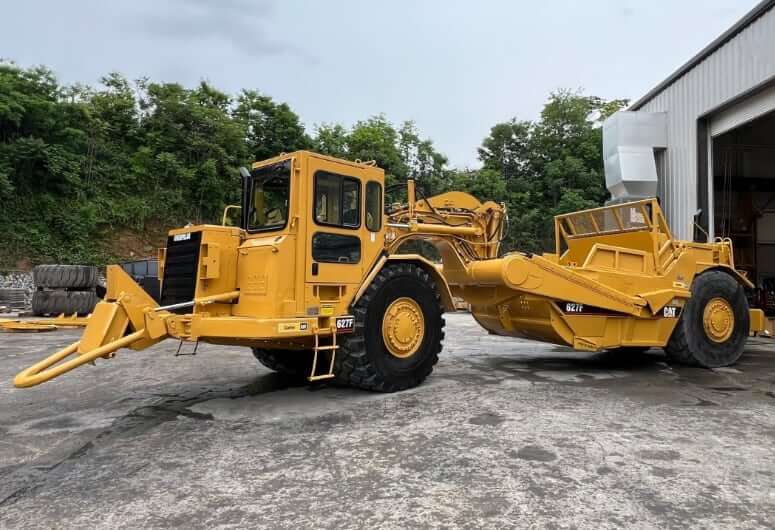

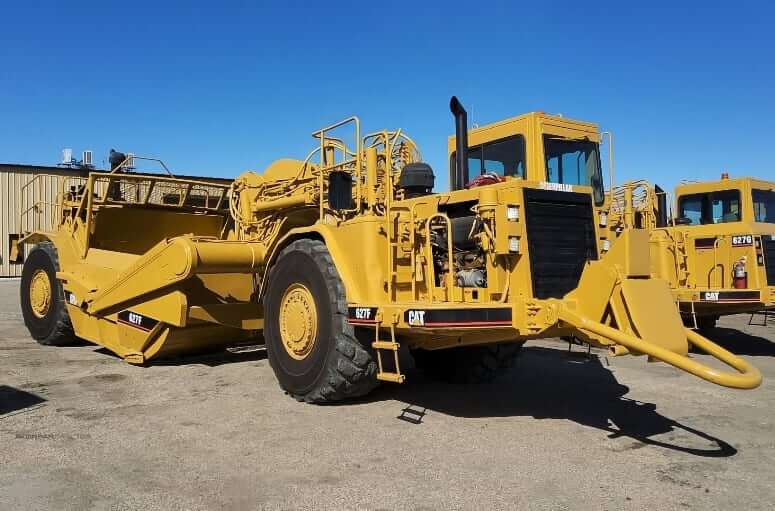

Dimensions
| Overall Length | 42.25 ft in (12877.8 mm) |
| Overall Width | 11.34 ft in (3454.4 mm) |
| Overall Height | 12.17 ft in (3708.4 mm) |
| Front Of Tractor To Front Axle | 10.42 in (264.67 mm) |
| Ground Clearance – Tractor | 1.83 in (46.49 mm) |
| Height – Overall Shipping | 146 in (3708.4 mm) |
| Height – Scraper Blade Maximum | 21 in (533.4 mm) |
| Height – Top Of Cab | 11.09 ft in (0.29 m) |
| Length – Overall Machine | 507 in (12877.8 mm) |
| Rear Axle – Rear Of Machine | 85 in (2159 mm) |
| Wheel Base | 25.34 ft in (0.65 m) |
| Width – Inside Of Bowl | 116 in (2946.4 mm) |
| Width – Outside Rear Tires | 120 in (3048 mm) |
| Width – Overall Machine | 136 in (3454.4 mm) |
| Width – Rear Tire Center Lines | 87 in (2209.81 mm) |
| Axle To Vertical Hitch Pin | 17 in (431.8 mm) |
| Width – Tractor | 117 in (2971.8 mm) |
| Bail Length – Maximum (Push-Pull) | 60 in (1524 mm) |
| Extended Push Block (Push-Pull) | 110 in (2794 mm) |
Tractor Engine
| Gross Power | 347 hp (258.8 kw) |
| Net Power | 327 hp (243.9 kw) |
| Displacement | 893 cu in (14.7 L) |
Engine Details
| Tractor Engine | 3306 / 3406C |
Tractor Engine
| Net Power – Gears 1-2 | 330 hp (246.1 kw) |
| Gross Power – Gears 1-2 | 347 hp (258.8 kw) |
| CAT Net Power | 330 hp (246.1 kw) |
| Iso 9249 | 330 hp (246.1 kw) |
| Eec 80/1269 | 330 hp (246.1 kw) |
| Sae J1349 | 327 hp (243.9 kw) |
| Bore | 5.4 in (137.2 mm) |
| Stroke | 6.5 in (165.1 mm) |
Engine Details
| Scraper Engine | 3306 |
Scraper Engine
| Make | CAT |
| Model | 3306 |
| Gross Power | 246 hp (183.5 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 638 cu in (10.5 L) |
| Bore | 4.8 in (120.7 mm) |
| Stroke | 6 in (152.4 mm) |
| Net Power – Gear 1 | 225 hp (167.8 kw) |
| Gross Power – Gear 1 | 246 hp (183.5 kw) |
| Iso 9249 | 225 hp (167.8 kw) |
| CAT Net Power | 225 hp (167.8 kw) |
| Eec 80/1269 | 225 hp (167.8 kw) |
| Sae J1349 | 223 hp (166.3 kw) |
Operational Specs
| Fuel Tank Capacity | 262 gal (991.8 L) |
| Hydraulic System Fluid Capacity | 37 gal (140.1 L) |
| Tire Size | 33.25-R29 MX XRB 2 |
Transmission
| Number Of Forward Gears | 8 |
| Number Of Reverse Gears | 1 |
| Reverse | 5.7 mile/h |
Steering
| Width – 180 Degrees Turn | 35.8 ft in (10.9 m) |
| Steering Angle – Right | 90 degrees |
| Steering Angle – Left | 85 degrees |
Transmission
| 1 Forward | 3.1 mph (5 km/h) |
| 2 Forward | 5.6 mph (9.1 km/h) |
| 3 Forward | 7.1 mph (11.5 km/h) |
| 4 Forward | 9.6 mph (15.5 km/h) |
| 5 Forward | 12.9 mph (20.8 km/h) |
| 6 Forward | 17.5 mph (28.2 km/h) |
| 7 Forward | 23.6 mph (38 km/h) |
| 8 Forward | 31.9 mph (51.4 km/h) |
Weights
| Operating Weight | 84050 lb (38124.5 kg) |
| Total Operating – Loaded | 80599 lb (36559.1 kg) |
Bowl
| Heaped Capacity | 26.2 yd3 (20 m3) |
| Struck Capacity | 18.4 yd3 (14 m3) |
| Width Of Cut | 10 ft in (3022.6 mm) |
Hydraulics
| Bowl Cylinder Bore | 6 in (152.4 mm) |
| Bowl Cylinder Stroke | 32 in (812.8 mm) |
| Steering Circuit | 52 gal/min |
| Scraper Circuit | 65.5 gal/min |
| Cushion Hitch Circuit | 9.2 gal/min |
| Relief Valve – Steering Circuit | 2250 psi |
| Relief Valve – Implement Circuit | 2150 psi |
| Ejector Cylinder Bore | 6.5 in (165.1 mm) |
| Ejector Cylinder Stroke | 61 in (1549.4 mm) |
| Secondary Steering Circuit | 37 gal/min |
| Apron Cylinder Bore | 7.3 in (184.2 mm) |
| Apron Cylinder Stroke | 24 in (609.6 mm) |
Scraper Bowl
| Width – Cut – To Router Bits | 119 in (3022.6 mm) |
| Rated Load | 48000 lb (21772.5 kg) |
| Capacity – Struck | 14 yd3 (10.8 m3) |
| Depth Of Cut – Maximum | 13.1 in (332.3 mm) |
| Ground Clearance – Maximum | 20.6 in (523.3 mm) |
| Cutting Edge Thickness | 1.2 in (29 mm) |
| Depth Of Spread – Maximum | 20.6 in (523.3 mm) |
| Scraper Capacity – Heaped | 20 yd3 (15.3 m3) |
| Hyd. Penetration Force – 621g | 48375 lb (21942.6 kg) |
| Apron Closure Force | 24075 lb (10920.3 kg) |
| Apron Opening | 70 in (1778 mm) |
Service Refill Capacities – Tractor
| Transmission | 19 gal (72 L) |
| Differential | 43 gal (162.8 L) |
| Final Drive – Each | 5 gal (19 L) |
| Cooling System | 22 gal (83.3 L) |
| Hydraulic Reservoir | 37 gal (140.1 L) |
| Crankcase | 9.5 gal (36 L) |
| Wheel Coolant – Each | 12 gal (45.5 L) |
Weights – Standard, Tandem
| Total Shipping | 83768 lb (37996.6 kg) |
| Tractor Shipping | 51098 lb (23177.7 kg) |
| Scraper Shipping | 32669 lb (14818.5 kg) |
| Total Operating – Empty | 84050 lb (38124.5 kg) |
| Front Axle | 49590 lb (22493.7 kg) |
| Rear Axle | 34460 lb (15630.8 kg) |
| Total Operating – Loaded | 132057 lb (59900.1 kg) |
| Front Axle Weight – Loaded | 64708 lb (29351.1 kg) |
| Rear Axle – Weight – Loaded | 67350 lb (30549.5 kg) |
