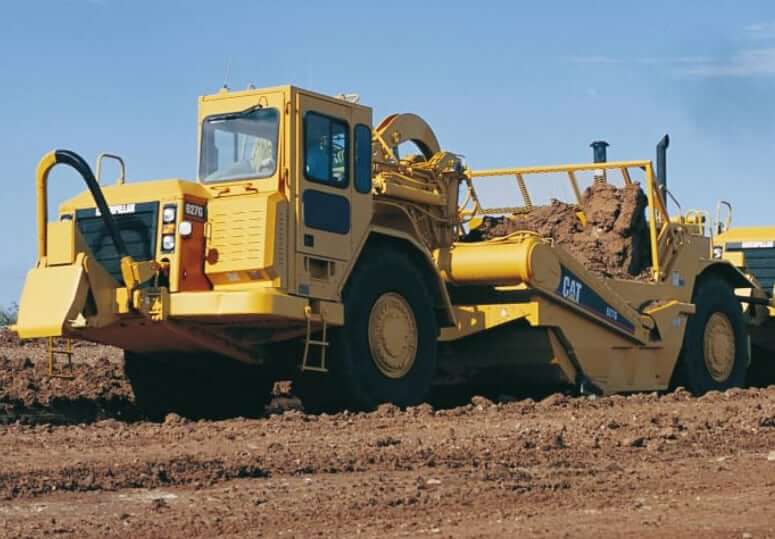

Dimensions
| Overall Length | 42.38 ft in (12917 mm) |
| Overall Width | 11.38 ft in (3467 mm) |
| Overall Height | 12.16 ft in (3705 mm) |
| Wheelbase | 25.33 ft in (7722 mm) |
| Tractor Ground Clearance | 1.81 ft in (553 mm) |
| Height To Top Of Cab | 11.23 ft in (3423 mm) |
| Height – Scraper Blade Maximum | 20.6 in (523.24 mm) |
| Height – Top Of Cab | 11.23 ft in (0.29 m) |
| Length – Overall Machine | 508.5 in (12915.9 mm) |
| Rear Axle – Rear Of Machine | 84.3 in (2141.22 mm) |
| Rim Radius | 17 in (431.8 mm) |
| Wheel Base | 25.34 ft in (0.65 m) |
| Width – Inside Of Bowl | 116 in (2946.4 mm) |
| Width – Outside Rear Tires | 120 in (3048 mm) |
| Width – Overall Machine | 136.5 in (3467.1 mm) |
| Width – Rear Tire Center Lines | 85.8 in (2179.33 mm) |
| Axle To Vertical Hitch Pin | 17 in (431.8 mm) |
| Width – Tractor | 123.25 in (3130.55 mm) |
| Bail Length – Maximum (Push-Pull) | 63.5 in (1612.9 mm) |
| Extended Push Block (Push-Pull) | 109.7 in (2786.38 mm) |
| Front Of Tractor To Front Axle | 120.4 in (3058.16 mm) |
| Ground Clearance – Tractor | 21.75 in (552.46 mm) |
| Height – Overall Shipping | 145.9 in (3705.86 mm) |

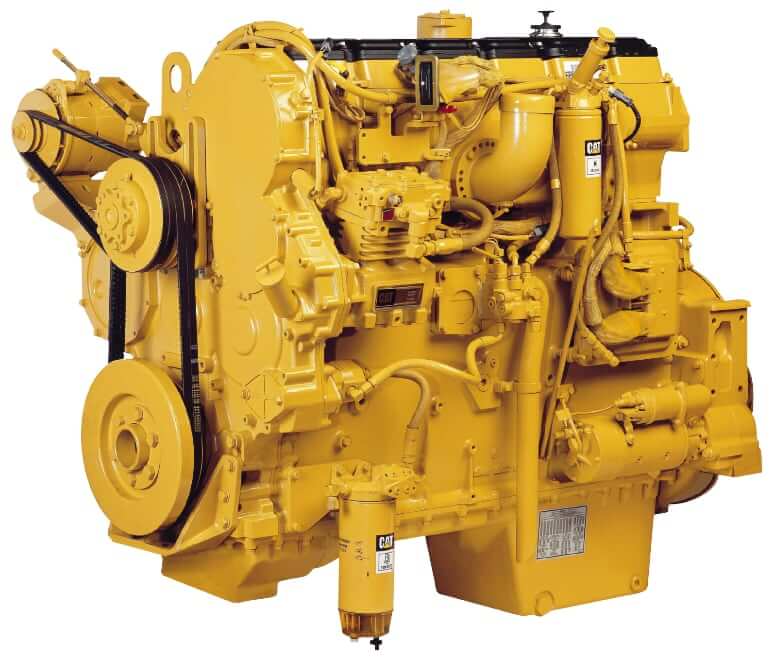

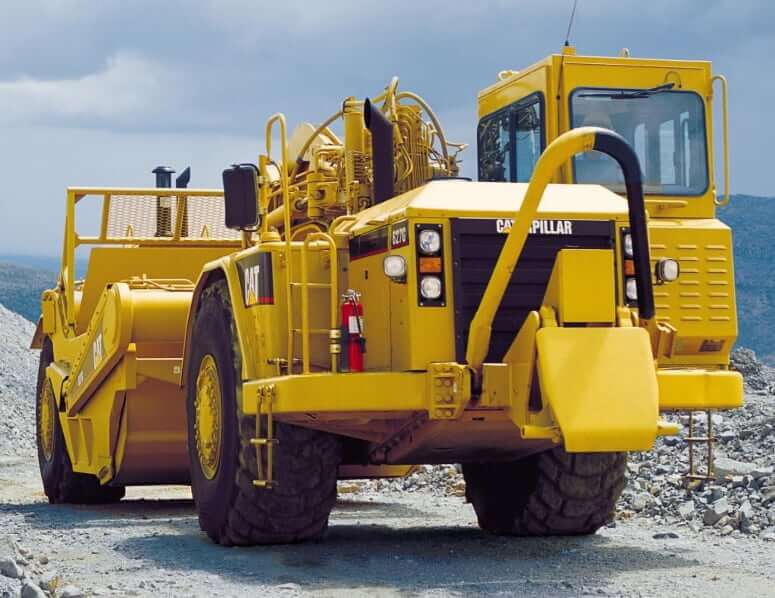

Tractor Engine
| Make | CAT |
| Model | C15 ACERT |
| Gross Power | 394 hp (294 kw) |
| Net Power | 365 hp (272 kw) |
| Displacement | 928 cu in (15.3 L) |
Engine Details
| Tractor Engine | Cat C15 ACERT |
Tractor Engine
| Net Power – Gears 1-2 | 330 hp (246.1 kw) |
| Gross Power – Gears 1-2 | 359 hp (267.8 kw) |
| Bore | 5.5 in (139.7 mm) |
| Stroke | 6.5 in (165.1 mm) |
| Net Power – Gears 3-8 | 365 hp (272.2 kw) |
| Gross Power – Gears 3-8 | 394 hp (293.9 kw) |
| Net Power – Tractor/Scraper | 246 kW (330 hp) / 178 kW (239 hp) |
Engine Details
| Scraper Engine | Cat C9 ACERT |
Scraper Engine
| Make | CAT |
| Model | C9 ACERT |
| Gross Power | 286 hp (213 kw) |
| Net Power | 266 hp (198 kw) |
| Displacement | 538 cu in (8.9 L) |
| Bore | 4.5 in (112.1 mm) |
| Stroke | 5.9 in (149.1 mm) |
| Net Power – Gear 1 | 239 hp (178.3 kw) |
| Net Power – Gears 2-4 | 266 hp (198.4 kw) |
| Gross Power – Gear 1 | 258 hp (192.4 kw) |
| Gross Power – Gears 2-4 | 286 hp (213.3 kw) |
Operational Specs
| Fuel Tank Capacity | 292 gal (1105 L) |
| Cooling System Fluid Capacity | 48.3 gal (184 L) |
| Engine Oil Fluid Capacity | 16.5 gal (66 L) |
| Transmission Fluid Capacity | 34.6 gal (131 L) |
| Differential Fluid Capacity | 42 gal (159 L) |
| Hydraulic System Fluid Capacity | 37 gal (140 L) |
| Wheel Coolant Fluid Capacity – Each | 24 gal (90 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 75 amps |
| Tire Size | 33.25-R29 |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 8 |
| Number Of Reverse Gears | 1 |
| Max Speed Forward | 32 mph (51.5 km/h) |
| Max Speed Reverse | 5.7 mph (9.2 km/h) |
| Reverse | 5.7 mile/h |
Steering
| Width – 180 Degrees Turn | 35.9 ft in (11 m) |
| Steering Angle – Right | 90 degrees |
| Steering Angle – Left | 85 degrees |
| Hydraulic Output | 55 gal/min |
Transmission
| 1 Forward | 3.1 mph (5 km/h) |
| 2 Forward | 4.7 mph (7.6 km/h) |
| 3 Forward | 6.8 mph (11 km/h) |
| 4 Forward | 9.2 mph (14.9 km/h) |
| 5 Forward | 12.4 mph (20 km/h) |
| 6 Forward | 16.7 mph (26.9 km/h) |
| 7 Forward | 22.6 mph (36.4 km/h) |
| 8 Forward | 32 mph (51.5 km/h) |
| Travel Speed – Maximum | 32 mph (51.5 km/h) |
Weights
| Total Operating – Empty | 86800 lb (39372 kg) |
| Operating Weight | 136905 lb (62099.1 kg) |
| Front Axle – Empty | 52080 % |
| Rear Axle – Empty | 34720 % |
| Total Operating – Loaded | 139601 lb (63332 kg) |
| Front Axel – Loaded | 68405 lb (31028 kg) |
| Rear Axle – Loaded | 71197 % |
Bowl
| Rated Payload | 52800 lb (23950 kg) |
| Heaped Capacity | 22 yd3 (17 m3) |
| Struck Capacity | 15.7 yd3 (12 m3) |
| Max Depth Of Cut | 13.1 in (333 mm) |
| Width Of Cut | 10 ft in (3023 mm) |
Hydraulics
| Bowl Cylinder Bore | 6 in (152.4 mm) |
| Bowl Cylinder Stroke | 32 in (812.8 mm) |
| Steering Circuit | 55 gal/min |
| Scraper Circuit | 65.5 gal/min |
| Cushion Hitch Circuit | 9.8 gal/min |
| Relief Valve – Steering Circuit | 2250 psi |
| Relief Valve – Implement Circuit | 2175 psi |
| Ejector Cylinder Bore | 6.5 in (165.1 mm) |
| Ejector Cylinder Stroke | 61 in (1549.4 mm) |
| Secondary Steering Circuit | 39.9 gal/min |
| Apron Cylinder Bore | 7.3 in (184.2 mm) |
| Apron Cylinder Stroke | 23.5 in (596.9 mm) |
Scraper Bowl
| Capacity Heaped | 22 yd3 (16.9 m3) |
| Width – Cut – To Router Bits | 119 in (3022.6 mm) |
| Rated Load | 52800 lb (23949.7 kg) |
| Capacity – Struck | 15.7 yd3 (12.1 m3) |
| Depth Of Cut – Maximum | 13.1 in (332.8 mm) |
| Ground Clearance – Maximum | 20.6 in (523.3 mm) |
| Cutting Edge Thickness | 0.9 in (22.4 mm) |
| Depth Of Spread – Maximum | 20.6 in (523.3 mm) |
| Apron Closure Force | 24075 lb (10920.3 kg) |
| Apron Opening | 70 in (1778 mm) |
| Hyd. Penetration Force – 627g | 48375 lb (21942.6 kg) |
Service Refill Capacities – Scraper
| Transmission | 15.6 gal (59.1 L) |
| Differential | 4 gal (15.2 L) |
| Final Drive – Each | 5 gal (19 L) |
| Cooling System | 20.3 gal (76.9 L) |
| Fuel Tank – 627g | 292 gal (1105.4 L) |
| Crankcase | 7 gal (26.5 L) |
| Wheel Coolant – Each | 12 gal (45.5 L) |
Service Refill Capacities – Tractor
| Transmission | 19 gal (72 L) |
| Differential | 38 gal (143.9 L) |
| Final Drive – Each | 5 gal (19 L) |
| Cooling System | 28 gal (106 L) |
| Hydraulic Reservoir | 37 gal (140.1 L) |
| Crankcase | 9.5 gal (36 L) |
| Wheel Coolant – Each | 12 gal (45.5 L) |
| Windshield Washer | 1.5 gal (5.7 L) |
Weights – Standard, Tandem
| Total Shipping | 82113 lb (37245.9 kg) |
| Tractor Shipping | 48447 lb (21975.2 kg) |
| Scraper Shipping | 33666 lb (15270.7 kg) |
| Total Operating – Empty | 83441 lb (37848.3 kg) |
| Front Axle | 49230 lb (22330.4 kg) |
| Rear Axle | 34211 lb (15517.9 kg) |
| Total Operating – Loaded | 136241 lb (61797.9 kg) |
| Front Axle Weight – Loaded | 65396 lb (29663.2 kg) |
| Rear Axle – Weight – Loaded | 70845 lb (32134.8 kg) |
Weights – Push-Pull
| Total Shipping | 85473 lb (38770 kg) |
| Tractor Shipping | 52139 lb (23649.9 kg) |
| Scraper Shipping | 33335 lb (15120.6 kg) |
| Total Operating – Empty | 86800 lb (39371.9 kg) |
| Front Axle | 52080 lb (23623.1 kg) |
| Rear Axle | 34720 lb (15748.8 kg) |
| Total Operating – Loaded | 139601 lb (63322 kg) |
| Front Axle – Loaded | 68405 lb (31028 kg) |
| Rear Axle – Loaded | 71197 lb (32294.5 kg) |
