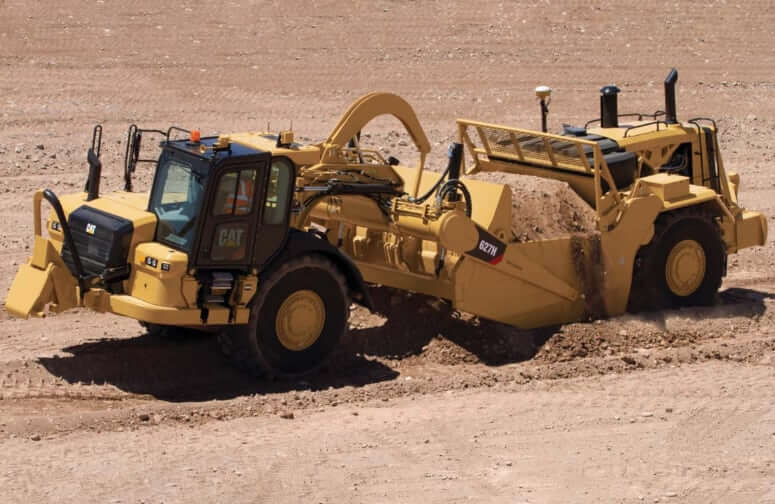

Tractor Engine
| Make | CAT |
| Model | C13 ACERT |
| Gross Power | 407 hp (303.5 kw) |
| Power Measured @ | 1700 rpm |
| Displacement | 763 cu in (12.6 L) |
Engine Details
| Tractor | Cat C13 ACERT |
Tractor Engine
| Flywheel Power – Tractor/Scraper | 304 kW (407 hp)/216 kW (290 hp) |
Engine Details
| Scraper | Cat C9.3 ACERT |
Tractor Engine
| Maximum Power | 407 hp (303.5 kw) |
Scraper Engine
| Make | CAT |
| Model | C9.3 ACERT |
| Gross Power | 290 hp (216.3 kw) |
| Maximum Power | 290 hp (216.3 kw) |
Operational Specs
| Fuel Tank Capacity | 336 gal (1271.9 L) |
| Cooling System Fluid Capacity | 19 gal (72 L) |
| Engine Oil Fluid Capacity | 7.5 gal (28.4 L) |
| Transmission Fluid Capacity | 13 gal (49.3 L) |
| Differential Fluid Capacity | 14 gal (53 L) |
Transmission
| Number Of Forward Gears | 8 |
| Number Of Reverse Gears | 1 |
| Max Speed Forward | 33.5 mph (54 km/h) |
| Max Speed Reverse | 5.7 mph (9.2 km/h) |
| Reverse | 5.7 mile/h |
Steering
| Steering Angle – Right | 85 |
| Steering Angle – Left | 82 |
Transmission
| 1 Forward | 3.1 mph (5 km/h) |
| 2 Forward | 5.5 mph (8.9 km/h) |
| 3 Forward | 7.5 mph (12.1 km/h) |
| 4 Forward | 10.1 mph (16.3 km/h) |
| 5 Forward | 13.6 mph (21.9 km/h) |
| 6 Forward | 18.4 mph (29.7 km/h) |
| 7 Forward | 24.8 mph (40 km/h) |
| 8 Forward | 33.5 mph (54 km/h) |
| Top Speed – Loaded | 33.5 mph (54 km/h) |
Bowl
| Heaped Capacity | 24 yd3 (18.4 m3) |
| Struck Capacity | 17.1 yd3 (13.1 m3) |
| Max Depth Of Cut | 12.4 in (315 mm) |
| Width Of Cut | 123.5 ft in (37642.8 mm) |
Standards
| Standards | Standards |
Hydraulics
| Bowl Cylinder Bore | 5.5 in (139.7 mm) |
| Bowl Cylinder Stroke | 33.3 in (845.9 mm) |
| Ejector Cylinder Bore | 5.5 in (139.7 mm) |
| Ejector Cylinder Stroke | 61 in (1549.4 mm) |
| Steering Circuit Flow | 61.8 gal/min |
| Secondary Steering Circuit Flow | 10.3 gal/min |
| Scraper Circuit Flow | 66 gal/min |
| Cushion Hitch Circuit Flow | 10.6 gal/min |
| Apron Cylinder Bore | 5.9 in (149.9 mm) |
| Apron Cylinder Stroke | 22.2 in (563.9 mm) |
| Push/Pull Bail Cylinder Bore | 3.5 in (88.9 mm) |
| Push/Pull Bail Cylinder Stroke | 16.3 in (414.1 mm) |
Scraper Bowl
| Rated Load | 57600 lb (26127 kg) |
| Scraper Capacity – Heaped | 24 yd3 (18.4 m3) |
| Heaped Capacity | 24 yd3 (18.4 m3) |
| Struck Capacity | 17.1 yd3 (13.1 m3) |
| Maximum Depth Of Cut | 12.4 in (315 mm) |
| Width – Cut – Outside Router Bits | 123.5 in (3136.9 mm) |
| Maximum Ground Clearance At Cutting Edge | 23.4 in (594.4 mm) |
| Thickness – Cutting Edge | 0.9 in (22.9 mm) |
| Maximum Hydraulic Penetration Force | 130390 lb (59144 kg) |
| Maximum Depth Of Spread | 21.3 in (541.1 mm) |
| Maximum Apron Opening | 69.6 in (1767.9 mm) |
| Maximum Apron Closure Force | 50580 lb (22942.8 kg) |
Service Refill Capacities – Scraper
| Fuel Tank Capacity | 336 gal (1271.9 L) |
| Transmission | 13 gal (49.3 L) |
| Differential | 14 gal (53 L) |
| Final Drive – Each | 5 gal (19 L) |
| Cooling System | 19 gal (72 L) |
| Engine Crankcase | 7.5 gal (28.4 L) |
Service Refill Capacities – Tractor
| Engine Crankcase | 8.8 gal (33.2 L) |
| Transmission | 18.5 gal (70.1 L) |
| Differential | 45.8 gal (173.4 L) |
| Final Drive – Each | 5 gal (19 L) |
| Cooling System | 17 gal (64.4 L) |
| Hydraulic Reservoir | 22 gal (83.3 L) |
| Windshield Washer Reservoir | 1.3 gal (5 L) |
Tractor Engine – Prior U.S. Epa Tier 3/Eu Stage Iiia Configuration*
| Tractor Engine | Cat C13 ACERT |
| Maximum Power – All Gears – Iso 14396 | 407 hp (303.5 kw) |
| Maximum Power Reference Engine Speed | 1700 rpm |
| Displacement | 763 cu in (12.6 L) |
| Bore | 5.1 in (129.6 mm) |
| Stroke | 6.2 in (157.5 mm) |
Tractor Engine – U.S. Epa Tier 4 Interim/Eu Stage Iiib
| Tractor Engine | Cat C13 ACERT |
| Maximum Power – All Gears – Iso 14396 | 407 hp (303.5 kw) |
| Maximum Power Reference Engine Speed | 1700 rpm |
| Displacement | 763 cu in (12.6 L) |
| Bore | 5.1 in (129.6 mm) |
| Stroke | 6.2 in (157.5 mm) |
Weights – Machines Achieving Prior U.S. Epa Tier 3/Eu Stage Iiia Emission Levels
| Standard – Shipping Weight – 10% Fuel | 87052 lb (39486.2 kg) |
| Standard – Operating Weight – Full Fuel Tanks | 89287 lb (40500 kg) |
| Standard – Loaded, Based On A Rated Load | 146887 lb (66626.9 kg) |
| Push-Pull – Shipping Weight – 10% Fuel | 89818 lb (40740.8 kg) |
| Push-Pull – Operating Weight – Full Fuel Tanks | 91981 lb (41721.9 kg) |
| Push-Pull – Loaded – Based On A Rated Load | 149654 lb (67882 kg) |
Weights – Machines Meeting U.S. Epa Tier 4 Interim/Eu Stage Iiib Emission Standards
| Standard – Shipping Weight – 10% Fuel | 87962 lb (39898.9 kg) |
| Standard – Operating Weight – Full Fuel Tanks | 90198 lb (40913.2 kg) |
| Standard – Loaded, Based On A Rated Load | 147798 lb (67040.1 kg) |
| Push-Pull – Shipping Weight – 10% Fuel | 90729 lb (41154 kg) |
| Push-Pull – Operating Weight – Full Fuel Tanks | 92964 lb (42167.8 kg) |
| Push-Pull – Loaded – Based On A Rated Load | 150565 lb (68295.2 kg) |
Scraper Engine – Prior U.S. Epa Tier 3/Eu Stage Iiia Configuration*
| Tractor Engine | Cat C9 ACERT |
| Maximum Power – All Gears – Iso 14396 | 290 hp (216.3 kw) |
| Maximum Power Reference Engine Speed | 1900 rpm |
| Displacement | 567 cu in (9.3 L) |
| Bore | 4.5 in (114.3 mm) |
| Stroke | 5.9 in (149.9 mm) |
Scraper Engine – U.S. Epa Tier 4 Interim/Eu Stage Iiib
| Tractor Engine | Cat C9.3 ACERT |
| Maximum Power – All Gears – Iso 14396 | 290 hp (216.3 kw) |
| Maximum Power Reference Engine Speed | 1900 rpm |
| Displacement | 567 cu in (9.3 L) |
| Bore | 4.5 in (114.3 mm) |
| Stroke | 5.9 in (149.9 mm) |
