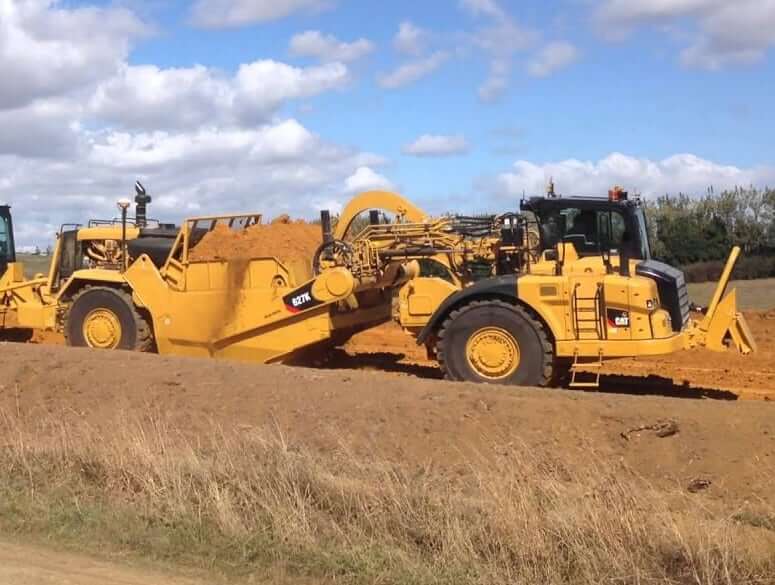

Dimensions
| Rear Axle – Rear Of Machine | 114.1 in (2898.14 mm) |
| Axle To Vertical Hitch Pin | 21.3 in (541.02 mm) |
| Front Of Tractor To Front Axle | 122.8 in (3119.12 mm) |
| Width – Tractor | 133.1 in (3380.74 mm) |
| Ground Clearance – Tractor | 21.9 in (556.26 mm) |
| Height – Overall Shipping | 158.6 in (4028.44 mm) |
| Height – Scraper Blade Maximum | 20.5 in (520.71 mm) |
| Height – Top Of Cab | 11.89 ft in (0.31 m) |
| Length – Maximum (Push-Pull) | 613.21 in (15575.28 mm) |
| Length – Overall Machine – Standard | 551.8 in (14015.72 mm) |
| Width – Rear Tire Centers | 90.2 in (2291.08 mm) |
| Width – Overall Machine – Ladder Down | 149.2 in (3789.68 mm) |
| Width – Overall Machine | 141.1 in (3583.94 mm) |
| Width – Outside Rear Tires | 128.9 in (3274.06 mm) |
| Width – Inside Of Bowl | 120 in (3048 mm) |
| Wheel Base | 26.25 ft in (0.67 m) |
General
| Overall Width | 11.71 ft in (3.57 m) |
| Fuel Tank Refill Capacity – Scraper | 336 gal (1271.9 L) |
| Scraper Capacity – Heaped | 24 yd3 (18.35 m3) |
| Scraper Capacity – Struck | 17.11 yd3 (13.08 m3) |
| Tires – Scraper | 33.25R29**E3 |
| Tires – Tractor Drive | 33.25R29**E3 |
| Top Speed – Loaded | 33.5 mph (53.92 km/h) |
| 180 Degrees Curb-To-Curb Turning Width | 38.71 ft in (11.8 m) |
| Width – Cut | 10.3 ft in (3.14 m) |
| Overall Shipping Height | 13.22 ft in (4.03 m) |
| Maximum Depth Of Cut | 12.4 in (314.96 mm) |
| Rated Load | 26 127 kg (57,610 lb); 26.19 tonnes (28.81 tons) |
| Maximum Depth Of Spread | 21.3 in (541.02 mm) |
Non Push-Pull
| Overall Length | 45.9 ft in (14 m) |
| Operating Weight – Empty | 90213 lb (40919.94 kg) |
Engine Details
| Note | Cat C9.3 ACERT and Cat C13 ACERT engines meet U.S. Environmental Protection Agency (EPA) Tier 4 Final/EU Stage IV engine emission standards. |
| Flywheel Power – Tractor | 407 hp (303.5 kw) |
| Engine Model – Tractor | Cat C13 ACERT |
| Rated Engine Rpm – Tractor | 2000 rpm |
Tractor Engine
| Flywheel Power – Tractor/Scraper | 304 kW (407 hp)/216 kW (290 hp) |
Engine Details
| Engine Model – Scraper | Cat C9.3 ACERT |
| Rated Engine Rpm – Scraper | 2150 rpm |
| Flywheel Power – Scraper | 290 hp (216.3 kw) |
Transmission
| Top Speed – Loaded | 33.5 mph (54 km/h) |
Service Refill Capacities
| Fuel Tank Capacity | 336.1 gal (1272.1 L) |
| Hydraulic System | 22 gal (83 L) |
| Crankcase – Tractor | 8.1 gal (30.6 L) |
| Crankcase – Scraper | 7.4 gal (28.1 L) |
| Transmission System – Tractor | 24.8 gal (93.8 L) |
| Transmission System – Scraper | 13 gal (49 L) |
| Cooling System – Tractor | 11.9 gal (45.1 L) |
| Cooling System – Scraper | 16.2 gal (61 L) |
| Diesel Exhaust Fluid – Tractor | 8.1 gal (30.5 L) |
| Diesel Exhaust Fluid – Scraper | 5.6 gal (21.1 L) |
Cab
| Rops/Fops | Meets SAE and ISO standards |
| Exterior Sound Level | The exterior sound power level for the standard machine (ISO 6393) is 116 dB(A). |
Scraper Bowl
| Scraper Capacity – Heaped | 24 yd3 (18.4 m3) |
Implement Cycle Times
| Bowl Raise | 3 s |
| Bowl Lower | 3.5 s |
| Ejector Extend | 5.2 s |
| Ejector Retract | 6.7 s |
| Apron Raise | 2.95 s |
| Apron Lower | 3.8 s |
| Bail Raise | 1.8 s |
| Bail Lower | 3.2 s |
Safety Criteria Compliance Standards
| Rollover Protection Structure (Rops) | ISO 3471:2008 for up to 17 084 kg (37,664 lb) |
| Falling Object Protective Structure (Fops) | ISO 3449:2005 Level II |
| Brakes | ISO 3450:1996 |
| Steering System | ISO 5010:2007 |
| Seat Belt | SAE J386:JUN1985 |
| Reverse Alarm | ISO 9533:2010 |
Travel Speeds – Runout
| Transmission Gear – First | 3.1 mph (5 km/h) |
| Transmission Gear – Second | 5.5 mph (8.9 km/h) |
| Transmission Gear – Third | 7.5 mph (12.1 km/h) |
| Transmission Gear – Fourth | 10.1 mph (16.3 km/h) |
| Transmission Gear – Fifth | 13.6 mph (21.9 km/h) |
| Transmission Gear – Sixth | 18.4 mph (29.7 km/h) |
| Transmission Gear – Seventh | 24.8 mph (40 km/h) |
| Transmission Gear – Eighth | 33.5 mph (54 km/h) |
| Transmission Gear – Reverse | 5.7 mph (9.2 km/h) |
Push-Pull
| Operating Weight – Empty | 92980 lb (42175.1 kg) |
| Overall Length – With Bail Down | 51.1 ft in (15.6 m) |
