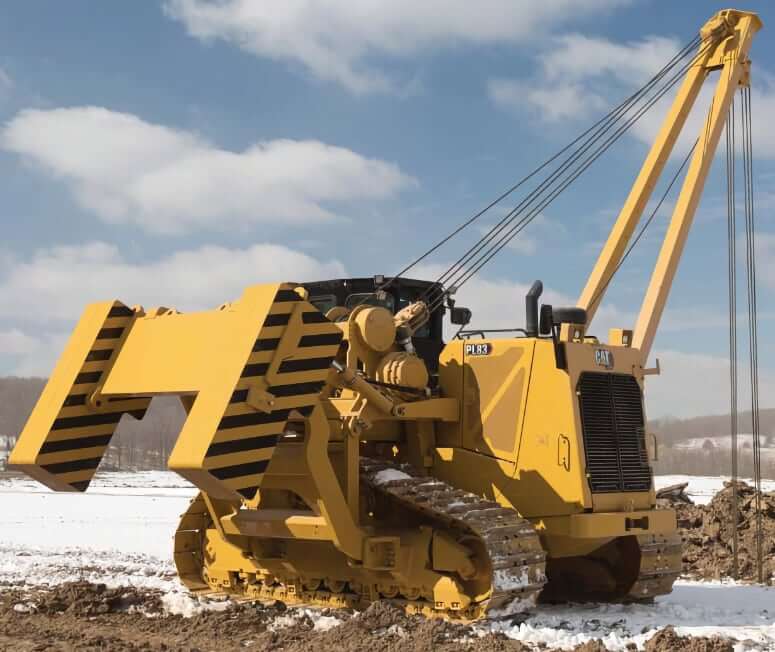

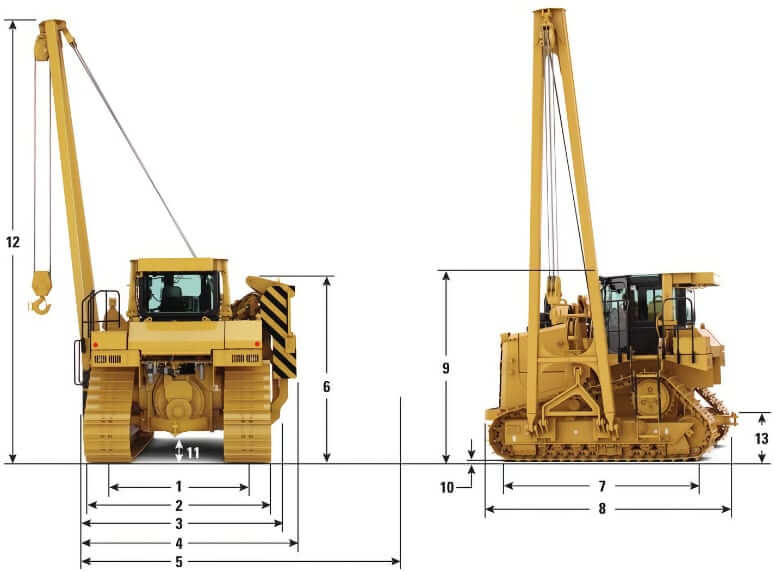

Dimensions (Approximate)
| Track Gauge | 7.7 ft in (2.35 m) |
| Boom Height (At Sae 1.22 M [4 Ft] Overhang) 8.53 M (28 Ft) Boom | 30.3 ft in (9.24 m) |
| Drawbar – Height | 1.4 ft in (0.43 m) |
| Ground Clearance – Sae J1234 | 1.6 ft in (0.49 m) |
| Boom Height (At Sae 1.22 M [4 Ft] Overhang) 7.31 M (24 Ft) Boom | 26.3 ft in (8.02 m) |
| Grouser Height | 3.1 in (78.74 mm) |
| Height – Machine – Cab And Rops | 11.6 ft in (3.54 m) |
| Length – Track On Ground | 12.2 ft in (3.72 m) |
| Machine Height – Top Of Counterweight | 11.2 ft in (3.42 m) |
| Operating Length | 17.9 ft in (5.46 m) |
| Width – Tractor – Counterweight Extended | 19.9 ft in (6.07 m) |
| Width – Tractor – Counterweight Retracted | 13.5 ft in (4.12 m) |
| Width – Tractor – Counterweight/Boom Removed | 12.7 ft in (3.88 m) |
| Width – Tractor – Standard Shoes | 10.7 ft in (3.27 m) |
Undercarriage
| Track Gauge | 7.67 ft in (2336.81 mm) |
| Width – Standard Shoes | 30 in (762 mm) |
| Shoe Type | Moderate Service |
| Length – Track On Ground | 12.2 ft in (3.72 m) |
| Ground Contact Area | 8215 in |
| Number Of Carrier Rollers – Each Side | 1 |
| Number Of Rollers – Each Side | 9 |
| Grouser Height | 3 in (76.2 mm) |
| Number Of Shoes – Each Side | 48 |
Engine Details
| Emissions | U.S. EPA Tier 4 Final/EU Stage IV |
| Engine Model | Cat C15 ACERT |
| Flywheel Power | 319 hp (237.9 kw) |
| Note (1) | *Maximum speed 1,700 rpm |
| Note (2) | **Rated speed 1,900 rpm |
| Note (3) | ***Maximum speed 1,600 rpm |
| Note (4) | ****Rated speed 1,850 rpm |
| U.S. Epa Tier 3/Eu Stage Iiia Equivalent – Net Power – Iso 9249 | 329 hp (245.4 kw) |
| Tier 4 Final/Stage Iv: Engine Power (Maximum*) – Sae J1995 | 363 hp (270.7 kw) |
| Tier 4 Final/Stage Iv: Bore | 5.4 in (137.2 mm) |
| U.S. Epa Tier 4 Final/Eu Stage Iv – Net Power – Iso 9249 | 319 hp (237.9 kw) |
| Tier 4 Final/Stage Iv: Net Power (Rated**) – Iso 9249/Sae J1349 (Din) | 323 hp (240.9 kw) |
| Tier 4 Final/Stage Iv: Stroke | 6.8 in (171.5 mm) |
| Tier 4 Final/Stage Iv: Engine Power (Maximum*) – Iso 14396 (Din) | 364 hp (271.5 kw) |
| Tier 4 Final/Stage Iv: Net Power (Rated**) – Iso 9249/Sae J1349 | 319 hp (237.9 kw) |
| Tier 4 Final/Stage Iv: Engine Power (Maximum*) – Iso 14396 | 359 hp (267.8 kw) |
| Tier 4 Final/Stage Iv: Displacement | 928 cu in (15.3 L) |
| Tier 4 Final/Stage Iv: Net Power (Maximum*) – Iso 9249/Sae J1349 | 345 hp (257.3 kw) |
| Tier 4 Final/Stage Iv: Net Power (Maximum*) – Iso 9249/Sae J1349 Din | 350 hp (261 kw) |
| Tier 3/Stage Iiia Equivalent: Engine Power (Maximum***) – Sae J1995 | 366 hp (273 kw) |
| Tier 3/Stage Iiia Equivalent: Engine Power (Maximum***) – Iso 14396 | 361 hp (269.2 kw) |
| Tier 3/Stage Iiia Equivalent: Engine Power (Maximum***) – Iso 14396 (Din) | 366 hp (273 kw) |
| Tier 3/Stage Iiia Equivalent: Net Power (Rated****) – Iso 9249/Sae J1349 | 329 hp (245.4 kw) |
| Tier 3/Stage Iiia Equivalent: Net Power (Rated****) – Iso 9249/Sae J1349 (Din) | 333 hp (248.4 kw) |
| Tier 3/Stage Iiia Equivalent: Net Power (Maximum***) – Iso 9249/Sae J1349 | 343 hp (255.8 kw) |
| Tier 3/Stage Iiia Equivalent: Net Power (Maximum***) – Iso 9249/Sae J1349 Din | 347 hp (258.8 kw) |
| Tier 3/Stage Iiia Equivalent: Bore | 5.4 in (137.2 mm) |
| Tier 3/Stage Iiia Equivalent: Stroke | 6.8 in (171.5 mm) |
| Tier 3/Stage Iiia Equivalent: Displacement | 928 cu in (15.3 L) |
Operational Specs
| Operating Weight | 111316 lb (50492.1 kg) |
Transmission
| 1 Forward | 2.1 mph (3.4 km/h) |
| 2 Forward | 3.8 mph (6.2 km/h) |
| 3 Forward | 6.6 mph (10.7 km/h) |
| 1 Reverse | 2.8 mph (4.6 km/h) |
| 2 Reverse | 5 mph (8.1 km/h) |
| 3 Reverse | 8.8 mph (14.2 km/h) |
| Drawbar Pull – 1 Forward | 148 lb ft (200.7 Nm) |
| Drawbar Pull – 2 Forward | 81 lb ft (109.9 Nm) |
| Drawbar Pull – 3 Forward | 44 lb ft (59.7 Nm) |
Weights
| Shipping Weight | 85880 lb (38954.6 kg) |
Hydraulic System
| Implement Pump Output – Maximum – Closed Loop | 83.8 gal/min |
| Steering Pump Output – Closed Loop | 86.7 gal/min |
| Counterweights – Gear | 34.3 gal/min |
| Variable Charge Pump Output – Maximum – Open Loop | 62.6 gal/min |
| Fan Pump | 35.7 gal/min |
Operating Specifications
| Lift Capacity At Tipping Point – Iso 8813 | 170000 lb (77110.8 kg) |
Standards
| Brakes | Brakes meet the International Standard ISO 10265:2008 |
| Rops | ROPS (Rollover Protection Structure) meets the International Standard ISO 3471:2008 |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.5 kg of refrigerant which has a CO2 equivalent of 3.575 metric tonnes. |
Pipelaying Equipment
| Lift Capacity | 170000 lb (77110.8 kg) |
Components
| Removable Counterweight (12 Plates) Single Plate | 1603 lb (727.2 kg) |
| Total Removable Counterweight* | 19233 lb (8724 kg) |
| Upper Boom Block | 246 lb (111.6 kg) |
| Lower Boom Block | 246 lb (111.6 kg) |
| Load Block | 350 lb (158.8 kg) |
| Hook Block | 387 lb (175.6 kg) |
| Standard Boom | 3148 lb (1428 kg) |
| Extended Boom | 3458 lb (1568.6 kg) |
| Note | *Calculated with extended boom |
Lift Capacity
| Lift Capacity At Tipping Point – Iso 8813 | 170000 lb (77110.8 kg) |
Pipelayer Equipment
| Pullmaster Hydraulic Winches – Boom: Wire Rope Diameter | 0.8 in (19.1 mm) |
| Pullmaster Hydraulic Winches – Boom: Boom And Cables, 7.3 M (24 Ft) Extended | 242.8 ft in (74.1 m) |
| Pullmaster Hydraulic Winches – Boom: Boom And Cables, 7.3 M (24 Ft) | 180.5 ft in (55.1 m) |
| Pullmaster Hydraulic Winches – Hook: Boom And Cables, 7.3 M (24 Ft) | 242.8 ft in (74.1 m) |
| Pullmaster Hydraulic Winches – Hook: Boom And Cables, 8.53 M (28 Ft) | 282.8 ft in (86.2 m) |
| Pullmaster Hydraulic Winches – Hook: Boom And Cables, 7.3 M (24 Ft) Extended | 242.8 ft in (74.1 m) |
| Pullmaster Hydraulic Winches – Boom: Boom And Cables, 8.53 M (28 Ft) Extended | 282.8 ft in (86.2 m) |
| Pullmaster Hydraulic Winches – Boom: Drum Diameter | 10 in (254 mm) |
| Pullmaster Hydraulic Winches – Boom: Flange Diameter | 20 in (508 mm) |
| Pullmaster Hydraulic Winches – Boom: Drum Length | 14 in (355.6 mm) |
| Pullmaster Hydraulic Winches – Boom: Boom And Cables, 8.53 M (28 Ft) | 205 ft in (62.5 m) |
| Pullmaster Hydraulic Winches – Hook: Boom And Cables, 8.53 M (28 Ft) Extended | 282.8 ft in (86.2 m) |
| Pullmaster Hydraulic Winches – Hook: Drum Diameter | 10 in (254 mm) |
| Pullmaster Hydraulic Winches – Hook: Flange Diameter | 20 in (508 mm) |
| Pullmaster Hydraulic Winches – Hook: Drum Length | 14 in (355.6 mm) |
| Pullmaster Hydraulic Winches – Hook: Wire Rope Diameter | 0.8 in (19.1 mm) |
| Pullmaster Hydraulic Winches – Hook: Hook Speed – Raise (6 Part Line) | 72 ft/min |
Service Capacities
| Cooling System | 20.3 gal (76.9 L) |
| Hydraulic Tank Oil | 26.4 gal (100 L) |
| Engine Crankcase – With Filter | 11.4 gal (43.2 L) |
| Final Drive – Each | 3.4 gal (12.9 L) |
| Power Train Oil System | 50.2 gal (190.1 L) |
| Fuel Tank Capacity | 109.6 gal (414.9 L) |
| Diesel Engine Fluid (Def)* | 4.5 gal (17.1 L) |
| Recoil Spring Compartment | 19.5 gal (73.9 L) |
| Winch Case – Boom | 3 gal (11.4 L) |
| Winch Case – Hook | 4 gal (15.2 L) |
| Note | *Tier 4 Final/Stage IV models only |
