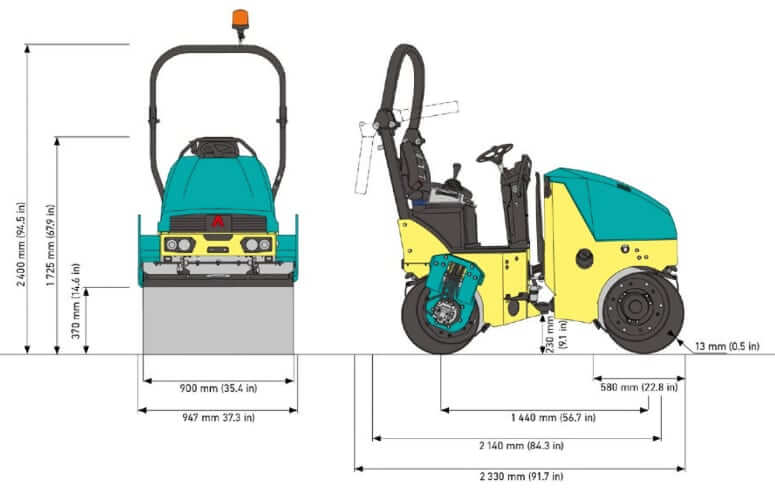

Dimensions
| Overall Length | 91.7 in (2330 mm) |
| Overall Width | 37.3 in (947 mm) |
| Overall Height (with ROPS) | 94.5 in (2400 mm) |
| Height (folded ROPS) | 67.9 in (1725 mm) |
| Wheelbase | 56.7 in (1440 mm) |
| Ground Clearance | 9.1 in (230 mm) |
| Curb Clearance | 14.6 in (370 mm) |
| Turning Radius (Inner) | 83.9 in (2130 mm) |
| Gradeability Without Vibration | 35% |
| Gradeability With Vibration | 30% |
Drum
| Drum Width | 35.4 in (900 mm) |
| Drum Diameter | 22.8 in (580 mm) |
| Drum Thickness | 0.5 in (13 mm) |
| Drum Offset | 1.9 in (48 mm) |
| Steering Angle | ±30° |
| Oscillation Angle | ±6° |
| Vibration Frequency 1 | 3600 vpm (60 Hz) |
| Vibratory Frequency 2 | 4200 vpm (70 Hz) |
| Nominal Amplitude 1 | 0.02 in (0.5 mm) |
| Nominal Amplitude 2 | 0.02 in (0.5 mm) |
| Centrifugal Force 1 | 4496 lbf (20 kN) |
| Centrifugal Force 2 | 5171 lbf (23 kN) |

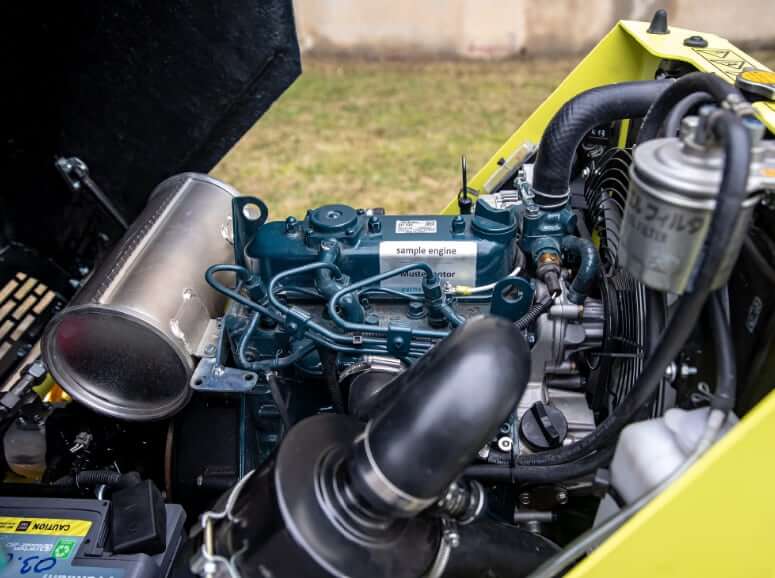

Engine Details
| Number of Cylinders | 3 |
| Engine Make | Kubota |
| Engine Model | Kubota D1105 |
| Displacement | 68.53 cu in (1.1 L) |
| Rated Power | 21.2 hp (15.6 kw) |
| Power Measured @ | 3000 rpm |
| Peak Torque | 52.7 lb ft (71.5 Nm) |
| Torque Measured @ | 2200 rpm |
| Aspiration | Naturally aspirated |
| Emission Standards | EU Stage V / U.S. EPA Tier 4 Final |
Weight
| Operating Weight CECE | 3329 lb (1510 kg) |
| Max Operating Weight | 3649 lb (1655 kg) |
| Static Linear Load (Average) | 47.3 lb/in (8.45 kg/cm) |
| Static Linear Load of Front Drum | 44 lb/in (7.8 kg/cm) |
| Static Linear Load of Rear Drum | 50 lb/in (9.0 kg/cm) |
Operational Specs
| Type Of Watering | Pressure |
| Operating Brakes | Hydrostatic |
| Parking Brakes | Multiple-Disc Spring Brake |
| Emergency Brakes | Multiple-Disc Spring Brake |
| Operating Voltage | 12 V |
| Battery | 12 V, 77 Ah |
| Max Operating Speed | 5 mph (8 km/h) |
Service Refill Capacities
| Fuel Tank Capacity | 6.3 gal (24 L) |
| Water Tank Capacity | 29.1 gal (110 L) |
| Hydraulic Tank Capacity | 7.5 gal (28.5 L) |
Max Recommended Compacted Layer Thickness
| Sand / Gravel | 7.9 in (200 mm) |
| Mixed Soils | 5.9 in (150 mm) |
| Stabilisation | 3.9 in (100 mm) |
| Asphalt | 3.1 in (80 mm) |
