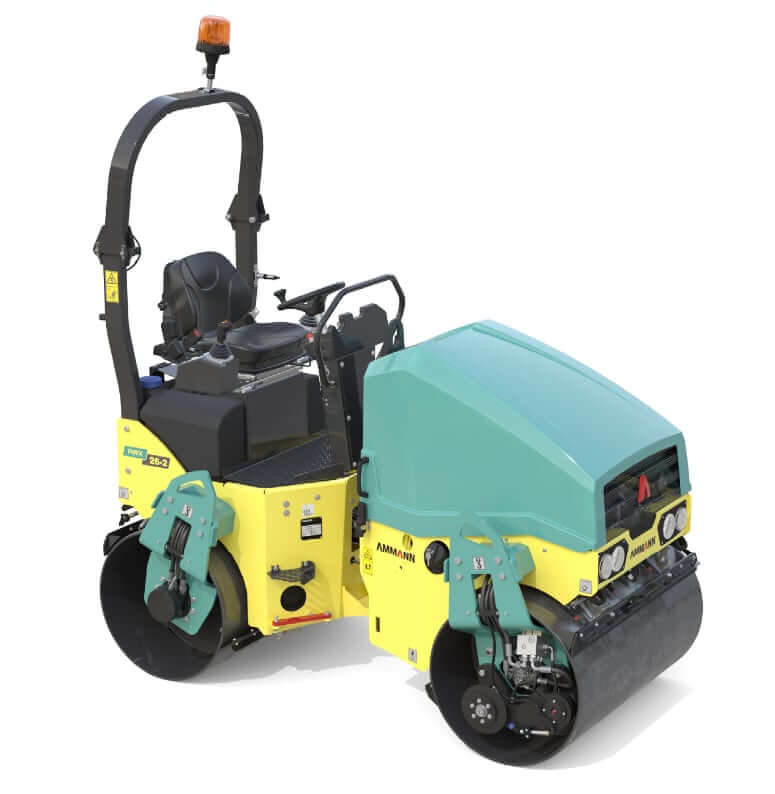

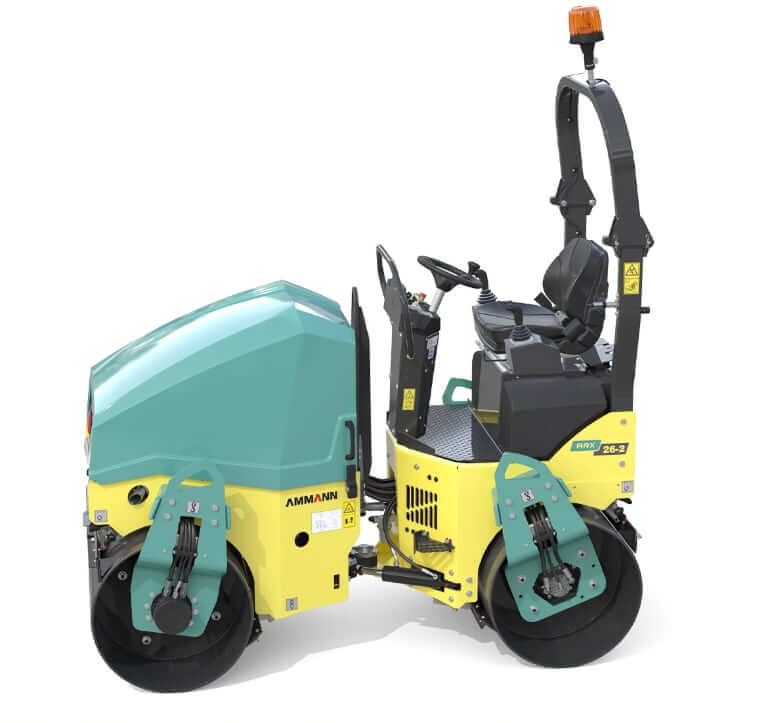

Dimensions
| Overall Length | 101.8 in (2585 mm) |
| Overall Width | 53.1 in (1350 mm) |
| Overall Height (with ROPS) | 100.4 in (2550 mm) |
| Height (folded ROPS) | 76.2 in (1935 mm) |
| Wheelbase | 68.5 in (1740 mm) |
| Ground Clearance | 11 in (280 mm) |
| Curb Clearance | 19.3 in (490 mm) |
| Turning Radius (Inner) | 100 in (2540 mm) |
| Gradeability Without Vibration | 35% |
| Gradeability With Vibration | 30% |
Drum
| Drum Width | 47.2 in (1200 mm) |
| Drum Diameter | 27.4 in (695 mm) |
| Drum Thickness | 0.5 in (13 mm) |
| Drum Offset | 1.57 in (40 mm) |
| Steering Angle | ±30° |
| Oscillation Angle | ±6.5° |
| Vibration Frequency 1 | 3480 vpm (58 Hz) |
| Vibratory Frequency 2 | 3960 vpm (66 Hz) |
| Nominal Amplitude 1 | 0.02 in (0.5 mm) |
| Nominal Amplitude 2 | 0.02 in (0.5 mm) |
| Centrifugal Force 1 | 8722 lbf (38.8 kN) |
| Centrifugal Force 2 | 10454 lbf (46.5 kN) |

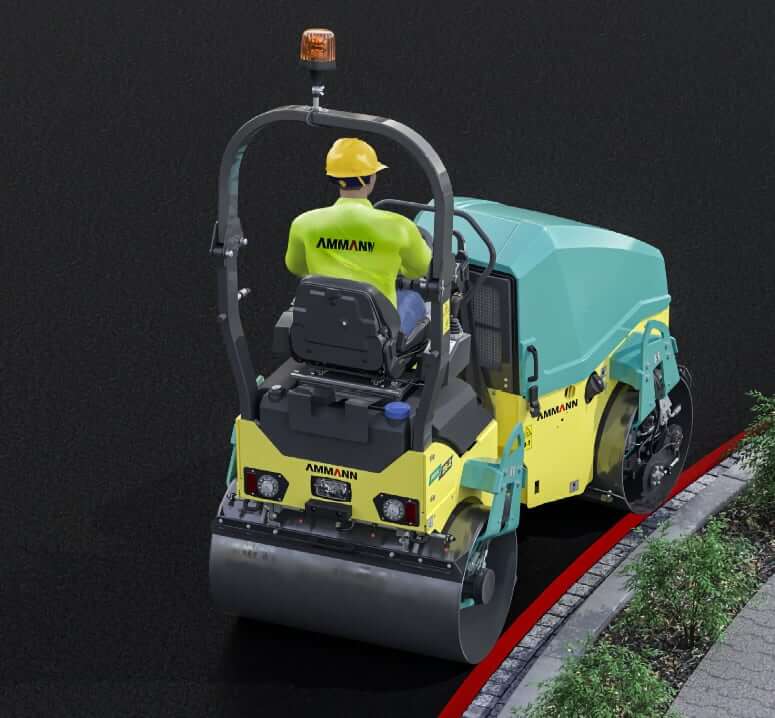

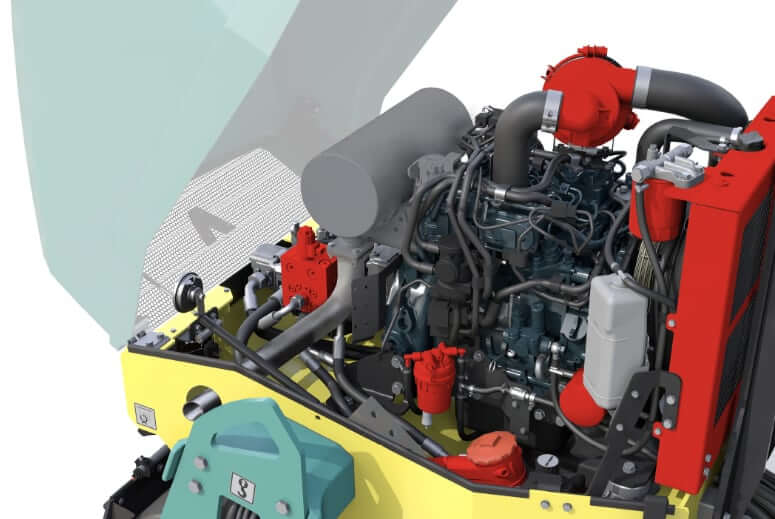

Engine Details
| Number of Cylinders | 3 |
| Engine Make | Kubota |
| Engine Model | Kubota D1803-CR |
| Displacement | 111.4 cu in (1.8 L) |
| Rated Power | 33.5 hp (25 kw) |
| Power Measured @ | 2700 rpm |
| Peak Torque | 85.4 lb ft (115.8 Nm) |
| Torque Measured @ | 1600 rpm |
| Aspiration | Naturally Aspirated |
| Emission Standards | EU Stage V / U.S. EPA Tier 4 Final |
Weight
| Operating Weight CECE | 5540 lb (2515 kg) |
| Max Operating Weight | 5975 lb (2710 kg) |
| Static Linear Load of Front Drum | 58 lb/in (10.3 kg/cm) |
| Static Linear Load of Rear Drum | 62 lb/in (11.0 kg/cm) |
Operational Specs
| Compaction Width | 47.2 in (1200 mm) |
| Max Travel Speed | 6.8 mph (11 km/h) |
| Operating Brakes | Hydrostatic |
| Parking Brakes | Multiple-Disc Spring Brake |
| Operating Voltage | 12 V |
| Battery | 12 V, 77 Ah |
Service Refill Capacities
| Fuel Tank Capacity | 9.2 gal (35 L) |
| Water Tank Capacity | 50.2 gal (190 L) |
| Hydraulic Tank Capacity | 7.5 gal (28.5 L) |

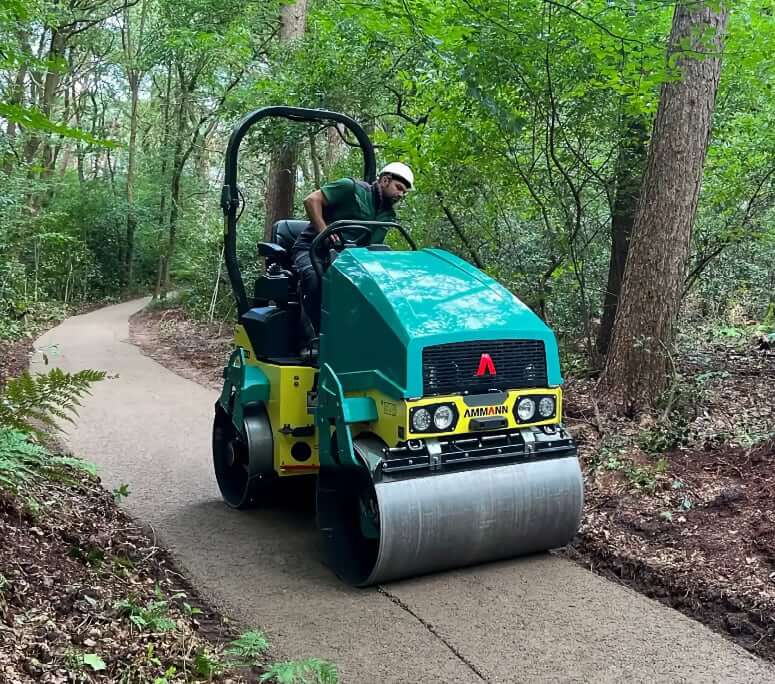

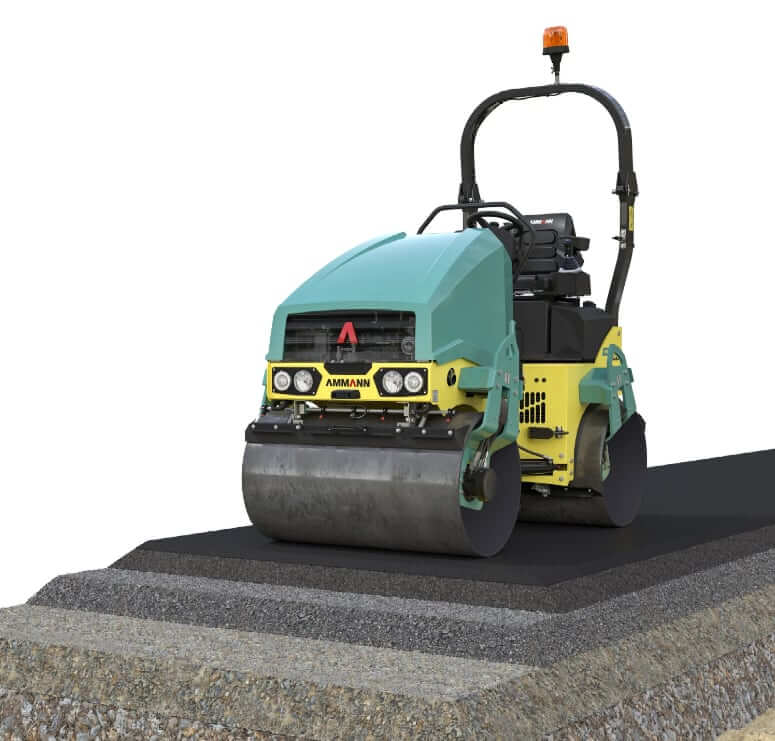

Max Recommended Compacted Layer Thickness
| Sand / Gravel | 9.8 in (250 mm) |
| Mixed Soils | 7.1 in (180 mm) |
| Stabilisation | 4.7 in (120 mm) |
| Asphalt | 3.9 in (100 mm) |
