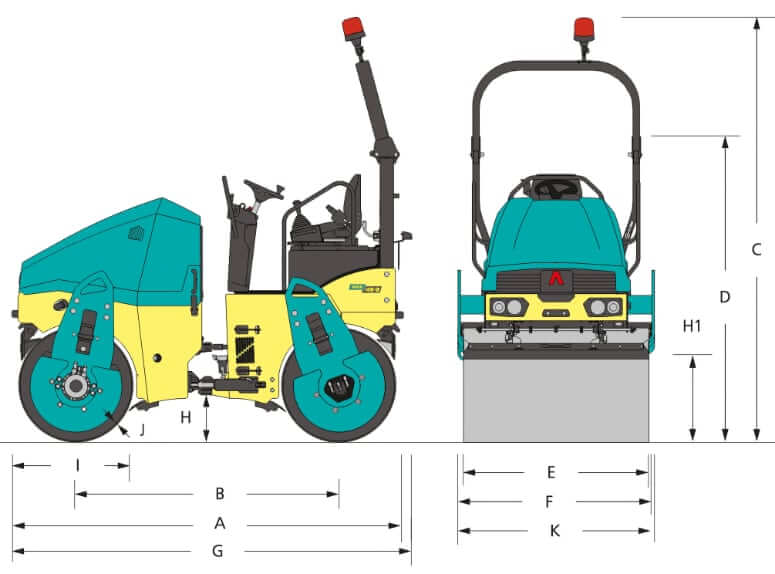

Dimensions
| Overall Length | 114.8 in (2915 mm) |
| Overall Width | 57.0 in (1460 mm) |
| Overall Height (with ROPS) | 111.8 in (2840 mm) |
| Height (folded ROPS) | 84.6 in (2150 mm) |
| Wheelbase | 76.8 in (1950 mm) |
| Ground Clearance | 13 in (330 mm) |
| Curb Clearance | 23.8 in (605 mm) |
| Turning Radius (Inner) | 111.4 in (2830 mm) |
| Gradeability Without Vibration | 40% |
| Gradeability With Vibration | 30% |
Drum
| Drum Width | 54.3 in (1380 mm) |
| Drum Diameter | 33.5 in (850 mm) |
| Drum Thickness | 0.7 in (18 mm) |
| Drum Offset | 1.6 in (40 mm) |
| Steering Angle | ±35° |
| Oscillation Angle | ±9° |
| Vibration Frequency 1 | 2460 vpm (41 Hz) |
| Vibratory Frequency 2 | 3300 vpm (55 Hz) |
| Nominal Amplitude 1 | 0.016 in (0.4 mm) |
| Nominal Amplitude 2 | 0.024 in (0.6 mm) |
| Centrifugal Force 1 | 10116.4 lbf (45 kN) |
| Centrifugal Force 2 | 12679.2 lbf (56.4 kN) |
| Centrifugal Force 3 | 12949 lbf (57.6 kN) |
Engine Details
| Number of Cylinders | 3 |
| Engine Make | Kubota |
| Engine Model | Kubota D1803-CR-T |
| Displacement | 111.4 cu in (1.8 L) |
| Rated Power | 44 hp (32.8 kw) |
| Power Measured @ | 2700 rpm |
| Peak Torque | 111 lb ft (150.5 Nm) |
| Torque Measured @ | 1600 rpm |
| Aspiration | Turbocharged |
| Emission Standards | EU Stage V / U.S. EPA Tier 4 Final |
Weight
| Operating Weight CECE | 9690 lb (4395 kg) |
| Max Operating Weight | 10330 lb (4685 kg) |
| Static Linear Load of Front Drum | 87 lb/in (15.5 kg/cm) |
| Static Linear Load of Rear Drum | 100 lb/in (17.8 kg/cm) |
Operational Specs
| Max Travel Speed | 6.2 mph (10 km/h) |
| Brakes Operating | Hydrostatic |
| Brakes Parking | Multiple-Disc Spring Brake |
| Operating Voltage | 12 V |
| Battery | 12 V, 77 Ah |
Service Refill Capacities
| Fuel Tank Capacity | 15.1 gal (57 L) |
| Water Tank Capacity | 89.8 gal (340 L) |
| Hydraulic Tank Capacity | 14.1 gal (53.5 L) |
Max Recommended Compacted Layer Thickness
| Sand / Gravel | 11.8 in (300 mm) |
| Mixed Soils | 7.9 in (200 mm) |
| Stabilisation | 5.9 in (150 mm) |
| Asphalt | 4.7 in (120 mm) |
