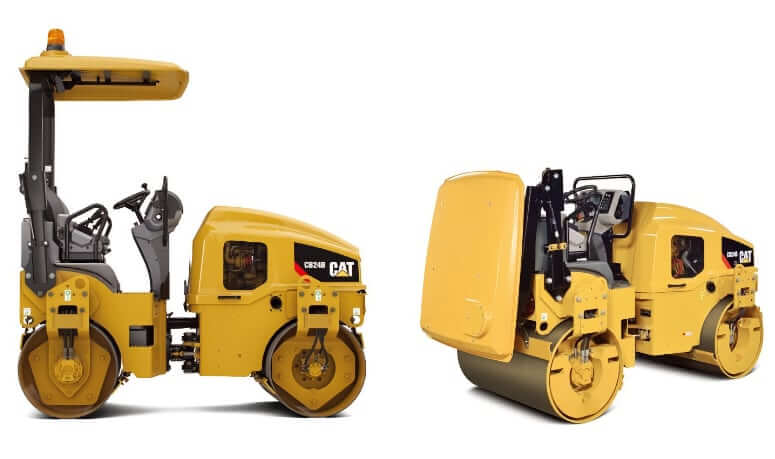

Dimensions
| Overall Length | 101 in (2575 mm) |
| Wheelbase | 71 in (1800 mm) |
| Height at ROPS/FOPS with canopy | 106 in (2700 mm) |
| Height at ROPS/FOPS without canopy | 102 in (2595 mm) |
| Transport Height (with foldable ROPS) | 71 in (1800 mm) |
| Overall Width | 52 in (1312 mm) |
| Curb Clearance | 24 in (620 mm) |
| Ground Clearance | 11 in (285 m) |
| Turning Radius – Inside Drum Edge | 96 in (2438 mm) |

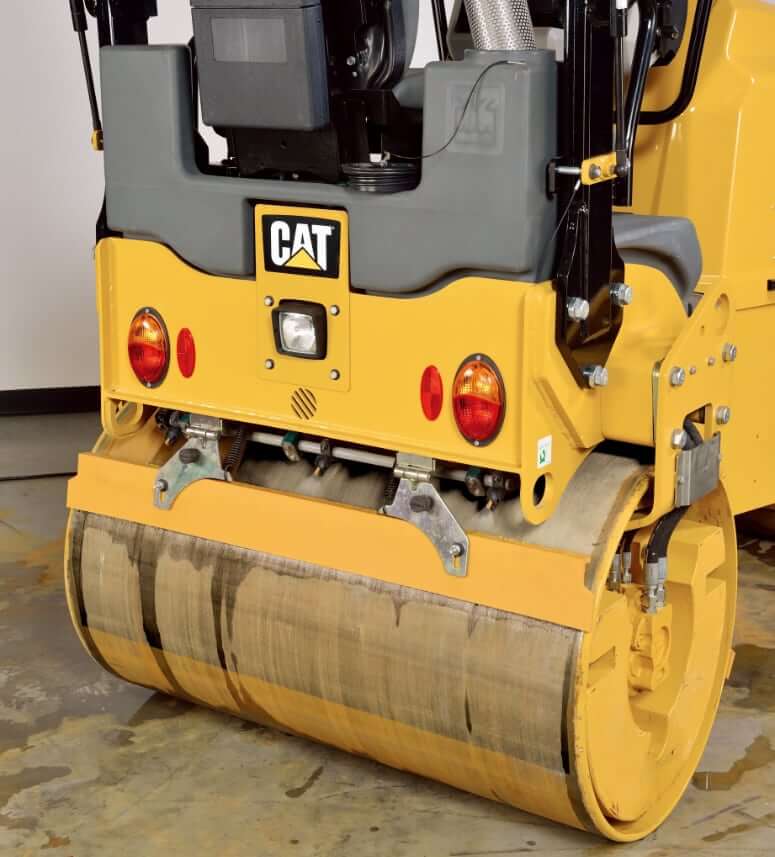

Drum
| Drum Width | 47 in (1200 mm) |
| Drum Diameter | 28 in (720 mm) |
| Drum Shell Thickness | 0.6 in (14 mm) |
| Drum Offset | 2 in (50 mm) |
| Static Linear Load | 63 pli (11.3 kg) |
Vibratory System
| Nominal Amplitude | 0.021 in (0.53 mm) |
| Frequency 1 | 3780 vpm (63 Hz) |
| Frequency 2 | 3300 vpm (55 Hz) |
| Frequency 3 | 2520 vpm (42 Hz) |
| Centrifugal Force High | 7801 lbf (34.7 kN) |
| Centrifugal Force Med | 5328 lbf (23.7 kN) |
| Centrifugal Force Low | 3462 lbf (15.4 kN) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | CAT |
| Engine Model | CAT C1.5 |
| Displacement | 91.3 cu in (1.5 L) |
| Gross Power | 40.2 hp (30 kw) |
| Net Power | 36.2 hp (27 kw) |
| Power Measured @ | 3000 rpm |
| Peak Torque | 83 lb ft (112 Nm) |
| Torque Measured @ | 1800 rpm |
| Emission Standards | U.S. EPA Tier 4 Interim Equivalent |
Operating Specifications
| Standard Compaction Width | 47 in (1200 mm) |
| Max Travel Speed | 7.5 mph (12.1 km/h) |
Weights
| Operating Weight (CECE) | 6003 lb (2723 kg) |
| Maximum Operating Weight | 6395 lb (2901 kg) |
| Maximum Weight At Front Drum | 2857 lb (1296 kg) |
| Maximum Weight At Rear Drum | 3147 lb (1428 kg) |
Service Refill Capacities
| Fuel Tank Capacity | 17 gal (64 L) |
| Cooling System Fluid Capacity | 1.4 gal (5.3 L) |
| Water Spray Tank Capacity | 62 gal (234 L) |
