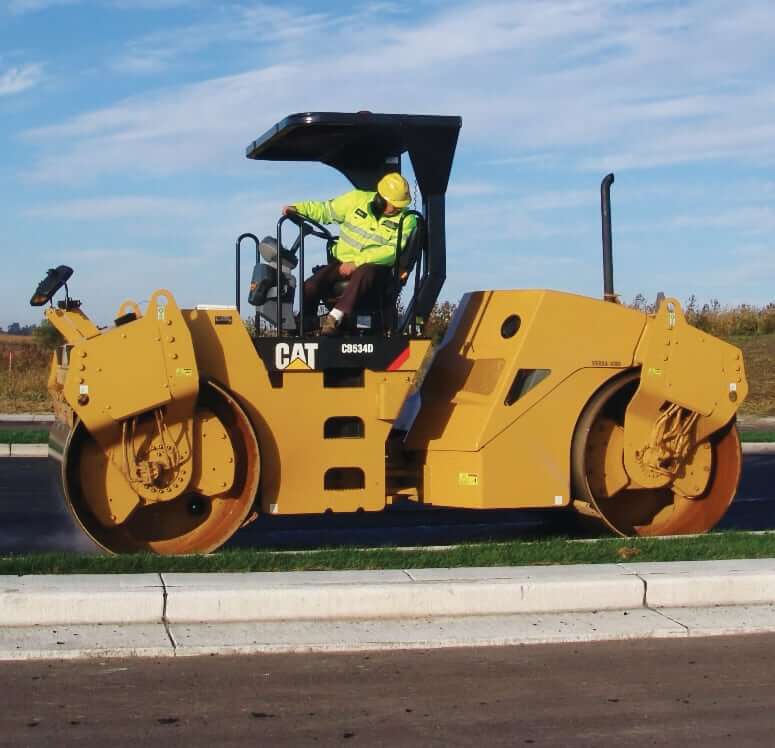

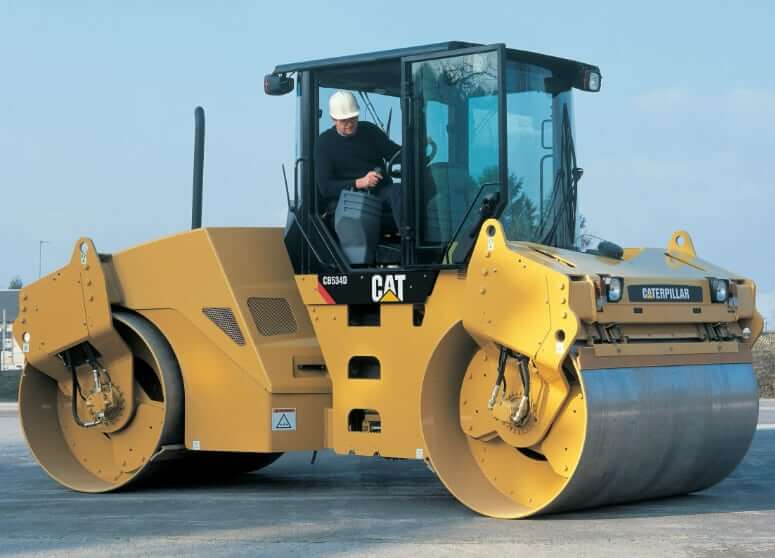

Dimensions
| +Overall Length | 194 in (4940 mm) |
| Overall Width | 74 in (1883 mm) |
| Overall Height with ROPS/FOPS | 122 in (3100 mm) |
| Height (Steering Wheel) | 92 in (2325 mm) |
| Wheelbase | 143 in (3640 mm) |
| Ground Clearance | 12 in (306 mm) |
| Curb Clearance | 34.3 in (870 mm) |
| Turning Radius – Inside Drum Edge | 13.62 ft (4150 mm) |
| Turning Radius – Outside Drum Edge | 19.19 ft (5850 mm) |
Weights
| Operating Weight (without ROPS) | 21429 lb (9720 kg) |
| Operating Weight (with ROPS) | 22046 lb (10000 kg) |
| Operating Weight (with CAB ROPS) | 23038 lb (10450 kg) |
| Weight Distribution Front/Rear | 51% / 49% |
| Shipping Weight (without ROPS) | 20040 lb (9090 kg) |
| Shipping Weight (with ROPS) | 20657 lb (9370 kg) |
| Shipping Weight (with CAB ROPS) | 21649 lb (9820 kg) |
Drum
| Drum Width | 67 in (1700 mm) |
| Drum Diameter | 51 in (1300 mm) |
| Drum Shell Thickness | 0.7 in (18 mm) |
| Eccentric Weight Drive | Hydraulic |
| Weight at Front Drum | 11662 lb (5290 kg) |
| Weight at Rear Drum | 11376 lb (5160 kg) |
| Static Linear Load (with CAB ROPS) | 171.9 lb/in (30.7 kg/cm) |
Vibratory System
| Amplitudes | TWO | FIVE |
|---|---|---|
| Vibration Frequency | 2520 vpm (42 Hz) | 2520 vpm (42 Hz) |
| Nominal Amplitude High | 0.033 in (0.83 mm) | 0.041 in (1.05 mm) |
| Nominal Amplitude Medium High | – | 0.036 in (0.91 mm) |
| Nominal Amplitude Medium | – | 0.028 in (0.72 mm) |
| Nominal Amplitude Medium Low | – | 0.021 in (0.54 mm) |
| Nominal Amplitude Low | 0.013 in (0.33 mm) | 0.013 in (0.33 mm) |
| Amplitudes | TWO | FIVE |
| Centrifugal Force High | 20907 lbf (93 kN) | 25179 lbf (112 kN) |
| Centrifugal Force Medium High | – | 21807 lbf (97 kN) |
| Centrifugal Force Medium | – | 17310 lbf (77 kN) |
| Centrifugal Force Medium Low | – | 13039 lbf (58 kN) |
| Centrifugal Force Low | 8093 lbf (36 kN) | 7868 lbf (35 kN) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | CAT |
| Engine Model | Cat 3054C |
| Displacement | 269 cu in (4.4 L) |
| Bore | 4.1 in (105 mm) |
| Stroke | 5.0 in (127 mm) |
| Net Power | 125 hp (93 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 369 lb ft (500 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged |
| Emission Standards | U.S. EPA Tier 2, EU Stage II |
Operating Specifications
| Compaction Width | 67 in (1700 mm) |
| Voltage | 12 V |
| Alternator | 80 amps |
| Battery | 12 V, CCA 950 |
| Max Travel Speed | 8 mph (13 km/h) |
| Steering Angle (each direction) | ±40 degree |
| Parking Brake | Hydrostatic |
| Service Brake | Spring-applied/hydraulically released brake on front and rear drums |
| Hydraulic System Output at 2200 rpm | 15 gpm (57 L/min) |
| Operator Noise Level | 69 dB(A) |
| Exterior Noise Level | 111 dB(A) |
Service Refill Capacities
| Fuel Tank Capacity | 58 gal (219 L) |
| Cooling System Fluid Capacity | 5.3 gal (20 L) |
| Engine Oil Capacity | 2.4 gal (9 L) |
| Hydraulic System Fluid Capacity | 15.9 gal (60 L) |
| Water Spray Tank Capacity | 290 gal (1100 L) |
