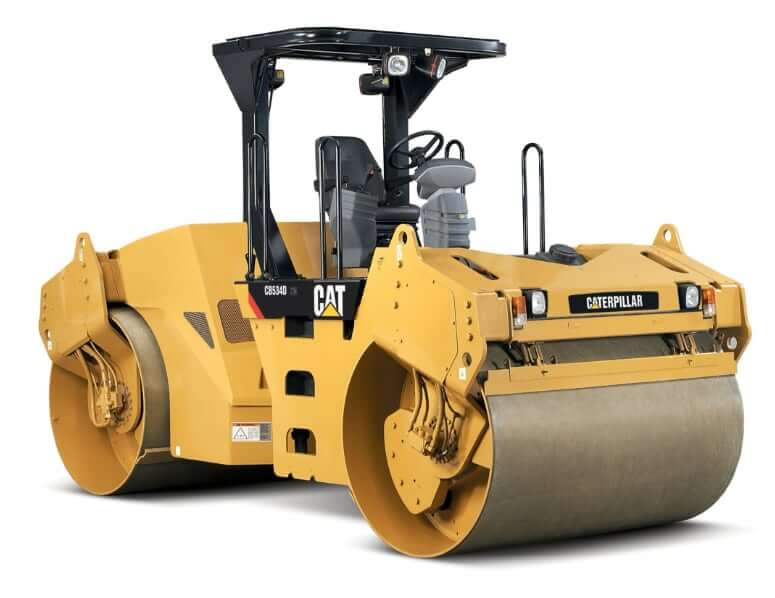

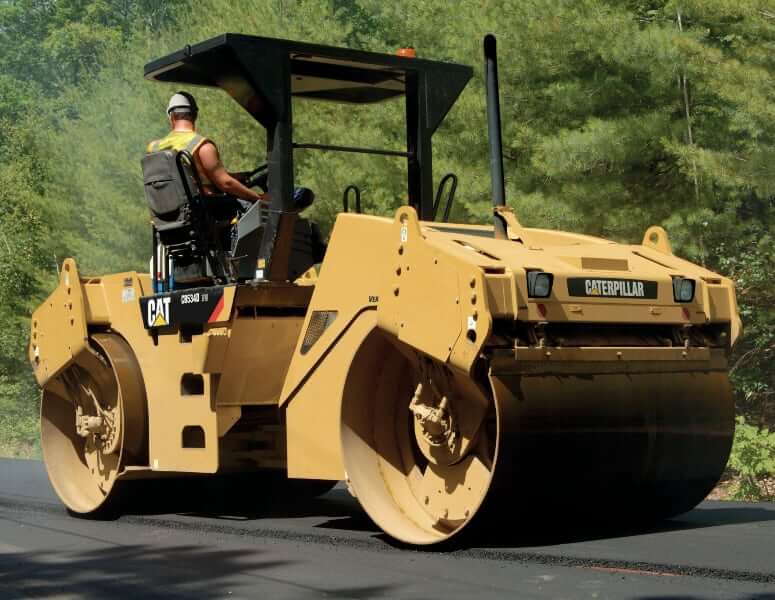

Dimensions
| Overall Length | 194 in (4940 mm) |
| Overall Width | 86 in (2180 mm) |
| Overall Height with ROPS/FOPS | 122 in (3100 mm) |
| Height (Steering Wheel) | 91.5 in (2325 mm) |
| Wheelbase | 143 in (3640 mm) |
| Ground Clearance | 12 in (306 mm) |
| Curb Clearance | 34.3 in (870 mm) |
| Turning Radius – Inside Drum Edge | 13.12 ft (4000 mm) |
| Turning Radius – Outside Drum Edge | 19.69 ft (6000 mm) |

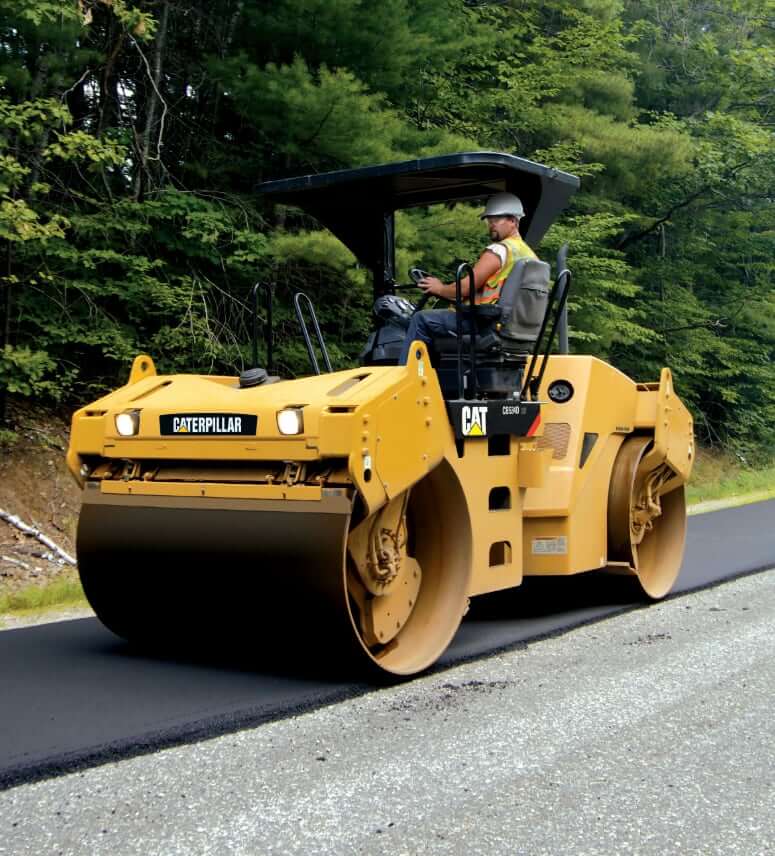

Drum
| Drum Width | 79 in (2000 mm) |
| Drum Diameter | 51 in (1300 mm) |
| Drum Shell Thickness | 0.7 in (18 mm) |
| Eccentric Weight Drive | Hydraulic |
| Weight at Front Drum | 13095 lb (5940 kg) |
| Weight at Rear Drum | 12809 lb (5810 kg) |
| Static Linear Load (with CAB ROPS) | 164.6 lb/in (29.4 kg/cm) |
Vibratory System
| Amplitudes | TWO | FIVE |
|---|---|---|
| Vibration Frequency | 2520 vpm (42 Hz) | 2520 vpm (42 Hz) |
| Nominal Amplitude High | 0.030 in (0.77 mm) | 0.034 in (0.86 mm) |
| Nominal Amplitude Medium High | – | 0.029 in (0.75 mm) |
| Nominal Amplitude Medium | – | 0.023 in (0.58 mm) |
| Nominal Amplitude Medium Low | – | 0.017 in (0.45 mm) |
| Nominal Amplitude Low | 0.011 in (0.27 mm) | 0.010 in (0.26 mm) |
| Amplitudes | TWO | FIVE |
| Centrifugal Force High | 20907 lbf (93 kN) | 25179 lbf (112 kN) |
| Centrifugal Force Medium High | – | 21807 lbf (97 kN) |
| Centrifugal Force Medium | – | 17310 lbf (77 kN) |
| Centrifugal Force Medium Low | – | 13039 lbf (58 kN) |
| Centrifugal Force Low | 8093 lbf (36 kN) | 7868 lbf (35 kN) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | CAT |
| Engine Model | Cat 3054C |
| Gross Power | 130 hp (97 kw) |
| Net Power | 125 hp (93 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 369 lb ft (500 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 269 cu in (4.4 L) |
| Bore | 4.1 in (105 mm) |
| Stroke | 5.0 in (127 mm) |
| Aspiration | Turbocharged |
| Emission Standards | U.S. EPA Tier 2 Equivalent, EU Stage II Equivalent |
Operating Specifications
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 80 amps |
| Battery | 12 V, CCA 950 |
| Compaction Width | 79 in (2000 mm) |
| Max Travel Speed | 8 mph (13 km/h) |
| Steering Angle (each direction) | ±40 degree |
| Parking Brake | Hydrostatic |
| Service Brake | Spring-applied/hydraulically released brake on front and rear drums |
| Hydraulic System Output at 2200 rpm | 15 gpm (57 L/min) |
| Operator Noise Level | 69 dB(A) |
| Exterior Noise Level | 111 dB(A) |
Weights
| Operating Weight (without ROPS) | 24273 lb (11010 kg) |
| Operating Weight (with ROPS) | 24912 lb (11300 kg) |
| Operating Weight (with CAB ROPS) | 25882 lb (11740 kg) |
| Shipping Weight (without ROPS) | 22884 lb (10380 kg) |
| Shipping Weight (with ROPS) | 23523 lb (10670 kg) |
| Shipping Weight (with CAB ROPS) | 24493 lb (11110 kg) |
| Weight Distribution Front/Rear | 51% / 49% |

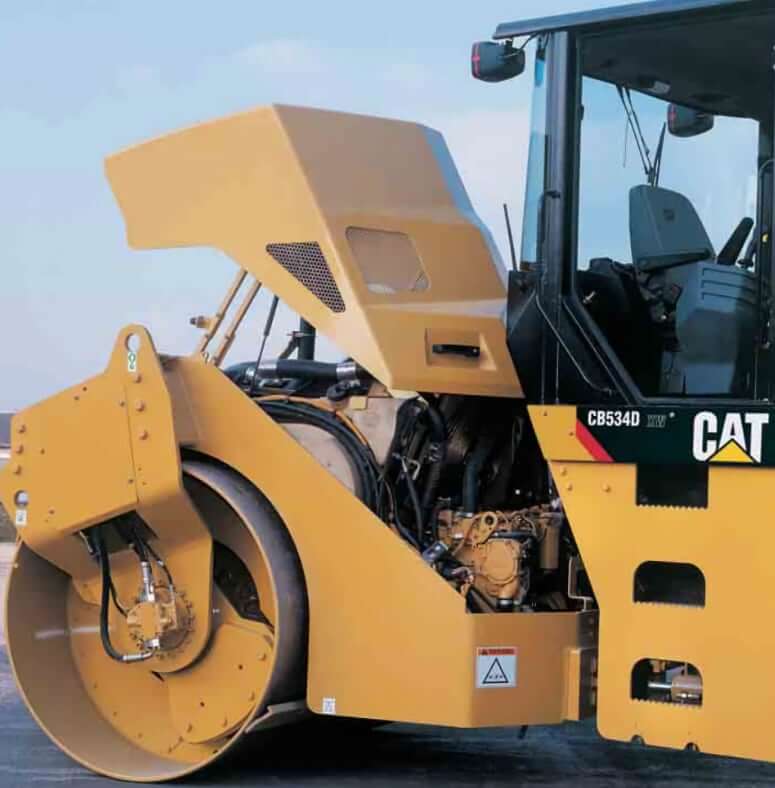

Service Refill Capacities
| Fuel Tank Capacity | 58 gal (219 L) |
| Cooling System Fluid Capacity | 5.3 gal (20 L) |
| Engine Oil Capacity | 2.4 gal (9 L) |
| Hydraulic System Fluid Capacity | 15.9 gal (60 L) |
| Water Spray Tank Capacity | 290 gal (1100 L) |
