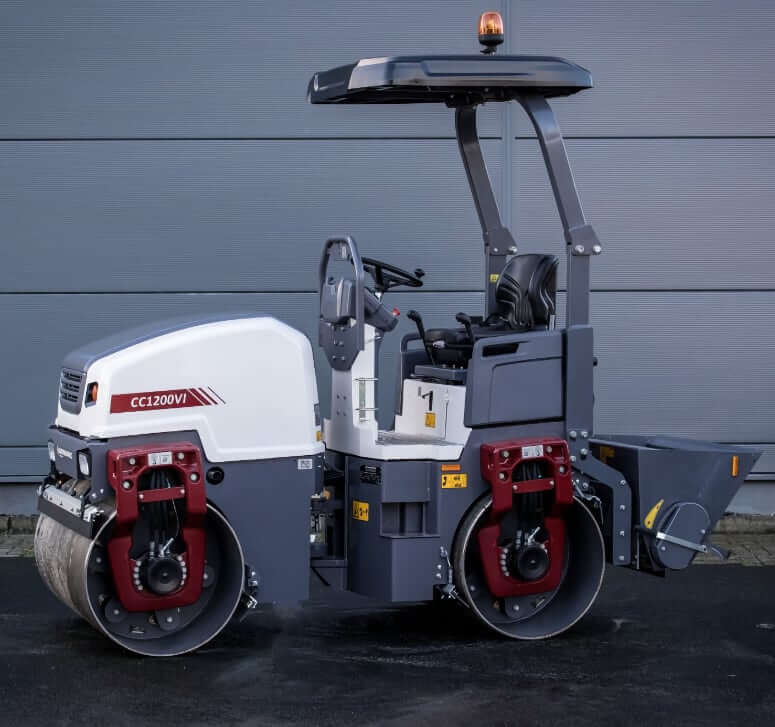

Drum
| Working Width |
47.2 in (1200 mm) |
| Drum Diameter |
27.6 in (702 mm) |
| Drum Thickness |
0.51 in (13 mm) |
| Static Linear Load, Front |
57.7 pli (10.3 kg/cm) |
| Static Linear Load, Rear |
63.8 pli (11.4 kg/cm) |
| Nominal Amplitude |
0.02 in (0.5 mm) |
| Vibration Frequency 1 |
3900 vpm (66 Hz) |
| Vibration Frequency 2 |
3660 vpm (61 Hz) |
| Centrifugal Force 1 |
7419 lb (34 kN) |
| Centrifugal Force 2 |
6520 lb (29 kN) |

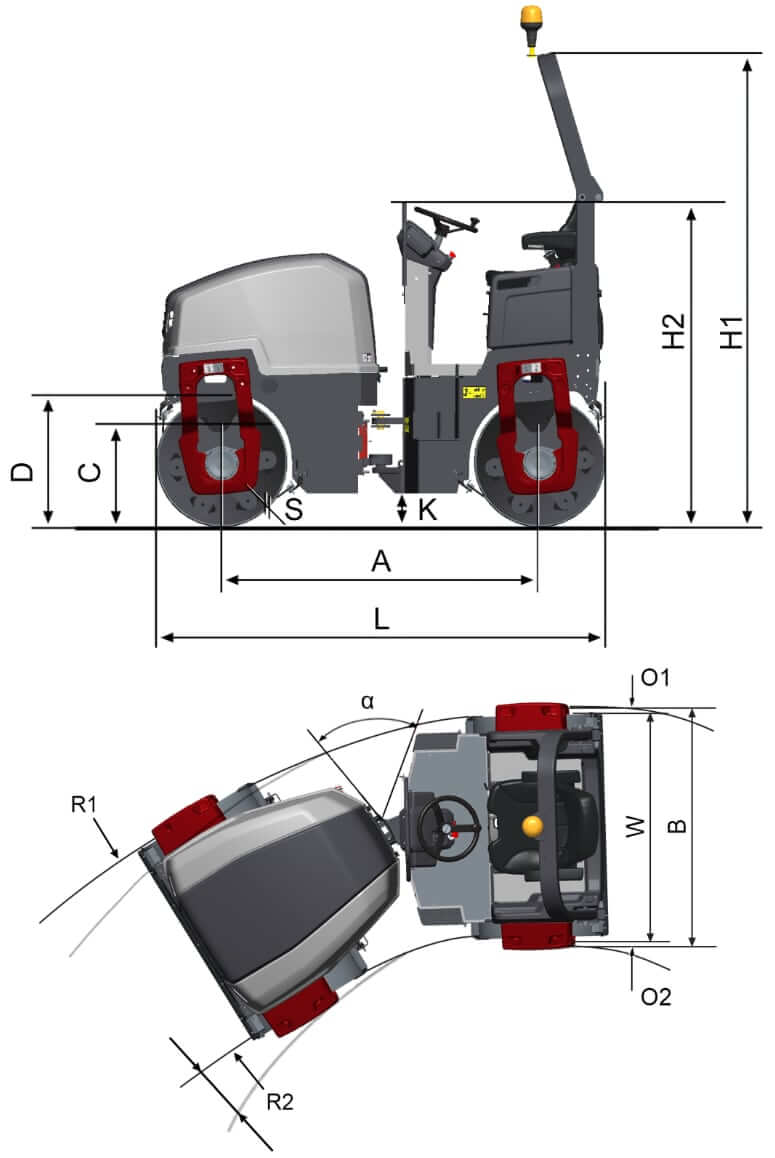

Dimensions
| A. Wheelbase |
67 in (1700 mm) |
| B. Overall Width |
52.8 in (1340 mm) |
| C. Curb Clearance |
21.8 in (554 mm) |
| D. Drum Diameter |
27.6 in (702 mm) |
| H1. Height to Top of ROPS |
100 in (2542 mm) |
| H2. Height w/o ROPS/FOPS |
68.7 in (1744 mm) |
| K. Ground Clearance |
7.1 in (180 mm) |
| L. Overall Length |
94.5 in (2400 mm) |
| O1. Overhang, Right |
2.8 in (70 mm) |
| O2. Overhang, Left |
2.8 in (70 mm) |
| R1. Turning Radius – Outside |
148.4 in (3770 mm) |
| R2. Turning Radius – Inside |
101.2 in (2570 mm) |
| S. Drum Thickness |
0.51 in (13 mm) |
| W. Drum Working Width |
47.2 in (1200 mm) |
| a. Steering Angle |
±30° |
Engine Details
| Kubota Engine |
D1703-M-IDI-E3 |
D1703-M-DI-E4B |
D1803-CR |
| Cylinders |
3 |
3 |
3 |
| Displ. |
100.5 cu in (1.65 L) |
100.5 cu in (1.65 L) |
111.4 cu in (1.83 L) |
| Bore |
3.43 in (87 mm) |
3.43 in (87 mm) |
3.43 in (87 mm) |
| Stroke |
3.64 in (92.4 mm) |
3.64 in (92.4 mm) |
4.03 in (102.4 mm) |
| Engine Power |
35 hp (26.1 kw) @ 2800 rpm |
25 hp (18.5 kw) @ 2200 rpm |
38 hp (28.0 kw) @ 2700 rpm |
| Peak Torque |
76.9 lb ft (104.3 Nm) @ 1600 rpm |
71.8 lb ft (97.4 Nm) @ 1500 rpm |
85.4 lb ft (115.8 Nm) @ 1600 rpm |
| Aspiration |
Naturally aspirated |
Naturally aspirated |
Naturally aspirated |
| Emission Standards |
Tier 4 / Stage IIIA |
EPA Tier 4f / Stage V |
EPA Tier 4f / Stage V |
Operational Specs
| Operating Voltage |
12 V |
| Alternator |
60 amps |
| Battery |
12 V, 74 Ah |
| Max Speed |
6.2 mph (10 km/h) |
| Oscillating Angle |
±10° |
| Max Gradeability (theoretical) |
42% |
Weight
| Operating Weight, CECE |
5735 lb (2600 kg) |
| Max Operating Weight |
7496 lb (3400 kg) |
| Module Mass, Front |
2715 lb (1230 kg) |
| Module Mass, Rear |
3020 lb (1370 kg) |
Operator Environment
| ROPS |
Foldable ROPS / Foldable Canopy |
| Operator’s Seat |
MSG65 / MSG20 |
| Measured Whole-Body Vibrations (Limit is 1.15 m/s2) |
0.5 m/s2 |
| Measured Hand/Arm Vibrations (Limit is 5.0 m/s2) |
2.5 m/s2 |
| Guaranteed Sound Power Level, LwA |
106 dB (A) |
| Sound Pressure Level at the Operator’s Ear, LpA |
80 ±3 dB (A) |
Hydraulic System
| Type |
Hydrostatic system with a hydraulic pump supplying two motors connected in parallel. The motors drive the front and rear drums |
| Drive System |
Pressure – 5076 psi (35000 kPa). Axial piston pump with variable displacement and servo. 2 radial piston motors with constant displacement |
| Vibration System |
Pressure – 3046 psi (21000 kPa). Gear pump/motors with constant displacement |
| Control System |
Pressure – 2611 psi (18000 kPa). The control value on the steering column distributes the flow to the control cylinder, which actuates the articulation. The steering angle is proportional to the deflection of the steering wheel |
| Brake Release |
Pressure – 174 psi (1200 kPa). The service brake is hydrostatisc and is activated by moving the control lever to neutral |
| Supply System |
Pressure – 290 psi (2000 kPa) |
Service Refill Capacities
| Fuel Tank Capacity |
12.2 gal (46 L) |
| Engine Oil Capacity |
1.8 gal (7 L) |
| Cooling Capacity |
1.6 gal (6 L) |
| Drum Oil Capacity |
1.8 gal (7 L) |
| Hydraulic Tank Capacity |
10.6 gal (40 L) |
| Sprinkler Water Tank Capacity |
54.2 gal (205 L) |
1. Fuel tank; 2. Refueling; 3. Cooler; 4. Air cleaner; 5. Battery; 6. Diesel engine; 7. Water tank; 8. Sprinkler system; 9. Scrapers; 10. Shock absorbers and attachment screws; 11. Hydraulic fluid refilling; 12. Hydraulic fluid tank; 13. Hydraulic fluid filter; 14. Hydraulic fluid level glass; 15. Steering joint; 16. Steering cylinder, bearings; 17. Filler/Level plug, Drum; 18. Emergency stop; 19. Edge cutter
Dynapac CC1200 VI Service Kits
| Part Name |
Dynapac Part Number |
| Service Kit, 50H |
4812161674, 4812161675 |
| Service Kit, 250H |
4812160462, 4812161677 |
| Service Kit, 500H |
4812161678, 4812161679, 4812161685 |
| Service Kit, 750H |
4812160462, 4812161677 |
| Service Kit, 1000H |
4812161680 (26 kW, IIIA), 4812161681 (26 kW, IIIA) Plus kit, 4812161686 (28 kW, T4), 4812161687 (28 kW, T4) Plus |
| Eccentric Shaft Kit |
4700938908 |
