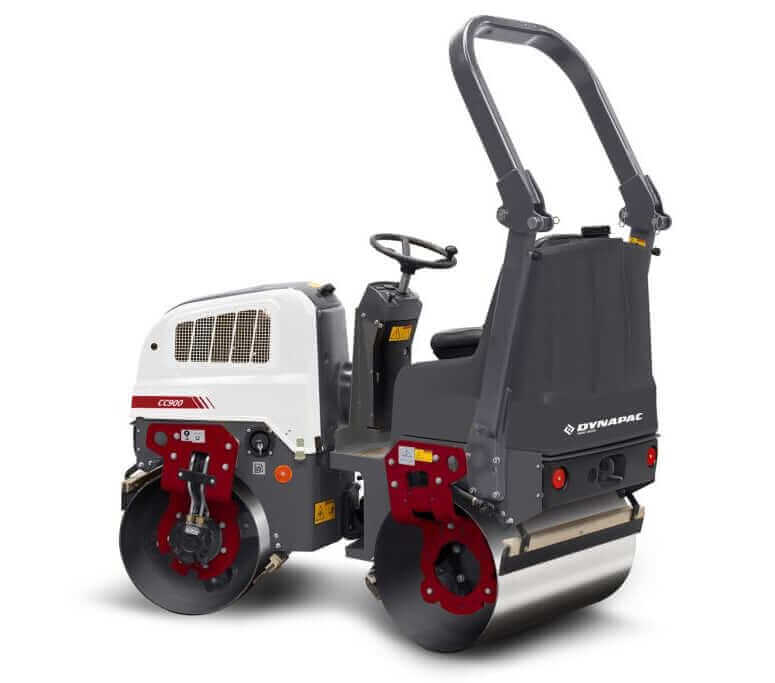

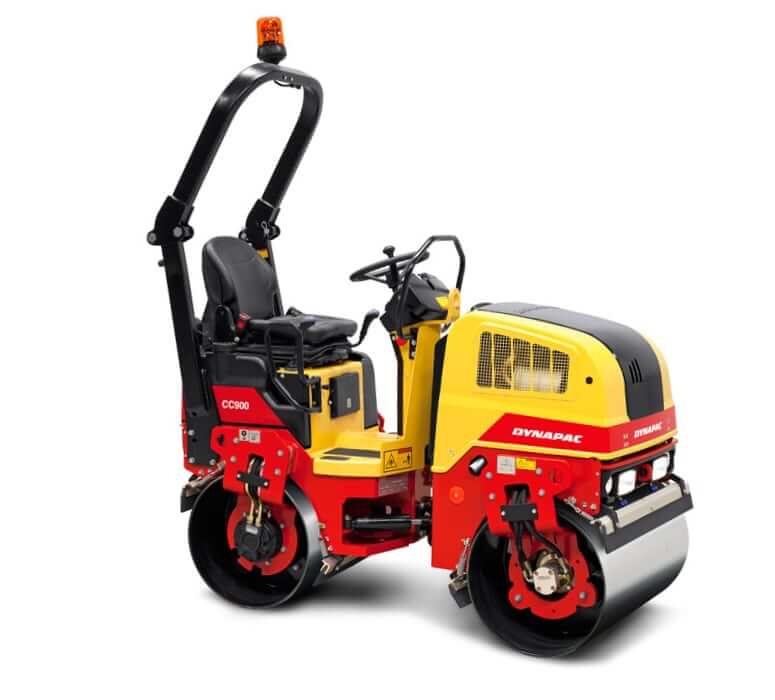

Drum
| D. Drum Diameter | 23 in (584 mm) |
| S. Drum Thickness | 0.5 in (15 mm) |
| W. Drum Working Width | 35 in (900 mm) |
| Static Linear Load, Front | 46 lb/in (8.3 kg/cm) |
| Static Linear Load, Rear | 53 lb/in (9.4 kg/cm) |
| Vibration Frequency | 4200 vpm (70 Hz) |
| Nominal Amplitude | 0.016 in (0.4 mm) |
| Centrifugal Force | 3822 lb (17 kN) |

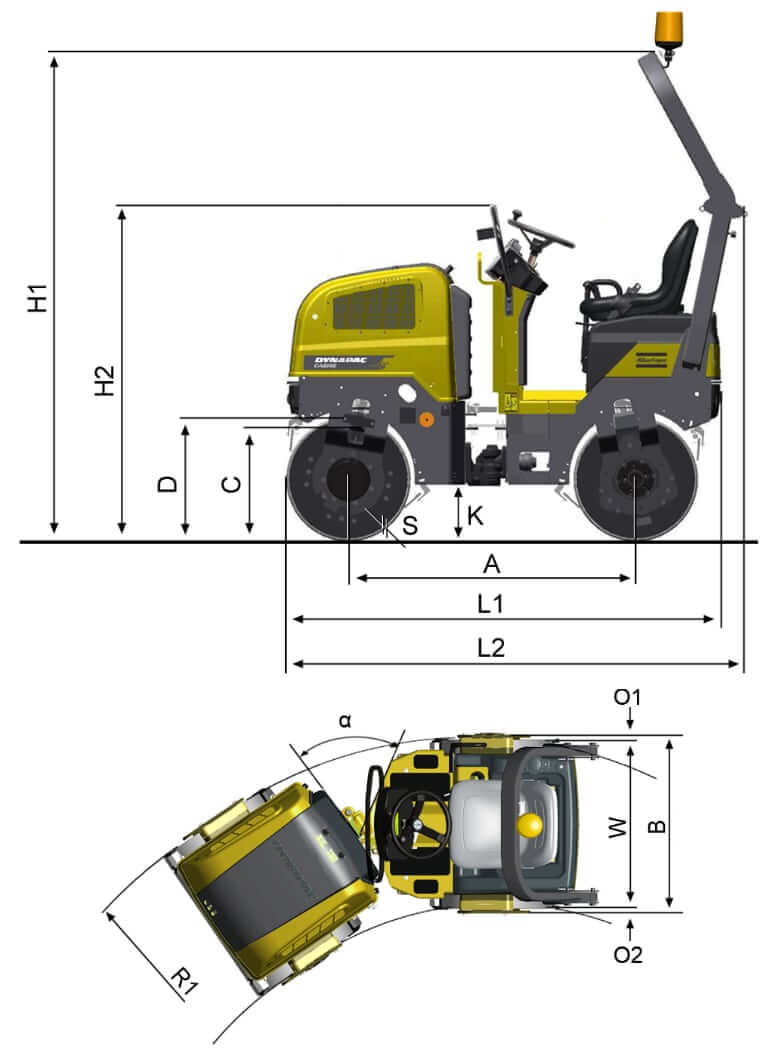

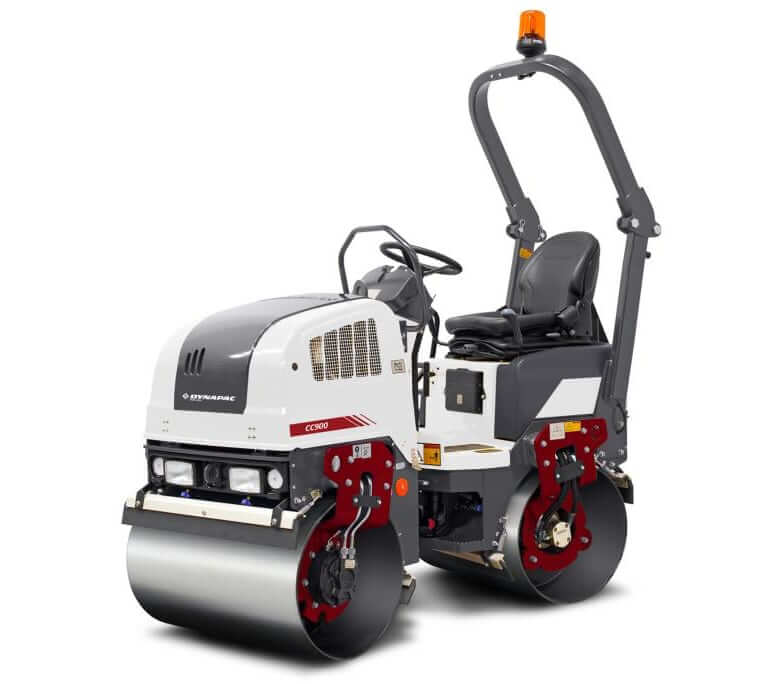

Dimensions
| A. Wheelbase | 53 in (1350 mm) |
| B. Overall Width | 38 in (970 mm) |
| C. Curb Clearance | 18 in (465 mm) |
| D. Drum Diameter | 23 in (584 mm) |
| H1. Height to Top of Cab | 91 in (2300 mm) |
| H2. Height to Steering Wheel | 62 in (1585 mm) |
| Overall Height w/ Rotating Beacon | 98.4 in (2500 mm) |
| K. Ground Clearance | 10 in (250 mm) |
| L1. Overall Length | 80 in (2040 mm) |
| L2. Overall Length w/ ROPS | 82 in (2095 mm) |
| O1. Overhang, Right | 1.4 in (35 mm) |
| O2. Overhang, Left | 1.4 in (35 mm) |
| R1. Turning Radius – Outside | 106.3 in (2700 mm) |
| R2. Turning Radius – Inside | 70.9 in (1800 mm) |
| a. Steering Angle | ±34° |
Engine Details
| Engine Model | Kubota D1105-E4B | Perkins 403D-11 |
|---|---|---|
| Number Of Cylinders | 3 | 3 |
| Gross Power | 24 hp (18 kw) | 23.5 hp (17 kw) |
| Power Measured @ | 2800 rpm | 2200 rpm |
| Peak Torque | 52.7 lb ft (71.5 Nm) | 51.8 lb ft (70.2 Nm) |
| Torque Measured @ | 2200 rpm | 2300 rpm |
| Displacement | 68.5 cu in (1.123 L) | 69 cu in (1.13 L) |
| Aspiration | Naturally aspirated | Naturally aspirated |
| Emission Standards | EPA / CARB Tier 4 | U.S. EPA Tier 4 / EU Stage IIIA |
Operational Specs
| Operating Weight w/ ROPS | 3500 lb (1600 kg) |
| Max Operating Weight | 3700 lb (1665 kg) |
| Module Mass, Front/Rear | 1650 lb (750 kg) / 1850 lb (850 kg) |
| Sound Level | 79.0 dB(A) |
| Max Speed | 6 mph (9 km/h) |
| Vertical Oscillation | ±6° (13°) |
| Gradeability | 40% |
Hydraulic System
| Driving | Axial piston pump with variable displacement and servo. 2 radial piston motors with constant displacement |
| Vibration | Gear pump/motors with constant displacement |
| Steering | Gear pump with constant displacement |
| Service Brake | Hydrostatic in forward and reverse lever |
| Parking/Emergency Brake | Failsafe brake in both drums |
Service Refill Capacities
| Engine Model | Kubota D1105-E4B | Perkins 403D-11 |
|---|---|---|
| Cooling System Capacity | 0.82 gal (3.1 L) | 1.3 gal (4.9 L) |
| Engine Oil Capacity | 1.35 gal (5.1 L) | 0.5 gal (1.9 L) |
| Fuel Tank Capacity | 6.1 gal (23 L) | 6.1 gal (23 L) |
| Drum Oil Capacity | 0.9 gal (3.5 L) | 0.9 gal (3.5 L) |
| Hydraulic Tank Capacity | 3.2 gal (12 L) | 3.2 gal (12 L) |
| Water Spray Tank Capacity | 29.1 gal (110 L) | 29.1 gal (110 L) |
Service Kits
| Category | Dynapac P/N | Additional info |
|---|---|---|
| Sprinkler Kit | 4812161288 4812161289 4812161290 |
50 pieces 100 pieces 200 pieces |
| Slow Moving Vehicle (SMV) Sign Kit | 4700397559 4700391951 |
Large Tank Standart Tank |
| Shock Absorber Kit | 4700945551 | |
| Service Kit , 50H | 4700940463 | |
| Service Kit , 500H | 4700940464 (after 300 hours) | |
| Service Kit , 1000H | 4700940465 (after 900 hours) | |
| Scraper Kit | 4700940671 | |
| Cup/Can Holder Kit | 4700377257 | |
| Back up Alarm Kit | 4700388754 |
