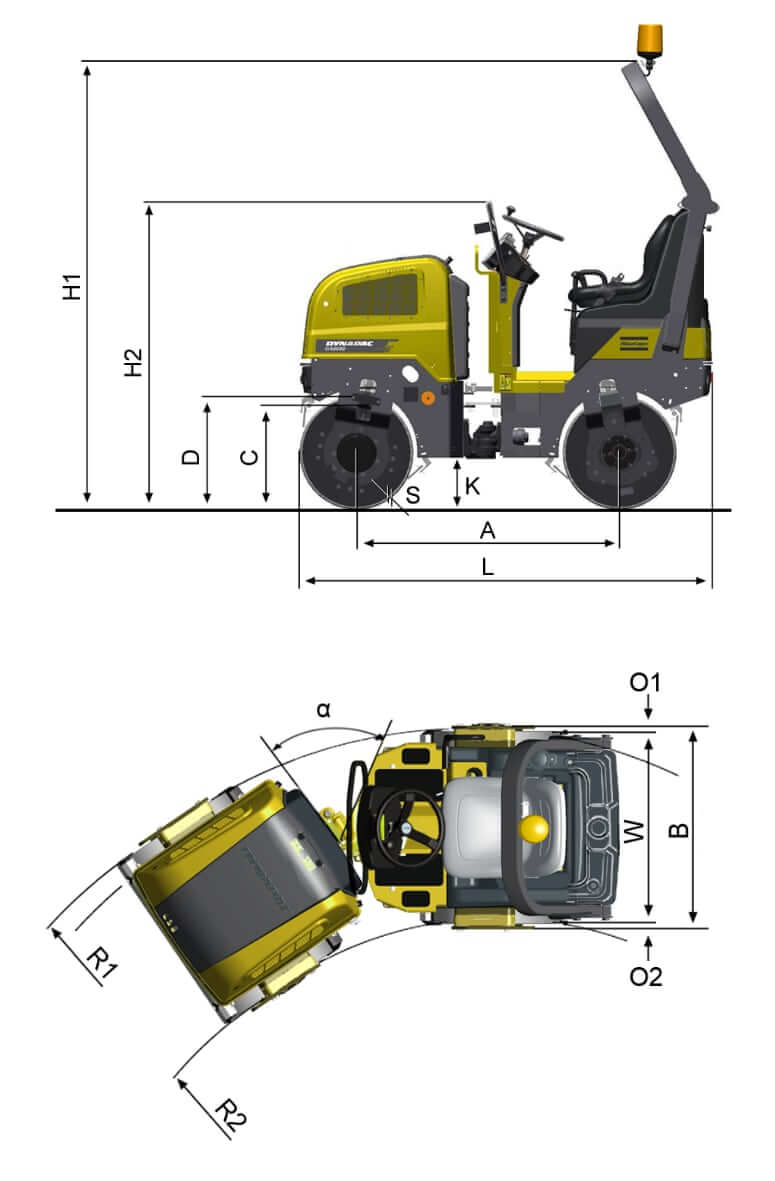

Dimensions
| A. Wheelbase | 53 in (1350 mm) |
| B. Overall Width | 38 in (970 mm) |
| C. Curb Clearance | 18 in (465 mm) |
| D. Drum Diameter | 23 in (584 mm) |
| H1. Height to Top of ROPS | 91 in (2300 mm) |
| H2. Height w/o ROPS | 62 in (1585 mm) |
| K. Ground Clearance | 10.3 in (261 mm) |
| L. Overall Length | 83 in (2107 mm) |
| O1. Overhang, Right | 1.4 in (35 mm) |
| O2. Overhang, Left | 1.4 in (35 mm) |
| R1. Turning Radius, Outside | 106.3 in (2700 mm) |
| R2. Turning Radius, Inside | 70.9 in (1800 mm) |
| a. Steering Angle | ±34° |
Drum
| D. Drum Diameter | 23 in (584 mm) |
| S. Drum Thickness | 0.35 in (9 mm) |
| W. Drum Working Width | 35 in (900 mm) |
| Static Linear Load, Front | 34 lb/in (6.1 kg/cm) |
| Static Linear Load, Rear | 44 lb/in (7.19 kg/cm) |
| Vibration Frequency | 4200 vpm (70 Hz) |
| Nominal Amplitude | 0.016 in (0.4 mm) |
| Centrifugal Force | 3800 lb (16.7 kN) |
Engine Details
| Number Of Cylinders | 2 |
| Engine Make | Honda |
| Engine Model | Honda GX630RH (GX620) |
| Displacement | 42 cu in (0.7 L) |
| Engine Type | 4-stroke gasoline |
| Cooling System | Forced air |
| Gross Power | 19 hp (14.2 kw) |
| Power Measured @ | 3000 rpm |
| Engine Sound Level | 68.0 dB(A) |
Operational Specs
| Max Operating Weight | 2900 lb (1335 kg) |
| Operating Weight w/ ROPS | 2800 lb (1250 kg) |
| Module Mass, Front | 1200 lb (545 kg) |
| Module Mass, Rear | 1600 lb (705 kg) |
| Operating Voltage | 12 V |
| Charging Coil | 20 amps |
| Battery | 12 V, 60 Ah |
| Max Speed | 5 mph (8 km/h) |
| Oscillating Angle | ±6° |
| Max Theoretical Gradeability | 35% |
Hydraulic System
| Driving | Axial piston pump with variable displacement. 2 radial piston motors with constant displacement. Pressure 3915 psi (27000 kPa) |
| Vibration | Gear pump / motors with constant displacement. Pressure – 3190 psi (22000 kPa) |
| Steering | Gear pump with constant displacement. Opening Pressure 1015 psi (7000 kPa) |
| Service Brakes | Hydrostatic in forward and reverse lever. Brake disengagement 290 psi (2000 kPa) |
| Parking / Emergency Brake | Failsafe brake in both drums |
Service Refill Capacities
| Fuel Tank Capacity | 6 gal (23 L) |
| Engine Oil Capacity | 0.5 gal (1.7 L) |
| Drum Oil Capacity (front only) | 0.9 gal (3.5 L) |
| Ballast Static Drum | 17.2 gal (65 L) |
| Hydraulic Tank Capacity | 3.2 gal (12 L) |
| Sprinkler Water Tank Capacity | 46.2 gal (175 L) |
Dynapac CC900G Service Kits
| Part Name | Dynapac Part Number |
|---|---|
| Service Kit, 50H | 4700940463 |
| Service Kit, 500H | 4700940464 (after 300 hours) |
| Service Kit, 1000H | 4700940465 (after 900 hours) |
| Shock Absorber Kit | 4700945551 |
| Scraper Kit | 4700940671 |
| Cup Holder Kit | 4700377257 |
| Back up Alarm Kit | 4700388754 |
| Sprinkler Kit | 4812161288, 4812161289, 4812161290 |
| Slow Moving Vehicle (SMV) Sign Kit | 4700397559 (Large Tank) / 4700391951 (Standart Tank) |
