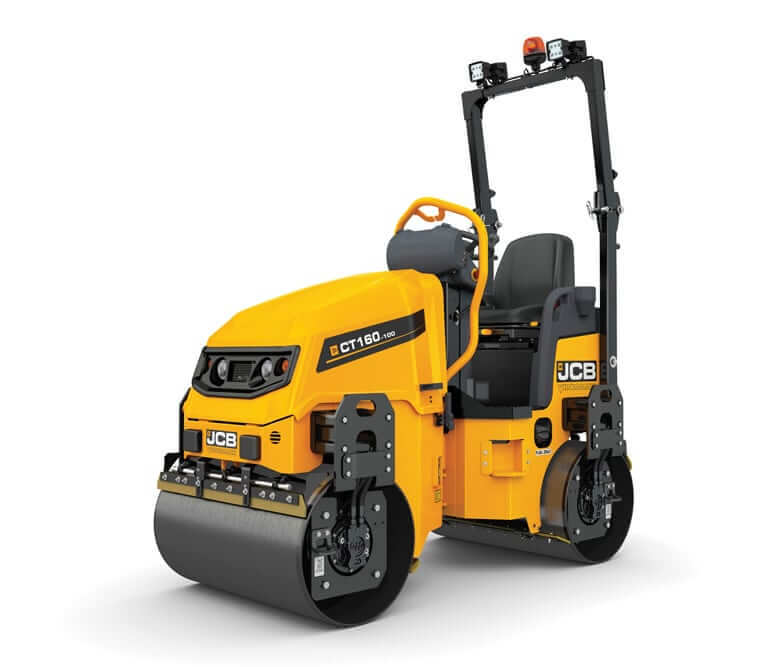

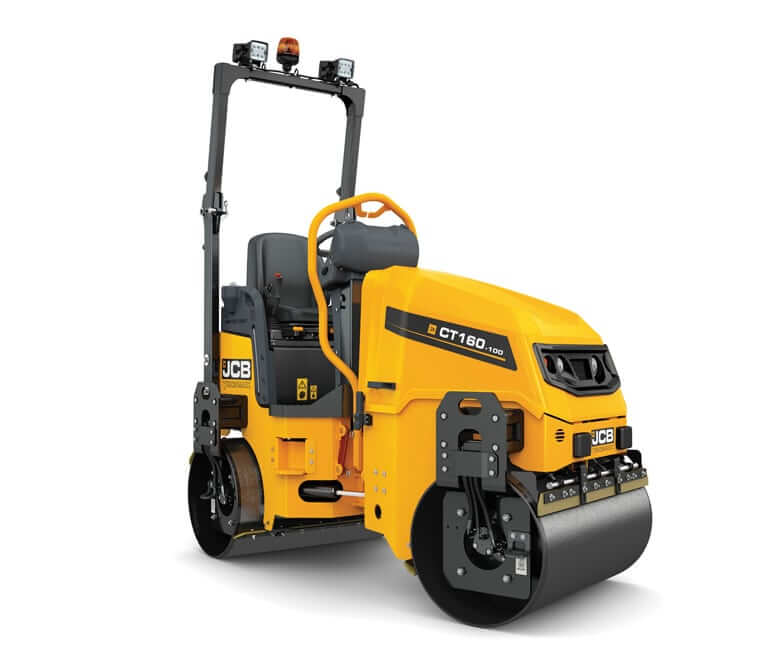

Dimensions
| Overall Length | 84.3 in (2140 mm) |
| Overall Width | 42.9 in (1090 mm) |
| Overall Height (with ROPS) | 97.8 in (2485 mm) |
| Height to Top of Seat | 66 in (1680 mm) |
| Wheelbase | 61.4 in (1560 mm) |
| Ground Clearance | 10 in (255 mm) |
| Curb Clearance | 20 in (510 mm) |
| Turning Radius (Inner) | 82.3 in (2090 mm) |
| Gradeability with Vibration | up to 25% |
| Gradeability without Vibration | up to 35% |
Drum
| Drum Width | 39 in (1000 mm) |
| Drum Diameter | 22.8 in (580 mm) |
| Drum Thickness | 0.47 in (12 mm) |
| Drum Offset | 2.2 in (56 mm) |
| Steering Angle | ±33° |
| Oscillation Angle | ±8° |
| Vibration Frequency 1 | 3000 vpm (50 Hz) |
| Vibratory Frequency 2 | 3960 vpm (66 Hz) |
| Nominal Amplitude | 0.014 in (0.35 mm) |
| Centrifugal Force 1 (each drum) | 2452 lbf (10.9 kN) |
| Centrifugal Force 2 (each drum) | 4297 lbf (19.1 kN) |
| Operating Linear Load 1 | 47.0 lb/in (8.4 kg/cm) |
| Operating Linear Load 2 | 53.1 lb/in (9.5 kg/cm) |

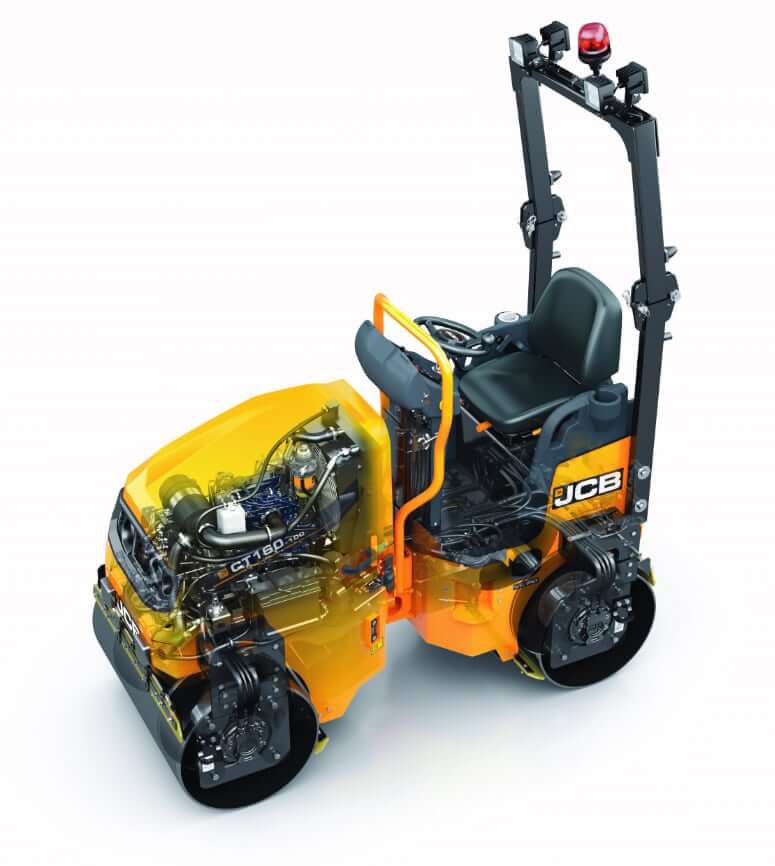

Engine Details
| Number of Cylinders | 3 |
| Engine Make | Kubota |
| Engine Model | Kubota D1005-E4B |
| Displacement | 61.08 cu in (1.0 L) |
| Rated Power | 19.0 hp (14.2 kw) |
| Power Measured @ | 2550 rpm |
| Air Cleaner | Dry cartridge + safety cartridge |
| Fuel filler | Cartridge |
| Aspiration | Naturally aspirated |
| Engine Type | 3 cylinder, water-cooled four-stroke diesel engine |
| Emission Standards | EPA/CARB Tier 4 (NRTC/NTE test mode) + EU Stage V |
Weight
| Operating Weight (CECE) | 3946 lb (1790 kg) |
| Max Operating Weight | 4123 lb (1870 kg) |
| Operating Weight Front Drum | 1852 lb (840 kg) |
| Operating Weight Rear Drum | 2094 lb (950 kg) |
| Nominal Weight | 3770 lb (1710 kg) |
Operational Specs
| Working Width | 39.4 in (1000 mm) |
| Max Working Speed | 5.6 mph (9 km/h) |
| Propulsion | Hydrostatic with variable displacement pump and fixed displacement motors with direct drive to both drums = double drum drive |
| Exciter Drive | Electronically controlled hydrostatic direct drive on both drums for double vibration or single vibration front or rear, AVC (automatic vibration control) |
| Exciter | Single-shaft circular exciter |
| Steering System | Servo assisted, maintenance free centre articulation with oscillation facility |
| Service Brake | Hydrostatic propulsion system |
| Parking Brake | Hydraulically-released brake on both drums (SAHR) |
| Drivers Stand / Instruments | Fuel, battery charging current, sprinkler system, parking brake, hour meter, engine oil pressure, air filter condition, hydraulic oil level and temperature, water level indicator, comfortable adjustable operator seat and safety belt, flashing amber beacon, fan guard, locking instrument panel cover, reverse alarm, foldable ROPS |
| Water System | Pressurised sprinkling system, adjustable scrapers (2 each drum), changeable nozzles, multiple water filtering |
Electric System
| Voltage | 12 V |
| Alternator | 60 A |
| Battery | 12 V, 80 Ah |
Service Refill Capacities
| Fuel Tank Capacity | 8.7 gal (33 L) |
| Engine Oil Capacity | 1.3 gal (5.1 L) |
| Sprinkler Water Tank Capacity | 26.4 gal (100 L) |
