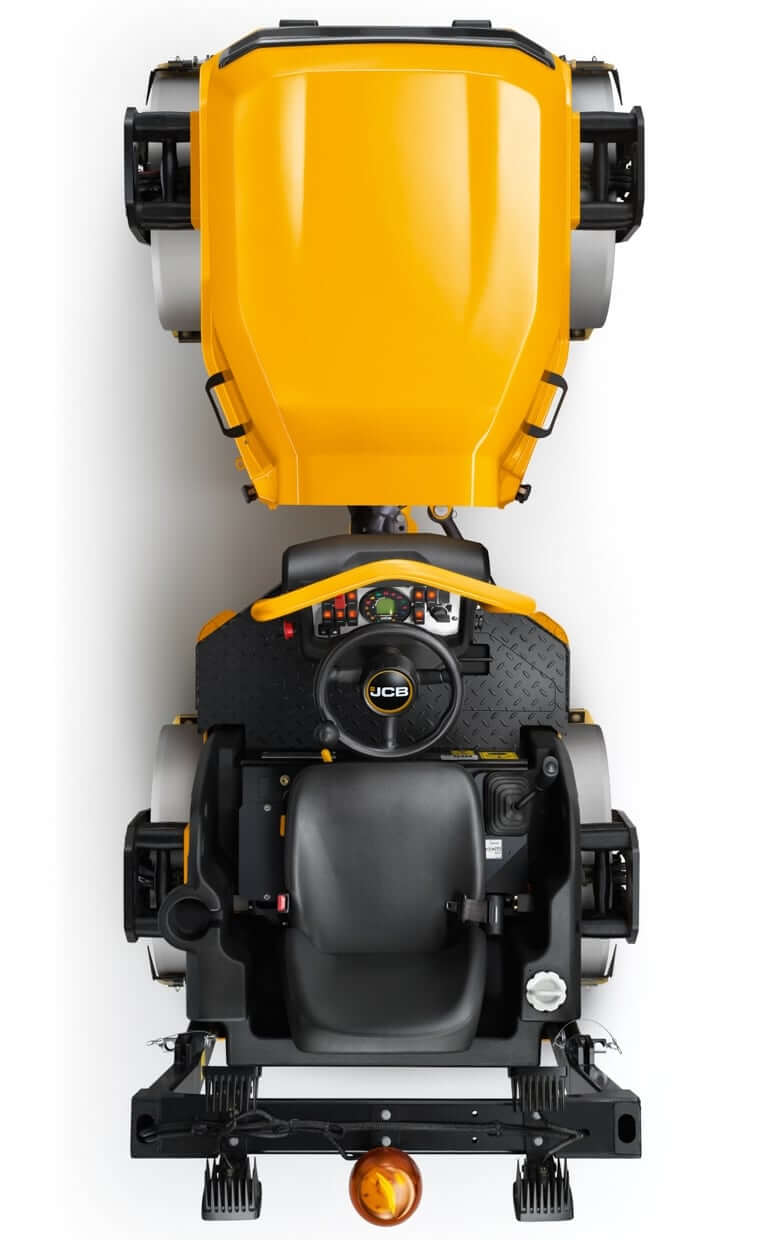

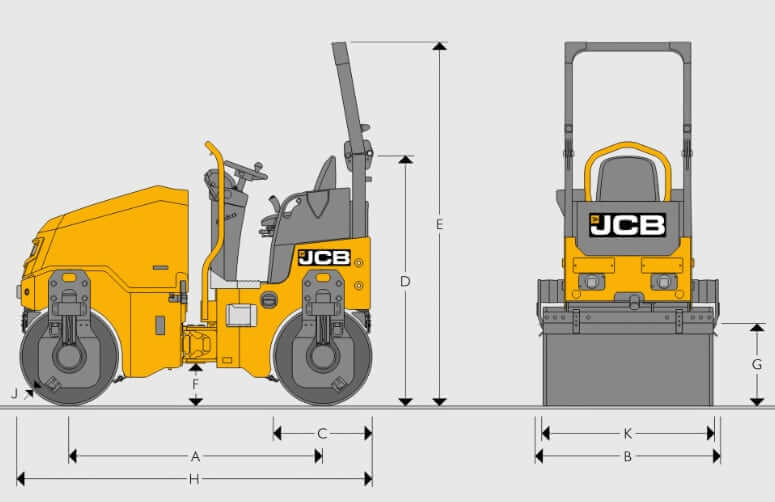

Dimensions
| Overall Length | 98 in (2490 mm) |
| Overall Width | 43 in (1090 mm) |
| Overall Height (with ROPS) | 99 in (2510 mm) |
| Height to Top of Seat | 69 in (1755 mm) |
| Wheelbase | 70.5 in (1790 mm) |
| Ground Clearance | 10.6 in (270 mm) |
| Curb Clearance | 22 in (560 mm) |
| Turning Radius (Inner) | 97.4 in (2475 mm) |
| Gradeability with Vibration | up to 30% |
| Gradeability without Vibration | up to 40% |

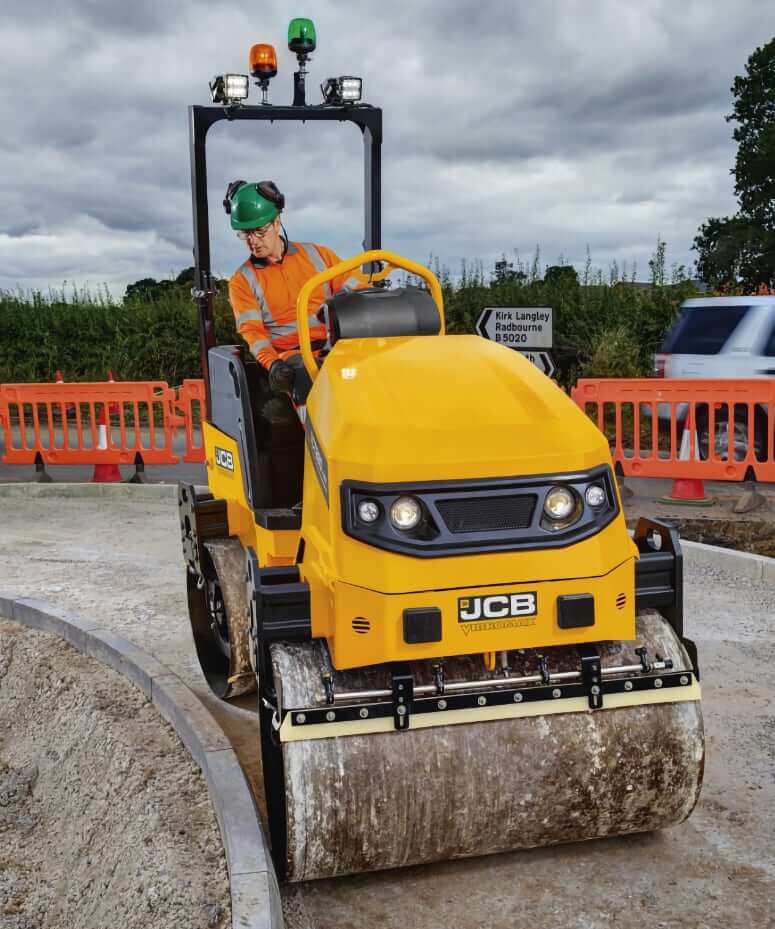

Drum
| Drum Width | 39.4 in (1000 mm) |
| Drum Diameter | 27.6 in (700 mm) |
| Drum Thickness | 0.47 in (12 mm) |
| Drum Offset | 2.4 in (60 mm) |
| Steering Angle | ±33° |
| Oscillation Angle | ±8° |
| Vibration Frequency 1 | 3000 vpm (50 Hz) |
| Vibratory Frequency 2 | 3960 vpm (66 Hz) |
| Nominal Amplitude | 0.022 in (0.56 mm) |
| Centrifugal Force 1 (each drum) | 5310 lbf (23.6 kN) |
| Centrifugal Force 2 (each drum) | 9247 lbf (41.1 kN) |
| Operating Linear Load 1 | 66.6 lb/in (11.9 kg/cm) |
| Operating Linear Load 2 | 86.1 lb/in (12.3 kg/cm) |

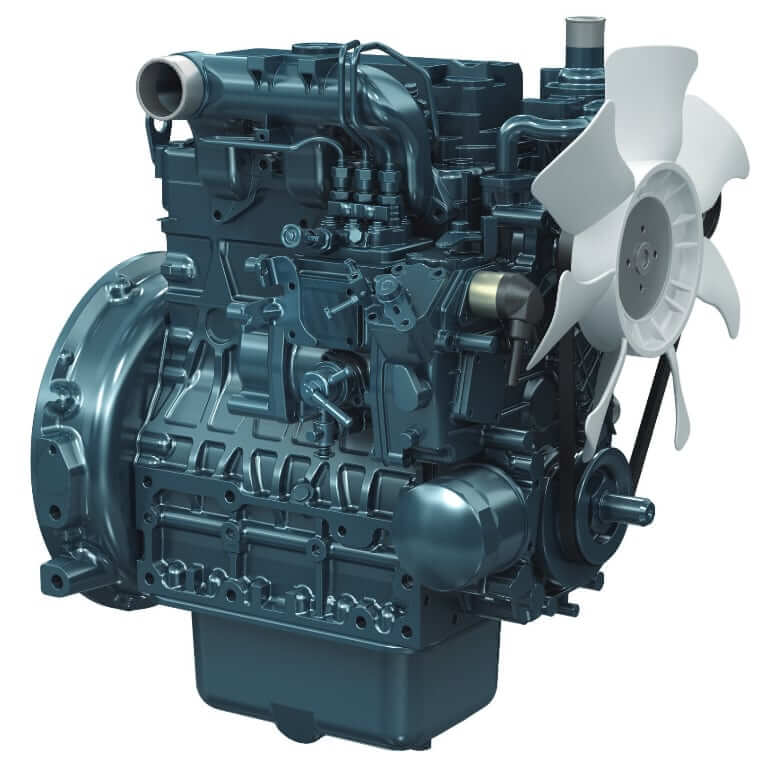

Engine Details
| Number of Cylinders | 3 |
| Engine Make | Kubota |
| Engine Model | Kubota D1703-M-DI-E4B |
| Displacement | 100.5 cu in (1.6 L) |
| Rated Power | 24.4 hp (18.2 kw) |
| Power Measured @ | 2200 rpm |
| Fuel filler | Cartridge |
| Air Cleaner | Dry cartridge + safety cartridge |
| Aspiration | Naturally aspirated |
| Engine Type | Vertical, water cooled 4-cycle diesel engine |
| Emission Standards | EPA/CARB Tier 4 + EU Stage V |
Weight
| Operating Weight (CECE) | 5335 lb (2420 kg) |
| Max Operating Weight | 5732 lb (2600 kg) |
| Operating Weight Front Drum | 2624 lb (1190 kg) |
| Operating Weight Rear Drum | 2712 lb (1230 kg) |
| Nominal Weight | 5027 lb (2280 kg) |
Operational Specs
| Working Width | 39.4 in (1000 mm) |
| Max Working Speed | 6.2 mph (10 km/h) |
| Steering System | Servo assisted, maintenance free centre articulation with oscillation facility |
| Propulsion | Hydrostatic with variable displacement pump and fixed displacement motors with direct drive to both drums = double drum drive |
| Service Brake | Hydrostatic propulsion system |
| Parking Brake | Hydraulically-released brake on both drums (SAHR) |
| Exciter Drive | Electronically controlled hydrostatic direct drive on both drums for double vibration or single vibration front or rear, AVC (automatic vibration control) |
| Exciter | Single-shaft circular exciter |
| Water System | Pressurised sprinkling system, adjustable scrapers (2 each drum), changeable nozzles, multiple water filtering |
| Drivers Stand / Instruments | Fuel, battery charging current, sprinkler system, parking brake, hour meter, engine oil pressure, air filter condition, hydraulic oil level and temperature, water level indicator, comfortable adjustable operator seat and safety belt, flashing amber beacon, fan guard, locking instrument panel cover, reverse alarm, foldable ROPS |
Electric System
| Voltage | 12 V |
| Battery | 12 V, 62 Ah |
| Alternator | 70 A |

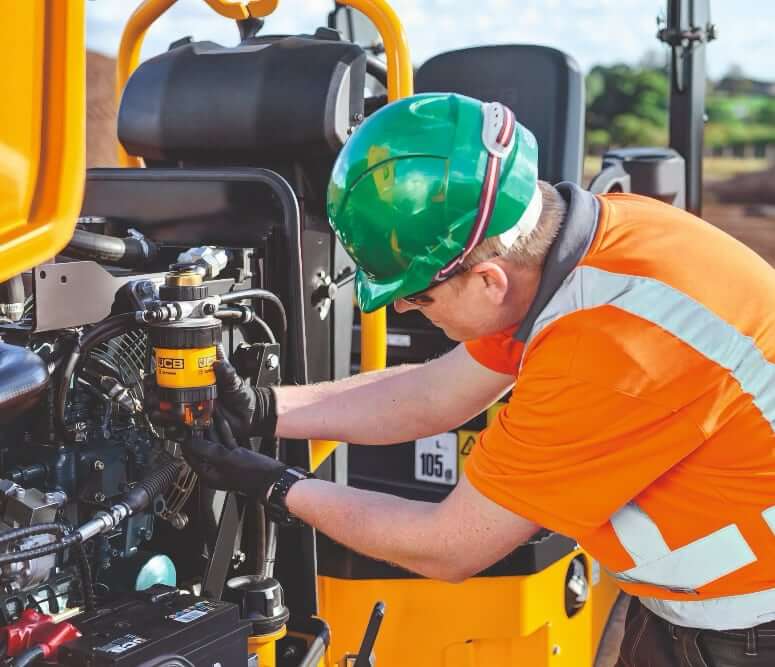

Service Refill Capacities
| Fuel Tank Capacity | 12.2 gal (46 L) |
| Sprinkler Water Tank Capacity | 52 gal (197 L) |
| Engine Oil Capacity | 1.48 gal (5.6 L) |
| Cooling System Fluid Capacity | 1.45 gal (5.5 L) |
