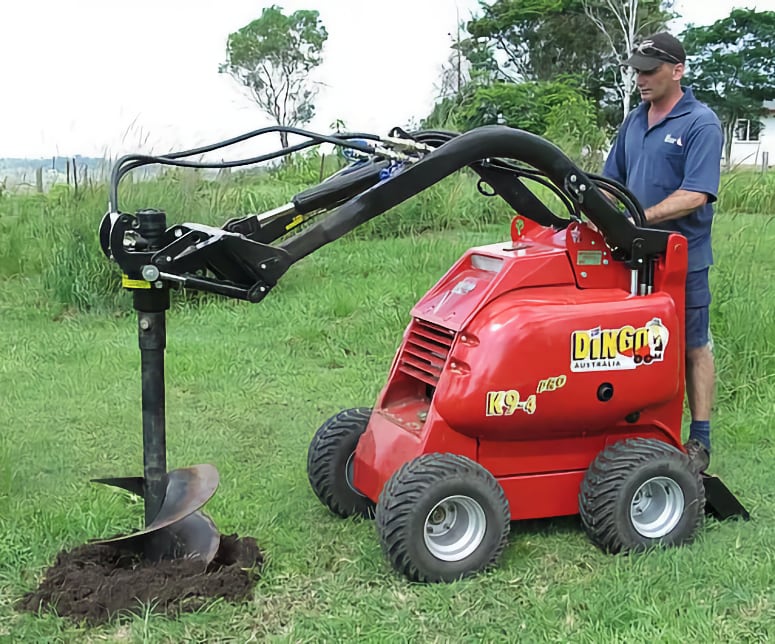

Dimensions

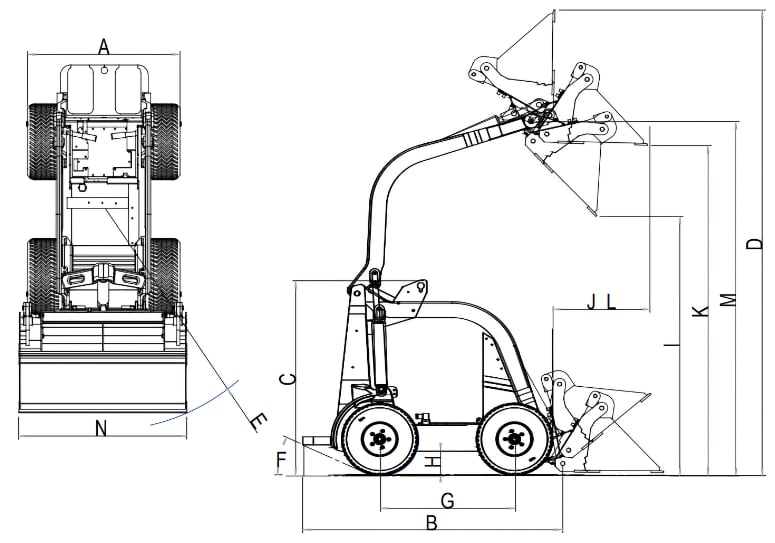

| A. Overall Width (w/o Attachments) | 38 in (970 mm) |
| B. Overall Length (w/o Attachments) | 61 in (1550 mm) |
| C. Overall Height (w/o Attachments) | 47 in (1200 mm) |
| D. Maximum Operating Height, 4 in 1 Bucket | 104 in (2650 mm) |
| E. Turning Radius with 4 in 1 Bucket | 51 in (1300 mm) |
| F. Angle of Departure | 25° |
| G. Wheelbase | 31 in (800 mm) |
| H. Ground Clearance | 5.3 in (135 mm) |
| I. Dump Height with Standart Bucket | 57 in (1450 mm) |
| J. Reach Fully Raised Standart Bucket | 31 in (800 mm) |
| K. Dump Height with 4 in 1 Bucket | 72 in (1835 mm) |
| L. Reach Fully Raised, 4 in 1 Bucket | 31 in (800 mm) |
| M. Height to Hinge Pin | 76 in (1940 mm) |
| N. Machine width with 4 in 1 Bucket | 41 in (1045 mm) |

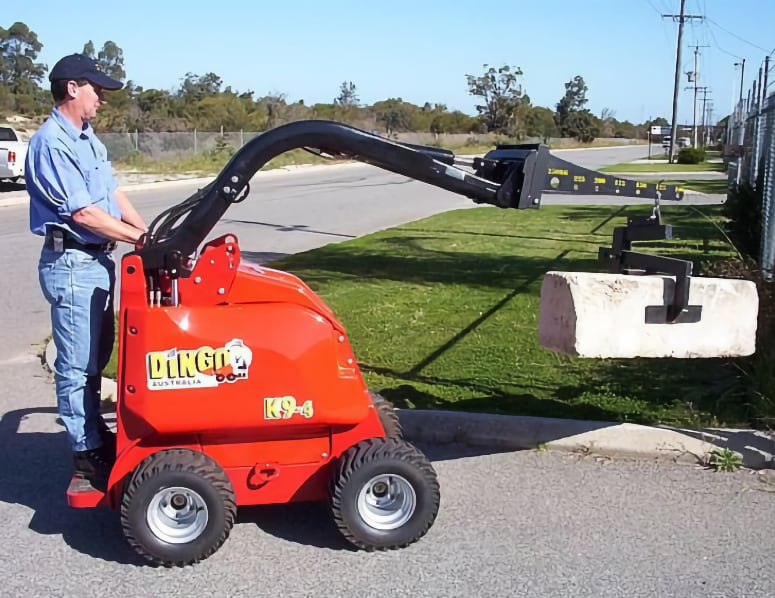

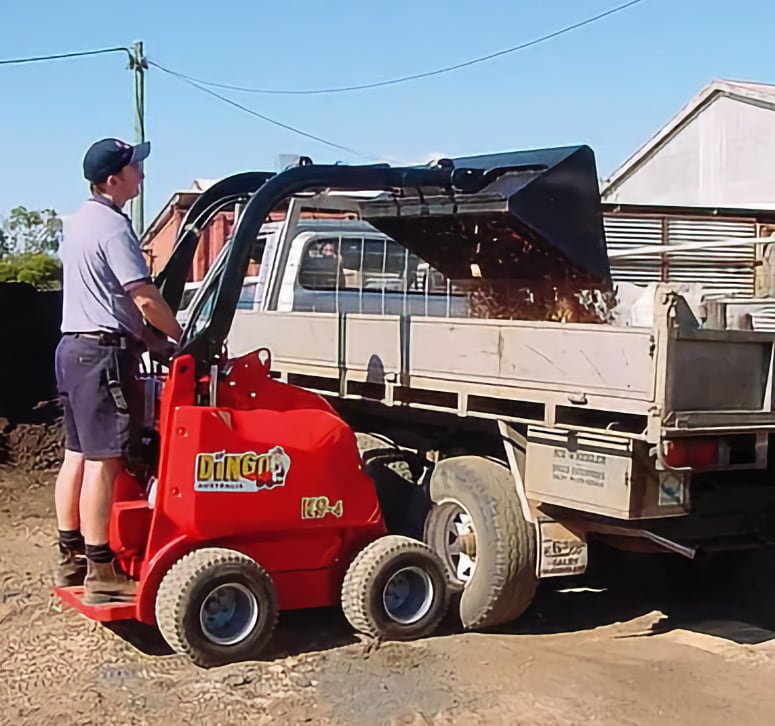

Loader Working Range
| Bucket Capacity | 0.2 yd3 (0.15 m3) |
| Max Lifting Capacity | 1433 lb (650 kg) |
| Safe Lifting Capacity | 716.5 lb (325 kg) |
| Bucket Width, GP | 41.3 in / 47.2 in (1050 mm / 1200 mm) |
| Bucket Width, 4 in 1 | 41.3 in / 47.2 in (1050 mm / 1200 mm) |
| D. Maximum Operating Height, 4 in 1 Bucket | 104 in (2650 mm) |
| E. Turning Radius with 4 in 1 Bucket | 51 in (1300 mm) |
| I. Dump Height with Standart Bucket | 57 in (1450 mm) |
| J. Reach Fully Raised Standart Bucket | 31 in (800 mm) |
| K. Dump Height with 4 in 1 Bucket | 72 in (1835 mm) |
| L. Reach Fully Raised, 4 in 1 Bucket | 31 in (800 mm) |
| M. Height to Hinge Pin | 76 in (1940 mm) |

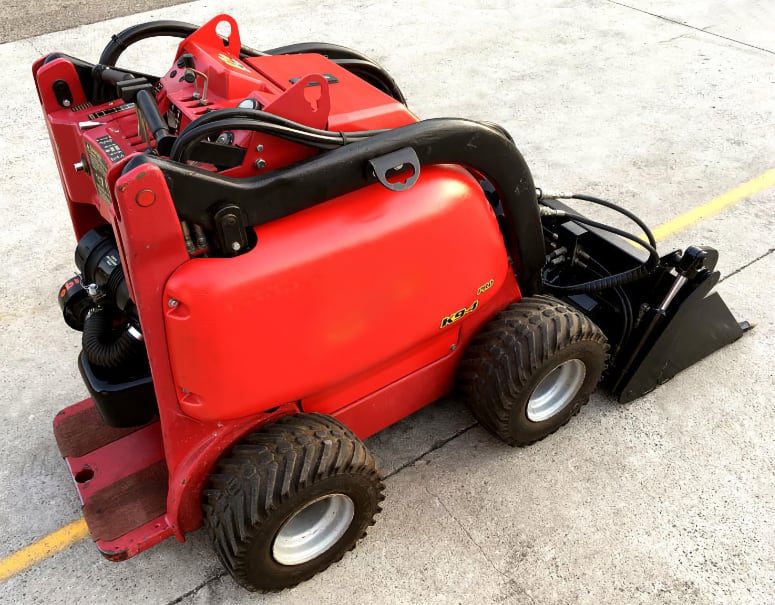

Operational Specs
| Operating Weight | 2028 lb (920 kg) |
| Operating Voltage | 12 V |
| Battery | 12 V, CCA 380 |
| Turning Radius w/ 4-in-1 Bucket | 51.2 in (1300 mm) |
| Standart Tire Size | 18 x 8.5 x 8 (6 Ply) |
| Optional Tire Size | 8″ Dingo Tires, 8″ Turf, 8″ Lug, 20 x 8″ Sand, 5″ Forklift Type, 3″ Narrow Solid Tires |
Engine Details
| Engine Make | Yanmar | Perkins | Kohler |
|---|---|---|---|
| Number Of Cylinders | 3 | 3 | 2 |
| Engine Model | Yanmar 3TNV76 CPE | Perkins 403D-11 | Kohler CH740 Command Pro Twin |
| Displacement | 68 cu in (1.115 L) | 67 cu in (1.131 L) | 44 cu in (0.725 L) |
| Gross Power | 27.1 hp (20 kw) | 27 hp (19.9 kw) | 25 hp (18.6 kw) |
| Power Measured @ | 3200 rpm | 2200-3400 rpm | 3600 rpm |
| Peak Torque | 47.9 lb ft (65 Nm) | 49.4 lb ft (67 Nm) | 39.2 lb ft (53.1 Nm) |
| Torque Measured @ | 2000 rpm | 2400 rpm | 3000 rpm |
| Cooling System | Liquid-cooled | Liquid-cooled | Air-cooled |
| Lubrication System | Forcible Lubrication By Trochoid Pump | Oil pressure switch + spin on lubricating oil filter | Full pressure w/full-flow filter |
| Aspiration | Naturally aspirated | Naturally aspirated | Naturally aspirated |
Transmission
| Transmission Type | Hydraulic drive motors |
| Max Travel Speed | 3.7 mph (6 km/h) |
| Max Travel Speed, Overdrive | 4.6 mph (7.4 km/h) |
| Wheel Motors | 29 cu in (0.475 L) |
Hydraulic System
| Pump Type | 2x Gear pumps |
| Pump Sizes | 0.55 cu in + 0.24 cu in (9 cc + 4 cc) |
| Pump Sizes (Pro Series) | 0.68 cu in + 0.24 cu in (11.2 cc + 4 cc) |
| Total Pump Flow | 12.6 gal/min (47 L/min) |
| Relief Valve Pressure | 3400 psi (23400 kPa) |
| Hydraulic Oil Filtration | 10 microns |
Service Refill Capacities
| Engine Make | Yanmar | Perkins | Kohler |
|---|---|---|---|
| Fuel Tank Capacity | 6.3 gal (24 L) | 6.3 gal (24 L) | 6.3 gal (24 L) |
| Hydraulic System Capacity | 24 gal (90 L) | 24 gal (90 L) | 24 gal (90 L) |
| Engine Oil Capacity w/ Filter | 0.9 gal (3.4 L) | 1.3 gal (4.9 L) | 0.5 gal (1.9 L) |
| Coolant Capacity | 0.2 gal (0.9 L) | 0.5 gal (1.9 L) | Air-cooled |
