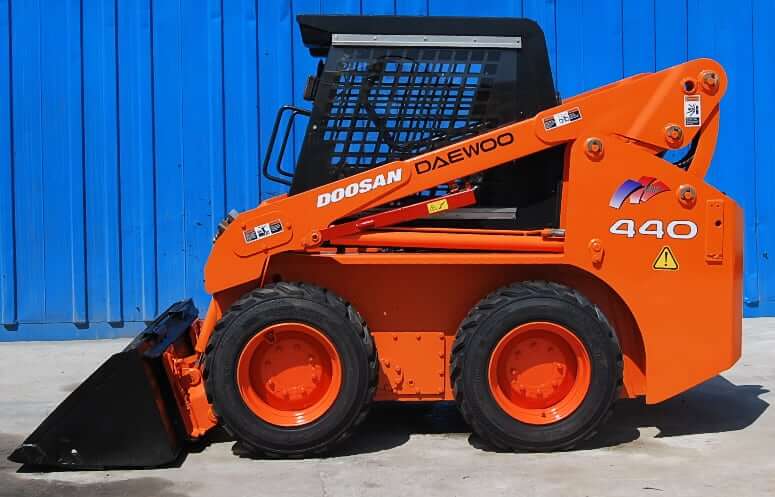

Loader
| Bucket Capacity | 0.445 yd3 (0.34 m3) |
| Operating Load Rating | 1973 lb (895 kg) |
| Breakout Force (Bucket) | 2910 lb (1320 kg) |
| Breakout Force (Boom) | 3285 lb (1490 kg) |
| Tipping Load | 3946 lb (1790 kg) |
| B. Hinge Pin Height | 114.8 in (2915 mm) |
| K. Dump Angle | 45° |
| L. Dumping Height | 87.6 in (2224 mm) |
| M. Maximum Reach | 25.4 in (645 mm) |
| N. Max. Rollback at Ground | 25° |
| O. Max. Rollback- Extended | 94° |

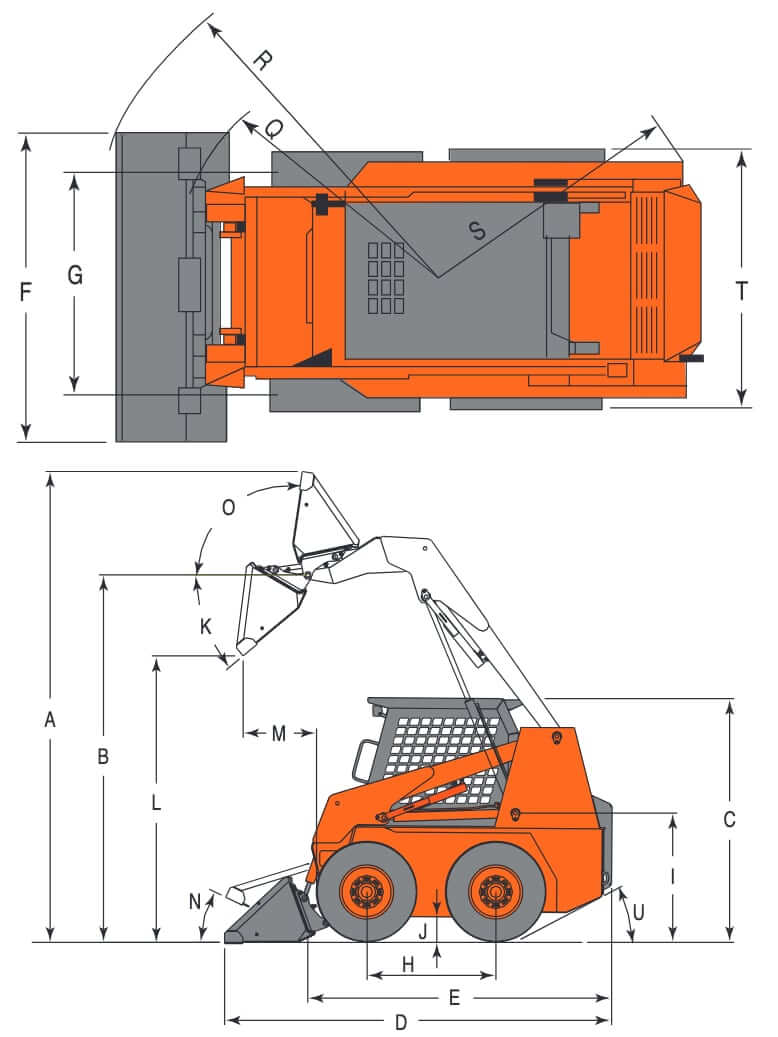

Dimensions
| A. Height at Maximum Extension | 145.8 in (3704 mm) |
| B. Hinge Pin Height | 114.8 in (2915 mm) |
| C. Height To Top Of Cab | 76.9 in (1954 mm) |
| D. Length with Bucket | 126.3 in (3208 mm) |
| E. Length without Bucket | 99.3 in (2521 mm) |
| F. Width with Bucket | 63.4 in (1611 mm) |
| G. Track Width | 58.5 in (1486 mm) |
| H. Wheelbase | 42.3 in (1074.8 mm) |
| I. Seat Index Point | 37.8 in (959 mm) |
| J. Ground Clearance | 7.5 in (190 mm) |
| K. Dump Angle | 45° |
| L. Dumping Height | 87.6 in (2224 mm) |
| M. Maximum Reach | 25.4 in (645 mm) |
| N. Max. Rollback at Ground | 25° |
| O. Max. Rollback- Extended | 94° |
| Q. Clearance Circle w/o Bucket | 51.3 in (1304 mm) |
| R. Clearance Circle with Bucket | 74.8 in (1901 mm) |
| S. Clearance Circle- Rear | 63.3 in (1607 mm) |
| T. Width w/o Bucket | 48.1 in (1222 mm) |
| U. Departure Angle | 26° |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Cummins |
| Engine Model | Cummins A2300 |
| Displacement | 139.8 cu in (2.29 L) |
| Net Power | 47 hp (35 kw) |
| Power Measured @ | 2600 rpm |
| Peak Torque | 110.7 lb ft (150 Nm) |
| Torque Measured @ | 1600 rpm |
Operational Specs
| Operational Weight | 6133 lb (2782 kg) |
| Operating Voltage | 12 V |
| Max Travel Speed | 7.3 mph (11.8 km/h) |
| Front Tire Size | 10-16.5-8PR |
| Rear Tire Size | 10-16.5-8PR |
Hydraulic System
| Pump Type | Gear type |
| Pump Flow Capacity | 15.8 gal/min (59.8 L/min) |
| Pump Flow Capacity (High Flow) | 27.5 gal/min (104 L/min) |
Service Refill Capacities
| Fuel Tank Capacity | 14.3 gal (54 L) |
| Engine Oil Capacity | 1.85 gal (7 L) |
| Cooling System Capacity | 0.85 gal (3.2 L) |
| Hydraulic Tank Capacity | 7.9 gal (30 L) |
| Chain Box Capacity (each side) | 1.98 gal (7.5 L) |
