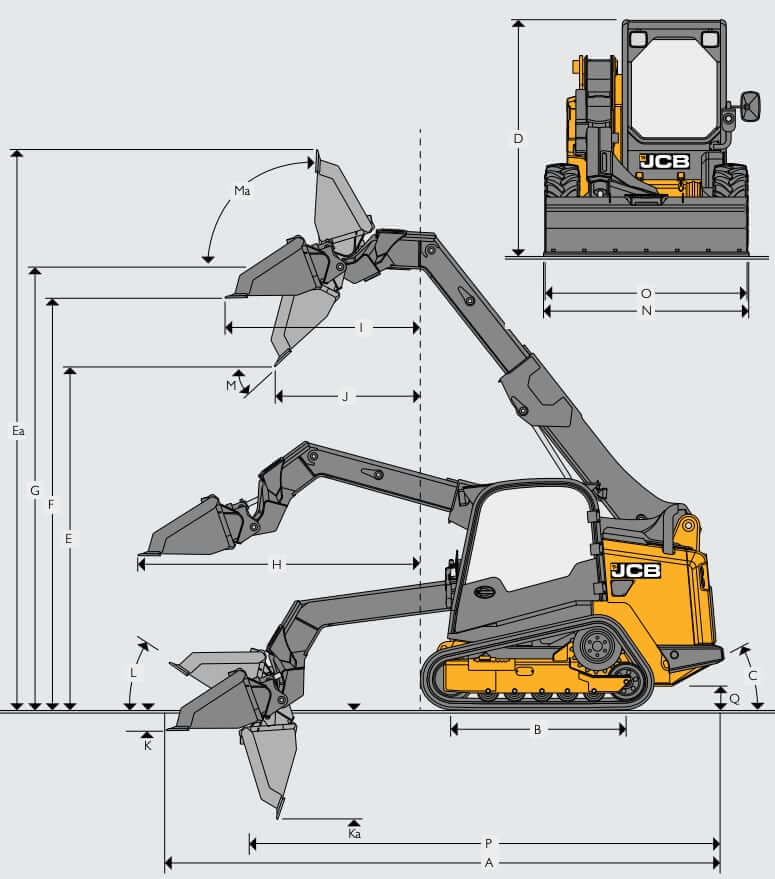

Dimensions
| Width Over Tires | 6.57 ft in (2000 mm) |
| Ground Clearance | 9.38 in (238 mm) |
| Height To Top Of Cab | 6.89 ft in (2100 mm) |
| Wheelbase | 6.89 ft in (2100 mm) |
| Max. Rollback Angle | 94 degrees |
| Rollback @ Ground | 30 degrees |
| Standard Bucket Width | 72.84 in (1850 mm) |
| Length Without Attachment | 9.91 ft in (3.02 m) |
| Dig Depth | -393.7 in (-10000 mm) |
| Dump Angle | 42 degrees |
| Angle Of Departure | 29 degrees |
Engine Details
| Emission Standards | EPA-T4F (EU St3B) |
| Fuel | Diesel |
| Engine Oil Service Interval Hours | 500 |
| Starter Motor | 4.2 Kw |
| Battery | 12 V |
| Engine Model | EcoMAX TCAE-55 |
| Gross Power | 74 hp (55.2 kw) |
| Cooling System | Water |
| Power Measured @ | 2400 rpm |
| Max Torque | 295.1 lb ft (400 Nm) |
| Torque Measured @ | 1200 rpm |
| Aspiration | Turbo |
| Displacement | 268.5 cu in (4.4 L) |
| Alternator | 95 amps |

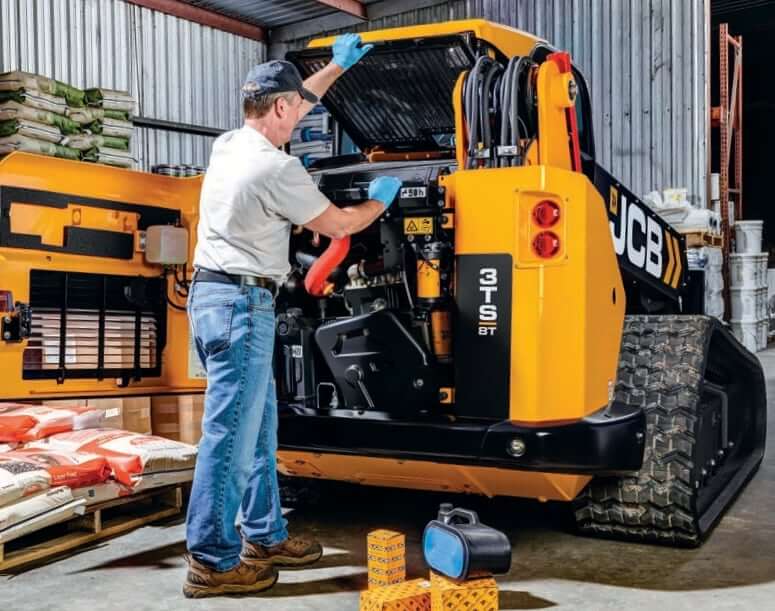

Operational Specs
| Fuel Tank Capacity | 27.3 gal (103 L) |
| Cooling System Fluid Capacity | 5.9 gal (22 L) |
| Engine Oil Fluid Capacity | 3.7 gal (14 L) |
| Hydraulic System Fluid Capacity | 14.6 gal (55 L) |

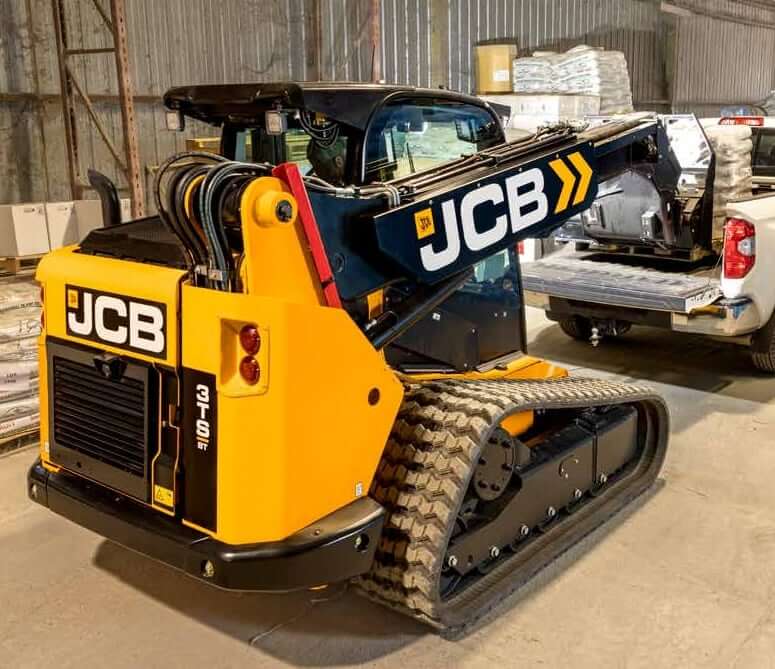

Weights
| Cab | 12614.9 lb (5722 kg) |
| Operating Weight – Rops Canopy | 12482.6 lb (5662 kg) |
Loader
| Tipping Angle | 4612.1 degrees (4612.0702 degrees) |
Hydraulic
| R.O.C Extended | 1613.8 lb (732 kg) |
| Loader Lift Extended | 3873.6 lb (1757 kg) |
| Shovel Tilt Extended | 6516.9 lb (2956 kg) |
| Main Relief Pressure | 3335 psi (22994 kPa) |
| Pump Flow Capacity | 23.8 gal/min (90 L/min) |
