Loader
| Rated Operating Capacity (35% Tipping Load) | 1950 lb (885 kg) |
| Tipping Load | 3900 lb (1770 kg) |
| Breakout Force (Bucket) | 4839 lbf (21.5 kN) |
| Breakout Force (Lift arm) | 3858 lbf (17.2 kN) |
| Bucket Width | 68 in (1753 mm) |
| Lift Arm Path | Vertical |

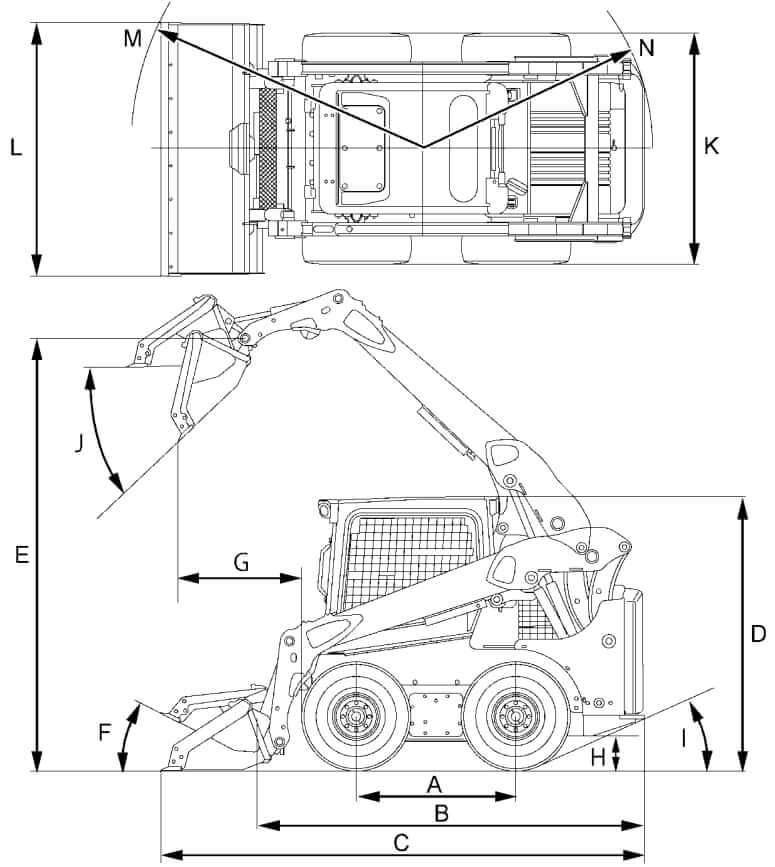

Dimensions
| A. Length of Tire on Ground | 44.3 in (1125 mm) |
| B. Length without Bucket | 106.3 in (2700 mm) |
| C. Length with Bucket on Ground | 135.4 in (3439 mm) |
| D. Height to Top of Cab | 79.9 in (2029 mm) |
| E. Bucket Hinge Pin Height at Max. Lift | 121.5 in (3085 mm) |
| F. Rollback Angle at Carry Position | 27° |
| G. Reach at Max. Lift and Dump | 32.7 in (831 mm) |
| H. Ground Clearance | 7.6 in (193 mm) |
| I. Departure Angle | 23.9° |
| J. Max. Dump Angle | 41° |
| K. Vehicle Width (Standard Track) | 66.5 in (1689 mm) |
| L. Width with Bucket | 69 in (1753 mm) |
| M. Turning Radius from Center – Machine Front w/ Bucket | 92.3 in (2345 mm) |
| N. Turning Radius from Center – Machine Rear | 53.7 in (1364 mm) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Kubota |
| Engine Model | Kubota V2607-CR-TE4 |
| Displacement | 159.7 cu in (2.615 L) |
| Bore | 3.5 in (87 mm) |
| Stroke | 4.4 in (110 mm) |
| Gross Horsepower | 64.0 hp (47.7 kw) |
| Net Horsepower | 61.3 hp (45.7 kw) |
| Power Measured @ | 2700 rpm |
| Low Idling Speed @ | 1250 rpm |
| Peak Torque | 166 lb ft (225 Nm) |
| Torque Measured @ | 1600 rpm |
| Combustion System | Direct injection |
| Fuel System | Common rail system |
| Aspiration | Turbocharged |
| Aftertreatment | DOC + DPF |
| Emission Standards | US EPA/CARB Tier 4 + EU Stage IIIB |
Powertrain
| Type | Hydrostatic transmission with electronic travel torque management |
| Number of Gears | Two-speed travel |
| Max Travel Speed (Low) | 6.9 mph (11.1 km/h) |
| Max Travel Speed (High) | 11.1 mph (17.8 km/h) |
| Traction Force | 7339 lbf (32.6 kN) |
| Shockless Ride | Kubota Shockless Ride (KSR) (optional) |
Operational Specs
| Operating Weight (Open Cab) | 7099 lb (3220 kg) |
| Operating Weight (Closed Cab) | 7319 lb (3320 kg) |
| Max Operating Lift Capacity (ROC) | 1950 lb (885 kg) |
| Operating Voltage | 12 V |
| Alternator (Open Cab / Closed Cab) | 60 amps (80 amps) / 60 amps (100 amps) |
| Battery | 12 V, 85.3 Ah, RC: 160 min, CCA 900, GP31 (105E41R) |
| Tire Size | 10-16.5-8PR Heavy Duty |
| Chain Size ASA# | 80 |
Cab
| Cab Safety | OSHA-certified ROPS/FOPS |
| Cab Front Height | 30.7 in (780 mm) |
| Cab Front Width | 39.3 in (1141 mm) |
| Operator Seat | The standard suspension seat. (Air Suspension seat is optional) |
| Seat Belt | 3 in (76.2 mm) Retractable seat belt |
| Working Lights | 2x Front + 2x Rear working lights + 2x Side lights |
| Sliding Side Windows | The front sections of both side windows slide open towards the back of the cab |
| Side-window Grille | The side-window grilles are installed on the inside to let you easily clean the outer glass surfaces of the windows |
Hydraulic System
| Type | Standard hydraulics / High Flow hydraulics (optional) |
| Standard Pump Flow | 18 gal/min (68 L/min) |
| High Flow Pump Flow | 28 gal/min (106 L/min) |
| Standard Relief Valve Pressure | 3271 psi (22553 kPa) |
| Multi-function Levers (optional) | The optional multi-function levers provide fingertip control of all major vehicle and attachment operations |
| AUX Hydraulic Line | AUX hydraulic lines routed inside the arm |
Service Refill Capacities
| Fuel Tank Capacity | 25.4 gal (96 L) |
| Engine Oil Capacity | 1.98 gal (7.5 L) |
| Cooling System Capacity | 1.8 gal (6.8 L) |
| Cooling Recovery Tank | 0.5 gal (2 L) |
| Hydraulic System Fluid Capacity | 9.25 gal (35 L) |
| Hydraulic Tank Capacity | 3.0 gal (11.2 L) |
| Chain Case Oil Capacity (each) | 5.4 gal (20.5 L) |
Kubota SSV65 Attachmets
The Kubota SSV65 Skid Steer Loader is built to handle a wide variety of jobs with power, precision, and versatility. Engineered for performance in construction, landscaping, agriculture, and snow management, the SSV65 supports an extensive lineup of compatible attachments.
From trenchers, augers, and grapples to blades, brooms, snow blowers, and buckets, this machine is ready to tackle digging, grading, clearing, lifting, and loading tasks with ease. Whether you’re moving earth, managing debris, or prepping a job site, the Kubota SSV65’s robust hydraulic system and quick-attach coupler make it a reliable platform for efficient tool changeover and maximum productivity across all seasons.
| Tool Type | Models | Key Features |
|---|---|---|
| SC25 Skid Cutters | SC2560, SC2572 | 2″ Diameter cut capacity. 1-1/2″ – 18″ Cutting height; infinitely variable. 10 Gauge steel deck; 1/4″ side skirt |
| SC40 Skid Cutters | SC4060, SC4072 | 4″ Diameter cut capacity. 1/4″ Deck thickness. Pressure gauge. Tapered full length skid shoes |
| Skid Tillers | SRT62, SRT76 | Case drain protection. Adjustable ripper shanks. Forward or reverse rotation. Replaceable skid shoes with depth control. Spiral rotor design with C-shaped bi-directional tines. 6″ Offset capability |
| Primary Seeders | PS2072, PS2086 | Patent pending bi-directional seed cups. Universal Quick-Attach Hitch and 3-Point Hitch standard. Large capacity seed box. Floating packer wheels to follow the contours |
| Box Blades | BB3084, BB3096 | Bi-directional with hinged cutting edge. Floating front axle. Replaceable side plates with adjustable side cutters. Lift/tilt with parallel links standard. Ability to accept attachment control system |
| 6-Way Dozer Blades | DZ3084, DZ096 | 3/8″ Moldboard w/full boxed bracing. 3/4″ x 8″ Reversible cutting edge – 3 piece design. 3″ Pivot pins. 3-1/2″ x 8″ Welded cylinders. 1/2″ x 4″ Full length wear bar |
| Powered Rakes | SR2772, SR2790 | Float or rigid option. Manual or hydraulic angle. Cast chain housing. Carbide tipped studs |
| Ripper | RP30 | 5 Shank design with replaceable tips. Skid shoes. Patented level indicator |
| Skid Augers | SA20, SA35 | SA20: 2″ Hex output shaft Center & 18” offset mount to the right. SA35: 2″ Hex or 2-9/16″ round output shaft. Planetary gearbox. Patented level indicator on SA20 |
| Skid Graders | SG2572, SG2584 | Ripper teeth break compacted soils. Bi-directional blades; Adjustable cutting angles. Replaceable skid shoes. Bucket carrier lugs on top |
| Trenchers | TR48, TR60 | Adjustable spoil auger. Manual or hydraulic sideshift. 6″, 8″, 10″ Width chain options. 4 teeth configurations. Patented depth gauge |
| Angle Brooms | AB72, AB84 | 32″ Brush diameter. Replaceable hex drive system. Poly, wire, or combination bristles. Optional dust suppression system with 25 gallon tank |
| Buckets | HD66, HD68, HD74 | 66″ (1.67 m), 68″ (1.72 m), 74″ (1.87 m). Available with standard floor or long floor. Available with weld-on teeth or bolt-on edge. 3/16″ Shell on heavy-duty. Standard side cutters |
| Claw Grapples | SGC2072, SGC2084 | 6″ Teeth spacing. 1/2″ Tooth thickness. High tensile AR400 steel. 6″ x 6″ Frame tube |
| 4-in-1 Buckets | CB2568, CB2574, CB2580, CB3574, CB3580, CB3584 | 4-in-1 Design: bucket, scraper, grapple, and dozer. Dual cutting edge on jaw. Bolt-on edge on back blade. Cylinder protection. Struck cap. 10–17 cu. ft.; Heaped cap. 15–24 cu. ft. |
| Hopper Brooms | HB74, HB84 | Heavy-duty bucket design – 3/16″ shell. Bucket tapered front to back to hold material in. 26″ Replaceable brush. Tool-less height adjustment. Heavy-duty metal top with bump protection |
| Light Material / Snow Buckets | LM2584, LM2596, LM25108 | See through backplate for visibility. Optional bolt-on cutting edge. Heavy-duty construction. Inside bend gussets |
| Loader Boom | LB60 | 6″ x 6″ Tube construction. Two 1″ lifting lugs. Stabilizer chain connections in side plates |
| Pallet Forks | PFL5648, PFL5660 | PFL56: 48″, 60″. Forks adjust to 4″ spacing. Spring loaded toggle fork position lock. Wide frame with step. Removeable top center bracket |
| Rock Grapples/Buckets | SGR1566, SGR1572, SGR1578, SRB1566, SRB1572, SRB1578 | 3″ Teeth spacing. 3/8″ Tooth thickness. 37″ Jaw opening. Independent grapples |
| Root Grapples | RG3068, RG3074, RG3080 | Gusseted 1/2″ frame tines. 3/4″ Thick grapple tines. Greaseable pivot points. Wide tine spacing. Zinc-plated steel hydraulic lines |
| Scrap Grapple Buckets | GB3068, GB3074, GB3080 | 1/4″ Shell material. 1/2″ End panels. Five wear bars on bottom. 3/4″ Grapple tines. Zinc-plated steel hydraulic lines |
| Stump Grinders | SSG2024, SSG2524 | 8-21 gpm. Fits Optional mounts. 24″ Cutting wheel. Direct drive. 15 Wearsharp teeth. Maximum cutting arc of 55°. Hydraulic motor with electric over hydraulics. Depth of 8″ below ground. |
| Tree/Post Pullers | STP15, STP25 | 10″ Jaw opening. Laser cut saw tooth design. Interlocking teeth on the jaws. 3″ x 3-1/2″ Square tubing frame |
| Utility Buckets | UB25 | Replaceable pin-on tooth tips. Angled bottom to aide in leverage. Top tapered ripper teeth in sidewall. Hardened cutting edge |
| Breakers | KXB310, KXB360, KXB460 | Multiple tool options. Wear resistant steel housing. Replaceable seal and bushing. CBE Constant blow energy |
| Cold Planers | CP3012LF, CP3016LF, CP3018, CP3024, CP3030, CP3040, CP3048 | Independent RH/LH skid shoe control. Hydraulic tilt, depth, and sideshift integrated into multi-function grips of the SSV65 / SSV75. Optional water system. Removable cutting teeth. 3 Line set up (pressure, return, and case drain) |
| Concrete Claw | CC30 | 3/4″ Side plates. 1/2″ Floor pan. Long floor for more leverage. 3 Replaceable teeth |
| Road Saws | SW3010-2.5, SW3010-4.5, SW3018-3.0, SW3018-4.5, SW3018-6.0 | Hydraulic control of sideshift and depth. Either 10″ or 18″ cutting depth. 2.5″ – 6″ Cutting width |
| SBL25 Snow Blowers | SBL2566, SBL2574, SBL2584 | 3/16″ Side plate material. 24″ Diameter impeller; 4 Impeller blades. 16″ Diameter auger; 4 Auger paddles |
| SBL30 Snow Blowers | SBL3074, SBL3084 | 74″ and 84″ models. 17-23 gpm or 27-33 gpm. 16″ Rotor. 26″ 5 blade impeller. Adjustable skid shoes. Fold over chute |
| K Series Snow Blowers | K66247HB, K76249HB, K76249HH, K842611HH | 66”, 76” and 84” models available. 3 piece chute. Reversible cutting edge. Adjustable skid shoes. Hydraulic operated chute. Load sensing hydraulics |
| Snow Pushers | SSP2596 | Adjustable rubber or steel cutting edge. AR400 skid shoes. Rubber pull back blade option. Gusseted corners for strength |
| Trip Edge Blades | TE3596, TE35108 | 22° Oscillation of blade to follow contour of the surface. 30° Angle right and left. Heavy-duty tension springs. Radiused blade rolls snow efficiently |
| Skid Hitch | SH35 | Fits Cat. 1 or 2 tractor implements. Adjustable top hook. Universal skid plate. Built in 2″ receiver hitch. Automatic locking |
| Tilt Hitch | TH35 | 20° Tilt in either direction. Angle gauge and level – standard. Nylon slide pads |
